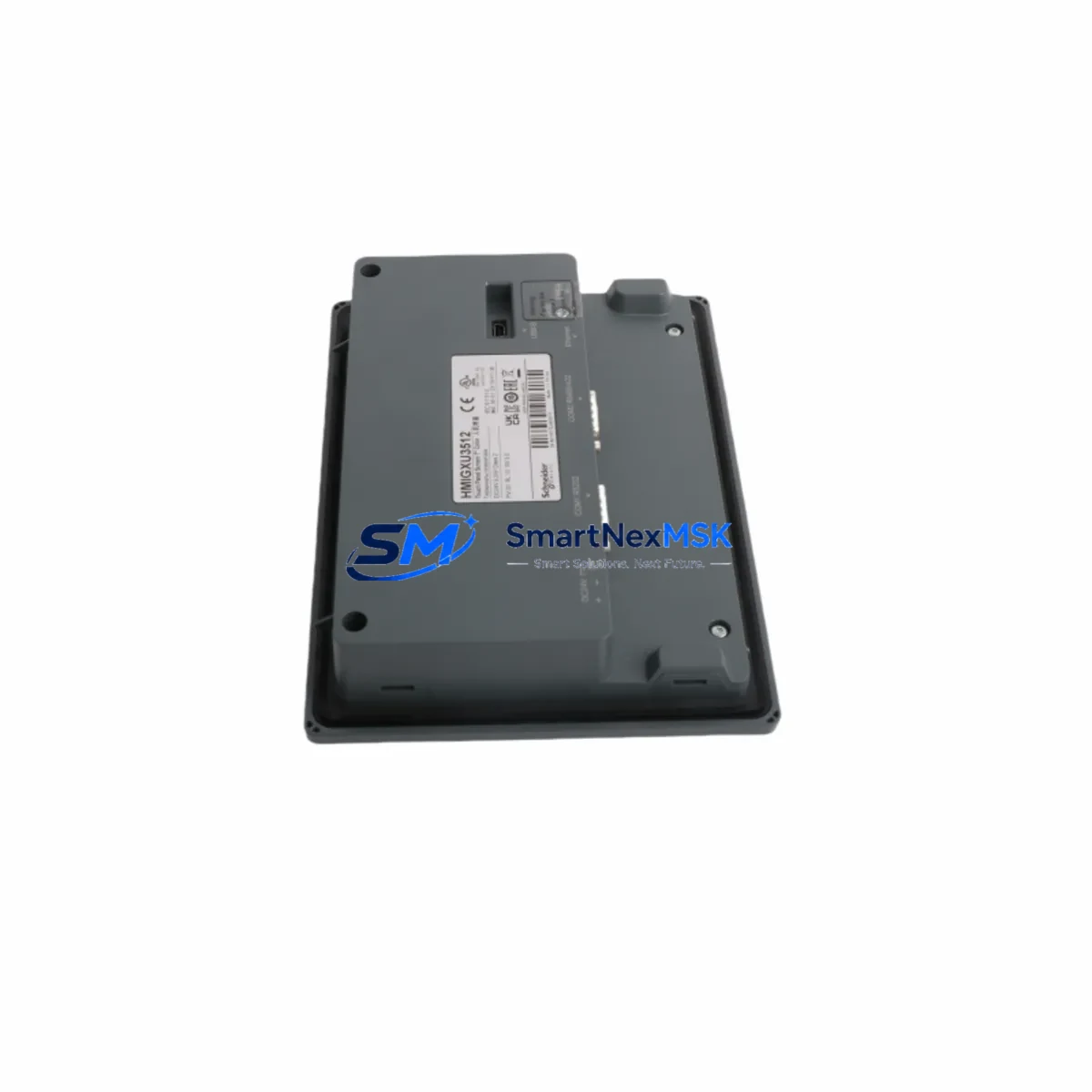

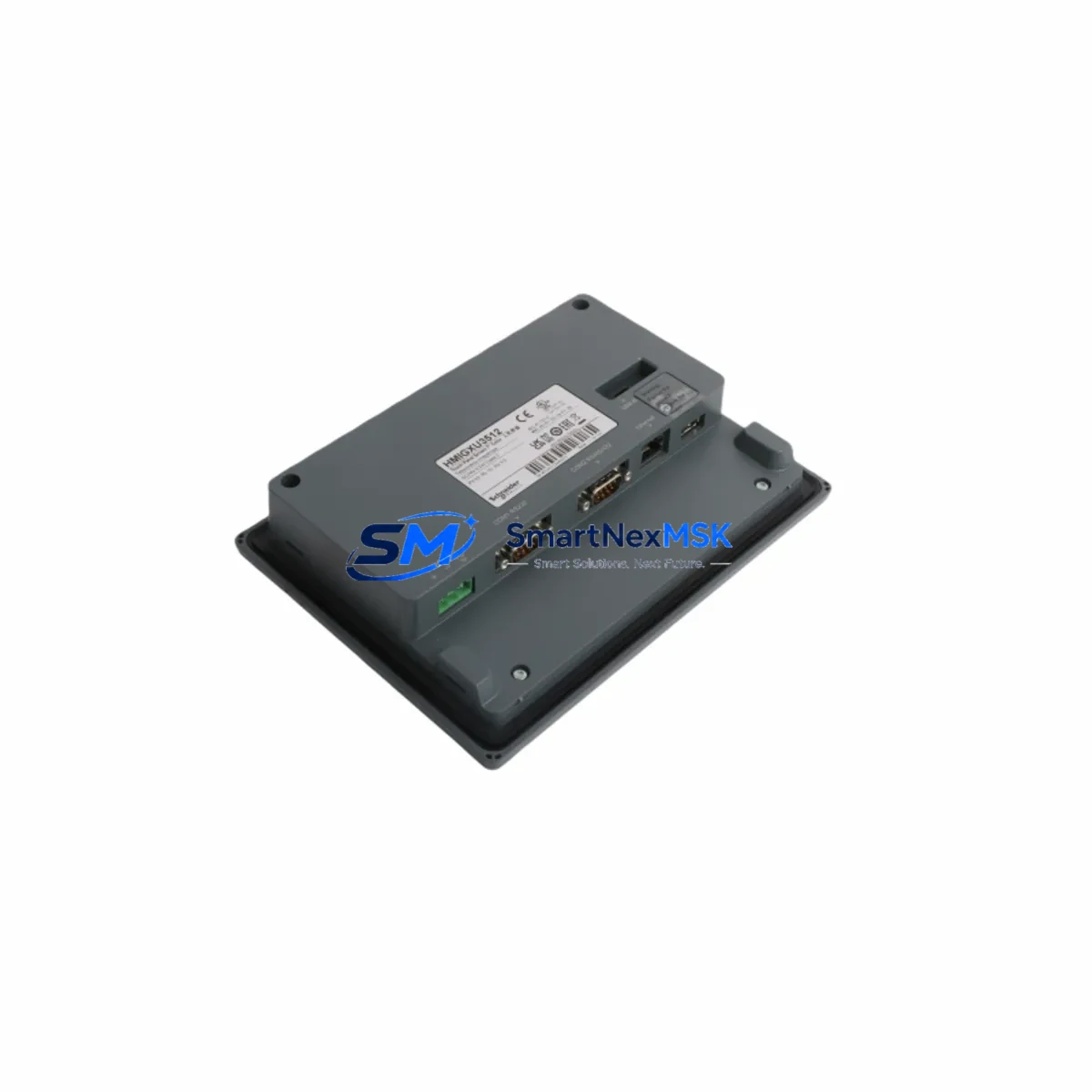

Schneider HMIGXU3512 Retrofit-Ready HMI for Magelis GXU Control Systems
The Schneider Electric HMIGXU3512 is a compact, high-performance Human-Machine Interface (HMI) panel engineered for seamless integration into existing Magelis GXU-series control architectures. As legacy Magelis XBTGT and XBTGK panels reach end-of-life and spare parts become increasingly scarce, the HMIGXU3512 provides a validated, drop-in upgrade path that preserves existing wiring infrastructure, communication protocols, and operator screen logic with minimal engineering rework.
Designed for industrial environments demanding continuous uptime, the HMIGXU3512 supports Modbus RTU, Modbus TCP/IP, EtherNet/IP, and CANopen communication links — ensuring compatibility with Schneider Modicon M340, Modicon M580, and Modicon Premium PLC platforms without requiring protocol gateway hardware. Its 3.5-inch QVGA resistive touchscreen, USB host port, and SD card slot allow rapid program transfer and on-site configuration, reducing commissioning time during planned maintenance windows.
Upgrade Compatibility Table
| Parameter | Legacy Model (XBTGT/XBTGK) | HMIGXU3512 Replacement |
|---|---|---|
| Display Size | 3.5″ STN/TFT | 3.5″ QVGA TFT Color |
| Communication Ports | RS-232 / RS-485 | RS-232, RS-485, USB, Ethernet |
| Protocol Support | Modbus RTU, Uni-Telway | Modbus RTU/TCP, EtherNet/IP, CANopen |
| Power Supply | 24 VDC | 24 VDC (±20%) |
| Panel Cutout | 92 × 92 mm | 92 × 92 mm (direct fit) |
| Programming Software | Vijeo Designer 4.x | Vijeo Designer 6.2+ |
| Installation Type | Panel mount | Panel mount (same DIN rail bracket) |
| Warranty | N/A (EOL) | 12-Month Warranty |
| Retrofit Recommendation | — | Direct replacement; screen migration via Vijeo Designer export/import |
| Commissioning Note | — | Verify COM port address mapping and baud rate before power-on |
Retrofit Planning for Existing Automation Systems
Successful integration of the HMIGXU3512 into a legacy control cabinet begins with a thorough pre-retrofit audit. Engineers should document the existing terminal block wiring layout — particularly the 24 VDC power feed, RS-485 signal lines, and any shielded communication cables connected to the outgoing panel. The HMIGXU3512 uses the same 92 × 92 mm panel cutout as the XBTGT2120 and XBTGT2330, meaning the cabinet door requires no mechanical modification in most installations.
On the PLC side, confirm that the Modicon M340 CPU (such as the BMX P34 2020 or BMX P34 2030) retains its existing Modbus RTU slave address configuration. If the legacy system used a Uni-Telway network, a protocol migration to Modbus RTU or Modbus TCP/IP via the BMX NOE 0110 Ethernet module is recommended before commissioning the new HMI. For systems running on a Modicon Premium rack with a TSX P57 CPU, the HMIGXU3512 connects natively via the TSX SCP 114 RS-485 communication card without additional adapters.
I/O expansion modules such as the BMX DDI 1602 digital input module and BMX AMO 0210 analog output module do not require reconfiguration when the HMI is swapped, as the PLC program logic and I/O addressing remain unchanged. However, engineers should verify that the BMXXBP 0800 backplane rack seating and module slot assignments are correctly reflected in the Unity Pro or EcoStruxure Control Expert project file before downloading any updated HMI screens.
For control cabinets that include a Zelio Logic SR3B261BD smart relay or a Lexium 32A servo drive communicating via CANopen, the HMIGXU3512’s built-in CANopen master port eliminates the need for a separate communication gateway, simplifying the retrofit bill of materials. Power supply units such as the ABL8REM24030 regulated SMPS should be verified to confirm they can sustain the 24 VDC rail under the combined load of the new HMI, communication modules, and any additional I/O cards added during the upgrade.
All replacement units are pre-tested prior to shipment, with factory acceptance test records available upon request. Stock is maintained for immediate dispatch, supporting both planned retrofit projects and emergency breakdown replacements. A 12-month warranty covers all units against manufacturing defects from the date of invoice.
Downtime Control During System Migration
Minimizing production downtime during an HMI retrofit requires a structured migration plan executed in parallel with normal operations wherever possible. Begin by exporting the existing Vijeo Designer project from the legacy XBTGT panel using the USB or SD card interface before the scheduled maintenance window. Import the project into Vijeo Designer 6.2 or later, run the automatic screen conversion wizard, and validate all alarm pages, trend displays, and recipe screens in simulation mode before the physical swap.
During the cutover window, label all terminal connections on the existing panel before disconnection. The HMIGXU3512 uses identical terminal pin assignments for 24 VDC power and RS-485 communication, allowing direct reconnection without rewiring. After physical installation, power on the panel and verify the communication link to the Modicon M340 or M580 CPU by checking the Modbus diagnostic counters in Unity Pro. Confirm that all HMI variable bindings resolve correctly and that operator alarm acknowledgement functions are active before releasing the line back to production.
For systems where continuous control is critical, consider deploying a temporary Magelis HMIGTO2310 as a parallel monitoring terminal during the transition period, allowing operators to maintain visibility of process variables while the primary HMI is being replaced. This approach is particularly effective in batch processing and conveyor control applications where operator intervention is frequent. The entire cutover process, from panel removal to verified communication, typically completes within 45–90 minutes for a prepared engineering team.
Retrofit Support FAQ
Q: Is the HMIGXU3512 a direct drop-in replacement for the XBTGT2120?
A: Yes. The HMIGXU3512 shares the same 92 × 92 mm panel cutout and 24 VDC power requirements. Existing RS-485 wiring can be reconnected directly. Screen projects require migration via Vijeo Designer’s conversion tool, which preserves most graphic objects and variable bindings automatically.
Q: What communication protocols does the HMIGXU3512 support for legacy PLC connections?
A: The HMIGXU3512 supports Modbus RTU (RS-232/RS-485), Modbus TCP/IP (Ethernet), EtherNet/IP, and CANopen. Legacy Uni-Telway networks require a protocol migration step; contact our technical team for a migration checklist specific to your PLC model.
Q: How is the unit tested before shipment?
A: Every HMIGXU3512 unit undergoes a full power-on functional test, communication port verification, and display calibration check before dispatch. A test report is available upon request. All units are covered by a 12-month warranty from the invoice date, covering manufacturing defects and component failures under normal operating conditions.
Q: Can the HMIGXU3512 be used with third-party PLCs outside the Schneider ecosystem?
A: Yes. The Modbus RTU and Modbus TCP/IP driver libraries in Vijeo Designer support a wide range of third-party PLC brands. For Siemens S7-300/S7-400 systems or Allen-Bradley MicroLogix platforms, custom driver configurations are available. Confirm the target PLC’s communication port specifications and slave address range before finalizing the wiring design.
