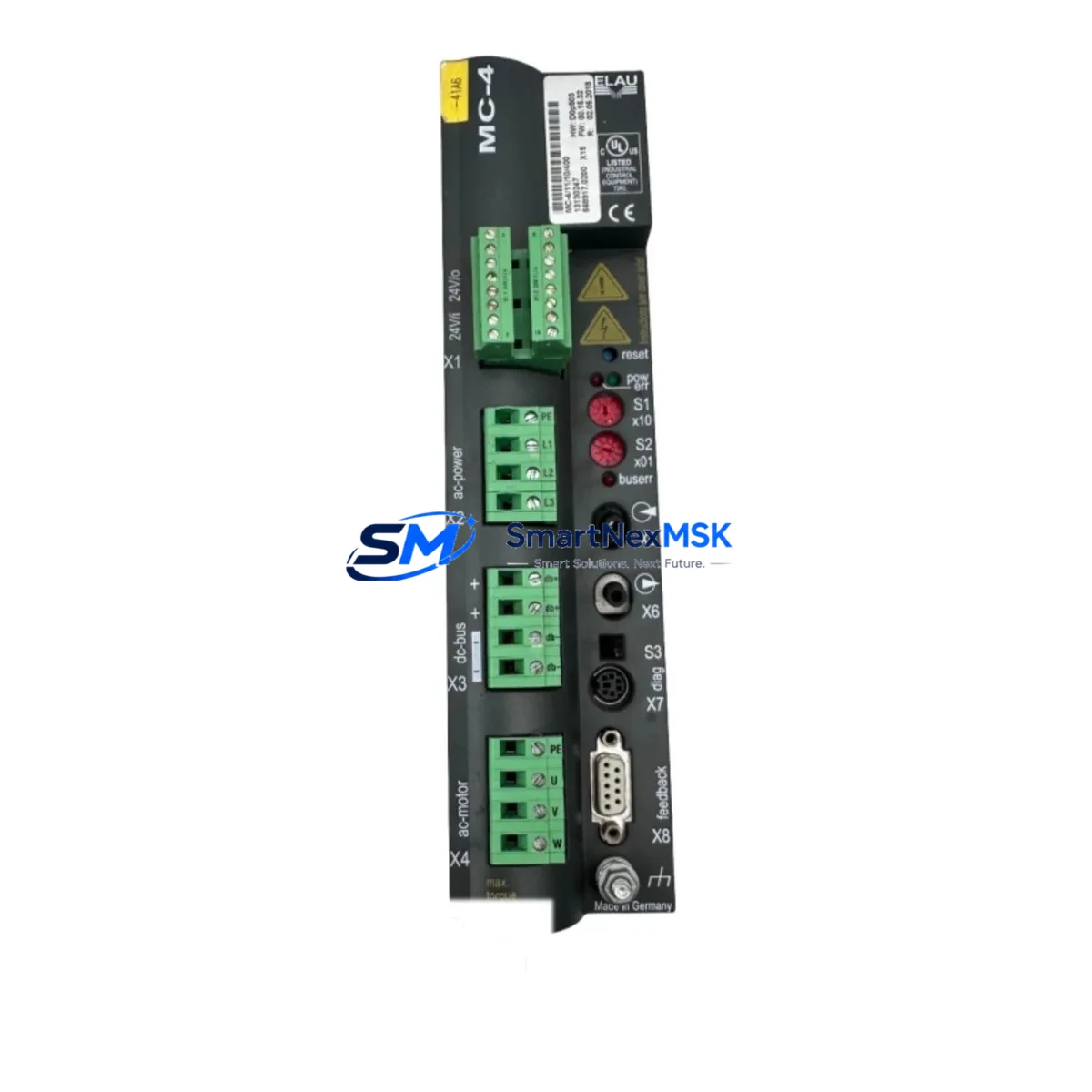

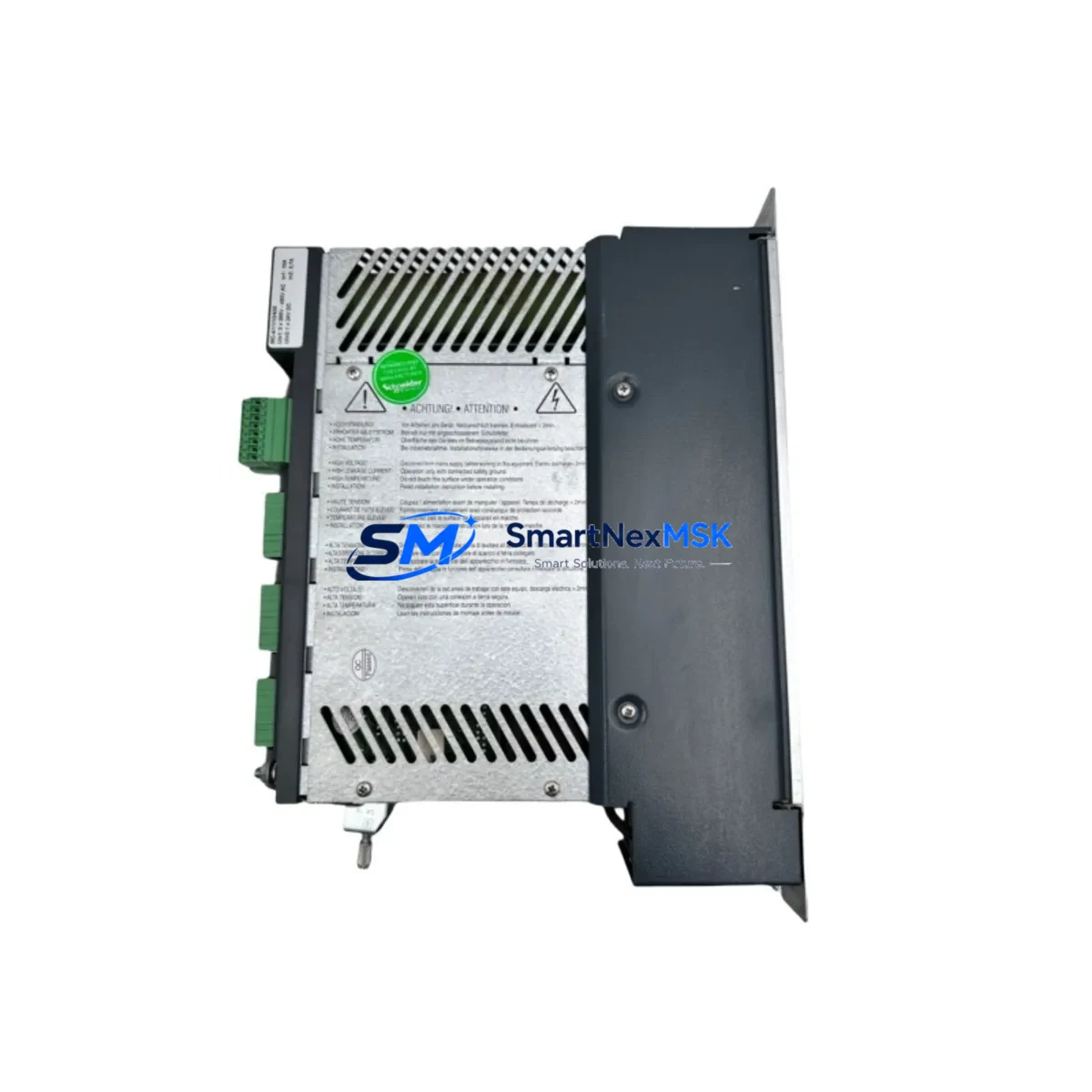

Schneider MC-4/11/10/400 HW:E0P603 Safety Motion Controller

Schneider MC-4/11/10/400 HW:E0P603 Safety-Enhanced Motion Controller for Harsh Industrial Sites

The Schneider Electric MC-4/11/10/400 HW:E0P603 SW:00.22.03 is a high-performance multi-axis motion controller from the ELAU PAC Drive series, engineered for continuous, safety-critical operation in demanding industrial environments. Designed to manage up to four coordinated servo axes simultaneously, this controller delivers deterministic real-time control with robust resistance to electromagnetic interference, voltage transients, and mechanical vibration — making it a trusted backbone for control cabinets in petrochemical plants, power generation facilities, mining operations, water treatment systems, metallurgical lines, port logistics, and continuous manufacturing processes.

In high-load production environments where control interruption is not an option, the MC-4/11/10/400 provides the processing stability and signal integrity required to maintain safe, synchronized motion across complex machine architectures. Its hardware revision E0P603 reflects a mature, field-proven design with enhanced firmware compatibility under software version 00.22.03, ensuring long-term operational consistency and reduced risk of unexpected module behavior during extended production runs.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the MC-4/11/10/400 HW:E0P603 within a well-engineered control cabinet requires a layered protection approach to ensure uninterrupted motion control and personnel safety. At the power supply level, pairing this controller with a Schneider Electric Phaseo ABL7 series 24 VDC regulated power supply ensures stable, clean DC input even during upstream grid fluctuations — a critical factor in preventing controller brownout or erratic axis behavior. Surge protection modules such as the Schneider Electric IPRD series transient voltage suppressors should be installed at the cabinet entry point to absorb lightning-induced or switching surges before they reach the PAC Drive bus.

For safe torque-off (STO) and emergency stop integration, the MC-4/11/10/400 is typically paired with Schneider Electric Preventa XPSAF or XPSMF safety relay modules, which monitor E-stop circuits and door interlock switches in compliance with IEC 62061 and ISO 13849 safety standards. These safety relays provide dual-channel monitoring and forced-guided contact verification, ensuring that any single-point failure in the safety circuit is detected and acted upon before a hazardous motion can occur.

On the drive side, the controller interfaces directly with Schneider Electric ELAU SH series servo drives (such as the SH-4/15/3/0 or SH-4/30/3/0), which handle the high-current amplification for servo motor axes. Proper shielding of SERCOS fiber-optic communication rings between the MC-4/11/10/400 and its servo drives eliminates signal drift and communication timeouts that could trigger unplanned axis faults. For cabinet-level communication to supervisory SCADA or DCS systems, Schneider Electric ConneXium managed Ethernet switches provide deterministic, noise-immune data routing.

Thermal management is equally critical: installing Schneider Electric ClimaSys cabinet cooling units or filtered fan assemblies maintains the controller’s operating temperature within specification during high-duty-cycle production, preventing thermal throttling or premature component aging. Additionally, Schneider Electric Zelio Logic smart relays can be used for auxiliary sequencing logic — managing cabinet lighting, door alarms, and auxiliary I/O — without burdening the PAC Drive controller’s real-time motion tasks. Together, these components form a comprehensive, safety-validated control cabinet ecosystem built around the MC-4/11/10/400 as its motion intelligence core.

Critical Industrial Safety Applications

The MC-4/11/10/400 HW:E0P603 is deployed across a wide spectrum of safety-critical industrial sectors where motion control reliability directly impacts personnel safety, product quality, and regulatory compliance.

In petrochemical and refinery facilities, this controller manages multi-axis valve actuator positioning and pump drive coordination in hazardous area control rooms, where any motion fault could trigger process upsets or safety system activations. Its deterministic scan cycle ensures that interlock response times remain within the safety integrity level (SIL) requirements of the process safety management system.

In power generation plants — including thermal, hydro, and wind installations — the MC-4/11/10/400 controls turbine blade pitch actuators, cooling system drives, and auxiliary equipment positioning systems. Its resistance to high-frequency electrical noise generated by large rotating machinery makes it particularly well-suited for generator hall environments.

In underground and surface mining operations, the controller is used in conveyor drive synchronization, hoist control systems, and ore processing equipment, where continuous operation under heavy mechanical load and dusty, vibration-rich conditions demands a controller with proven field reliability and straightforward spare-parts availability.

In water and wastewater treatment plants, the MC-4/11/10/400 coordinates multi-pump sequencing, filter press drive control, and sludge handling systems — applications where unplanned downtime directly affects public health compliance obligations. Its compatibility with standard industrial communication protocols simplifies integration into existing SCADA architectures.

In metallurgical and steel processing lines, the controller manages rolling mill drive synchronization, coiler tension control, and furnace door actuator positioning — all applications requiring sub-millisecond axis coordination and robust immunity to the intense electromagnetic fields generated by large induction furnaces and high-current bus systems.

In port and logistics automation, the MC-4/11/10/400 drives container crane hoisting and trolley positioning systems, where precise multi-axis coordination under variable load conditions is essential for both operational efficiency and crane safety certification compliance.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the MC-4/11/10/400 HW:E0P603?
The 12-month warranty covers all hardware defects, functional failures, and firmware integrity issues identified under normal operating conditions. If the unit fails to perform its specified motion control functions within the warranty period, we provide repair, replacement, or full refund — whichever best resolves the issue. Warranty claims are processed with priority handling to minimize your production downtime.

Q2: What pre-shipment testing is performed on this controller?
Every MC-4/11/10/400 unit undergoes a full functional verification test before dispatch, including power-on self-test confirmation, communication interface handshake verification (SERCOS/CANopen), axis configuration loading, and visual inspection for physical damage. A test report is available upon request for quality documentation purposes.

Q3: Is this unit compatible with existing ELAU PAC Drive servo drive systems?
Yes. The MC-4/11/10/400 HW:E0P603 SW:00.22.03 is fully compatible with the ELAU PAC Drive SH series servo drives and integrates with the standard PAC Drive engineering software environment. Hardware revision E0P603 and software version 00.22.03 are a validated, stable combination widely deployed in production environments. If you have specific firmware or hardware revision compatibility questions for your existing installation, our technical team can advise prior to purchase.

Q4: Can long-term supply and replacement support be guaranteed?
Yes. We maintain dedicated stock of the MC-4/11/10/400 and related PAC Drive components to support both immediate replacement needs and planned maintenance programs. For customers operating multiple units across a production facility, we offer reserved stock arrangements and priority fulfillment agreements to ensure that a critical spare is always available when needed — eliminating the risk of extended downtime due to parts unavailability.
