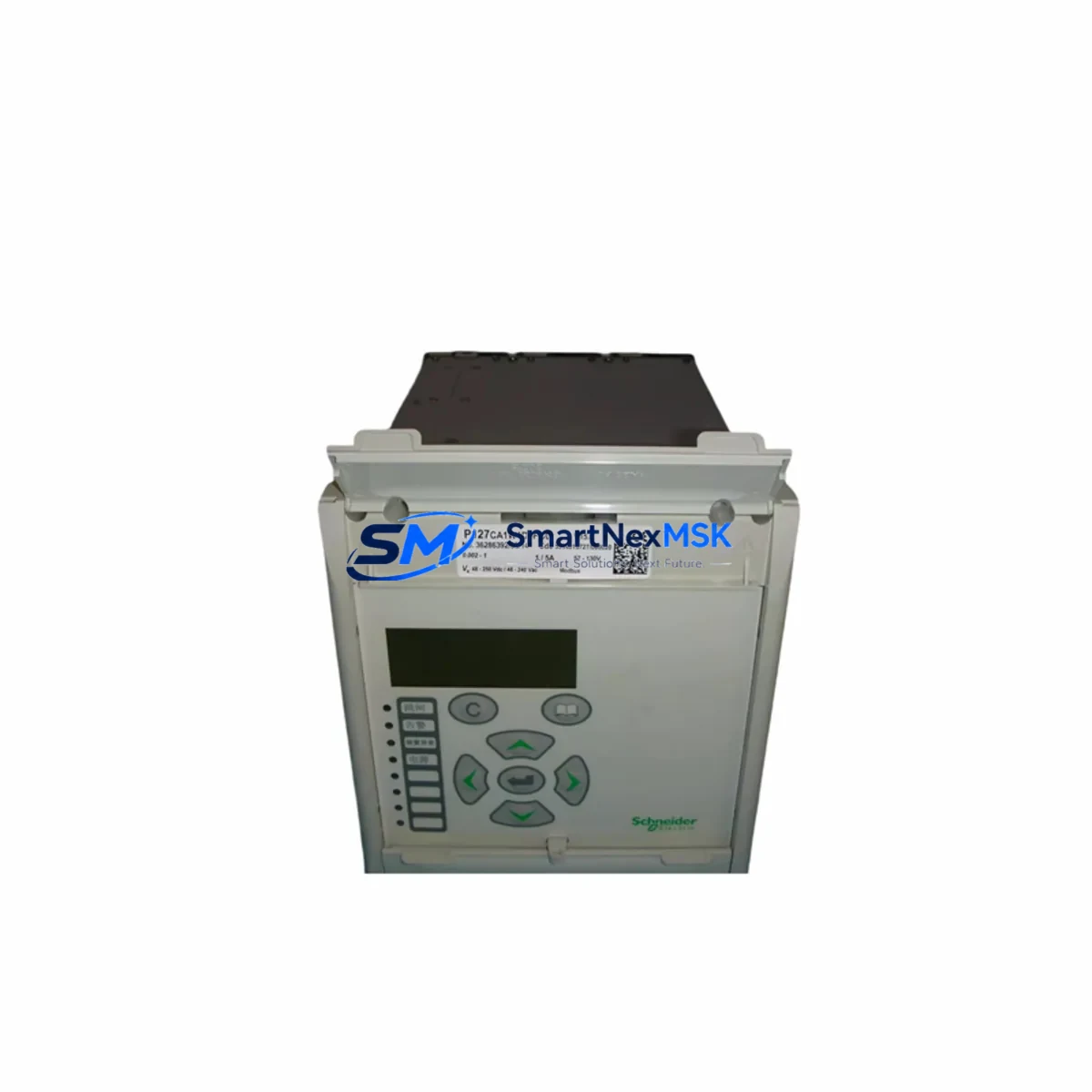

Schneider P127CA1W1D3FC0 Safety Relay for Harsh Sites

Schneider P127CA1W1D3FC0 Safety Relay for Harsh Industrial Sites

The Schneider Electric P127CA1W1D3FC0 is a high-performance numerical protection relay from the renowned Sepam series, engineered specifically for demanding industrial environments where control continuity, personnel safety, and equipment protection are non-negotiable. Designed to operate reliably in the presence of electromagnetic interference, voltage transients, and extreme ambient conditions, the P127CA1W1D3FC0 delivers consistent protective action across a wide range of critical industrial applications — from high-voltage switchgear panels to complex motor control centers and transformer feeder circuits.

In continuous production facilities, power interruptions caused by relay misoperation or delayed fault clearance can result in cascading equipment damage, unplanned downtime, and serious safety incidents. The P127CA1W1D3FC0 addresses these risks through its advanced numerical processing architecture, which provides precise fault detection with minimal operate time, ensuring that overcurrent, earth fault, and directional protection functions respond accurately even under distorted network conditions. Its robust signal processing eliminates the risk of signal drift that commonly affects electromechanical and static relay technologies in high-vibration or thermally stressed environments.

Surge immunity is a critical requirement in heavy industrial sites such as steel mills, petrochemical complexes, and port power distribution systems. The P127CA1W1D3FC0 is built to withstand high-energy transients on both power supply and I/O circuits, reducing the risk of spurious tripping or relay damage caused by switching surges from large motor starters, capacitor banks, or transformer energization. This makes it an ideal choice for integration alongside Schneider Electric Sepam S40 and Sepam S80 series relays in multi-feeder protection schemes, where coordinated fault clearance is essential to maintaining system stability.

Within a well-designed control cabinet, the P127CA1W1D3FC0 works in concert with a range of protective and monitoring components. It is commonly deployed alongside Schneider Electric Vigirex RH10P residual current relays for earth leakage detection, Schneider Electric Zelio Logic SR3B261FU smart relays for auxiliary interlocking, and Schneider Electric Acti9 iC60N circuit breakers for downstream overcurrent protection. In power supply circuits, pairing the P127CA1W1D3FC0 with a Schneider Electric Phaseo ABL8REM24030 regulated DC power supply ensures that the relay’s auxiliary voltage remains stable even during upstream network disturbances, preventing nuisance resets that could compromise protection availability.

For communication-intensive installations using IEC 61850 or Modbus RTU architectures, the P127CA1W1D3FC0 integrates seamlessly with Schneider Electric ConneXium industrial Ethernet switches and Schneider Electric EcoStruxure Power monitoring gateways, enabling real-time protection status reporting, event logging, and remote parameter adjustment without interrupting primary protection functions. This communication capability is particularly valuable in unmanned substations and remote pump stations where on-site intervention must be minimized.

In safety-critical interlock circuits — such as those protecting high-voltage motor feeders in water treatment plants or mining winders — the P127CA1W1D3FC0’s configurable output relay matrix allows engineers to implement dedicated trip, alarm, and blocking outputs with full independence, reducing the risk of common-cause failures. Its compatibility with Schneider Electric Masterpact NW and Compact NS series circuit breakers ensures reliable trip coil actuation even under degraded auxiliary supply conditions.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust industrial control cabinet built around the P127CA1W1D3FC0 requires a layered protection strategy that addresses power quality, signal integrity, and fault isolation simultaneously. At the power supply level, a Schneider Electric Phaseo ABL8REM24030 regulated 24 V DC power supply provides a stable auxiliary voltage rail, while a Schneider Electric Acti9 iC60N C6 miniature circuit breaker protects the auxiliary supply branch against short-circuit faults. Upstream, a Schneider Electric Varlogic NR12 power factor correction controller helps maintain network voltage stability, reducing the frequency of voltage dip events that could challenge relay auxiliary supply hold-up time.

For earth fault and residual current monitoring, the P127CA1W1D3FC0 is complemented by a Schneider Electric Vigirex RH10P residual current relay connected to a dedicated core-balance current transformer on the feeder cable. In motor protection applications, a Schneider Electric TeSys T LTM R motor management relay handles thermal model protection and phase imbalance detection for the driven load, while the P127CA1W1D3FC0 provides upstream overcurrent and earth fault backup protection at the feeder level — creating a two-tier protection architecture that minimizes the risk of both nuisance tripping and fault escalation.

For installations requiring hardwired safety interlock functions, the P127CA1W1D3FC0’s binary inputs accept signals from Schneider Electric Preventa XPS AV safety relay modules, enabling integration of emergency stop and guard door monitoring functions into the protection scheme without compromising the independence of the primary protection relay. All wiring within the cabinet should be segregated between power, control, and communication circuits to maintain the relay’s EMC performance in accordance with IEC 61850-3 installation guidelines.

Critical Industrial Safety Applications

The P127CA1W1D3FC0 is deployed across a broad spectrum of safety-critical industrial sectors. In petrochemical and refinery facilities, it protects transformer feeders and motor control centers in classified hazardous areas, where a protection relay failure could result in uncontrolled fault energy release with severe safety consequences. Its high surge immunity and wide operating temperature range make it suitable for outdoor switchgear kiosks in these environments.

In electric power generation and transmission substations, the P127CA1W1D3FC0 serves as a feeder protection relay in 6 kV to 35 kV distribution switchgear, providing overcurrent and directional earth fault protection with the selectivity and speed required to prevent fault propagation across the busbar. Its Modbus RTU communication port enables integration with SCADA systems for remote monitoring and event retrieval.

In underground and open-cut mining operations, the relay protects high-voltage trailing cable feeders and dragline power circuits, where cable faults and earth leakage events present both equipment damage and electrocution risks. The P127CA1W1D3FC0’s fast earth fault operate time — configurable down to 40 ms — ensures rapid fault clearance before dangerous touch voltages can persist on exposed metalwork.

In water and wastewater treatment plants, the relay protects pump motor feeders and blower drives operating in continuous duty cycles, where an undetected winding fault or sustained overload could cause motor failure and treatment process interruption. Its thermal overload protection function models the motor’s thermal state continuously, providing early warning alarms before a trip is required.

In metallurgical and steel production facilities, the P127CA1W1D3FC0 is used in arc furnace transformer protection schemes and rolling mill drive feeder panels, where high fault currents and severe electromagnetic disturbances demand a relay with proven immunity to conducted and radiated interference. Its numerical architecture ensures that protection settings remain stable and unaffected by the harsh electromagnetic environment generated by high-power thyristor drives and arc furnace electrodes.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the P127CA1W1D3FC0?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the relay fails to perform its specified protection functions within the warranty period, we will provide a replacement unit or full repair at no additional cost. Warranty claims are processed within 5 business days of fault confirmation.

Q2: What pre-shipment testing is performed on each P127CA1W1D3FC0 unit?
Every unit undergoes a full functional test prior to dispatch, including auxiliary supply energization, output relay operation verification, and insulation resistance testing. Units are shipped with original manufacturer packaging and, where available, with factory test certificates. This ensures that the relay arrives on-site ready for commissioning without requiring additional incoming inspection.

Q3: Is the P127CA1W1D3FC0 compatible with existing Sepam series installations and Schneider Electric switchgear?
Yes. The P127CA1W1D3FC0 is fully compatible with the Schneider Electric Sepam protection relay ecosystem and is designed for direct integration with Schneider Electric Masterpact, Compact NS, and Acti9 series circuit breakers via standard trip coil and auxiliary contact wiring. It supports Modbus RTU communication, making it compatible with existing Schneider Electric EcoStruxure Power monitoring infrastructure.

Q4: Can long-term supply and replacement support be guaranteed for critical plant installations?
We maintain dedicated stock of the P127CA1W1D3FC0 and key Sepam series variants to support long-term spare parts programs for critical plant installations. Orders can be fulfilled from existing inventory with typical lead times of 3–7 business days for standard quantities. For planned maintenance shutdowns requiring guaranteed availability, we recommend contacting our sales team in advance to reserve stock and confirm delivery scheduling.
