Schneider PN072548P2 Safety-Enhanced Rack Power Board: Reliable Power Control for Harsh Industrial Sites

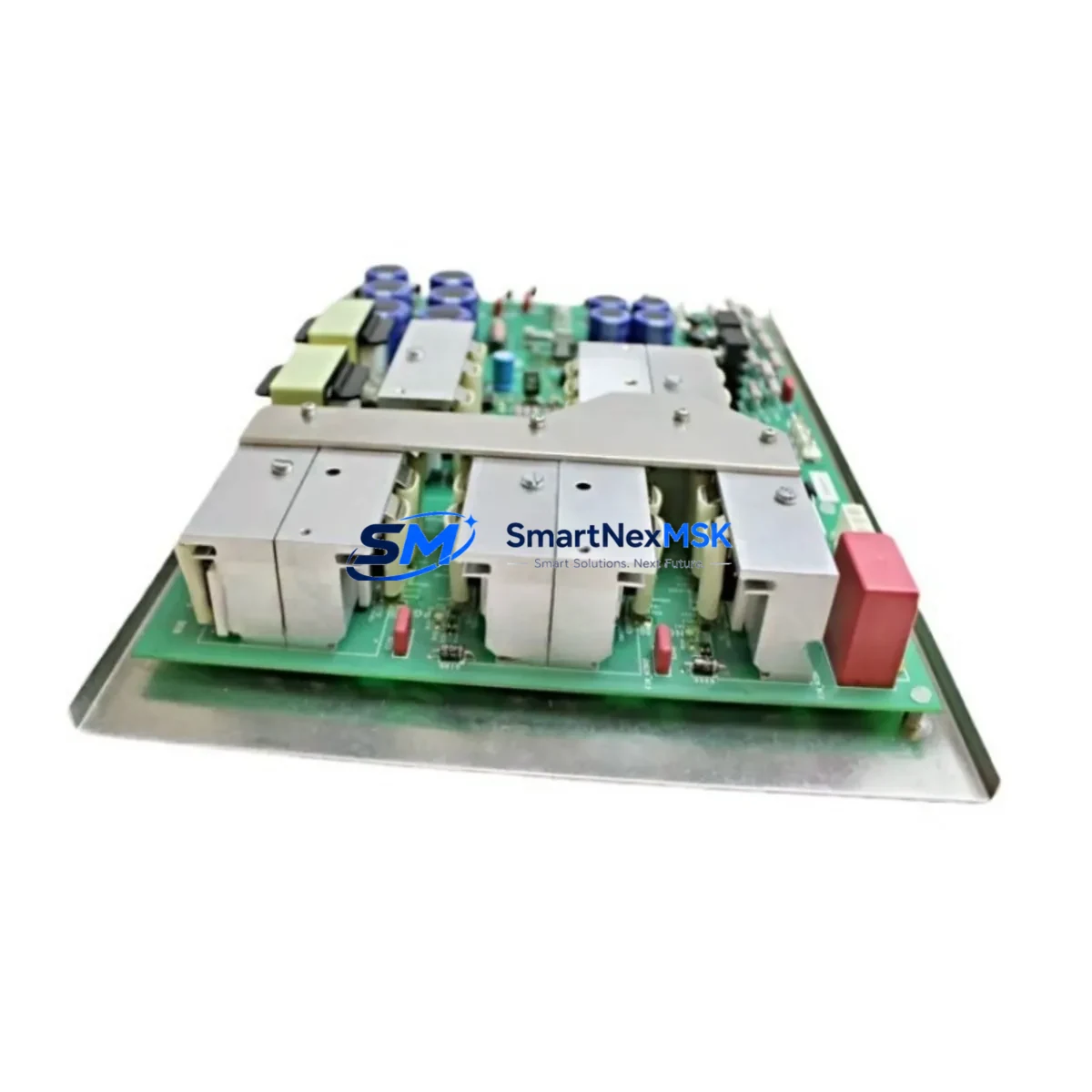

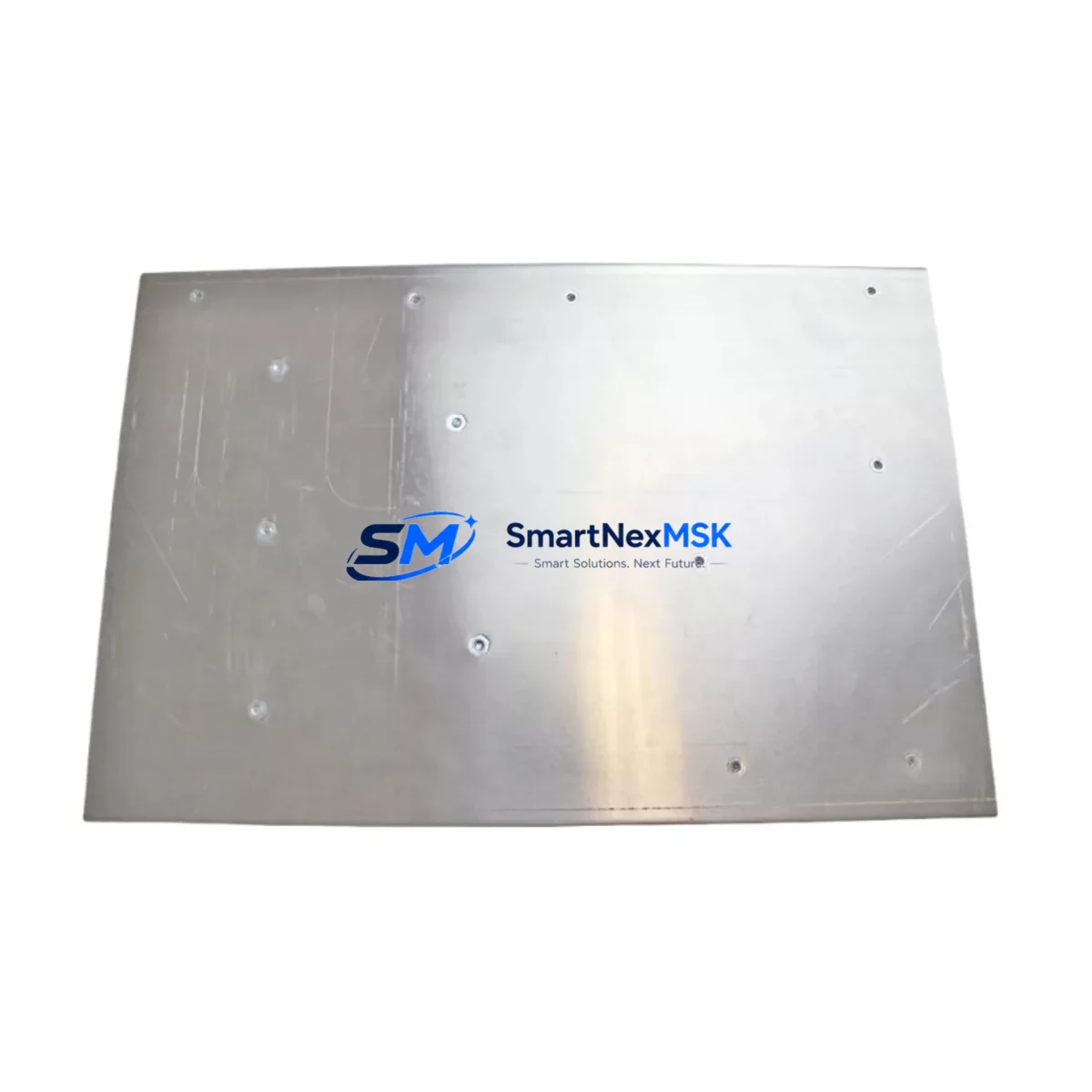

The Schneider Electric PN072548P2 is a ruggedized rack power board module engineered for the Modicon Quantum PLC platform — one of the most widely deployed distributed control architectures in heavy industry. Designed to operate continuously in high-load, high-interference environments, the PN072548P2 delivers stable, conditioned DC power to all modules seated in the Quantum backplane, ensuring that critical control loops remain uninterrupted even under the most demanding field conditions.

In continuous production facilities — petrochemical plants, power generation stations, metallurgical smelters, water treatment works, and port logistics terminals — a momentary power anomaly at the rack level can cascade into a full process shutdown, equipment damage, or a safety interlock failure. The PN072548P2 is purpose-built to prevent exactly these scenarios. Its internal power conditioning circuitry suppresses voltage spikes, filters high-frequency EMI, and maintains regulated output across a wide input voltage range, protecting every I/O module, CPU, and communication adapter installed in the same rack.

Safety Reliability Table

Control Cabinet Protection Strategy

The PN072548P2 does not operate in isolation — it is the power foundation upon which an entire Modicon Quantum control cabinet depends. In a correctly engineered safety cabinet, the rack power board works in concert with a 140CPU65160 or 140CPU67160 Quantum CPU module, which executes the control logic and manages the safety interlock sequences. Alongside the CPU, 140ACI04000 analog input modules and 140DDO35300 discrete output modules rely entirely on the stable DC bus that the PN072548P2 provides — any ripple or dropout at the power board level directly degrades signal accuracy and output response time.

For installations where power redundancy is a site requirement, the PN072548P2 is typically paired with a 140CPS11420 or 140CPS21400 Quantum power supply module in a dual-feed configuration, ensuring that a single mains fault cannot interrupt the control rack. The backplane itself — commonly a 140XBP01600 or 140XBP00600 Quantum rack — distributes the conditioned power from the PN072548P2 to every slot, making the integrity of this board critical to the entire system.

On the communication side, 140NOE77101 Ethernet communication modules and 140NOM21200 Modbus Plus network modules depend on a clean, stable power rail to maintain deterministic network timing. Power instability at the rack level is a leading cause of intermittent communication faults, spurious CRC errors, and unexpected module resets — all of which the PN072548P2 is designed to prevent. In safety-critical loops, a 140EHC10500 high-speed counter module or a 140DAI54000 analog input module handling process variables such as pressure, flow, or temperature must receive uninterrupted power to avoid false readings that could trigger unnecessary shutdowns or, worse, mask a genuine process hazard.

Proper grounding of the rack assembly, combined with the use of Schneider Electric TSXCAP015 surge protection accessories on incoming power lines, further enhances the protective envelope that the PN072548P2 anchors. Together, these components form a layered defense against the electrical threats most commonly encountered in heavy industrial environments: voltage surges from motor starts, ground loops from long cable runs, and high-frequency noise from variable frequency drives operating in the same panel.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In hydrocarbon processing facilities, the Modicon Quantum platform — powered by the PN072548P2 — controls critical safety instrumented systems (SIS) including emergency shutdown (ESD) valves, high-pressure interlock loops, and flare stack management. Rack power stability is non-negotiable: a power board failure in this environment can disable an entire safety zone, triggering a mandatory plant shutdown and regulatory incident report.

Power Generation and Grid Substations: Thermal and hydroelectric power stations use Quantum PLC racks for turbine governor control, excitation system management, and protection relay coordination. The PN072548P2 ensures that the control rack remains energized during grid disturbances, brownouts, and switching transients — conditions that are routine in generation environments but lethal to unprotected electronics.

Mining and Mineral Processing: Underground and open-cut mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The PN072548P2’s robust construction and internal filtering make it well-suited for conveyor control systems, crusher automation, and ventilation safety interlocks where continuous operation is mandatory and unplanned downtime carries both financial and safety consequences.

Water and Wastewater Treatment: Municipal water authorities and industrial effluent treatment plants rely on Quantum PLC systems for pump sequencing, chemical dosing control, and overflow prevention interlocks. The PN072548P2 supports 24/7 operation in humid, chemically aggressive environments, maintaining the power integrity needed for reliable SCADA communication and alarm management.

Metallurgy and Steel Production: Electric arc furnaces, rolling mills, and continuous casting lines generate some of the most severe electrical noise environments in industry. The PN072548P2’s EMI suppression capability is directly relevant here, protecting the Quantum rack from the high-frequency interference generated by large thyristor drives and induction heating systems that share the same facility power infrastructure.

Port and Terminal Automation: Container crane control systems, automated stacking cranes, and conveyor management systems in port terminals demand high availability and rapid fault recovery. The PN072548P2 supports hot-standby Quantum configurations where rack power integrity is the first line of defense against control system unavailability.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the PN072548P2?
The 12-month warranty covers all manufacturing defects, component failures, and functional non-conformance under normal operating conditions. If the module fails to perform to its published specification within the warranty period, we provide a replacement or full refund. Warranty claims are processed within 5 business days of receiving the returned unit, and we maintain stock specifically reserved for warranty replacements to avoid delays in your production environment.

Q2: What pre-shipment testing is performed on each PN072548P2 unit?
Every PN072548P2 unit undergoes functional power-on testing prior to dispatch. This includes verification of output voltage regulation, input surge response, and backplane connector integrity. Units sourced from original Schneider Electric production runs are inspected for physical condition, firmware/hardware revision consistency, and absence of prior field use indicators. A test report is available upon request for customers with documented quality management requirements.

Q3: Is the PN072548P2 compatible with all Modicon Quantum rack configurations?
The PN072548P2 is designed for the Modicon Quantum 140-series rack platform and is compatible with standard Quantum backplanes including the 140XBP01600 and 140XBP00600 series. It supports co-installation with all standard Quantum I/O, CPU, and communication modules. For specific rack slot configurations or redundant power setups, we recommend confirming the hardware revision against your existing system’s BOM — our technical team can assist with compatibility verification before purchase.

Q4: Can you guarantee long-term supply and replacement support for the PN072548P2?
Yes. We maintain a dedicated inventory of Modicon Quantum spare parts, including the PN072548P2, to support customers with long-lifecycle plant assets. Many Quantum installations have operational lifespans of 15–25 years, and we understand that sourcing original spare parts becomes increasingly critical as the product approaches or passes its official end-of-sale date. We actively source and quality-verify stock to ensure continued availability, and we can arrange scheduled supply agreements for customers with planned maintenance programs.
