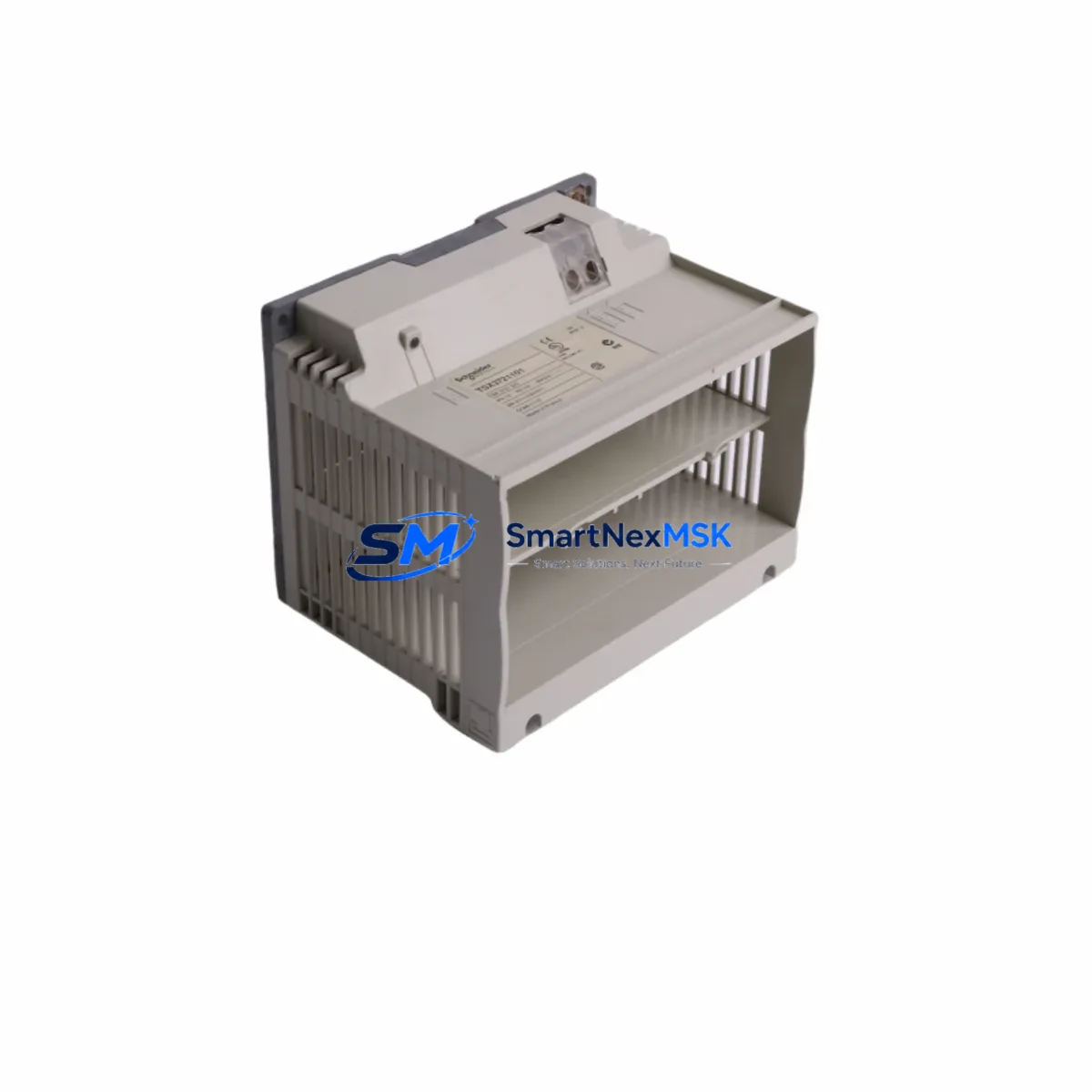

Schneider TSX3721101 Safety-Enhanced Compact PLC

Schneider TSX3721101 Safety-Enhanced Compact PLC: Reliable Control for Harsh Industrial Sites

The Schneider Electric TSX3721101 is a Modicon TSX Micro series compact programmable logic controller engineered for continuous, safety-critical operation in demanding industrial environments. Designed to anchor control cabinet architectures where uptime is non-negotiable, the TSX3721101 delivers deterministic scan-cycle performance, robust signal integrity, and proven resistance to electrical noise, vibration, and thermal stress — making it a trusted backbone for process control, machine safety interlocks, and critical automation loops across heavy industry.

Whether deployed in a petrochemical distributed control cabinet, a power generation relay panel, a mining conveyor interlock system, or a water treatment SCADA node, the TSX3721101 provides the processing stability and I/O reliability that safety engineers and maintenance teams depend on. Its compact form factor integrates seamlessly into space-constrained control enclosures while supporting expansion through the TSX Micro bus architecture, enabling scalable I/O configurations without compromising cabinet thermal management or EMC shielding integrity.

Safety Reliability Table

Control Cabinet Protection Strategy

In high-stakes control cabinet deployments, the TSX3721101 functions as the central processing node coordinating multiple layers of protection hardware. A well-engineered cabinet around this PLC typically integrates a TSX PSY2600 or TSX PSY5000 power supply module to deliver stable, regulated 24 V DC to the logic bus — critical for preventing CPU resets caused by voltage sag or transient dips during motor starts and contactor switching. Upstream, a Schneider Electric Acti9 iC60N circuit breaker or equivalent DIN-rail protection device guards the incoming AC feed, while a Phaseo ABL7RE2402 SMPS unit provides secondary 24 V DC redundancy for field sensor loops.

Signal integrity on discrete input channels is protected through TSX DEZ32D2 digital input expansion modules with built-in filtering, reducing susceptibility to contact bounce and high-frequency interference from variable frequency drives (VFDs) and servo amplifiers sharing the same cabinet. For analog process signals — pressure transmitters, temperature sensors, flow meters — the TSX AEZ414 analog input module provides 12-bit resolution with differential input configuration, minimizing common-mode noise pickup on long field cable runs.

Communication reliability between the TSX3721101 and upstream SCADA or DCS systems is maintained via TSX SCP114 PCMCIA communication cards supporting Modbus TCP/IP or Uni-Telway protocols, with optical isolation on RS-485 segments preventing ground loop currents from corrupting serial data frames. In safety interlock circuits, the PLC output relays interface with Schneider Electric Preventa XPSAF safety relay modules, ensuring that emergency stop, light curtain, and two-hand control signals are processed through certified SIL-rated hardware independent of the main PLC logic scan. Surge protection on all field I/O terminals — using Phoenix Contact TRABTECH or equivalent DIN-rail SPDs — further shields the TSX3721101 from lightning-induced transients and switching surges on long cable runs to remote field devices.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: The TSX3721101 is deployed in pump station control panels and compressor interlock systems where continuous process monitoring and fail-safe shutdown logic must operate reliably in high-temperature, chemically aggressive atmospheres. Its watchdog-protected scan cycle ensures that any CPU anomaly triggers a controlled safe-state output, preventing uncontrolled process runaway.

Power Generation & Substation Automation: In coal-fired, gas turbine, and hydroelectric facilities, the TSX3721101 manages auxiliary equipment sequencing — cooling water pumps, lube oil systems, and excitation control auxiliaries — where a control interruption can cascade into turbine trip events. Its EMC-hardened design withstands the intense electromagnetic environment of high-voltage switchgear rooms.

Mining & Mineral Processing: Conveyor belt interlock systems, crusher control panels, and ventilation fan automation in underground and open-pit mining operations rely on compact, vibration-resistant PLCs like the TSX3721101. The unit’s relay output configuration directly drives motor contactors and solenoid valves without intermediate signal conditioning, reducing failure points in dusty, high-vibration environments.

Water & Wastewater Treatment: Municipal and industrial water treatment SCADA architectures use the TSX3721101 for pump station automation, chlorination dosing control, and level interlock management. Its Modbus RTU communication capability integrates natively with remote telemetry units (RTUs) and HMI panels across geographically distributed pump networks.

Metallurgy & Steel Manufacturing: Rolling mill auxiliary control, furnace temperature regulation, and ladle transfer automation in steel plants demand PLCs that maintain deterministic control under severe thermal cycling and high-current switching transients. The TSX3721101’s industrial-grade power supply tolerance and robust I/O architecture support continuous 24/7 production without scheduled control system downtime.

Port & Material Handling Automation: Crane control systems, conveyor routing logic, and automated stacker-reclaimer sequencing in port terminals and bulk material handling facilities benefit from the TSX3721101’s compact footprint and reliable relay output drive capability for high-cycle-rate actuator control.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the TSX3721101?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. This includes CPU processing faults, I/O module failures, power supply irregularities within the base unit, and communication port malfunctions. Warranty claims are supported with replacement unit dispatch or full refund, subject to return inspection. Physical damage caused by incorrect installation voltage, reverse polarity, or external surge events beyond rated protection levels is excluded.

Q2: What pre-shipment testing is performed on each TSX3721101 unit?
Every TSX3721101 unit undergoes functional power-on verification, I/O channel continuity testing, communication port handshake confirmation, and visual inspection for physical integrity before dispatch. Units sourced from original manufacturer stock or certified distributor channels are cross-referenced against Schneider Electric’s authentic product identification markings, including holographic labels and firmware version verification where applicable.

Q3: Is the TSX3721101 compatible with existing Modicon TSX Micro expansion modules and programming software?
Yes. The TSX3721101 is fully compatible with the Modicon TSX Micro expansion bus, supporting digital I/O modules (TSX DEZ, TSX DSZ series), analog modules (TSX AEZ, TSX ASZ series), and communication modules (TSX SCP series). Programming is performed using Schneider Electric’s PL7 Pro or PL7 Junior software via the front-panel terminal port. Existing application programs developed for TSX Micro base units are directly transferable without modification.

Q4: Can long-term spare parts supply and replacement support be guaranteed?
We maintain dedicated inventory of TSX3721101 and related Modicon TSX Micro series components to support long-term maintenance and emergency replacement requirements. For facilities operating legacy TSX Micro-based control systems, we offer priority stock reservation and expedited shipping to minimize unplanned downtime. Our supply chain covers both new-production and certified refurbished units, with full traceability documentation available on request.
