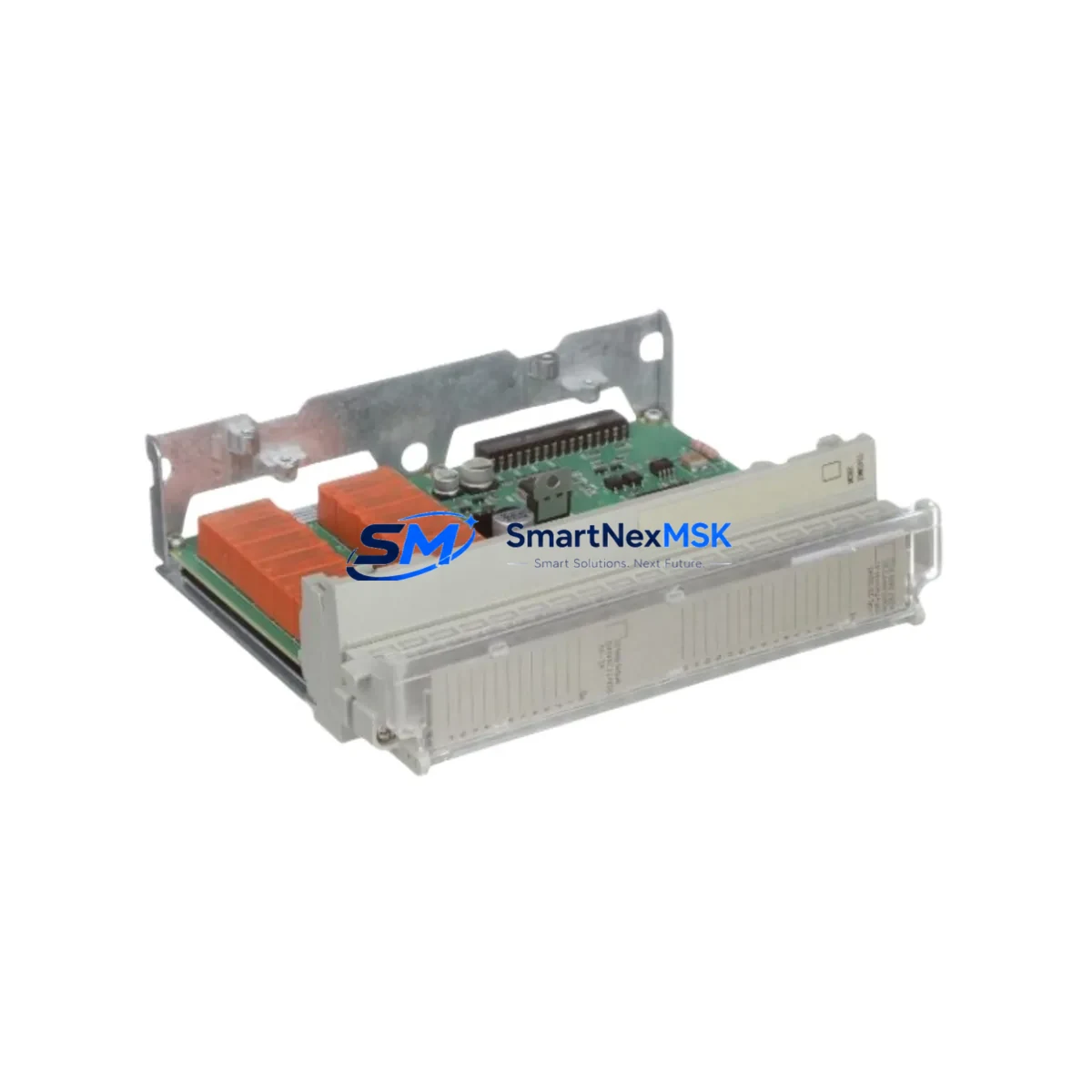

Schneider TSXDMZ28DR Retrofit-Ready Relay I/O for TSX Micro Control Systems
The Schneider Electric TSXDMZ28DR is a 28-point mixed relay I/O module engineered for the TSX Micro programmable controller platform. As Schneider Electric progressively phases out legacy TSX Micro hardware, the TSXDMZ28DR has become one of the most sought-after retrofit components for engineers tasked with sustaining aging production lines, upgrading control cabinets, or migrating to modern automation architectures without full system replacement. SMARTNEXMSK maintains verified stock of the TSXDMZ28DR with a 12-month warranty, pre-shipment functional testing, and fast global dispatch.
Whether you are replacing a failed module in an active production environment, sourcing a discontinued spare for a multi-site maintenance contract, or planning a phased migration from TSX Micro to the Modicon M221 or Modicon M241 platform, the TSXDMZ28DR provides a wiring-compatible, program-transparent upgrade path that minimizes engineering rework and downtime exposure.
Upgrade Compatibility Table
| Parameter | TSXDMZ28DR Specification | Retrofit Notes |
|---|---|---|
| Module Type | Mixed I/O — 16 DI / 12 DO (Relay) | Direct replacement for TSXDMZ28DR; verify relay output load ratings match field devices |
| Input Voltage | 24 VDC (sink/source) | Confirm field wiring polarity before installation; compatible with standard 24 VDC field sensors |
| Output Type | Relay, 2 A per point, 250 VAC / 30 VDC max | Suitable for motor starters, solenoid valves, and pilot lights; verify inductive load suppression |
| Backplane Interface | TSX Micro base unit connector (TSXMRP201 / TSXMRP202) | Module seats directly into TSX Micro base; no adapter required |
| Module Address | Set via rotary switch on module face | Match address to original module position; update PLC program symbol table if address changed |
| Communication Protocol | Internal TSX Micro bus (non-networked I/O) | No protocol migration required for like-for-like replacement; Modbus RTU available via TSXSCP114 port |
| Programming Software | PL7 Pro (legacy) / Unity Pro (migration) | Existing PL7 Pro programs upload without modification; Unity Pro required for M221/M241 migration |
| HMI Compatibility | Magelis XBTGT / XBTGK series via Modbus | HMI variable addresses remain valid for like-for-like swap; re-map if base address changes |
| Installation Standard | DIN rail, 35 mm | Fits existing control cabinet rail; no mechanical modification required |
| Warranty | 12-Month Warranty — covers manufacturing defects; includes pre-shipment functional test report | |
Retrofit Planning for Existing Automation Systems
A successful TSXDMZ28DR retrofit begins well before the module arrives on site. Engineers should start by auditing the existing TSX Micro base unit — typically a TSXMRP201 (10-slot) or TSXMRP202 (14-slot) rack — to confirm available slot positions and verify that the internal bus power budget can support the replacement module alongside any co-installed analog modules such as the TSXAEZ802 or TSXASY800. Power supply capacity is a frequent oversight: the TSXPSY2600M 26 W power supply is adequate for small configurations, but systems with multiple I/O expansions may require the TSXPSY5500M 55 W unit to maintain stable operation after adding or replacing modules.
Terminal wiring is the next critical checkpoint. The TSXDMZ28DR uses a removable screw-terminal connector block, which means field wiring can be transferred directly from the failed module to the replacement without re-labeling individual conductors — provided the original wiring documentation is accurate. Before disconnecting any terminals, photograph the existing wiring layout and cross-reference against the original I/O mapping table in the PL7 Pro program. Pay particular attention to common terminals shared between relay output groups, as incorrect reconnection can create unintended cross-circuit conditions.
For sites planning a longer-term migration from TSX Micro to the Modicon M221 platform, the TSXDMZ28DR serves as a bridge solution that keeps the line running while the migration project is scoped and budgeted. The M221 uses TM3 series expansion I/O — modules such as the TM3DQ16R (16-point relay output) and TM3DI16 (16-point digital input) — which are not physically interchangeable with TSX Micro modules but offer equivalent functional coverage. Communication between the M221 CPU and field devices can be maintained via the onboard Modbus RTU port or extended using a TM3XCOM1 serial communication module. If the existing HMI is a Magelis XBTGT2330 or similar unit communicating via Modbus, the driver configuration can be reused with minor address adjustments after the CPU swap.
For sites using a TSXSCP114 PCMCIA communication card for Modbus RTU networking, verify that the card is seated correctly and that the baud rate and parity settings in PL7 Pro match the field device configuration before and after the module replacement. A mismatch here is a common cause of post-replacement communication faults that are incorrectly attributed to the new I/O module.
Downtime Control During System Migration
Minimizing unplanned downtime during a TSXDMZ28DR replacement requires a structured hot-swap protocol even though the TSX Micro platform does not natively support hot-swapping. The recommended approach is to schedule the replacement during a planned maintenance window, upload the current PL7 Pro program from the CPU to a laptop using a TSXPCX1031 programming cable before any hardware is disturbed, and verify the backup against the last known-good version in your document management system.
Once the replacement module is installed and the terminal block reconnected, power the system and allow the CPU to complete its self-diagnostic cycle before switching to RUN mode. Monitor the I/O status display in PL7 Pro to confirm that all 16 input channels and 12 relay output channels are reporting correctly. If any channel shows a fault, check the module address switch setting first — an address conflict with another module on the same rack is the most common cause of initialization errors after a module swap.
For critical processes where even a brief interruption is unacceptable, consider staging a parallel test rack with a second TSXDMZ28DR pre-configured and program-loaded, allowing a sub-five-minute physical swap with immediate validation. SMARTNEXMSK can supply matched pairs of TSXDMZ28DR modules from the same production batch on request, reducing the risk of firmware or hardware revision mismatches between the primary and standby units.
After the replacement is confirmed operational, update the equipment maintenance log, re-export the PL7 Pro program archive, and retain the pre-replacement program version for at least 12 months. This documentation discipline is essential for multi-site maintenance contracts and ISO 9001-compliant maintenance programs.
Retrofit Support FAQ
Q1: Is the TSXDMZ28DR a direct drop-in replacement for a failed unit of the same part number?
Yes. The TSXDMZ28DR is a like-for-like replacement. The module seats into the same TSX Micro base slot, uses the same removable terminal block, and is recognized by PL7 Pro without any program modification. Verify the module address switch matches the original setting before powering on.
Q2: What pre-shipment testing does SMARTNEXMSK perform on the TSXDMZ28DR?
Each unit undergoes a functional I/O test that verifies all 16 digital input channels and all 12 relay output channels under load conditions. A test report is available on request. All units ship with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.
Q3: Can the TSXDMZ28DR be used in a system that has already been partially migrated to Modicon M221?
The TSXDMZ28DR is specific to the TSX Micro backplane and cannot be installed in an M221 expansion rack. However, it can continue to operate in any remaining TSX Micro base units within a hybrid system during a phased migration. Once the TSX Micro base is decommissioned, equivalent I/O coverage should be provided by TM3 series modules on the M221 platform.
Q4: What is the lead time and are quantity orders available?
SMARTNEXMSK maintains ready stock of the TSXDMZ28DR for immediate dispatch. Standard orders ship within 1–3 business days. For quantity orders supporting multi-site maintenance contracts or system integrator projects, contact our sales team for volume pricing and consolidated shipment options.
