Schneider TWDNOZ485T Retrofit-Ready RS-485 Adaptor for Twido Control Systems

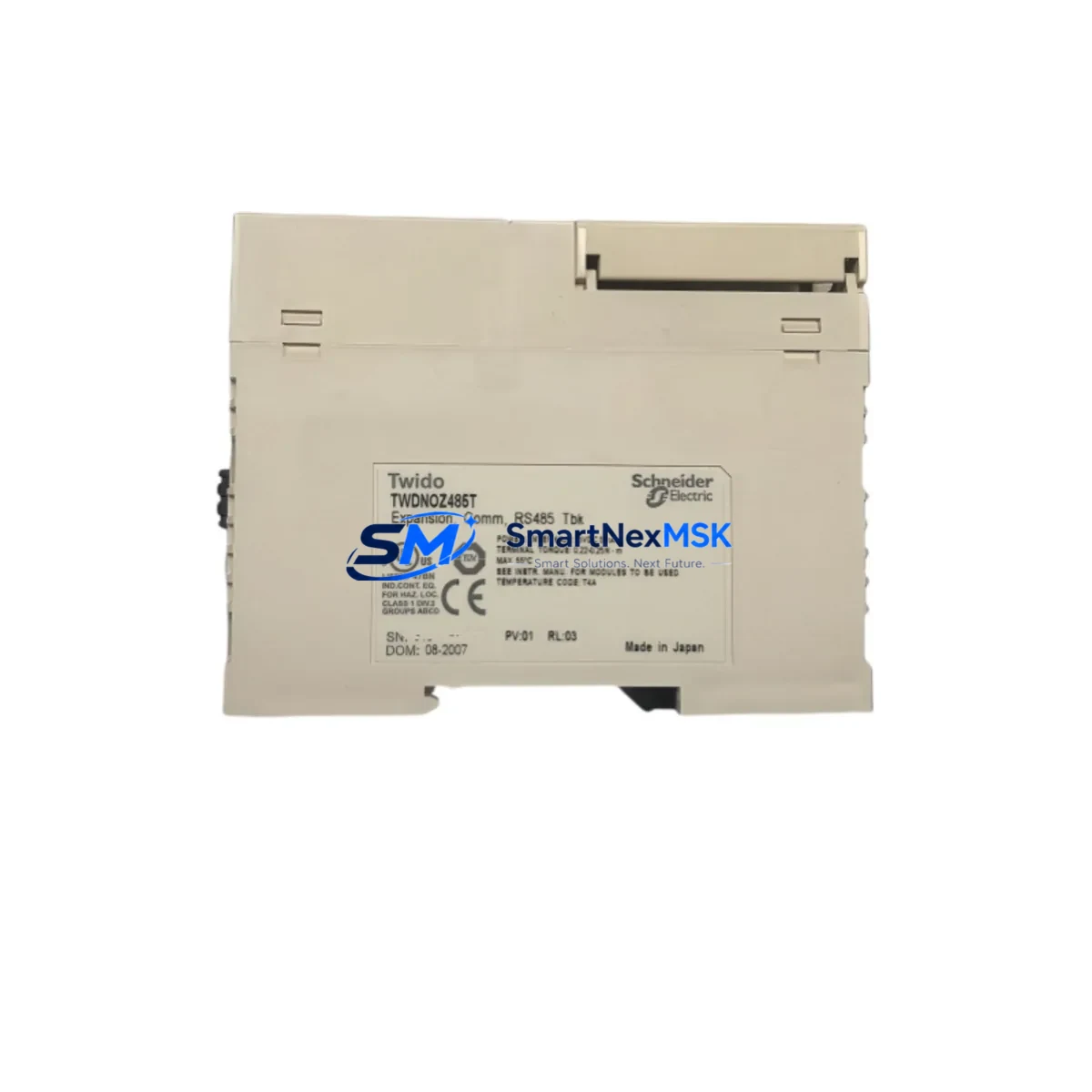

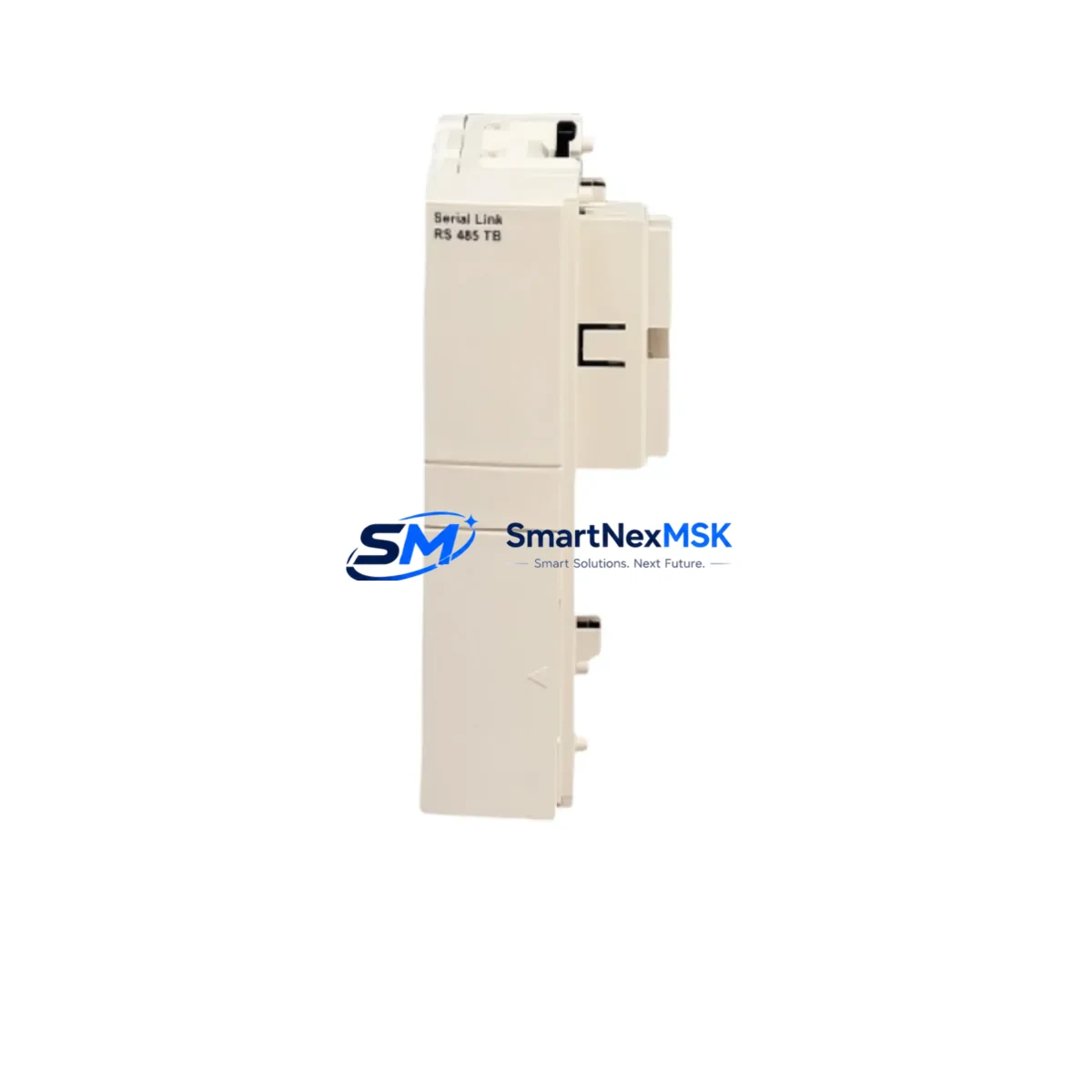

The Schneider Electric TWDNOZ485T is a dedicated RS-485 serial link adaptor engineered for the Twido compact PLC platform. As legacy Twido systems approach end-of-life and spare parts become increasingly scarce, the TWDNOZ485T remains a critical component for engineers managing retrofit projects, control cabinet upgrades, and communication protocol migrations across aging production lines. SMARTNEXMSK maintains verified stock of the TWDNOZ485T with full functional testing, 12-month warranty coverage, and rapid international dispatch from our Xiamen warehouse.

Whether you are replacing a failed unit on a running line, upgrading a Twido-based control system to extend its operational lifespan, or migrating serial communications from a discontinued platform to a modern architecture, the TWDNOZ485T provides the RS-485 physical layer interface required to maintain Modbus RTU and proprietary Twido serial protocols without reprogramming the base controller logic.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful TWDNOZ485T retrofit begins well before the replacement unit arrives on site. Engineers should start by auditing the full Twido control cabinet to document every connected component. In a typical Twido installation, the base controller — such as the TWDLMDA20DRT or TWDLCA•40DRF — is paired with discrete I/O expansion modules like the TWDDDI8DT (8-point digital input) or TWDDDO8TT (8-point transistor output), and analogue modules such as the TWDAMI2HT for process signal acquisition. These modules communicate over the Twido I/O bus and are unaffected by the RS-485 adaptor swap, but their wiring and addressing should be documented before any work begins.

On the communication side, the TWDNOZ485T typically connects to field devices such as variable frequency drives, Modbus-enabled sensors, or remote HMI panels. If the existing HMI is a Magelis XBT-N or XBT-GT series panel communicating over RS-485, the panel’s Modbus slave address and port parameters must be recorded and verified against the replacement adaptor configuration. In cases where the HMI screens reference specific Modbus register maps, no screen modification is required as long as the TWDNOZ485T is configured identically to the failed unit.

For sites where the Twido platform is being extended rather than replaced, the TWDNOZ232D RS-232 adaptor may be installed in parallel on a second Twido base to support a programming cable connection or a legacy ASCII device, freeing the TWDNOZ485T port exclusively for the Modbus network. Power distribution within the cabinet should be reviewed — the TWDPS24 or TWDPWS24DC power supply modules must have sufficient headroom to support all connected option modules and I/O expansions simultaneously.

Where the retrofit scope extends to replacing the Twido base itself — for example, migrating to a Modicon M100 or M200 compact controller — the TWDNOZ485T is not forward-compatible with the newer platform. In such cases, the equivalent communication module for the M200 series (TM2COM232 or TM2COM485) should be sourced alongside the base controller. However, for sites committed to maintaining the existing Twido architecture, the TWDNOZ485T remains the correct and most cost-effective solution, avoiding the significant engineering effort of a full platform migration.

Before closing the cabinet, verify that the RS-485 network termination resistor (typically 120 Ω) is correctly placed at both physical ends of the bus. Incorrect termination is one of the most common causes of intermittent Modbus communication errors after a module replacement, particularly on longer cable runs or networks with more than five slave devices.

Downtime Control During System Migration

Minimizing production downtime during a TWDNOZ485T replacement requires a structured pre-outage preparation process. Before taking the line offline, use TwidoSuite to perform a full program backup from the Twido base controller and save the project file with a timestamped version label. Document the current RS-485 port configuration — baud rate, parity, stop bits, Modbus station address — directly from the TwidoSuite port settings screen. Photograph or sketch the existing terminal wiring on the TWDNOZ485T screw block, noting wire colors and labels.

During the outage window, the physical swap of the TWDNOZ485T takes under five minutes: power down the Twido base, remove the failed adaptor from the option port, insert the replacement unit, and reconnect the RS-485 field wiring to the A, B, and GND terminals. Power the system back up and use TwidoSuite to confirm that the port parameters are correctly retained in the controller program — in most cases, port configuration is stored in the application program rather than the adaptor hardware, so no reconfiguration is required.

Functional verification should include a Modbus communication test to each slave device on the network before releasing the line to production. If the system includes a Magelis XBT HMI panel, confirm that all animated objects and alarm displays are responding correctly. For lines with multiple Modbus slaves — such as drives, flow meters, or remote I/O stations — a sequential poll test using TwidoSuite’s online monitoring mode will confirm that all devices are responding within expected cycle times. Total commissioning time for a like-for-like TWDNOZ485T replacement on a well-documented system is typically 30 to 90 minutes, making it feasible to execute within a scheduled maintenance window without impacting production schedules.

Retrofit Support FAQ

Q: Is the TWDNOZ485T a direct drop-in replacement for a failed RS-485 adaptor on my Twido base?
A: Yes. The TWDNOZ485T is the OEM-specified RS-485 option module for the Twido compact PLC platform. It installs directly into the Twido option port without any hardware modification. Port configuration parameters are stored in the TwidoSuite application program, so a like-for-like replacement requires no software changes — simply reconnect the field wiring and power up.

Q: What wiring checks should I perform before commissioning the replacement unit?
A: Verify the polarity of the RS-485 connections (A+/B−) against your original wiring diagram. Confirm that the network termination resistor is correctly placed at both ends of the RS-485 bus. Check that the baud rate, parity, and stop bits configured in TwidoSuite match the settings of all connected Modbus slave devices. Incorrect termination or mismatched port parameters are the two most common causes of communication failure after a module swap.

Q: Has the TWDNOZ485T been tested before shipment?
A: All TWDNOZ485T units shipped by SMARTNEXMSK undergo functional testing prior to dispatch, including RS-485 signal integrity verification. Each unit is covered by a 12-month warranty against manufacturing defects and communication failures under normal operating conditions. A test report is available upon request for critical infrastructure projects.

Q: Can the TWDNOZ485T be used on a Twido system that is being upgraded to support additional I/O or a new HMI?
A: Yes. The TWDNOZ485T is fully compatible with expanded Twido configurations, including systems with additional I/O modules such as the TWDDDI8DT or TWDAMI2HT, and with Magelis XBT-series HMI panels communicating over RS-485. If the upgrade scope involves replacing the Twido base controller with a newer Modicon platform, note that the TWDNOZ485T is not compatible with M100/M200 series controllers — contact our technical team for guidance on the appropriate communication module for your target platform.
