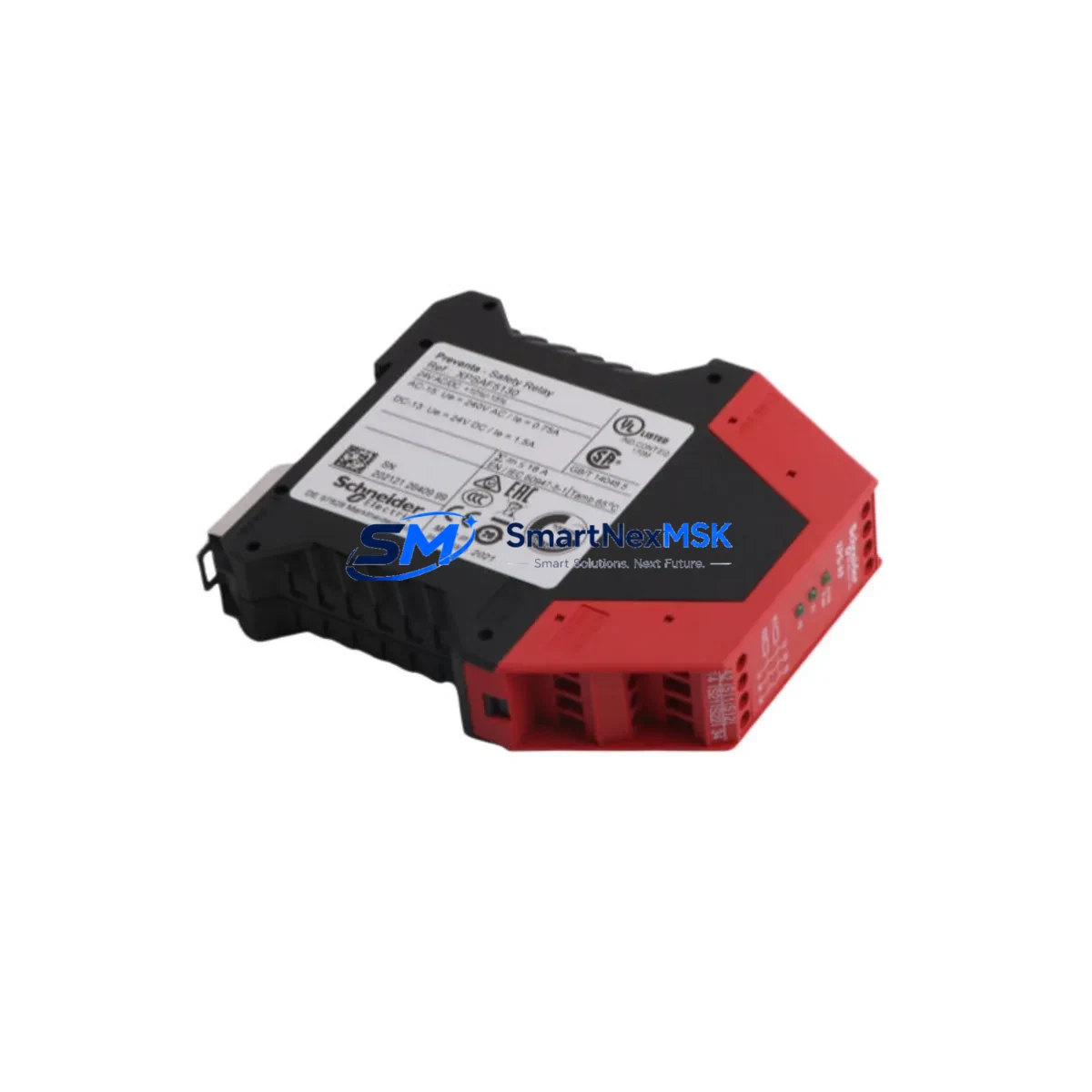

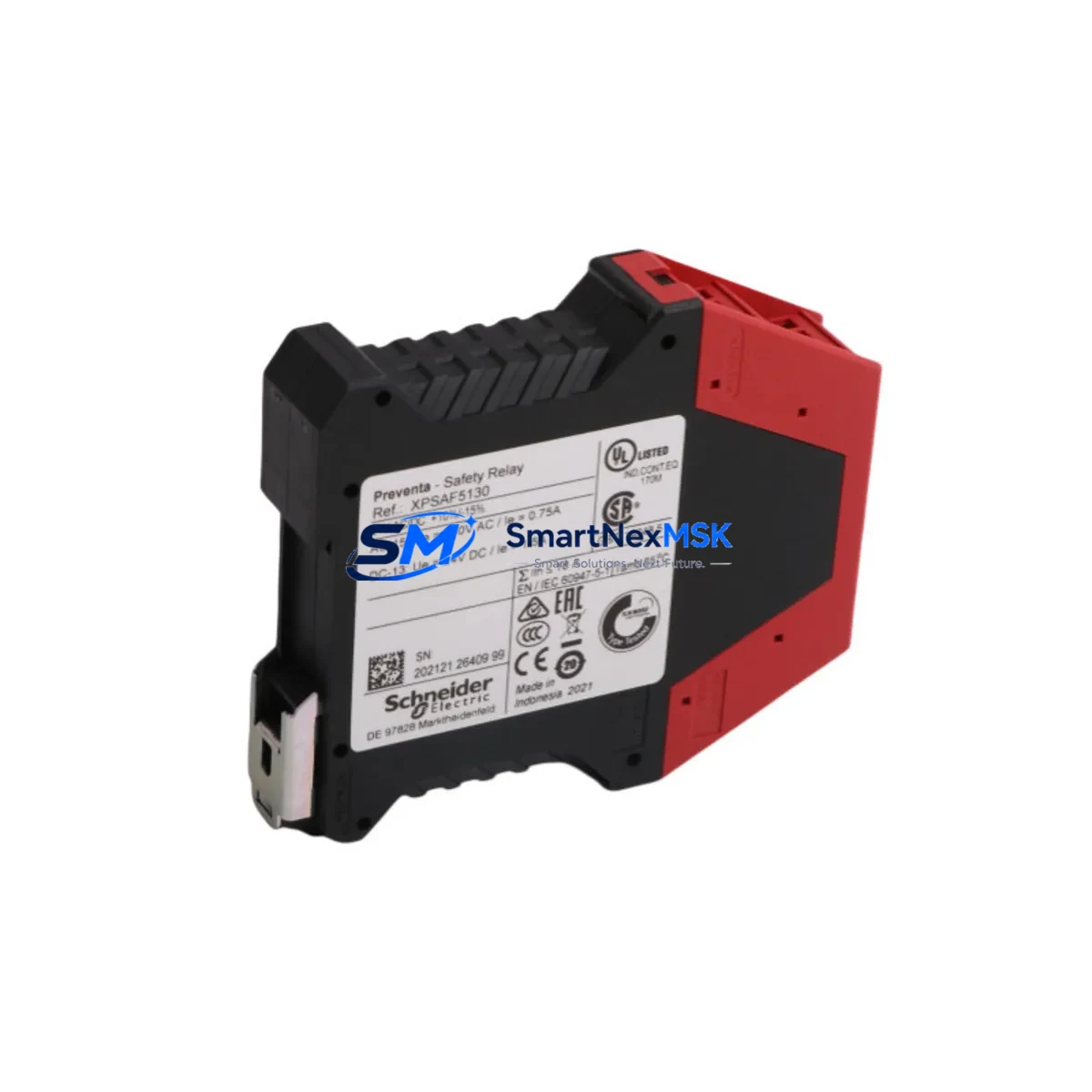

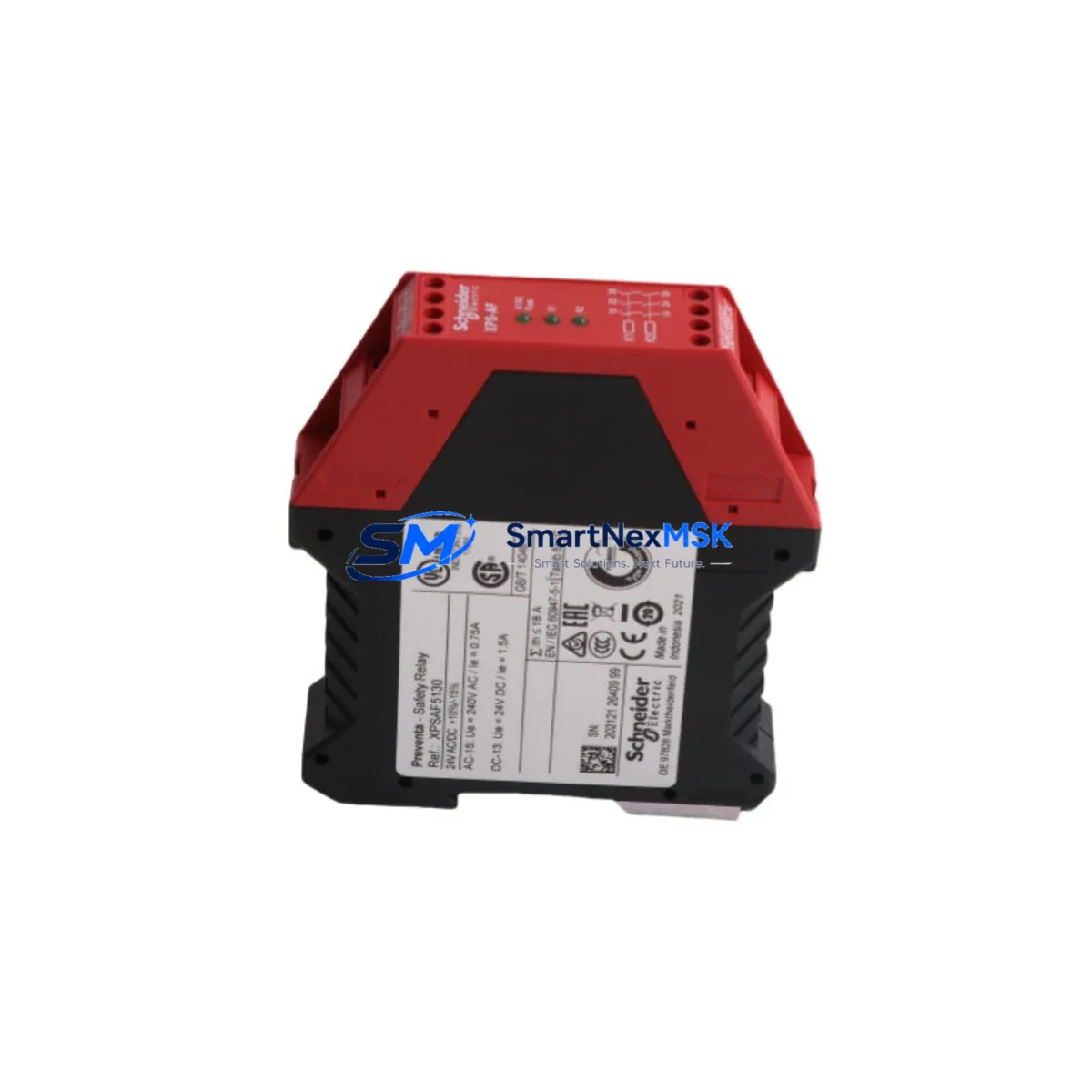

The Schneider Electric XPSAF5130 is a Preventa series safety relay module engineered for inductive sensor monitoring in industrial automation environments. As a maintenance-ready original spare, the XPSAF5130 is a critical component for facilities operating safety-rated control systems where unplanned downtime carries significant operational and financial risk. Whether you are managing a scheduled overhaul, responding to an emergency fault, or building a proactive spare parts inventory, having a verified original XPSAF5130 on hand is a fundamental requirement for any maintenance or reliability engineering team.

Designed for integration into safety circuits that monitor inductive proximity sensors, the XPSAF5130 provides dual-channel monitoring with automatic or manual reset capability, making it suitable for machine guarding, emergency stop circuits, and safety-rated interlocking systems. Its compact DIN-rail mounting format allows direct installation into standard control cabinets without modification to existing wiring infrastructure, significantly reducing replacement time during corrective maintenance events.

For maintenance engineers and procurement specialists sourcing this module, SMARTNEXMSK supplies tested, original units with full 12-month warranty coverage and pre-shipment functional verification. Each unit is inspected against Schneider Electric’s published electrical and mechanical specifications before dispatch, ensuring that the replacement module performs identically to the factory-installed original.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the XPSAF5130 in a live control cabinet, a disciplined maintenance approach requires more than a simple module swap. Maintenance engineers should treat this replacement as an opportunity to audit the entire safety circuit and associated electrical infrastructure to prevent secondary failures and ensure the restored system meets its original safety integrity level.

Begin by inspecting the 24 VDC power supply feeding the XPSAF5130. Power supply degradation — particularly output ripple or voltage sag under load — is a common root cause of nuisance tripping in safety relay circuits. If the existing power supply is a Schneider Electric PHASEO ABL series unit or equivalent, verify its output voltage under full panel load before commissioning the replacement module.

Next, check the inductive proximity sensors connected to the dual-channel inputs. Sensors from the Schneider Electric OsiSense XS series are commonly paired with the XPSAF5130 in machine guarding applications. Confirm sensor switching distance, output signal integrity, and cable shielding continuity. Damaged sensor cables or degraded sensor faces are frequent contributors to safety relay faults that are misdiagnosed as module failures.

Inspect the output wiring to downstream contactors or motor starters. The XPSAF5130’s NO safety contacts drive load-side devices; verify contact resistance on the existing wiring terminals and check for signs of arcing or thermal discoloration on terminal blocks — Schneider Electric Linergy or Phoenix Contact PTFIX terminal blocks are typical in these panels. Replace any suspect terminals before reinstalling the safety circuit.

For panels that include a Schneider Electric Magelis HMIG series HMI or a Modicon M340 / M580 PLC, confirm that the safety relay’s auxiliary NC contact is correctly wired to the PLC digital input module for fault status feedback. This feedback loop is essential for alarm annunciation and maintenance logging. If the PLC I/O module — such as a BMX DDI 1602 discrete input card — shows no signal change after module replacement, trace the auxiliary contact wiring before assuming a PLC fault.

Where the control system includes a Schneider Electric Zelio Logic smart relay or a TeSys D series contactor in the safety output circuit, verify coil voltage compatibility and contactor contact wear. Worn contactor contacts can cause the safety relay to detect a welded contact condition and refuse to reset, which is often misattributed to the XPSAF5130 itself.

Finally, update your spare parts inventory record to reflect the replacement and log the removed module’s serial number and fault symptom for trend analysis. Facilities operating multiple machines with Preventa safety circuits should maintain at least one XPSAF5130 as a fast-response spare to support a target mean time to repair (MTTR) of under four hours for safety system faults.

Site Replacement Workflow

Step 1 — Isolation and Lockout/Tagout: De-energize the control panel and apply LOTO procedures per your site safety plan. Confirm zero energy state on the 24 VDC rail before touching the XPSAF5130.

Step 2 — Document Existing Wiring: Photograph or sketch the terminal connections on the existing module. The XPSAF5130 uses a plug-in terminal block design on some variants; confirm whether your installation uses fixed or removable terminals before removal.

Step 3 — Module Removal: Release the DIN rail locking tab and slide the module free. Disconnect the terminal block. Retain the old module for failure analysis if the fault cause has not been confirmed.

Step 4 — Replacement Installation: Clip the new XPSAF5130 onto the DIN rail. Reconnect the terminal block, verifying wire seating and torque on screw terminals (typically 0.5–0.6 Nm for this module class). Confirm the reset mode jumper or DIP switch setting matches the original configuration.

Step 5 — Functional Verification: Re-energize the panel. Actuate the monitored inductive sensors through their full switching cycle and confirm the XPSAF5130 output contacts operate correctly. Verify the auxiliary NC contact signals the PLC fault input as expected. Perform a manual reset if configured and confirm the safety outputs latch correctly.

Step 6 — Documentation and Handover: Record the replacement in your CMMS or maintenance log. Note the new module’s serial number, installation date, and post-replacement test results. Update the spare parts inventory to trigger reorder if stock falls below your minimum holding level.

Spare Parts Support FAQ

Q: Is the XPSAF5130 supplied by SMARTNEXMSK an original Schneider Electric unit?
A: Yes. All XPSAF5130 units are original Schneider Electric Preventa series modules. We do not supply remanufactured, cloned, or third-party compatible substitutes. Each unit is sourced from verified supply channels and undergoes pre-shipment functional testing.

Q: What warranty coverage applies to this spare part?
A: Every XPSAF5130 supplied by SMARTNEXMSK carries a 12-month warranty from the date of delivery. Warranty coverage includes functional failure under normal operating conditions. Units showing signs of incorrect installation, overvoltage, or physical damage are assessed on a case-by-case basis.

Q: Can the XPSAF5130 directly replace older Preventa safety relay models in existing panels?
A: The XPSAF5130 is designed for inductive sensor monitoring applications within the Preventa XPS family. Compatibility with older or adjacent Preventa models depends on the specific wiring configuration, reset mode, and output contact requirements of your circuit. We recommend confirming the terminal assignment and functional parameters against your existing panel drawings before installation. Our technical team can assist with compatibility verification prior to shipment.

Q: How quickly can the XPSAF5130 be dispatched, and what testing is performed before shipping?
A: In-stock units are typically dispatched within 1–2 business days. Each module undergoes a pre-shipment functional test covering power-on self-check, input channel monitoring response, output contact operation, and reset function verification. A test report is available on request for critical maintenance applications.
