SEW-Eurodrive MC07B0011-5A3-4-00 MOVITRAC B Automation Spare: Spare Replacement & Industrial Downtime Risk Control

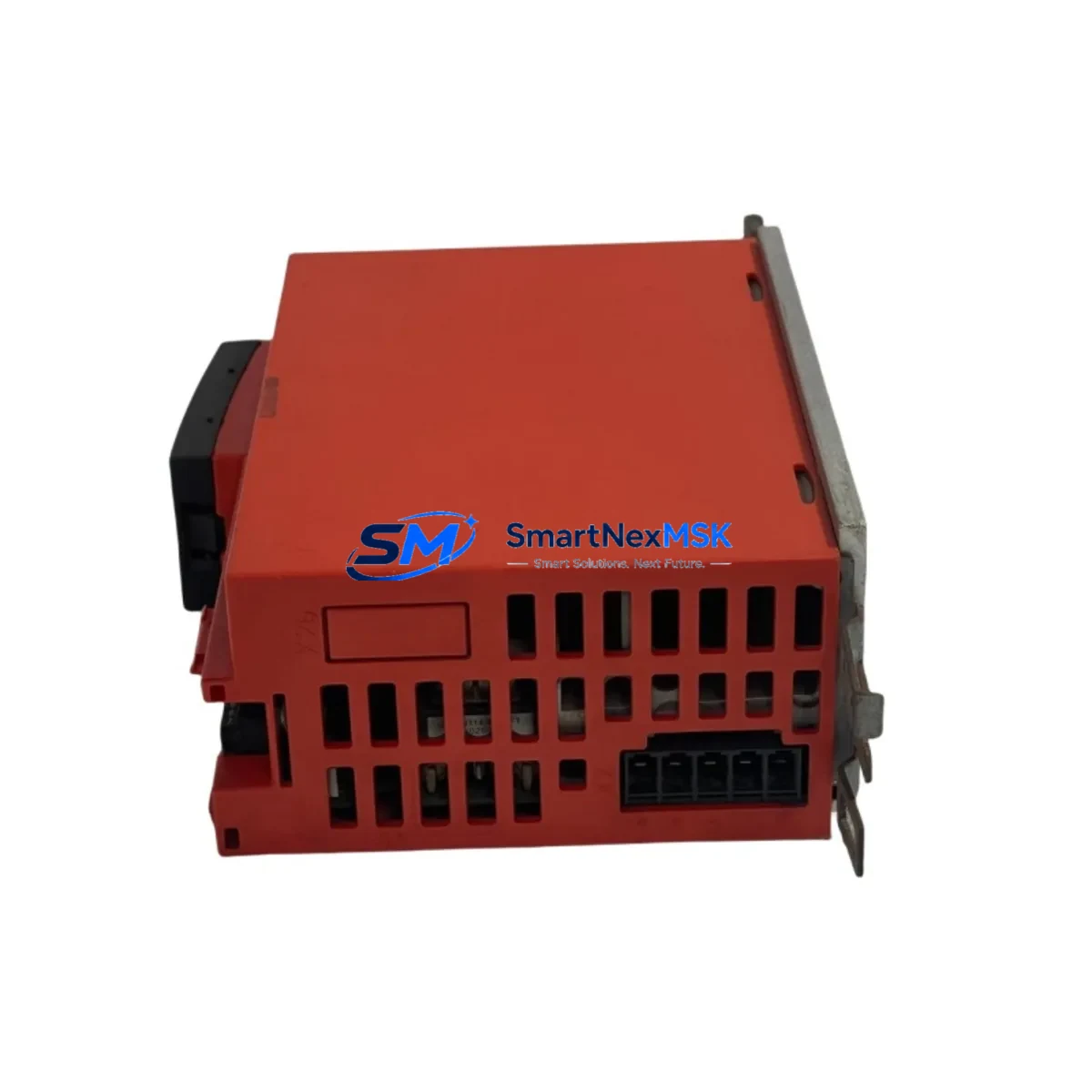

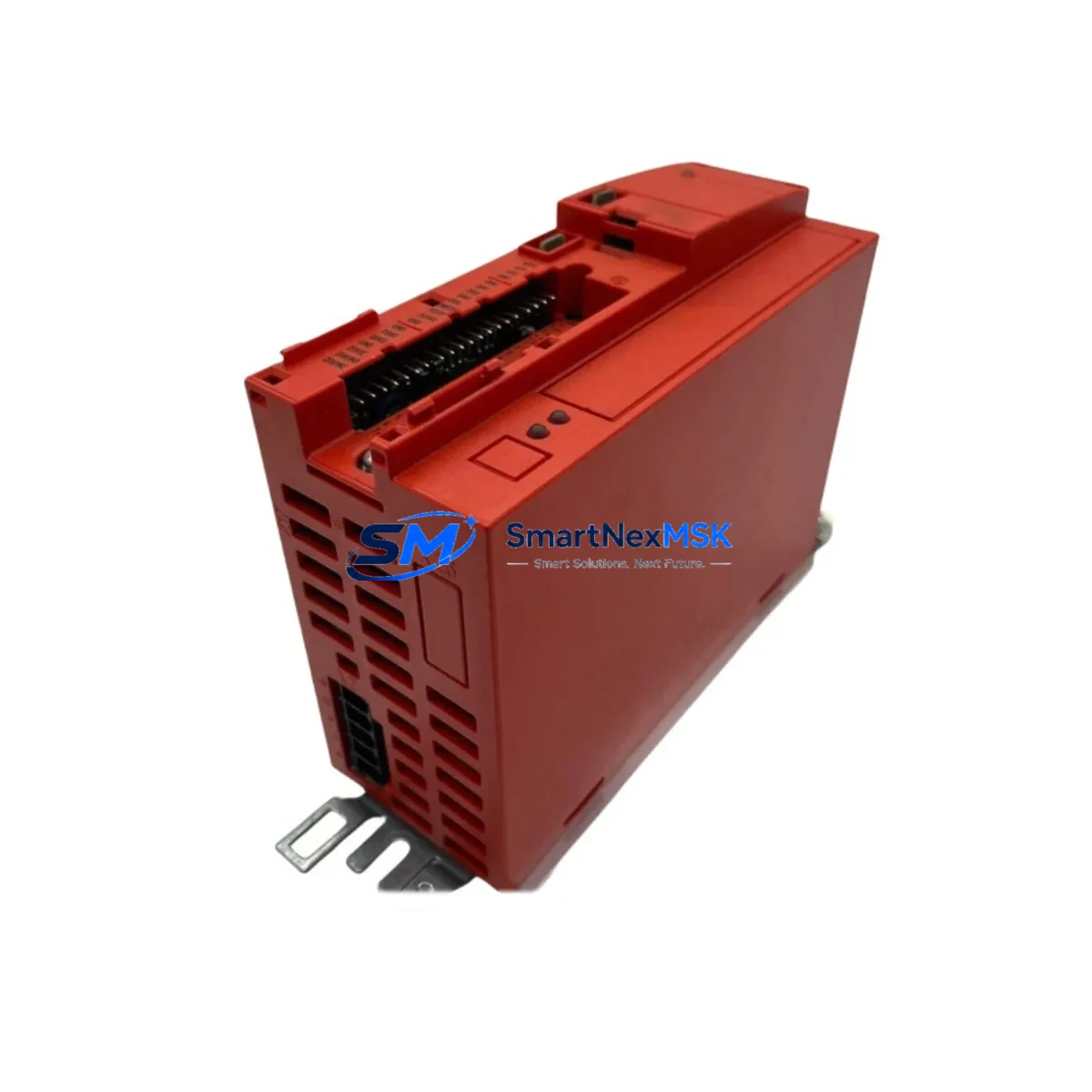

The SEW-Eurodrive MC07B0011-5A3-4-00 is a 1.1kW three-phase variable frequency drive (VFD) from the MOVITRAC B series — one of the most widely deployed compact drive families in industrial conveyor, pump, fan, and material handling automation. When this unit fails or reaches end-of-service life, every minute of unplanned downtime translates directly into production loss. Sourcing a verified, original-specification replacement spare is the fastest path to system recovery.

At SMARTNEXMSK, each MC07B0011-5A3-4-00 unit is individually tested prior to shipment, supplied with a 12-month warranty, and backed by long-term inventory commitment — ensuring your maintenance team can act immediately when a fault is detected, rather than waiting weeks for a factory lead time.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer schedules replacement of the MC07B0011-5A3-4-00, the drive itself is rarely the only component that requires attention. A thorough control cabinet inspection during the same maintenance window significantly reduces the risk of repeat downtime.

Begin with the 24VDC control power supply feeding the drive’s logic circuit — a degraded PSU can cause intermittent fault trips that mimic drive failure. Verify the input line filter (EMC filter) upstream of the drive; MOVITRAC B units are sensitive to conducted interference, and a failed filter can shorten drive lifespan. Check the braking resistor and its thermal protection relay if the application involves frequent deceleration or hoisting loads.

Inspect all motor cable terminal connections at both the drive output (U/V/W) and the motor junction box — loose terminals are a leading cause of output IGBT stress. If the system uses a SEW MOVI-PLC or external PLC I/O module for speed reference or enable signals, verify the 0–10V or 4–20mA analog signal integrity with a calibrated meter. For installations using RS-485 or SBus fieldbus communication, check the bus termination resistors and cable shielding continuity.

In multi-drive panels, also inspect the shared DC bus bar connections, input fuses or circuit breakers (sized per MOVITRAC B installation guidelines), and any output contactors or motor protection relays in the motor circuit. If the cabinet includes an HMI operator panel (such as a DBG60B keypad or remote operator panel), confirm its communication cable and connector are intact before commissioning the replacement drive.

For aging systems where the MC07B0011-5A3-4-00 has been in service for 7+ years, consider proactively stocking a spare DC bus capacitor kit and a replacement cooling fan module — both are wear items with defined service life under continuous-duty conditions. Maintaining a minimum of one spare drive unit per production line is a widely adopted strategy among maintenance engineers managing MOVITRAC B fleets.

Site Replacement Workflow

Step 1 — Isolation & Safety: De-energize the drive via the upstream circuit breaker or isolator. Wait a minimum of 5 minutes for DC bus capacitors to discharge before opening the cabinet door. Verify zero voltage at the DC bus terminals with a calibrated meter.

Step 2 — Parameter Backup: If the existing drive is still partially functional, use SEW MOVITOOLS MotionStudio or the DBG60B keypad to export the parameter set (P-parameters) before removal. This eliminates re-commissioning time on the replacement unit.

Step 3 — Mechanical Removal: Disconnect all control wiring (X1, X2, X3 terminals), power input (L1/L2/L3), motor output (U/V/W), and PE ground. Label each wire group before removal. Unclip or unbolt the drive from the DIN rail or panel mount.

Step 4 — Replacement Installation: Mount the MC07B0011-5A3-4-00 replacement unit in the same position. Reconnect all terminals in reverse order, torquing to the values specified in the MOVITRAC B installation manual. Restore the parameter set via MOVITOOLS or manual keypad entry.

Step 5 — Commissioning & Test: Energize the drive and perform a no-load motor run test at low speed (5–10 Hz) before resuming full production load. Verify output current, motor direction, and fault-free operation for a minimum of 15 minutes before handing back to operations.

This workflow is applicable as a direct replacement for legacy MOVITRAC B units including earlier hardware revisions, minimizing system downtime to under two hours for a prepared maintenance team.

Spare Parts Support FAQ

Q1: Is the MC07B0011-5A3-4-00 a direct drop-in replacement for older MOVITRAC B hardware revisions?
Yes. The MC07B0011-5A3-4-00 maintains the same mechanical footprint, terminal layout, and parameter structure as earlier MOVITRAC B revisions in the same power class. Existing wiring and parameter sets are compatible without modification in the vast majority of installations.

Q2: What testing is performed before shipment?
Each unit undergoes functional power-on testing and output voltage verification prior to dispatch. Units are packed in anti-static protective packaging with inspection documentation. A 12-month warranty is provided from the date of shipment.

Q3: How should I manage spare inventory for a multi-drive MOVITRAC B installation?
For installations with 5 or more MOVITRAC B drives, a minimum stock of one spare unit per power class is recommended. For critical single-drive applications (e.g., sole conveyor drive on a production line), maintaining one on-site spare eliminates lead-time risk entirely. SMARTNEXMSK supports blanket order arrangements for volume spare stocking.

Q4: Can compatibility be verified before I place an order?
Yes. Provide your existing drive nameplate data (full part number, hardware revision, and application voltage) to our technical team at sales@smartnexmsk.com. We will confirm compatibility and, where applicable, identify any parameter migration notes before shipment.
