SEW-EURODRIVE MDX60A0055-5A3-4-00 Maintenance-Ready Spare MOVIDRIVE B

SEW-EURODRIVE MDX60A0055-5A3-4-00 Maintenance-Ready Spare MOVIDRIVE B: Spare Replacement & Industrial Downtime Risk Control

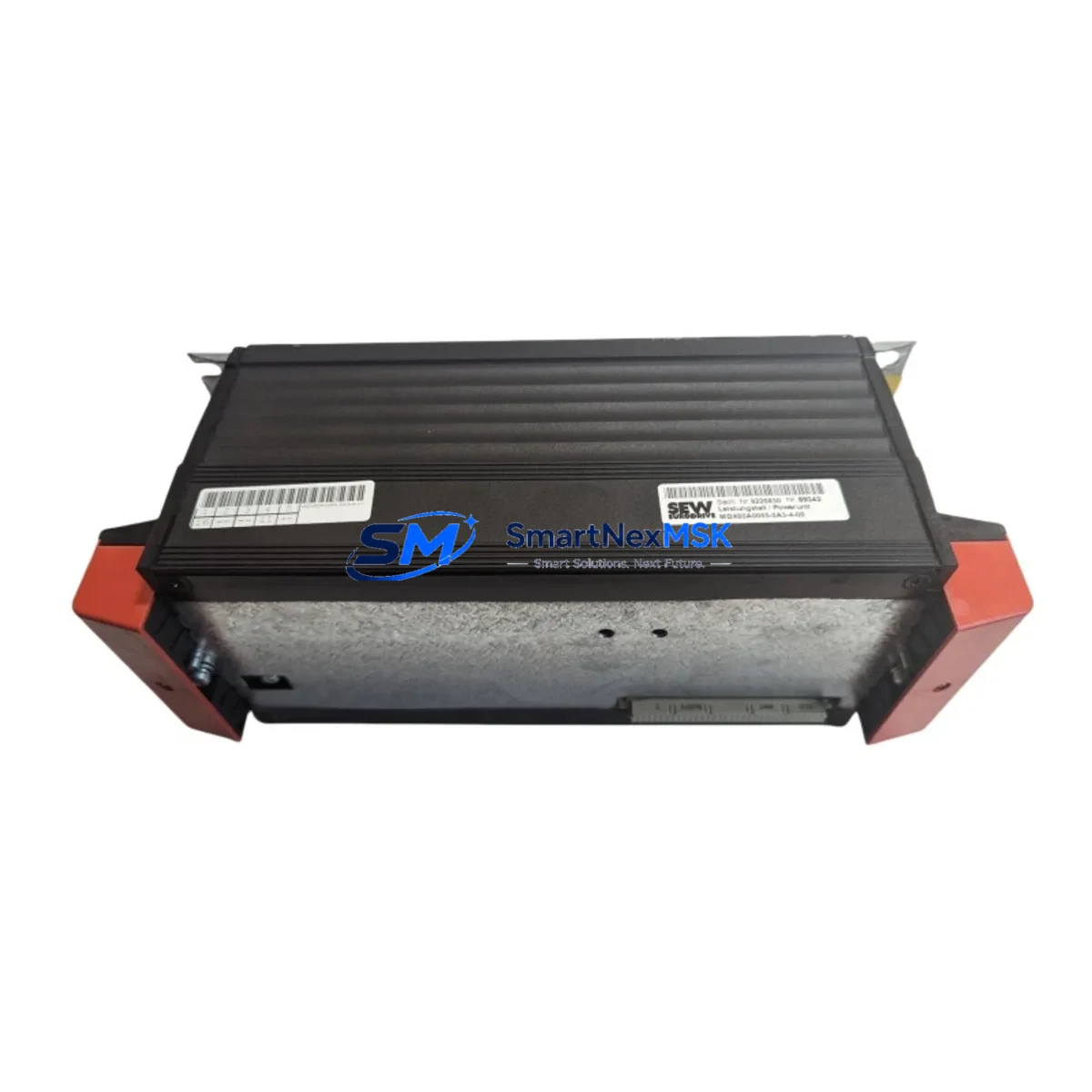

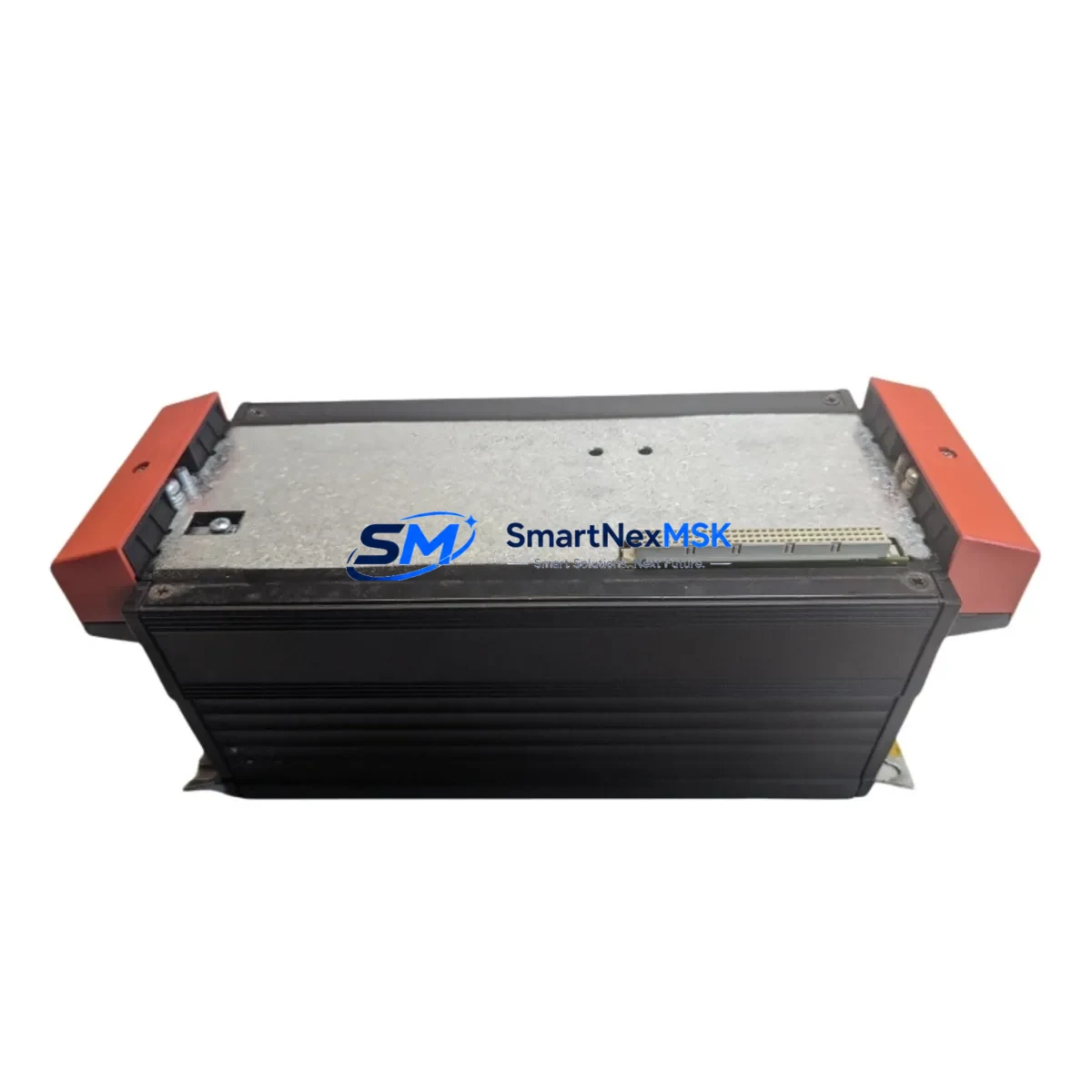

The SEW-EURODRIVE MDX60A0055-5A3-4-00 is a compact, high-performance AC variable frequency drive from the MOVIDRIVE B series, rated at 0.55 kW with a 400 V three-phase supply input. Designed for demanding industrial automation environments, this unit is widely deployed in conveyor systems, material handling lines, packaging machinery, and process automation cells across manufacturing, logistics, and energy sectors. As a maintenance-ready original spare, the MDX60A0055-5A3-4-00 is stocked and tested to support rapid field replacement, minimizing unplanned downtime and protecting production continuity.

For maintenance engineers managing aging MOVIDRIVE B installations, sourcing a verified original spare is the first line of defense against extended outages. This unit ships with full functional testing, original firmware compatibility, and a 12-month warranty, ensuring it integrates seamlessly into existing control architectures without reconfiguration risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the MDX60A0055-5A3-4-00 in a MOVIDRIVE B installation, a thorough inspection of the surrounding electrical circuit is essential to prevent repeat failures and ensure long-term system reliability. Maintenance engineers should treat this replacement as an opportunity for a comprehensive control cabinet audit.

Power Supply & Input Circuit: Verify the upstream 24 V DC control power supply (such as the SEW-EURODRIVE UWU52A or equivalent SITOP PSU100S) is within tolerance. A degraded power supply is a common root cause of VFD faults that are misattributed to the drive itself. Check input fuses and circuit breakers — replace any fuse rated for the MDX60A series input current if showing signs of thermal stress or aging.

Motor Cable & Output Wiring: Inspect shielded motor cables for insulation breakdown, especially in high-cycle applications. Verify cable length does not exceed the drive’s maximum permissible output cable length without a dU/dt filter. For MOVIDRIVE B installations, the HDR/HF output choke or sine-wave filter should be inspected and replaced if the drive has been in service for more than five years.

I/O and Signal Wiring: Check all digital input (DI) and digital output (DO) terminals on the MDX60A0055-5A3-4-00 for loose connections, corrosion, or terminal block fatigue. The MOVIDRIVE B uses a 24 V logic level for its I/O; verify that the PLC output cards driving these inputs (such as Siemens S7-300 SM321 or equivalent) are delivering clean, stable signals. Signal isolators between the PLC and drive I/O are recommended in environments with high electrical noise.

Fieldbus & Communication Module: If the drive is integrated via PROFIBUS, DeviceNet, or CANopen using an option card (e.g., DFP21B, DFD11B, or DFC11B), inspect the option card seating and connector integrity. Communication faults are frequently caused by loose option card connections rather than drive failure. Confirm GSD/EDS files are current for the replacement unit.

Braking Resistor & Chopper Circuit: For applications with regenerative loads (hoists, centrifuges, winders), inspect the external braking resistor (e.g., BW100-006 or BW072-003) for thermal damage or open-circuit condition. A failed braking resistor will cause DC bus overvoltage faults on the new drive immediately after commissioning.

Control Panel & HMI: If the installation uses a MOVITOOLS MotionStudio PC interface or a DBG60B handheld operator panel, verify that parameter sets are backed up before swapping the drive. Restore the saved parameter set to the MDX60A0055-5A3-4-00 replacement unit to avoid manual re-entry of ramp times, speed limits, and application-specific settings.

Terminal Blocks & Relay Outputs: Inspect Phoenix Contact or Weidmüller terminal blocks in the same cabinet section for signs of overheating, loose screws, or contamination. Relay output contacts on the drive (fault relay, ready relay) should be tested for continuity and proper switching under load.

Site Replacement Workflow

Step 1 — Pre-Replacement Preparation: Before powering down, use MOVITOOLS MotionStudio or the DBG60B operator panel to export the full parameter set from the existing MDX60A0055-5A3-4-00. Document the current fault history log for root cause analysis. Photograph all wiring connections and label terminal positions.

Step 2 — Safe Isolation: Isolate the drive from the supply using the upstream isolator or circuit breaker. Wait a minimum of 5 minutes after power-off before opening the cabinet to allow DC bus capacitors to discharge. Verify zero voltage on DC bus terminals using a calibrated multimeter.

Step 3 — Physical Replacement: Remove the faulty unit by disconnecting power, motor, control, and communication cables in sequence. Mount the replacement MDX60A0055-5A3-4-00 in the same panel position. Reconnect all cables following the original wiring diagram, paying attention to PE (protective earth) bonding and cable shield termination.

Step 4 — Parameter Restore & Commissioning: Power up the replacement drive and restore the saved parameter set via MOVITOOLS or the DBG60B panel. Verify motor data (rated current, frequency, speed) matches the connected motor nameplate. Run a no-load test before reconnecting the mechanical load.

Step 5 — Functional Verification: Perform a full-speed ramp test under load. Monitor output current, DC bus voltage, and heatsink temperature during the first 30 minutes of operation. Confirm all I/O signals, fieldbus communication, and fault relay outputs are functioning correctly before returning the system to production.

This structured replacement workflow reduces mean time to repair (MTTR) and ensures the replacement MDX60A0055-5A3-4-00 is commissioned to the same operational standard as the original unit, maintaining system compatibility and extending the service life of the broader MOVIDRIVE B installation.

Spare Parts Support FAQ

Q1: Is this MDX60A0055-5A3-4-00 an original SEW-EURODRIVE unit or a compatible substitute?
This is an original SEW-EURODRIVE MDX60A0055-5A3-4-00 unit sourced directly from authorized supply channels. It is not a third-party compatible or remanufactured substitute. Each unit undergoes pre-shipment functional testing to verify output performance, control logic, and communication interface integrity before dispatch.

Q2: How do I confirm compatibility with my existing MOVIDRIVE B installation before ordering?
The MDX60A0055-5A3-4-00 is a direct replacement for units of the same part number within the MOVIDRIVE B series. Compatibility is confirmed by matching the supply voltage (400 V, 3-phase), output power (0.55 kW), and control interface type. If your installation uses a specific fieldbus option card, please confirm the option card part number separately, as option cards are not included with the base drive unit.

Q3: What is included in the 12-month warranty and how does it apply to spare parts inventory?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. For spare parts held in inventory, the warranty period begins at the time of shipment, not at the time of installation. We recommend rotating spare stock and maintaining a maximum inventory age of 24 months to ensure optimal component condition. Warranty claims are supported with a return merchandise authorization (RMA) process and replacement or repair at no additional cost.

Q4: Can this unit be shipped internationally, and what documentation is provided for customs clearance?
Yes, the MDX60A0055-5A3-4-00 ships worldwide. Each shipment includes a commercial invoice, packing list, and certificate of origin (Germany). HS code documentation is available upon request to support customs clearance in your destination country. For orders requiring expedited international shipping, please contact our sales team to confirm lead time and carrier options.
