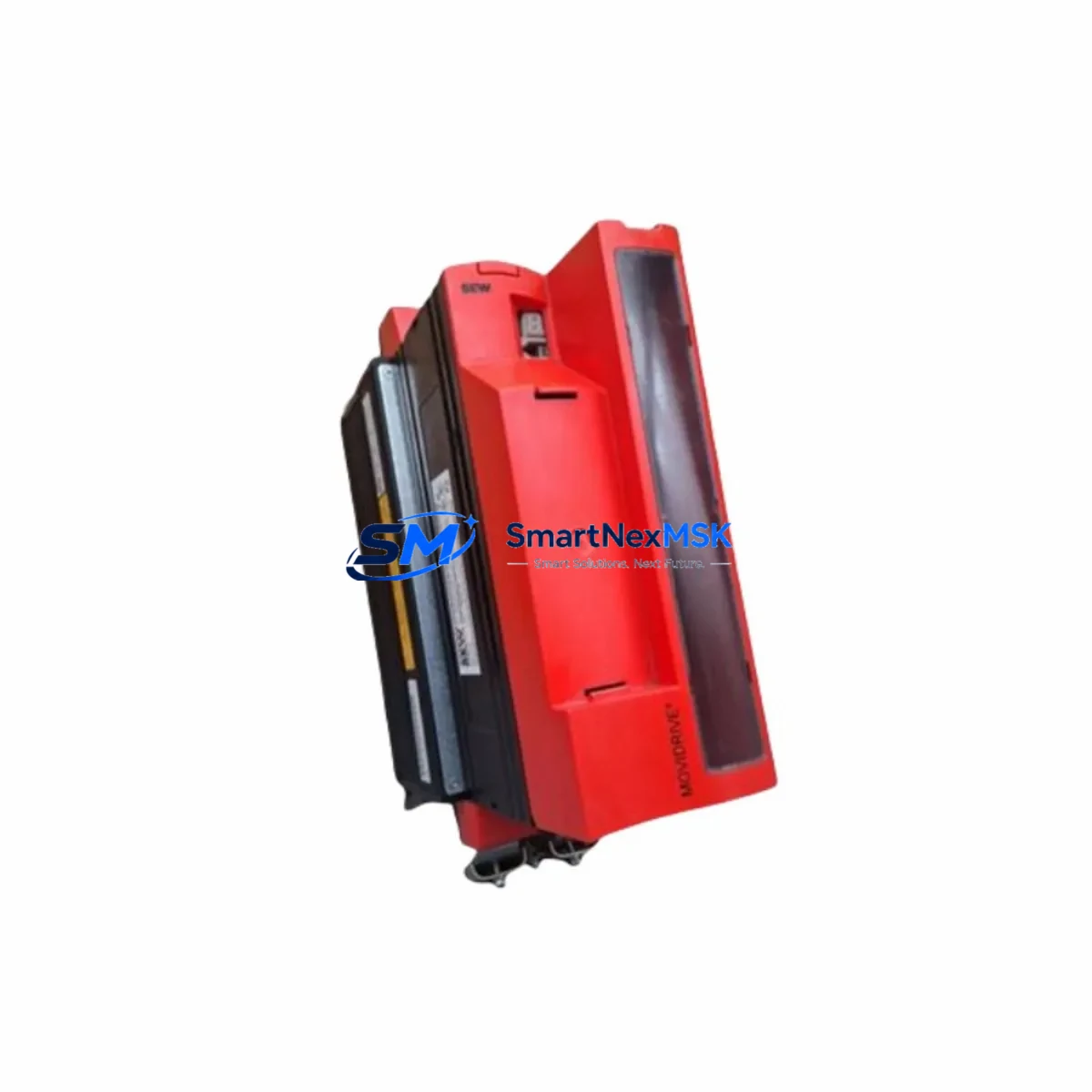

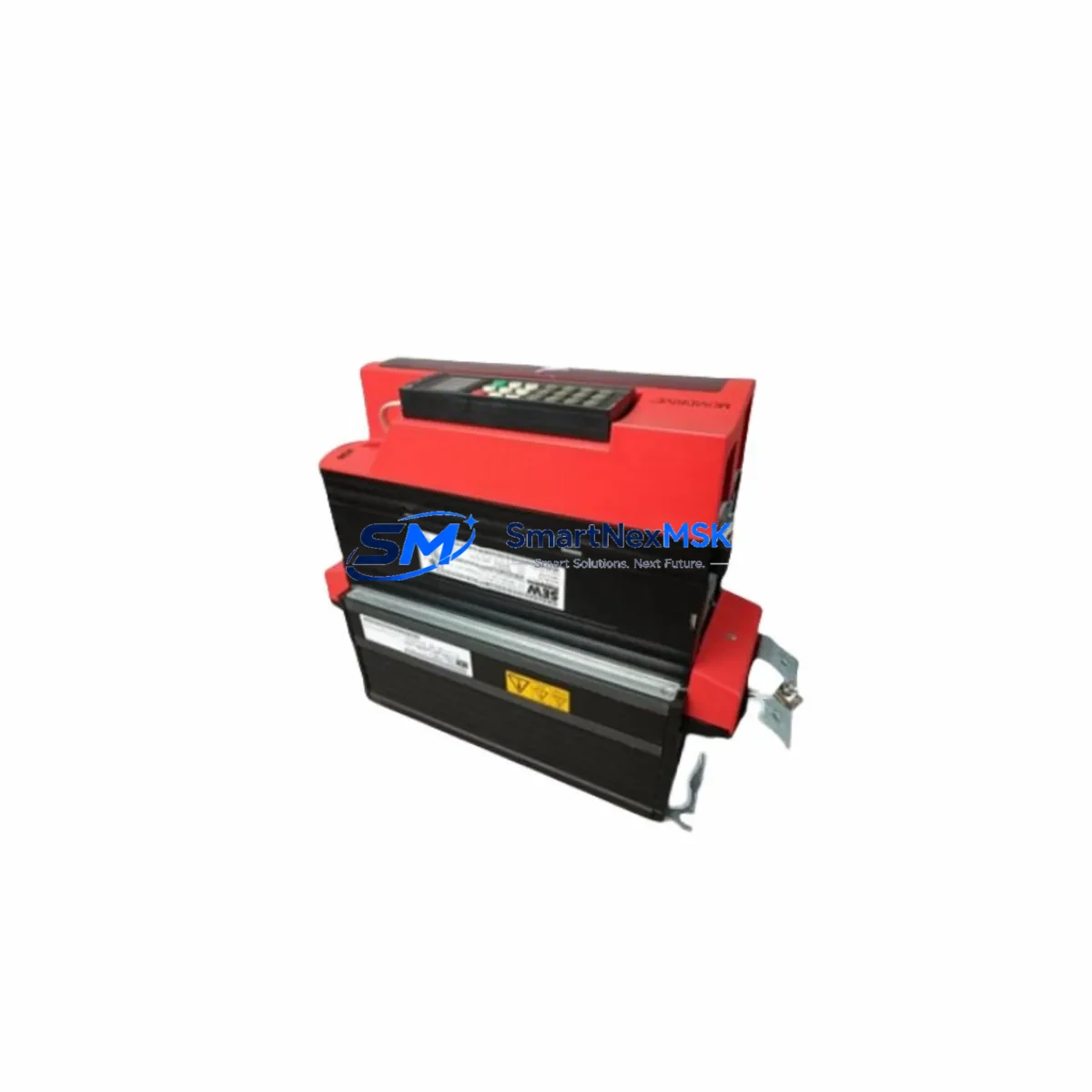

SEW-Eurodrive MDX61B0110-5A3-4-0T Safety-Enhanced AC Drive for Harsh Industrial Sites
The SEW-Eurodrive MDX61B0110-5A3-4-0T is a MOVIDRIVE B series 11 kW / 400 V three-phase AC variable frequency drive engineered for continuous, safety-critical operation in demanding industrial environments. Designed to sustain reliable motor control under high electrical noise, voltage fluctuation, and thermal stress, this drive is a proven choice for control engineers who cannot afford unplanned downtime in heavy-duty production facilities.
In high-load applications such as continuous conveyor lines, heavy lifting systems, and multi-axis coordinated drives, the MDX61B0110-5A3-4-0T delivers stable speed regulation and torque control even when the supply network is subject to harmonic distortion or transient surges. Its integrated DC bus architecture and robust IGBT output stage suppress voltage spikes that would otherwise trigger nuisance trips or damage motor windings, directly reducing the risk of unplanned stops in critical production loops.
Signal integrity is maintained through the drive’s shielded encoder interface and differential analog input circuitry, which reject common-mode interference from adjacent high-power equipment such as large contactors, welding machines, or variable-load compressors. This makes the MDX61B0110-5A3-4-0T particularly suitable for installation inside densely populated control cabinets where EMI levels are elevated.
Safety Reliability Table
| Parameter | Specification |
|---|---|
| Model / SKU | MDX61B0110-5A3-4-0T |
| Series | MOVIDRIVE B |
| Brand | SEW-Eurodrive |
| Rated Power | 11 kW (15 HP) |
| Supply Voltage | 3 × 380–500 V AC, 50/60 Hz |
| Output Current | 25.5 A (nominal) |
| Control Mode | V/f, Sensorless Vector, Closed-Loop Vector (CFC) |
| Communication | PROFIBUS, CANopen, DeviceNet, EtherCAT (option cards) |
| Protection Class | IP20 (panel-mount); IP54/IP65 with optional housing |
| Operating Temperature | 0 °C to +40 °C (derated to +55 °C) |
| Storage Temperature | −25 °C to +70 °C |
| Humidity | ≤ 95 % RH, non-condensing |
| Altitude | Up to 1000 m (derated above) |
| EMC Compliance | EN 61800-3, Category C2 |
| Safety Function | STO (Safe Torque Off) via option module |
| Braking | Internal brake chopper, external resistor compatible |
| Surge / Overvoltage Protection | Built-in DC bus clamp, transient suppression |
| Warranty | 12 Months — covers manufacturing defects, functional failure under normal operating conditions |
| Pre-shipment Testing | Full functional and load test performed before dispatch |
| Origin | Germany |
Control Cabinet Protection Strategy
Deploying the MDX61B0110-5A3-4-0T within a well-engineered control cabinet requires a layered protection approach. On the power input side, a correctly rated line reactor — such as the SEW-Eurodrive HD.. series input choke — limits inrush current and attenuates supply-side harmonics, protecting both the drive and upstream switchgear. A coordinated circuit breaker or fused disconnect isolates the drive during fault conditions without exposing adjacent equipment to fault energy.
For motor cable runs exceeding 20 metres, an output dV/dt filter or sine-wave filter prevents reflected wave overvoltage from stressing motor insulation, a common failure mode in older rewound motors. The MOVIDRIVE B’s integrated brake chopper works in conjunction with an external braking resistor — such as the SEW BW.. series — to safely dissipate regenerative energy during rapid deceleration cycles in hoisting or centrifuge applications, preventing DC bus overvoltage trips.
Communication reliability is enhanced by pairing the MDX61B0110-5A3-4-0T with the appropriate SEW fieldbus option card — DFP21B for PROFIBUS DP or DFE24B for EtherCAT — ensuring deterministic cycle times and fault-tolerant data exchange with the host PLC, such as a Siemens S7-300/400 or a Rockwell ControlLogix system. In safety-rated interlock circuits, the STO input (when the DCS21B safety option is fitted) allows the drive to be de-energised without removing main power, supporting IEC 62061 SIL 2 and ISO 13849 PLd architectures.
Power quality within the cabinet is further stabilised by a 24 V DC SITOP or Phoenix Contact QUINT power supply feeding the control logic, preventing control board brownouts during motor start transients. Surge protection devices on both the supply rail and the signal wiring terminals complete the cabinet’s defence against lightning-induced or switching transients that are common in outdoor substations and mining switchrooms.
Critical Industrial Safety Applications
Petrochemical & Refinery: In hazardous-area pump and compressor drives, the MDX61B0110-5A3-4-0T controls motor speed with precision to maintain safe process pressures and flow rates. Its STO capability integrates directly with emergency shutdown (ESD) systems, ensuring the drive de-energises the motor within the required response time when a process safety event is detected.
Power Generation & Utilities: Cooling water pump drives and forced-draft fan controls in thermal power plants demand continuous availability. The MOVIDRIVE B’s auto-restart and flying-restart functions allow the drive to reconnect to a spinning motor after a brief supply interruption without mechanical shock, reducing wear on couplings and bearings.
Mining & Mineral Processing: Belt conveyor and crusher drives in underground or open-cut mines are exposed to coal dust, silica, and high humidity. The MDX61B0110-5A3-4-0T’s robust DC bus design and configurable current limits prevent motor stall and drive overcurrent trips during material surge events, maintaining throughput and reducing the risk of conveyor rollback incidents.
Water & Wastewater Treatment: Aeration blower and sludge pump drives require reliable operation across wide flow ranges. The drive’s PID process controller eliminates the need for a separate controller in simple single-loop applications, reducing panel complexity and potential failure points.
Metallurgy & Steel: Rolling mill auxiliary drives and cooling table conveyors operate under high cyclic loads. The MOVIDRIVE B’s fast current control loop and configurable torque limits protect mechanical components from shock loads while maintaining precise speed synchronisation across multi-drive sections.
Port & Material Handling: Crane hoist and trolley drives require safe load holding and controlled lowering. The MDX61B0110-5A3-4-0T’s integrated brake management function coordinates the mechanical brake and the drive’s holding torque, preventing load drop during power transitions and meeting crane safety standards.
Safety and Quality FAQ
Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. It includes free repair or replacement of the unit. Damage caused by incorrect installation, supply voltage outside the rated range, or physical impact is excluded. Warranty claims are processed promptly with a target response within 3 business days.
Q2: What pre-shipment testing is performed on the MDX61B0110-5A3-4-0T?
Every unit undergoes a full functional test under load prior to dispatch. This includes power-on verification, parameter upload, output voltage and current measurement across the speed range, and communication port validation. A test report is available on request. Units that do not pass all test criteria are not shipped.
Q3: Is the MDX61B0110-5A3-4-0T compatible with my existing SEW MOVIDRIVE B system?
Yes. The MDX61B0110-5A3-4-0T is a standard MOVIDRIVE B frame size 2 unit and is fully compatible with existing SEW option cards (DFP21B, DFE24B, DCS21B, etc.), parameter sets created with MOVITOOLS MotionStudio, and SEW-standard motor feedback systems including HTL/TTL encoders and resolvers. It can be used as a direct replacement for a failed unit in an existing installation without hardware modification.
Q4: Can long-term supply and spare parts support be guaranteed?
We maintain dedicated stock of the MDX61B0110-5A3-4-0T and related MOVIDRIVE B components to support ongoing production and planned maintenance programmes. Orders are confirmed with lead times at the time of enquiry. For customers with critical sparing requirements, we recommend discussing a consignment or reserved-stock arrangement to ensure availability during scheduled shutdowns or emergency breakdowns.
