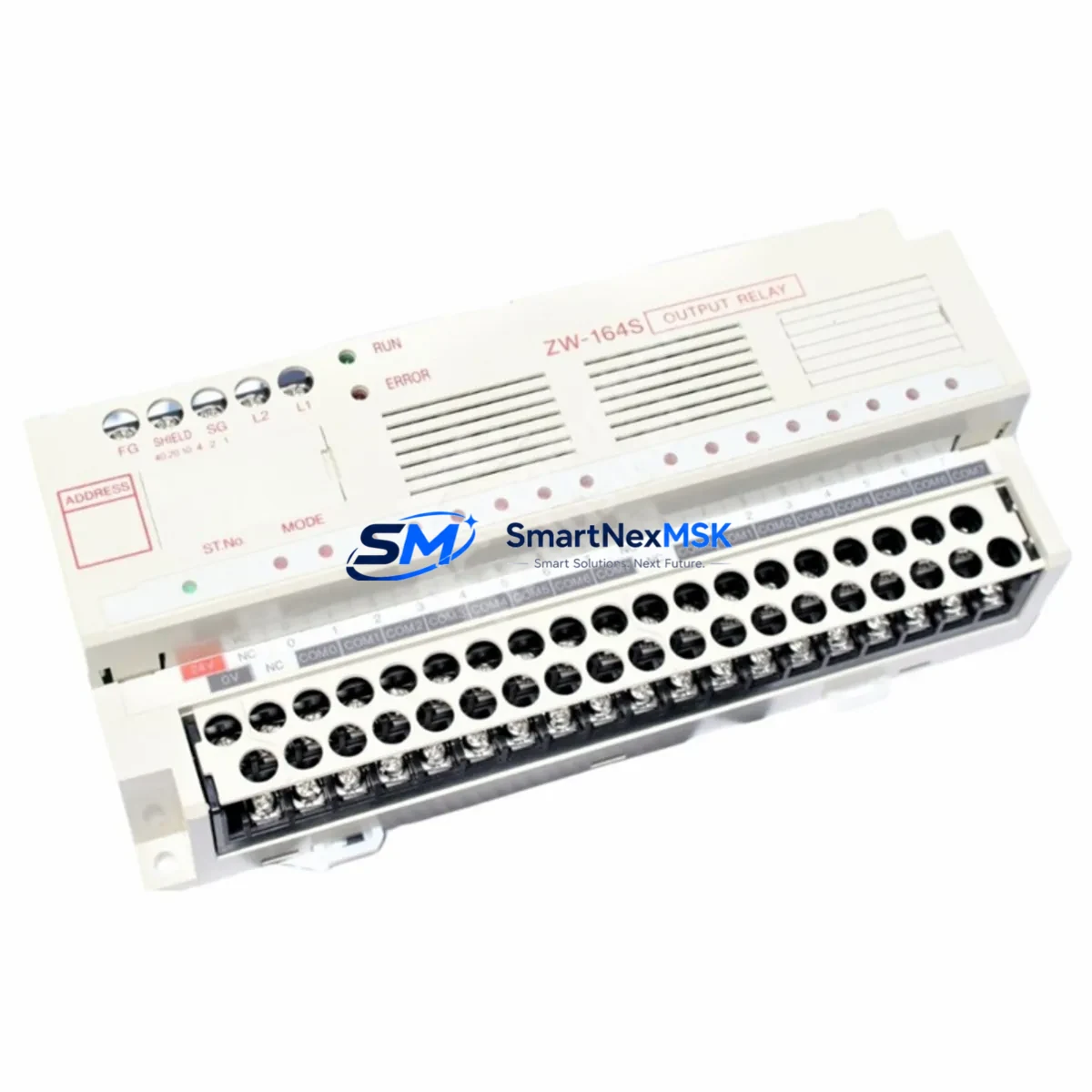

SHARP ZW-164S Maintenance-Ready Spare ZW Series Automation

SHARP ZW-164S Maintenance-Ready Spare for ZW Series Automation

The SHARP ZW-164S is a proven I/O expansion module within the SHARP ZW Series programmable controller platform, widely deployed across discrete manufacturing, process control, and building automation systems. For maintenance engineers managing aging control infrastructure, securing a verified spare of the ZW-164S is a critical step in any downtime-prevention strategy. Unplanned PLC module failure can halt an entire production line within minutes; having a tested, shelf-ready replacement eliminates the most dangerous variable in emergency recovery — lead time.

This listing supplies the ZW-164S as an original-specification spare, sourced and inspected to match factory electrical and mechanical parameters. Each unit undergoes pre-shipment functional verification covering signal integrity, terminal continuity, and module identification. The 12-month warranty covers defects in materials and workmanship under normal industrial operating conditions, giving procurement engineers the confidence to commit to long-term spare parts planning without risk exposure.

Whether you are building a first-time spare parts kit for a newly commissioned ZW Series cabinet, replenishing a depleted maintenance stock after an emergency swap, or extending the operational life of a legacy SHARP PLC system that is no longer in active production, the ZW-164S spare supports all three scenarios with equal reliability.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the ZW-164S in a live control cabinet is rarely an isolated task. Experienced maintenance engineers treat a module swap as an opportunity to audit the surrounding electrical environment and prevent secondary failures. When pulling the ZW-164S from service, the following components in the same cabinet or electrical loop should be inspected or tested concurrently.

The ZW Series CPU module (such as the ZW-40MR or equivalent base unit) should be checked for firmware version compatibility with any replacement I/O module, particularly if the spare has a different hardware revision. The 24VDC power supply module feeding the ZW backplane is a frequent silent contributor to I/O module degradation — verify output voltage under load and inspect for capacitor aging or ripple. Terminal blocks and wiring harnesses connected to the ZW-164S field-side terminals should be inspected for oxidation, loose crimps, and insulation fatigue, especially in high-vibration or high-humidity environments.

If the ZW-164S handles digital output signals driving relay coils, inspect the associated intermediate relay module or relay card for contact wear and coil resistance drift. For analog-adjacent applications, check any signal isolator or signal conditioner in the loop — these components often degrade in parallel with I/O modules and can cause erratic readings that are misdiagnosed as module failure. The ZW Series communication module (RS-232C or RS-485 interface card, if installed) should be verified for correct baud rate settings and cable shielding integrity after any module replacement that involves backplane reseating.

Fuse holders and miniature circuit breakers protecting the I/O field circuits should be tested for correct trip rating and contact resistance. HMI panel connections — whether a dedicated SHARP programmer unit or a third-party touch panel — should be re-validated after the swap to confirm that tag addresses and I/O mapping remain intact. Finally, inspect the backplane connector and expansion cable between the base unit and any expansion rack: reseating the ZW-164S is an ideal time to clean connector pins and verify mechanical locking.

Maintaining a documented spare parts list that includes the ZW-164S alongside its companion power supply, relay output cards, communication interface, and terminal accessories reduces mean time to repair (MTTR) and supports structured preventive maintenance scheduling.

Site Replacement Workflow

Step 1 — Isolation and Backup: Before removing the ZW-164S, perform a full PLC program backup to a laptop or programmer unit. Record all I/O address assignments and confirm the module slot position in the ZW Series rack. De-energize the field circuits connected to the module’s output terminals before cutting control power to the backplane.

Step 2 — Physical Removal: Release the module locking tab, disconnect field wiring from the terminal block (label each wire if not already tagged), and slide the ZW-164S out of the backplane slot. Inspect the backplane connector for bent pins or contamination before inserting the replacement unit.

Step 3 — Replacement Installation: Insert the new ZW-164S into the same slot, ensuring the backplane connector seats fully. Reconnect field wiring in the original configuration. Restore control power and verify that the CPU module recognizes the replacement I/O module without generating a hardware fault code.

Step 4 — Functional Verification: Force-test each I/O point from the programmer or HMI to confirm correct signal mapping. Verify output relay operation and input signal thresholds. Run the system in manual mode before returning to automatic operation.

Step 5 — Documentation Update: Record the replacement date, new module serial number, and any observations about the failed unit in the equipment maintenance log. Update the spare parts inventory to trigger reorder of a replacement ZW-164S spare.

This workflow minimizes downtime to under two hours for a prepared maintenance team and eliminates the risk of incorrect wiring or address mapping errors that can extend recovery time unnecessarily.

Spare Parts Support FAQ

Q1: Is this ZW-164S a direct drop-in replacement for the original module in my ZW Series cabinet?
Yes. The ZW-164S spare is supplied to original SHARP specification, covering mechanical dimensions, backplane connector pinout, I/O addressing, and electrical ratings. No firmware changes or parameter reconfiguration are required for a like-for-like slot replacement in a ZW Series rack.

Q2: How do I verify compatibility if my system uses a specific ZW Series CPU version?
Compatibility is determined by the ZW Series backplane standard, which is consistent across the ZW-40MR, ZW-60MR, and related base units. If your system uses a non-standard expansion configuration or a third-party backplane adapter, contact us with your CPU model and rack layout before ordering. We will confirm compatibility before shipment.

Q3: What pre-shipment testing is performed on each ZW-164S unit?
Each unit is tested for terminal continuity across all I/O points, backplane connector integrity, module identification response, and visual inspection for mechanical damage. Units that do not pass all checkpoints are not shipped. A test record is available upon request for quality-critical procurement.

Q4: What does the 12-month warranty cover, and how is a warranty claim handled?
The 12-month warranty covers manufacturing defects and component failures under normal industrial operating conditions. It does not cover damage from incorrect installation, overvoltage, or physical impact. To initiate a warranty claim, contact us with the order reference and a description of the fault. We will arrange return shipping and provide a replacement or repair within an agreed lead time.
