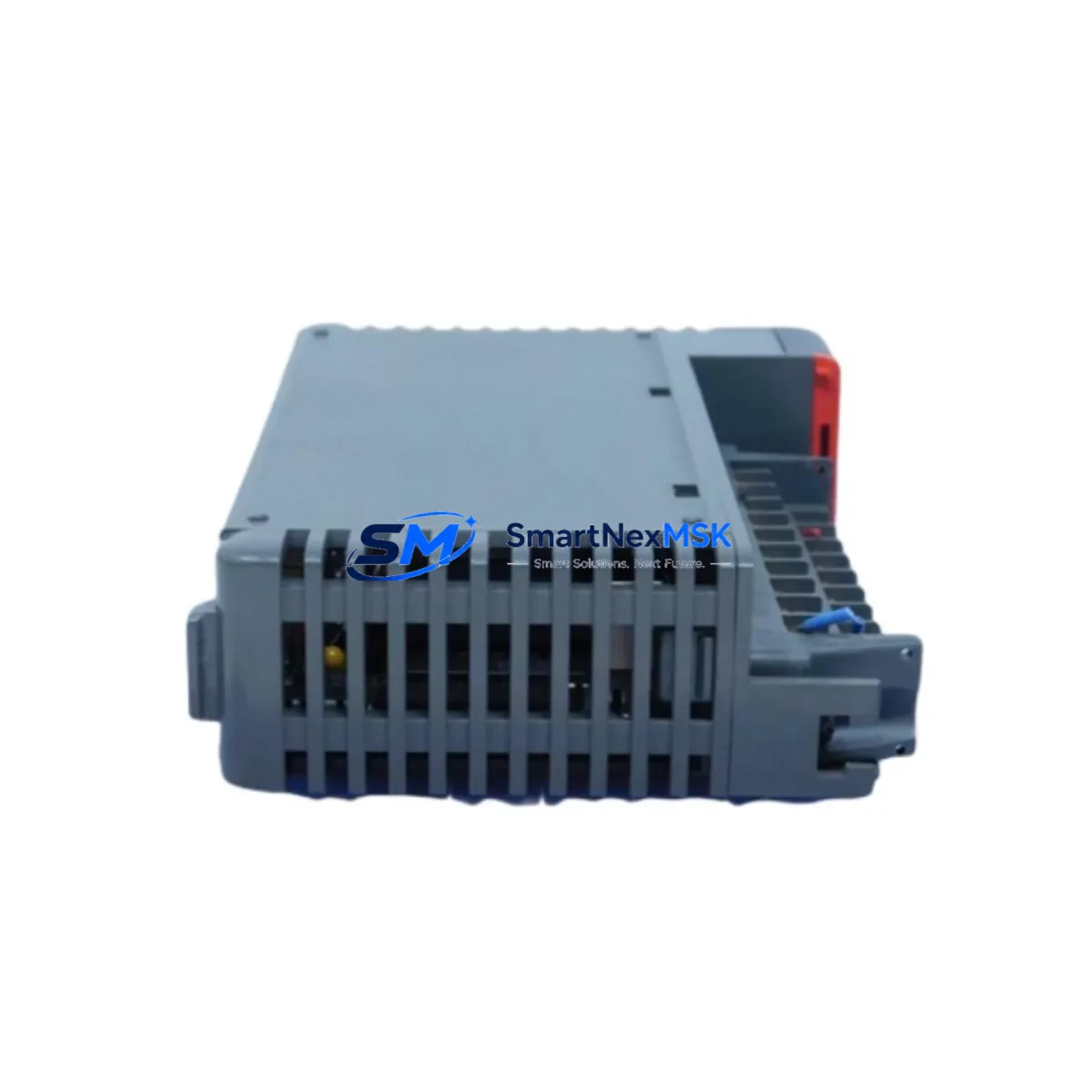

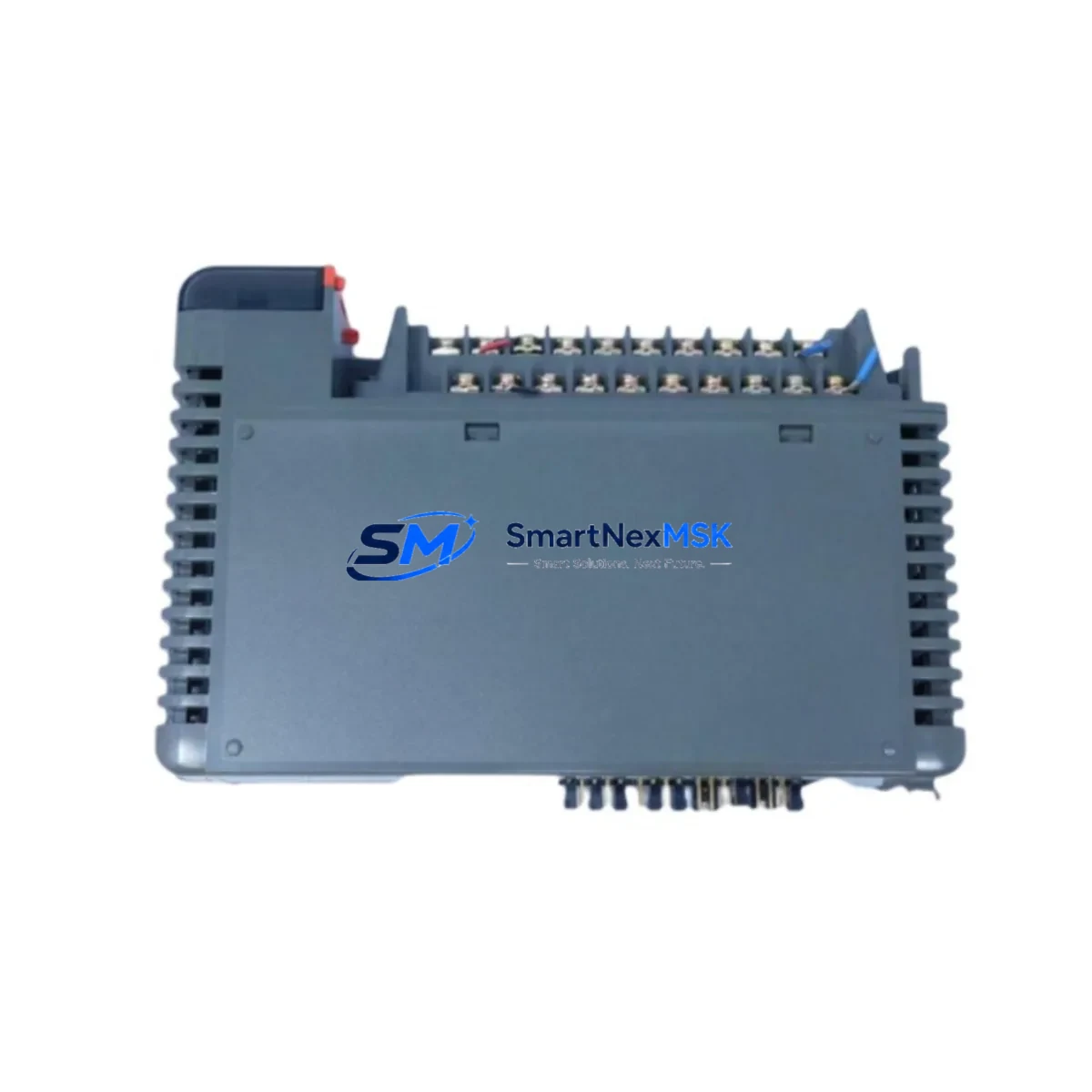

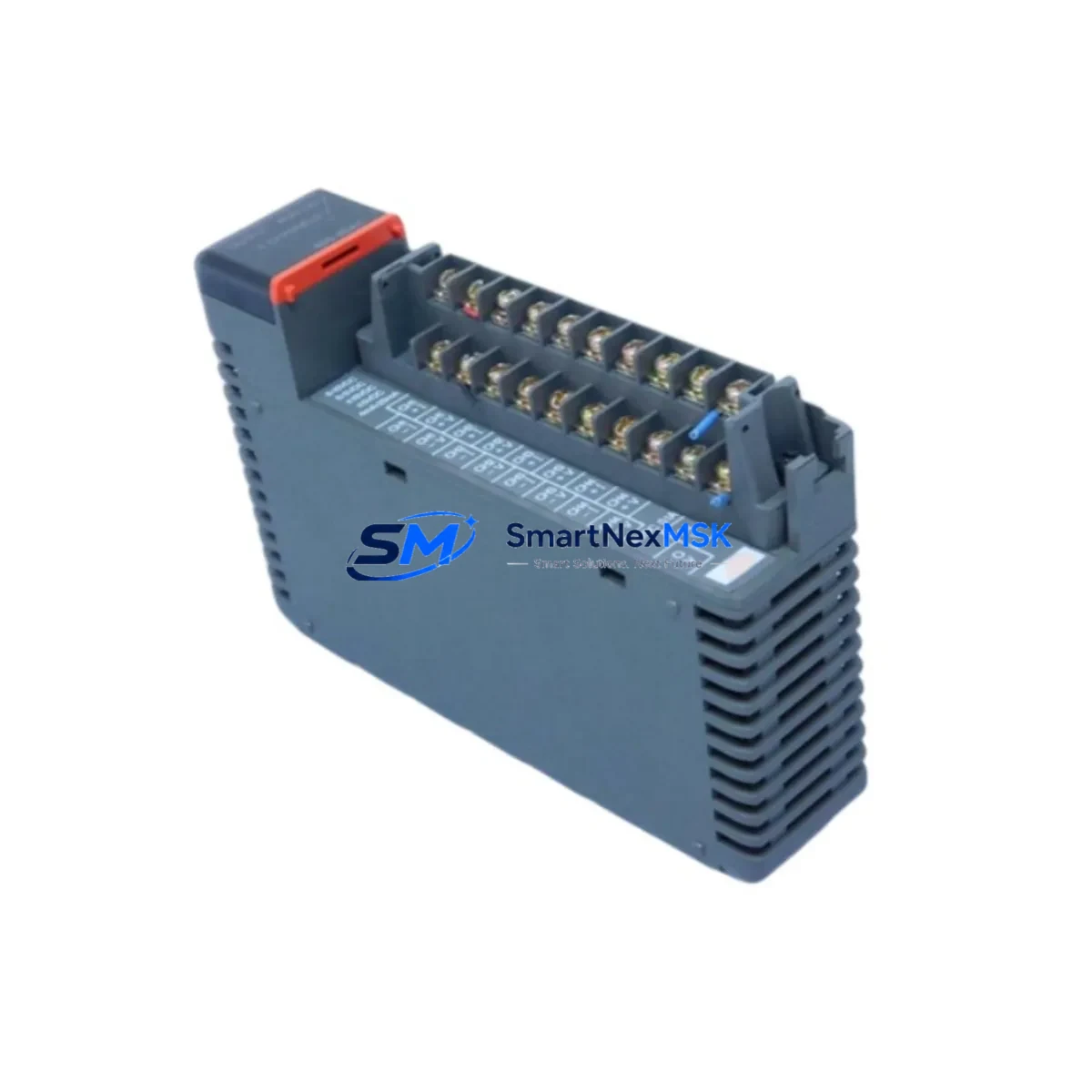

SIEMENS 405-4DAC Maintenance-Ready Spare for S5-400 Automation
The SIEMENS 405-4DAC is a 4-channel analog output module designed for the SIMATIC S5-400 programmable logic controller platform — one of the most widely deployed process automation architectures in heavy industry, chemical processing, power generation, and manufacturing. As original production of the S5-400 series has been discontinued, maintaining operational continuity depends entirely on a reliable supply of verified spare parts. The 405-4DAC remains a critical component in thousands of legacy control systems worldwide, and sourcing a tested, original replacement is the single most effective way to minimize unplanned downtime and restore system integrity after a module failure.
At SMARTNEXMSK, every 405-4DAC unit is sourced from verified industrial channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty. We maintain standing inventory to support both emergency replacement orders and planned maintenance procurement cycles, ensuring your engineering and purchasing teams can act decisively when a fault is detected.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number / SKU | 405-4DAC |
| Manufacturer | SIEMENS |
| Series | SIMATIC S5-400 |
| Module Type | 4-Channel Analog Output Module |
| Output Channels | 4 (independent, configurable) |
| Output Signal Range | 0–10 V / ±10 V / 0–20 mA / 4–20 mA (channel-selectable) |
| Resolution | 12-bit (11-bit + sign) |
| Supply Voltage | 24 V DC (via S5-400 backplane bus) |
| Backplane Compatibility | SIMATIC S5-400 central rack / expansion rack |
| Installation | Direct slot insertion, no tools required |
| Operating Temperature | 0 °C to +60 °C |
| Protection Class | IP20 |
| Origin | Germany (Original SIEMENS manufacture) |
| Condition | Original spare — new or refurbished-to-spec |
| Pre-shipment Testing | Functional output verification on all 4 channels |
| Warranty | 12 Months |
| Lead Time | In-stock: ships within 24–48 hours |
| Compatibility Note | Compatible with S5-400 CPU 941, 942, 943, 944, 945 configurations |
| Maintenance Recommendation | Inspect output wiring, terminal blocks, and backplane connector annually |
Maintenance Planning for Continuous Operation
When a 405-4DAC analog output module fails or shows degraded signal accuracy, the fault rarely exists in isolation. Experienced maintenance engineers know that a single module failure is often a symptom of broader stress in the control cabinet — whether from aging power infrastructure, accumulated connector oxidation, or thermal cycling over years of continuous operation. A disciplined replacement workflow should therefore extend beyond the module itself.
Begin by verifying the PS 405 or PS 407 power supply module output voltage and ripple. An unstable 24 V DC rail is a common root cause of analog output drift and module faults in S5-400 systems. If the power supply is more than 10 years old, consider scheduling a proactive replacement alongside the 405-4DAC swap. Next, inspect the S5-400 central rack backplane and the module slot connector for pin damage, corrosion, or debris — a compromised backplane connection will cause intermittent faults even with a new module installed.
Check the terminal block wiring connected to the 405-4DAC output channels. Loose or corroded screw terminals on the field-side connector are a frequent cause of signal loss that is misdiagnosed as module failure. While the cabinet is open, inspect adjacent signal isolators or signal conditioners in the analog output loop — particularly if the 405-4DAC drives field instruments through galvanic isolation barriers. A degraded isolator can mask a healthy module output and introduce loop errors.
For systems where the 405-4DAC interfaces with SIMATIC S5 CPU modules such as the CPU 944B or CPU 945, verify that the CPU’s analog output configuration parameters in the system data block (SDB) are correctly mapped to the replacement module’s slot address. A slot address mismatch after module replacement is a common commissioning error that causes the new module to appear non-functional.
If your S5-400 system includes a CP 544 or CP 545 communications processor for PROFIBUS or industrial Ethernet connectivity, confirm that the communications module is operating normally after the 405-4DAC replacement — power cycling the rack can occasionally reset communication parameters on older firmware versions. Similarly, if the system uses an IM 460 / IM 461 interface module pair for expansion rack connectivity, verify that the inter-rack bus is stable before returning the system to production.
Maintenance engineers managing aging S5-400 installations should also maintain a minimum spare inventory that includes: the 405-4DAC analog output module, at least one 405-4AEA or 405-4AEB analog input module for cross-reference diagnostics, a spare PS 405 power supply, and a set of S5-400 slot fuses. For systems with HMI interfaces, ensure that the OP 17 or OP 27 operator panel firmware and configuration backup is current — a panel replacement during an emergency is significantly faster when a verified configuration file is available.
Site Replacement Workflow
Step 1 — Pre-replacement verification: Before removing the 405-4DAC, document the current channel configuration, output ranges, and wiring layout using the existing system documentation or a direct inspection. Photograph the terminal block wiring if documentation is incomplete.
Step 2 — Safe isolation: Place the affected CPU in STOP mode via the mode selector switch or the programming device. Confirm that all field actuators connected to the 405-4DAC outputs are in a safe state before proceeding. Do not rely solely on software interlocks for isolation.
Step 3 — Module extraction: Release the module locking mechanism and extract the 405-4DAC from its slot. Inspect the backplane connector pins for damage before inserting the replacement unit.
Step 4 — Replacement insertion: Insert the new 405-4DAC into the same slot position. The S5-400 architecture uses slot-based addressing, so maintaining the original slot position eliminates the need for SDB reconfiguration in most cases.
Step 5 — Wiring reconnection and verification: Reconnect the field-side terminal block. Verify each channel’s output signal at the field instrument using a calibrated loop calibrator or multimeter before returning the CPU to RUN mode.
Step 6 — System restart and monitoring: Return the CPU to RUN mode and monitor the analog output channels for the first 15–30 minutes of operation. Confirm that all process values are within expected ranges and that no diagnostic alarms are active in the CPU or SCADA system.
This workflow is designed to minimize total downtime to under 2 hours for a prepared maintenance team with a verified spare unit on hand — compared to 24–72 hours or more when sourcing a replacement reactively after a fault occurs.
Spare Parts Support FAQ
Q1: Is the 405-4DAC you supply an original SIEMENS part or a compatible substitute?
All 405-4DAC units supplied by SMARTNEXMSK are original SIEMENS manufacture — not third-party compatible substitutes. Each unit is sourced from verified industrial channels and undergoes pre-shipment functional testing on all four output channels. A test report is available upon request.
Q2: What is the recommended inventory strategy for S5-400 analog output modules?
For facilities running S5-400 systems in critical process applications, we recommend maintaining a minimum of one 405-4DAC spare per installed rack, with a secondary buffer unit held at the central maintenance warehouse. Given the discontinuation of S5-400 production, long-term supply availability is finite — procurement engineers should consider a 2–3 year forward buy to protect against market scarcity and price escalation.
Q3: How do you verify compatibility before shipment?
Compatibility is verified against the SIMATIC S5-400 hardware configuration documentation. If you provide your CPU type, rack configuration, and existing module order numbers, our technical team will confirm slot compatibility and SDB addressing requirements before the order is processed. We also verify that firmware and hardware revision levels are consistent with your existing installation where revision data is available.
Q4: What does the 12-month warranty cover, and what is the return process?
The 12-month warranty covers functional failure under normal operating conditions — including output signal failure, channel dropout, and backplane communication errors attributable to the module itself. Physical damage caused by incorrect installation, overvoltage, or field wiring faults is excluded. To initiate a warranty claim, contact our technical support team with the order number, fault description, and installation date. Replacement units are dispatched within 48 hours of claim approval, and return shipping is arranged at no cost to the customer.
