SIEMENS 6DD1600-0BA2 Retrofit-Ready CPU for SIMADYN D Control Systems

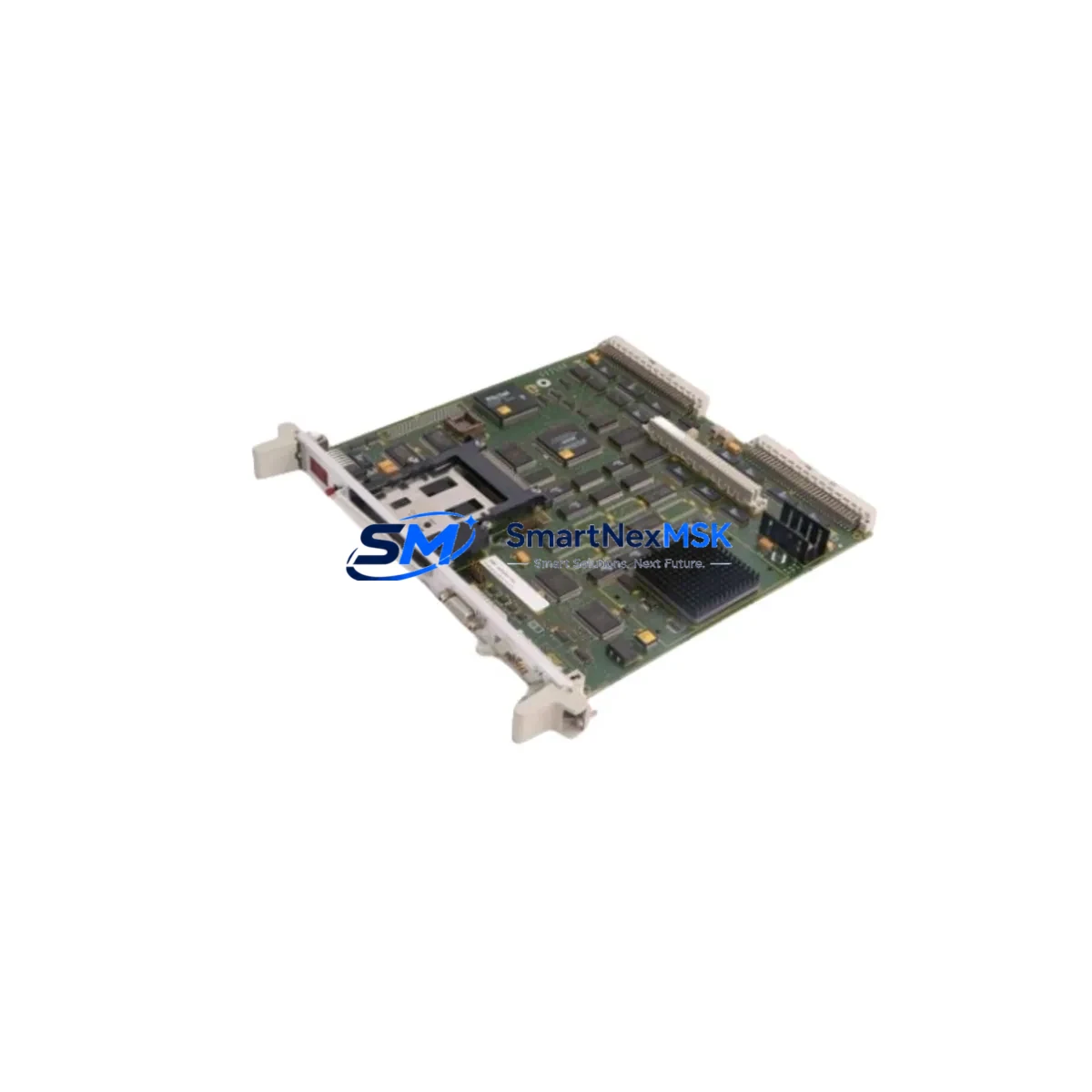

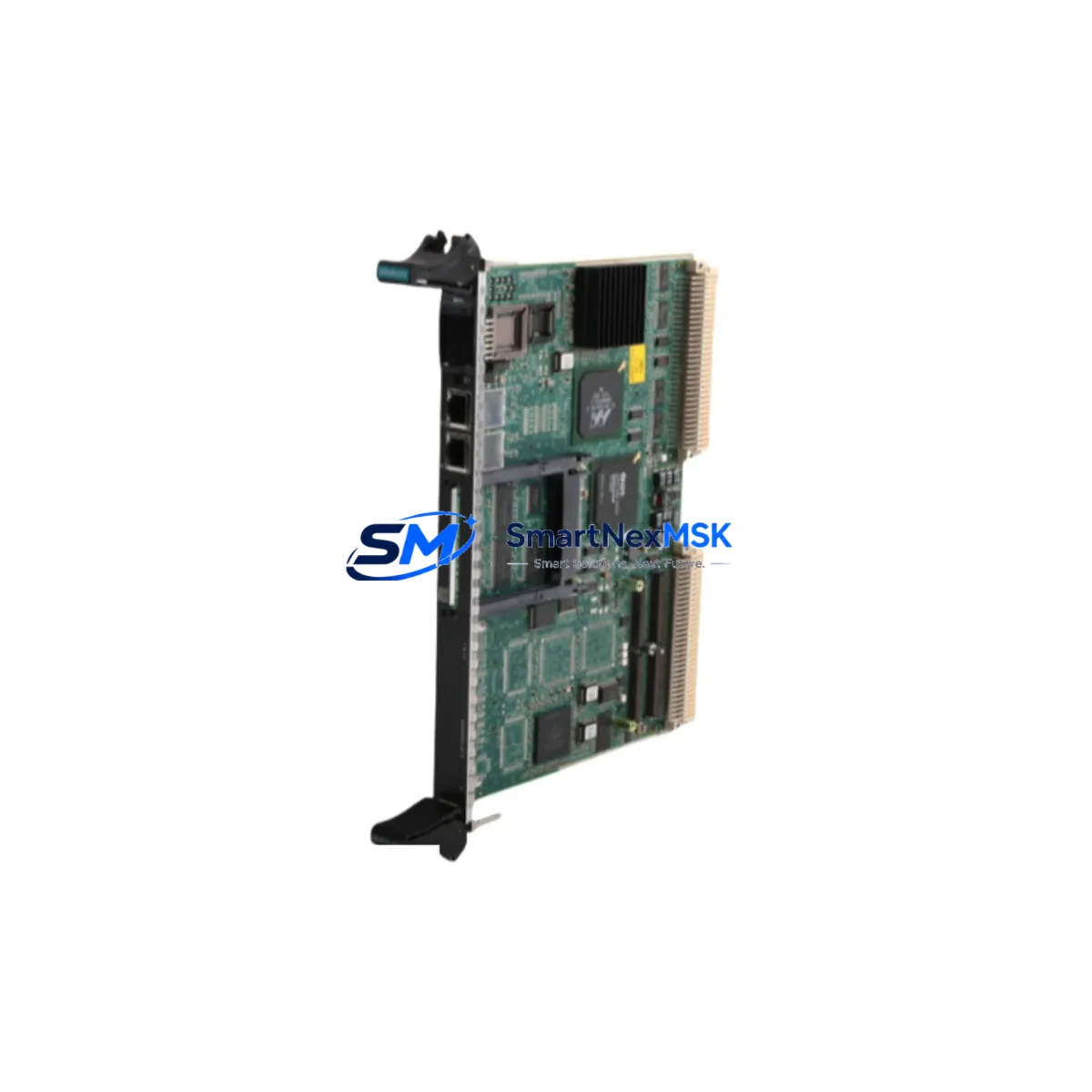

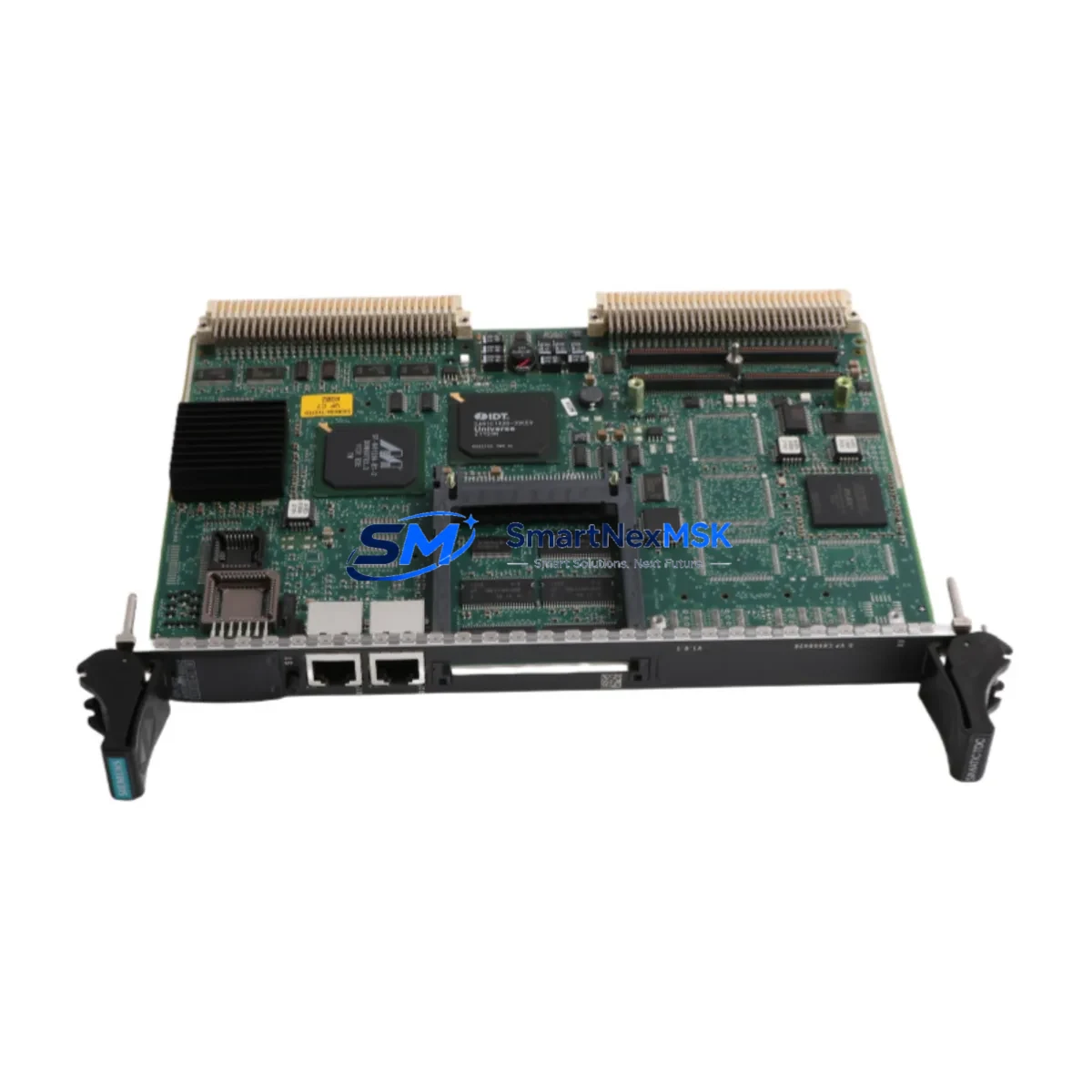

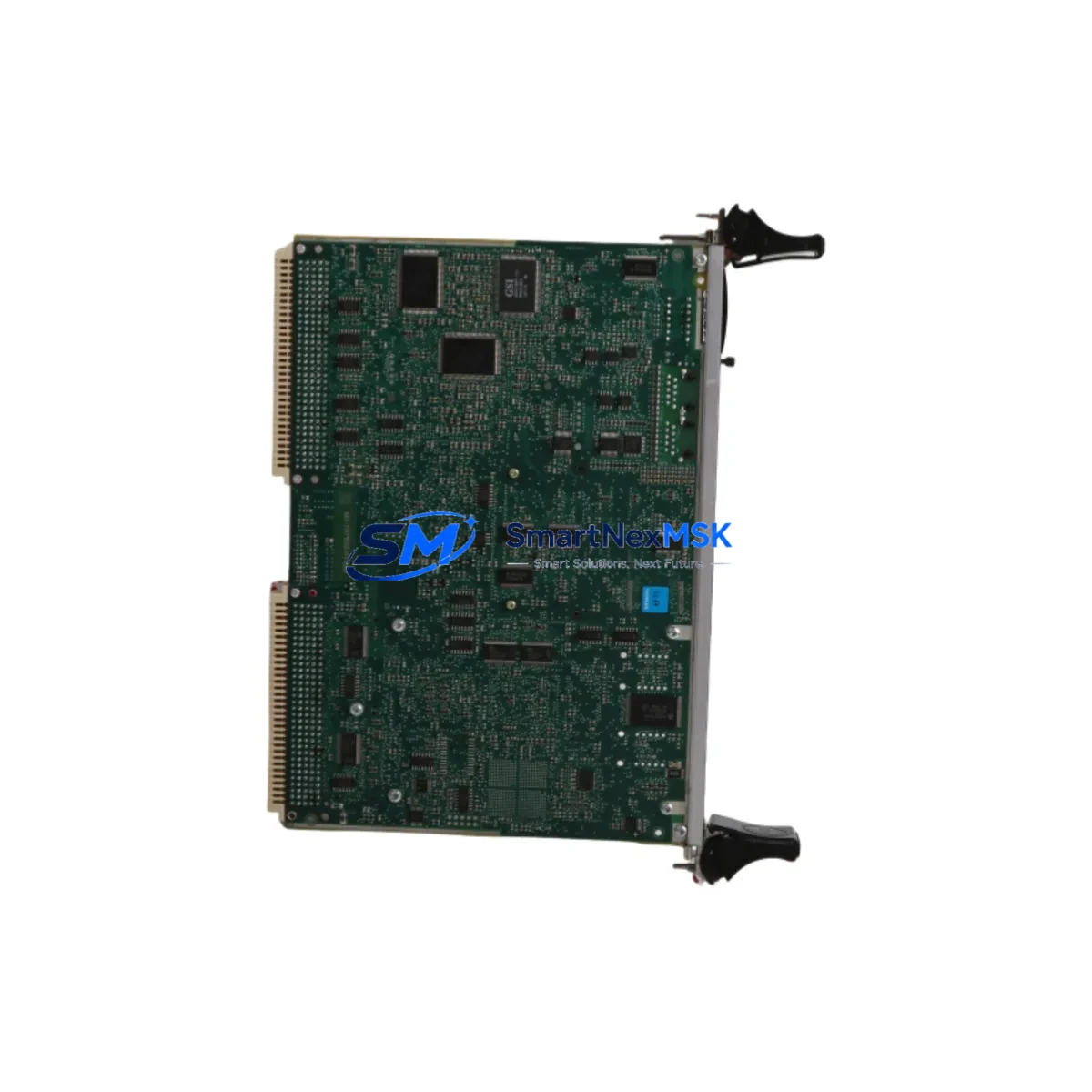

The SIEMENS 6DD1600-0BA2 is a central processor module engineered for the SIMADYN D distributed control platform — one of Siemens’ most widely deployed drive and process control architectures in heavy industry. As the SIMADYN D series approaches end-of-life and spare parts become increasingly scarce through standard distribution channels, the 6DD1600-0BA2 remains a critical component for plants that cannot afford a full DCS migration. SMARTNEXMSK maintains verified in-stock inventory of this module, fully tested and backed by a 12-month warranty, to support retrofit projects, emergency replacements, and planned system upgrades across global industrial sites.

Whether your facility is managing a legacy drive control cabinet, a turbine governor system, or a coordinated multi-axis motion platform built on SIMADYN D, the 6DD1600-0BA2 CPU module is the authoritative replacement for failed or degraded processor boards. Each unit shipped by SMARTNEXMSK undergoes pre-shipment functional verification, including power-on self-test, backplane communication check, and firmware version confirmation, ensuring the module is ready for immediate installation upon arrival.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 6DD1600-0BA2 retrofit begins well before the module arrives on site. Engineers responsible for the replacement should first audit the existing SIMADYN D rack configuration — typically a CS7 or CS12 chassis — to document the current slot assignments of all installed modules. In a typical SIMADYN D control cabinet, the CPU module shares the rack with a PS407 24 VDC power supply module, one or more AM1 or AM2 analog input/output modules, a CP1430 or CP5431 PROFIBUS communication processor, and potentially a T400 technology module handling cam control or positioning tasks. Each of these components must remain operational during the CPU swap, which requires careful sequencing of the shutdown and restart procedure.

Before removing the failed 6DD1600-0BA2 (or its predecessor revision), technicians should back up the existing application program using the SIMADYN D programming software connected via the front-panel RS-232 or RS-485 service interface. If the original program cannot be read from the failed CPU, the engineering team must retrieve the last known-good program archive from the plant’s document management system. This is particularly important in installations where the SIMADYN D platform interfaces with a WinCC or OP27 HMI panel — any mismatch between the CPU program version and the HMI screen variable mapping can result in incorrect process displays or failed alarm acknowledgment after restart.

Terminal wiring on the SIMADYN D rack is handled through the backplane connector and front-mounted I/O sub-modules rather than directly on the CPU itself, which simplifies the physical replacement. However, engineers should verify that the 6DD1600-0BA2’s DIP switch settings for module address and rack slot number match the configuration expected by the application program. In multi-rack installations connected via the SIMADYN D fiber-optic peer link, the replacement CPU must be assigned the same node address as the failed unit to avoid disrupting inter-rack communication with adjacent CS31 expansion racks or remote I/O stations.

For sites migrating from an older 6DD1600-0BA0 or 6DD1600-0BA1 revision, the 6DD1600-0BA2 is backward-compatible at the application program level in most configurations, but engineers should confirm firmware compatibility with the installed STRUC G or STRUC L function block version before committing to the swap. Where the plant also operates SIMATIC S5-115U or S5-135U controllers in adjacent control loops, the PROFIBUS-DP segment shared between the SIMADYN D CPU and the S5 master must be re-verified for baud rate and termination resistor settings after the module replacement.

Downtime Control During System Migration

Minimizing unplanned downtime during a SIMADYN D CPU replacement requires a structured pre-outage preparation protocol. SMARTNEXMSK recommends that customers request the 6DD1600-0BA2 module in advance of the planned maintenance window rather than ordering reactively after a failure — our standard lead time from confirmed order to dispatch is 1–3 business days for in-stock units, with express courier options available for critical-path shutdowns.

On the day of replacement, the recommended sequence is: (1) initiate a controlled process shutdown and place the drive or control system in a safe state; (2) de-energize the SIMADYN D rack via the PS407 power supply module’s main switch; (3) extract the failed CPU module from its rack slot using the front-panel ejector levers; (4) install the replacement 6DD1600-0BA2, confirming DIP switch settings before seating; (5) re-energize the rack and observe the CPU’s LED status indicators for normal boot sequence; (6) reconnect the programming interface and verify that the application program loads correctly from the CPU’s internal flash memory or from the EPROM cartridge if applicable; (7) perform a controlled restart of the process and validate all I/O signals, PROFIBUS communication status, and HMI variable updates before returning the system to automatic mode.

For installations where continuous production cannot be interrupted, SMARTNEXMSK can advise on hot-standby configurations using redundant SIMADYN D racks where the architecture supports it. In non-redundant single-CPU installations, the goal is to compress the physical swap and recommissioning sequence to under two hours, which is achievable with a pre-tested replacement module and a prepared engineering team. Our technical support team is available via email and phone to assist with commissioning questions during the replacement window.

Retrofit Support FAQ

Q1: Is the 6DD1600-0BA2 a direct drop-in replacement for the 6DD1600-0BA0 and 6DD1600-0BA1?
In the majority of SIMADYN D installations, yes. The 6DD1600-0BA2 is the current hardware revision of the same module family and is slot-compatible with CS7 and CS12 racks. Engineers should verify DIP switch settings and firmware version alignment, particularly in installations running older STRUC G function block libraries, before finalizing the swap.

Q2: What commissioning steps are required after installing the replacement module?
After physical installation, confirm the module address DIP switches match the rack configuration, re-load or verify the application program via the service interface, check PROFIBUS node ID and baud rate settings on the CP communication module, and validate all I/O channel assignments. For systems with a connected WinCC or OP-series HMI, verify that all process variable tags are updating correctly before returning to automatic operation.

Q3: How do I verify wiring and terminal compatibility before installation?
The 6DD1600-0BA2 connects to the SIMADYN D rack via the backplane bus — there are no direct field wiring terminals on the CPU module itself. Field I/O wiring connects through the AM1, AM2, or DM series I/O sub-modules installed in adjacent rack slots. Verify that all I/O sub-module connectors are fully seated and that the backplane bus connector on the replacement CPU is undamaged before powering up the rack.

Q4: What does the 12-month warranty cover, and what is the return process?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage, or physical impact. To initiate a warranty claim, contact SMARTNEXMSK at sales@smartnexmsk.com with your order number and a description of the fault. Our team will arrange return shipping and either repair or replace the unit within the warranty period.
