SIEMENS 6DP1280-8AB Maintenance-Ready Spare for Teleperm XP

SIEMENS 6DP1280-8AB Maintenance-Ready Spare for Teleperm XP Automation

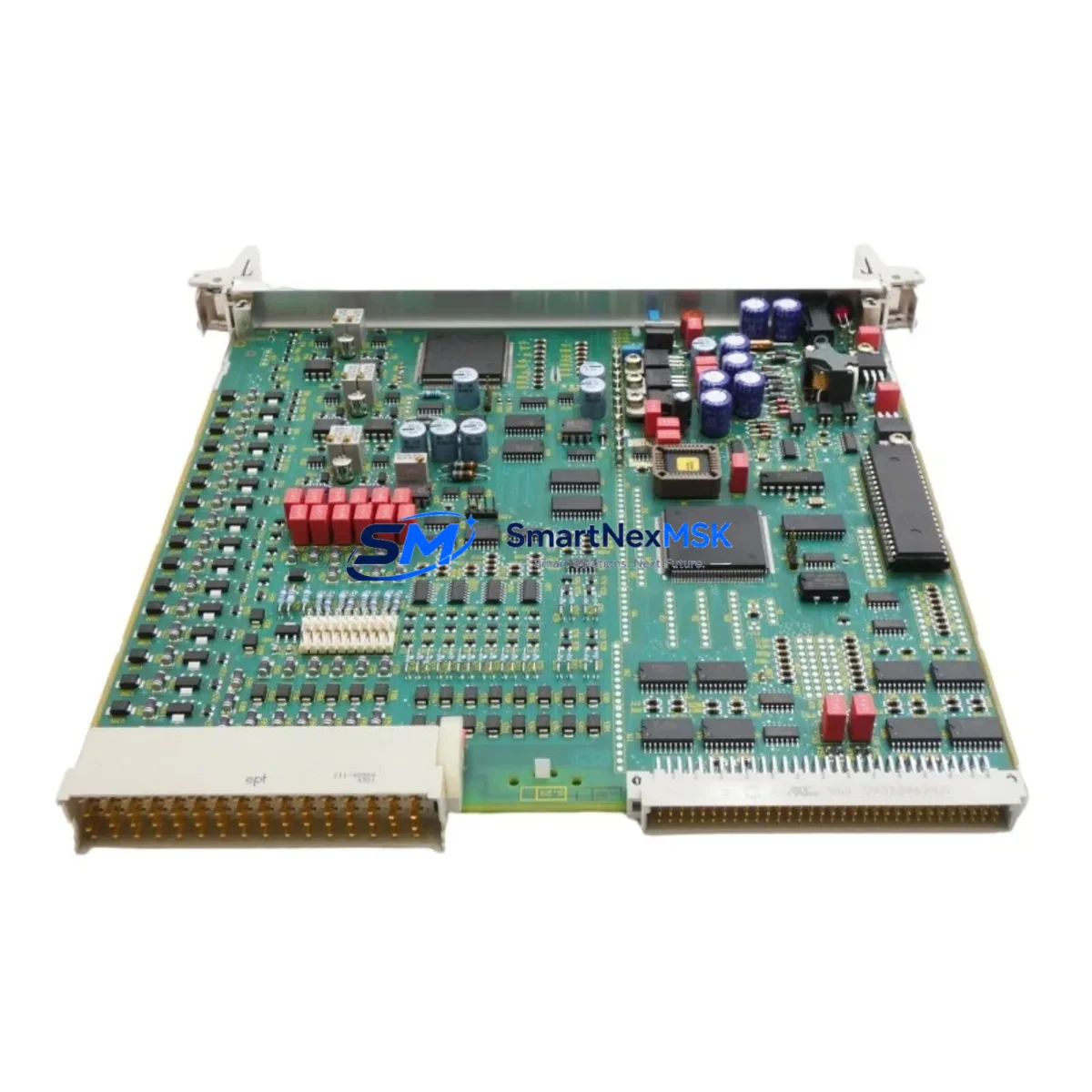

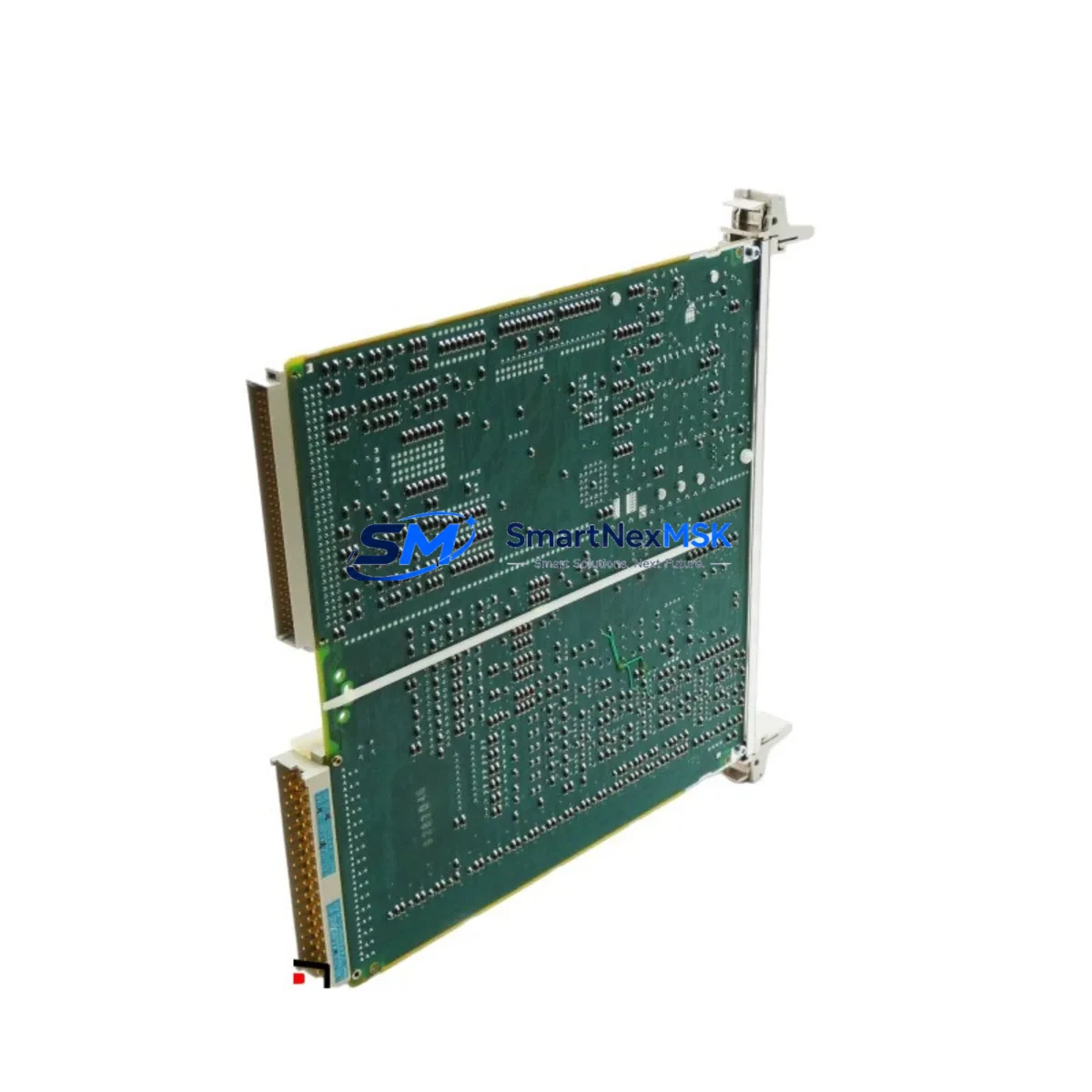

The SIEMENS 6DP1280-8AB is the FUM 280 Power Distribution Module designed for the Teleperm XP Distributed Control System (DCS). As a critical power distribution component within the Teleperm XP control cabinet, this module supplies regulated DC power to field I/O modules, communication cards, and signal conditioning units mounted on the same backplane. When this module fails or degrades, the entire rack segment loses power — triggering unplanned shutdowns across multiple process loops simultaneously. Sourcing a verified original spare and having it on-site before failure occurs is the single most effective strategy for minimizing mean time to repair (MTTR) in Teleperm XP installations.

At SMARTNEXMSK, every 6DP1280-8AB unit is sourced from authorized industrial channels, subjected to pre-shipment functional testing, and dispatched with a 12-month warranty. We maintain long-term stock continuity for legacy Teleperm XP components, supporting maintenance engineers and procurement teams who manage aging DCS infrastructure in power generation, chemical processing, oil & gas, and heavy manufacturing environments.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer identifies the 6DP1280-8AB as a replacement requirement, the scope of inspection should extend beyond the module itself. Power distribution failures in Teleperm XP racks are rarely isolated events — they frequently indicate upstream supply degradation or downstream load faults that accelerate module wear.

During a planned replacement of the FUM 280, engineers should simultaneously inspect the 24 VDC bus supply unit feeding the subrack, as voltage ripple or sag from an aging power supply unit (PSU) is a common root cause of premature FUM module failure. The Teleperm XP subrack backplane connector contacts should be cleaned and inspected for oxidation or mechanical damage before inserting the replacement module. If the rack houses analog input modules (AIM) or digital output modules (DOM) from the same FUM-series family, their power draw should be verified against the replacement module’s rated output capacity.

Communication integrity should also be validated after replacement. The PROFIBUS DP communication module or CS 275 bus coupler sharing the same rack segment may require a cold restart to re-establish node addressing after a power distribution interruption. Similarly, signal isolators and 4–20 mA loop-powered transmitter interfaces connected to the I/O tier should be checked for loop continuity, as power interruptions can corrupt calibration states in some field devices.

For cabinets running extended maintenance cycles, it is advisable to inspect miniature circuit breakers (MCBs) and blade fuses on the 24 VDC distribution rail, as these protective devices are often overlooked during routine checks but are the first line of defense against cascade failures. Terminal block assemblies on the field wiring side should be torque-checked, particularly in high-vibration environments. If the installation includes a redundant power supply configuration, the switchover relay and diode ORing module should be tested for correct failover behavior before returning the system to service.

For sites managing Teleperm XP alongside newer SIMATIC PCS 7 or S7-400 infrastructure, maintaining a consolidated spare parts list that covers both legacy FUM-series modules and current-generation ET 200M I/O stations or IM 153 interface modules is a best practice that reduces emergency procurement lead times significantly.

Site Replacement Workflow

Step 1 — Isolation and Lockout: De-energize the affected subrack segment following site LOTO procedures. Confirm zero voltage on the 24 VDC bus before handling the FUM 280 module.

Step 2 — Module Extraction: Release the front panel locking lever and slide the 6DP1280-8AB out of the backplane slot. Note the slot position and any labeling for accurate reinstallation of the replacement unit.

Step 3 — Visual and Contact Inspection: Inspect the backplane connector for bent pins, carbon tracking, or moisture ingress. Clean with appropriate contact cleaner if required.

Step 4 — Replacement Installation: Insert the new 6DP1280-8AB into the correct slot, ensuring full backplane engagement. Secure the front panel locking lever.

Step 5 — Power-Up and Verification: Re-energize the subrack and confirm LED status indicators on the FUM 280 show normal operation. Verify that all downstream I/O modules and communication cards have resumed normal status in the DCS operator station.

Step 6 — System Handover: Document the replacement in the site maintenance log, record the new module serial number, and update the spare parts inventory to trigger reorder of a replacement stock unit.

This workflow is designed to minimize rack downtime to under 30 minutes for a prepared maintenance team, preserving process continuity and reducing the risk of secondary failures caused by extended power interruption to field instrumentation.

Spare Parts Support FAQ

Q1: Is the 6DP1280-8AB a direct plug-in replacement for the original FUM 280 in all Teleperm XP subrack configurations?
Yes. The 6DP1280-8AB is the OEM part number for the FUM 280 Power Distribution Module and is a direct backplane-compatible replacement across standard Teleperm XP subrack assemblies. No firmware configuration or address setting is required for the power distribution function. We recommend confirming the subrack variant with your site documentation before ordering if your installation has been modified from the original OEM configuration.

Q2: What pre-shipment testing is performed on each unit?
Every 6DP1280-8AB dispatched by SMARTNEXMSK undergoes a functional power output test and bus connector integrity check before shipment. Units that do not meet OEM output specifications are quarantined and not dispatched. A test report is available upon request for quality-critical procurement processes.

Q3: How should the 6DP1280-8AB be stored if purchased as a strategic spare?
Store in the original anti-static packaging in a dry, temperature-controlled environment (recommended: 10–40°C, <75% RH non-condensing). Avoid storage near strong magnetic fields or high-vibration areas. Inspect the unit annually if held in long-term storage, and verify connector contact condition before installation. Shelf life under correct storage conditions exceeds 5 years.

Q4: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or use outside the specified environmental ratings. Warranty claims are processed with priority dispatch of a replacement unit to minimize site downtime.
