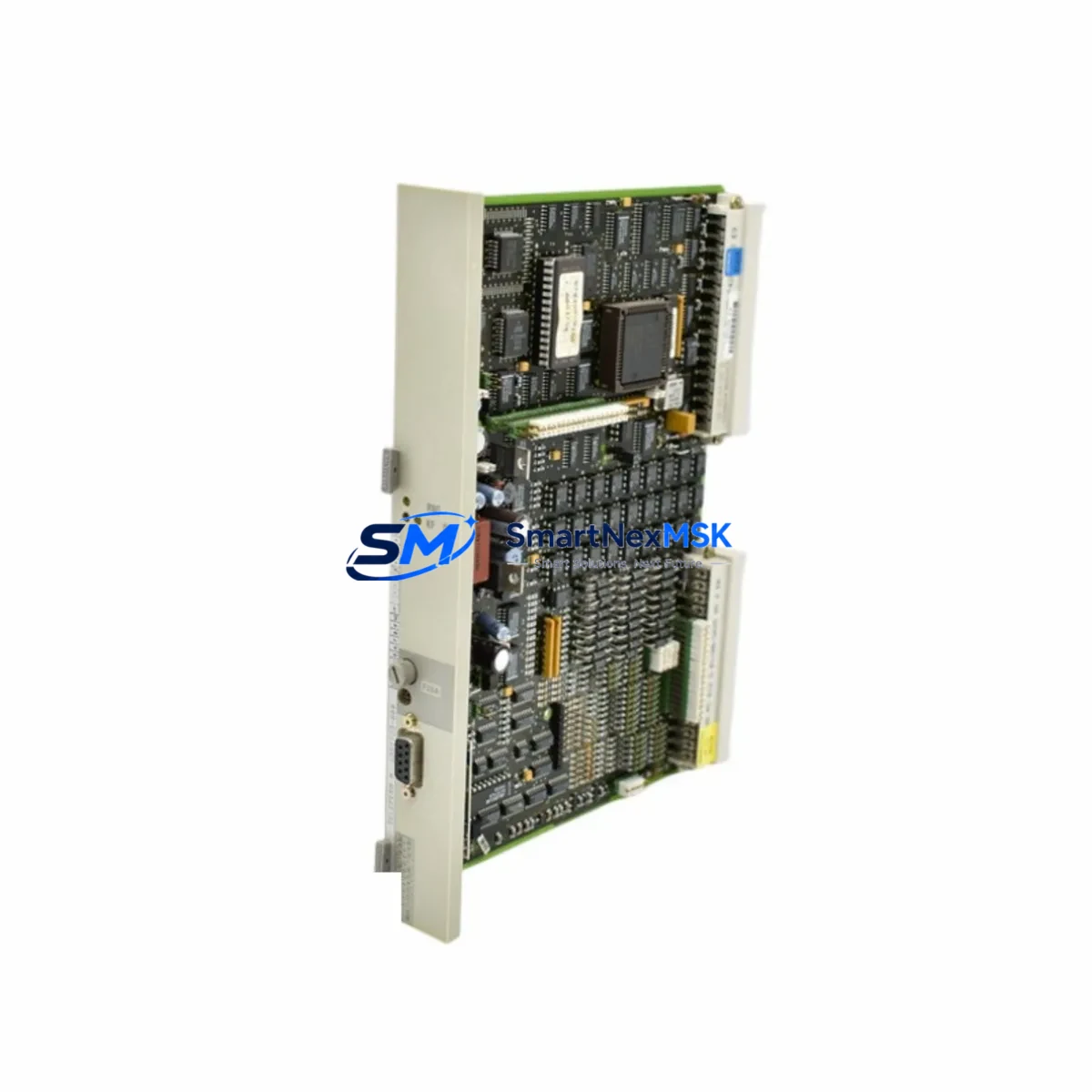

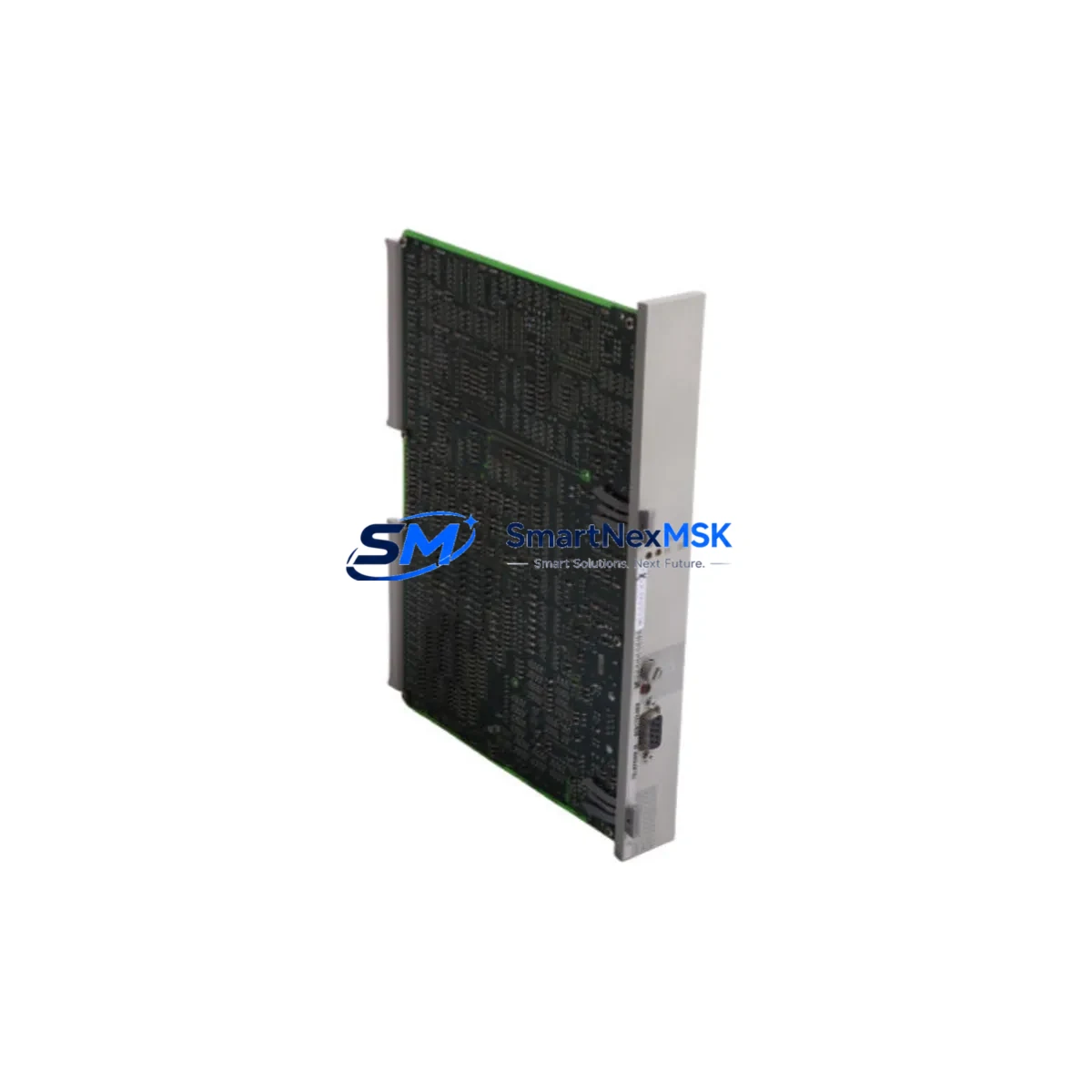

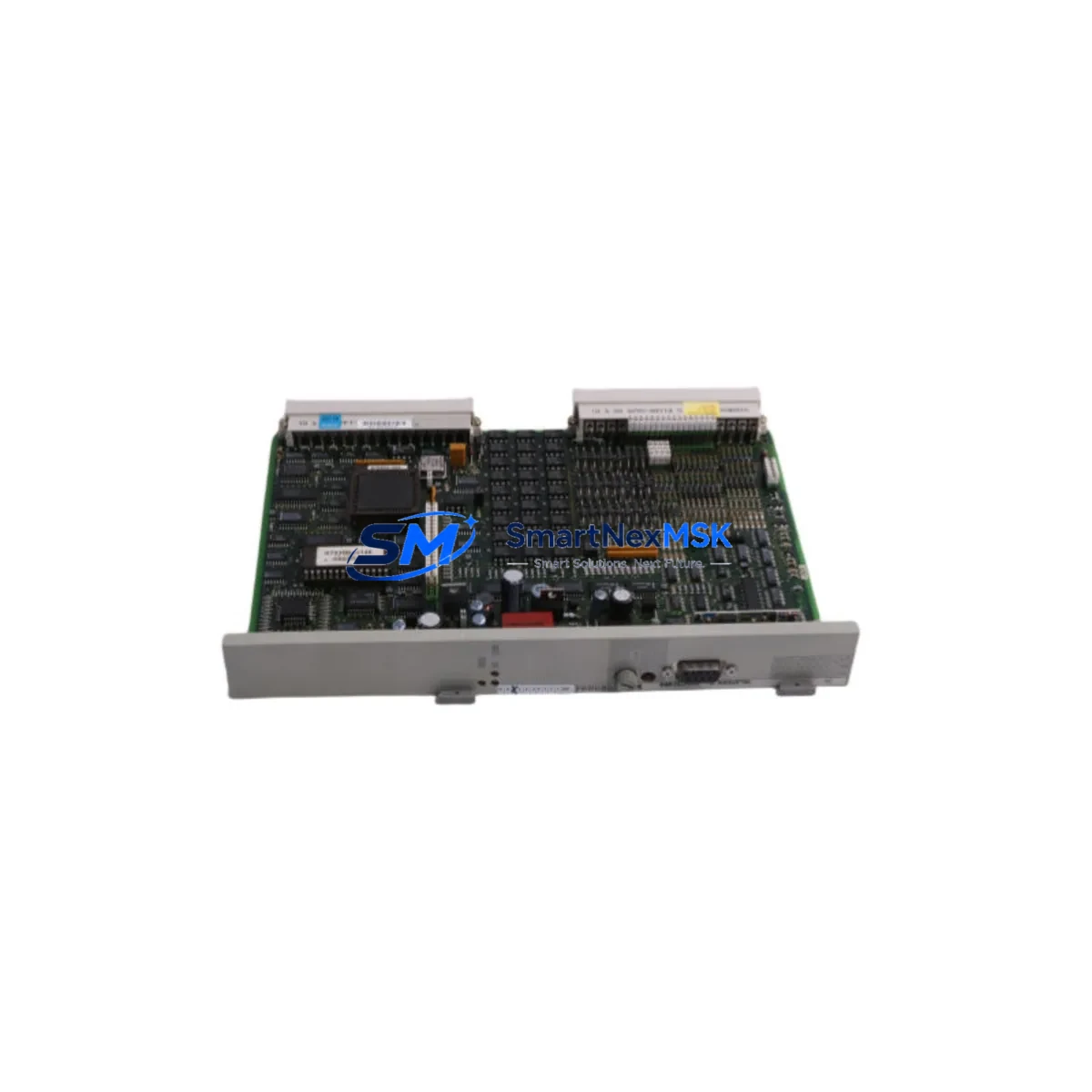

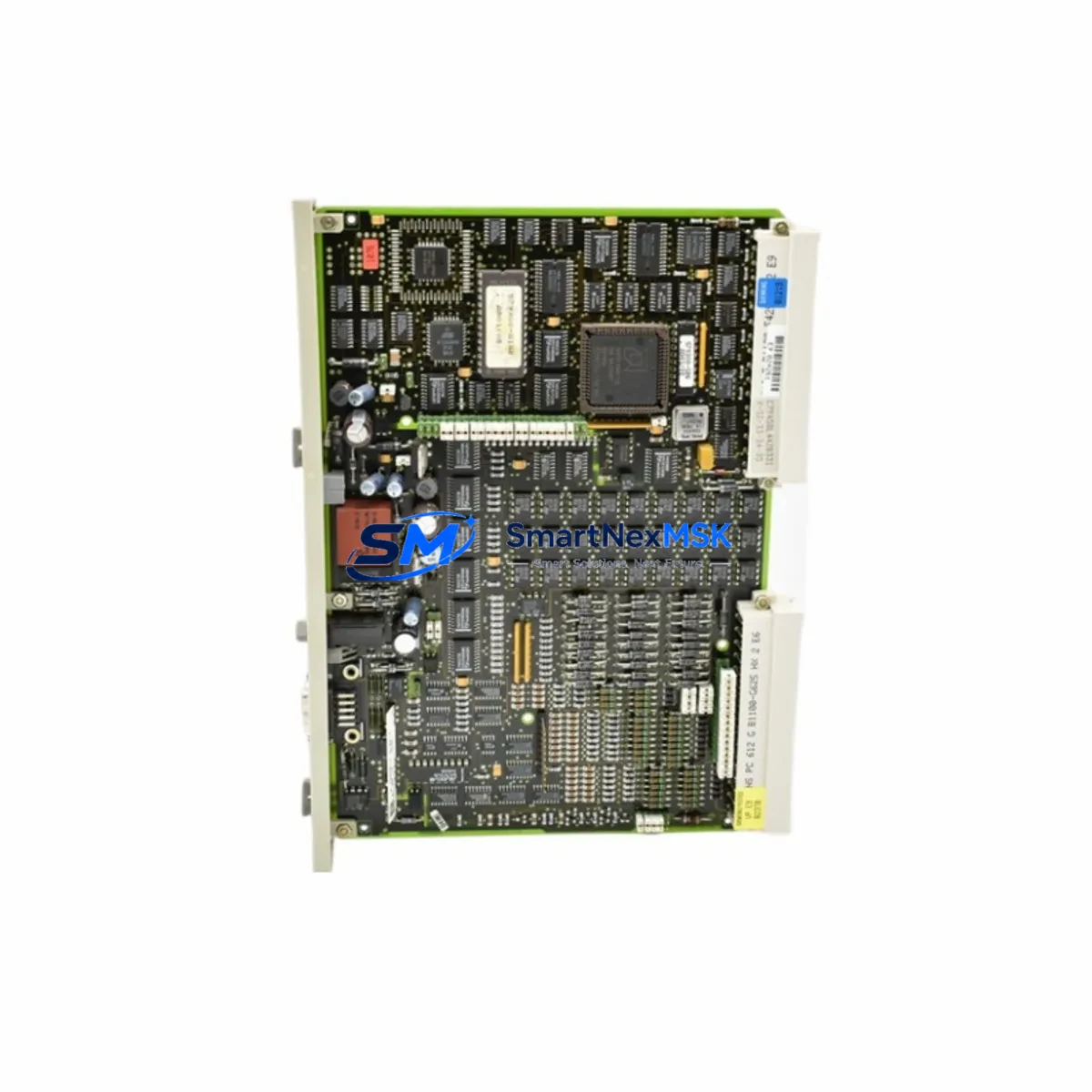

Siemens 6DS1723-8BB Retrofit-Ready Analog I/O for TELEPERM M Control Systems
The Siemens 6DS1723-8BB is a proven analog input/output module originally designed for the TELEPERM M distributed control system — one of Siemens’ most widely deployed process automation platforms across petrochemical, power generation, and heavy industrial facilities. As TELEPERM M hardware reaches end-of-life and spare parts become increasingly scarce, the 6DS1723-8BB remains a critical component for plants that must maintain operational continuity while planning a phased migration to modern DCS platforms such as SIMATIC PCS 7 or SPPA-T3000.
SMARTNEXMSK maintains verified stock of the 6DS1723-8BB, sourced from controlled supply chains and subject to full functional testing prior to dispatch. Each unit ships with a 12-month warranty covering hardware defects under normal operating conditions. Our inventory supports both emergency breakdown replacements and planned retrofit projects, with same-day quotation and rapid international logistics.
Upgrade Compatibility Table
| Parameter | 6DS1723-8BB (TELEPERM M) | Retrofit / Migration Notes |
|---|---|---|
| Module Type | Analog I/O (mixed channel) | Verify channel count matches existing loop assignments |
| Backplane Interface | TELEPERM M subrack bus | Must use original 6DS1900-series subrack; not compatible with SIMATIC S7 racks |
| Signal Range | 0–20 mA / 4–20 mA / 0–10 V | Confirm field wiring termination type before swap |
| Communication | Proprietary TELEPERM M internal bus | No direct PROFIBUS/PROFINET support; protocol gateway required for migration |
| Power Supply | 24 V DC via backplane | Verify 6DS9200-series power supply capacity before adding modules |
| Replacement Path | Direct drop-in within TELEPERM M rack | For PCS 7 migration, use ET 200M with IM 153-2 interface module |
| Address Configuration | DIP switch on module face | Record existing address settings before removal; replicate exactly |
| Commissioning | PROGRAF / COM TELEPERM toolset | Backup existing configuration before module swap |
| Warranty | 12-Month Hardware Warranty — all units tested before shipment | |
Retrofit Planning for Existing Automation Systems
Replacing the 6DS1723-8BB within an active TELEPERM M installation requires careful pre-planning to avoid unplanned process interruptions. Before the module is removed, engineers should use the COM TELEPERM or PROGRAF programming environment to export the current channel configuration, scaling parameters, and alarm limits associated with each I/O point served by the module. This configuration data is essential for restoring loop behavior after the replacement unit is installed.
The 6DS1723-8BB is housed in the standard TELEPERM M subrack — typically a 6DS1900-8AA or 6DS1900-8AB 19-inch rack assembly. Before insertion, confirm that the rack’s backplane bus connectors are clean and undamaged, and that the 6DS9200-series power supply module supplying the rack has sufficient current headroom to support the replacement module. Overloaded power supplies are a common cause of intermittent faults after module replacement in aging TELEPERM M cabinets.
Field wiring connected to the 6DS1723-8BB terminates at the associated marshalling terminal blocks. During a planned replacement, label all field cables clearly before disconnection. Verify signal types — 4–20 mA loops, thermocouple inputs, or voltage signals — against the original loop drawings, as incorrect termination will cause immediate measurement errors or transmitter damage. If the plant is migrating toward a SIMATIC PCS 7 architecture, the ET 200M remote I/O station with an IM 153-2 interface module provides a compatible migration path, allowing existing field wiring to be reused while the control logic is ported to STEP 7 or the PCS 7 CFC editor.
For facilities running mixed TELEPERM M and SIMATIC S5 equipment — a common scenario in plants that underwent partial upgrades during the 1990s — the 6DS1723-8BB replacement project often coincides with the retirement of S5-115U or S5-135U controllers and their associated CP 143 or CP 1430 communication processors. In these environments, a 6ES5 series I/O audit should be conducted in parallel to identify additional modules approaching end-of-life. Similarly, plants using 6DS1600-series digital output modules or 6DS1700-series analog output modules in the same cabinet should assess those units for proactive replacement during the same maintenance window to minimize future downtime.
HMI systems connected to TELEPERM M — often legacy OS stations running WinCC 5.x or earlier COROS LS-B operator panels — may require screen updates if channel addresses or tag names change during the retrofit. Coordinate with the HMI engineering team to update faceplates and trend displays before returning the loop to automatic control. Communication links between the TELEPERM M central unit and remote I/O subracks via the 6DS1800-series bus coupler modules should also be verified for signal integrity after any physical disturbance to the cabinet.
Downtime Control During System Migration
Minimizing process downtime during a 6DS1723-8BB replacement begins with a structured hot-swap or planned-outage strategy. For non-critical analog loops — such as secondary temperature monitoring or tank level indication — a brief loop-to-manual transfer in the DCS allows the module to be replaced without a full process shutdown. The operator places the affected control loops in manual mode at the operator station, the field technician swaps the module, and the engineer verifies signal integrity before returning loops to automatic.
For critical process loops — flow control, reactor temperature, or safety-instrumented inputs — a planned outage window is strongly recommended. During this window, the replacement 6DS1723-8BB should be pre-configured offline using a spare TELEPERM M subrack or a bench test setup, with all DIP switch addresses set to match the original module exactly. This pre-commissioning step reduces in-cabinet work time to a simple swap-and-verify sequence, typically achievable within 30–60 minutes per module.
Original program logic stored in the TELEPERM M central processing unit — the 6DS1100-series CPU — is not affected by analog module replacement, provided the module address configuration is preserved. However, engineers should perform a full I/O force test after replacement to confirm that each channel reads correctly against a known reference signal before releasing the loop to automatic control. Retain the removed 6DS1723-8BB as a temporary spare until the replacement unit has completed at least one full process cycle without fault.
Retrofit Support FAQ
Q1: Is the 6DS1723-8BB a direct drop-in replacement for a failed unit in my TELEPERM M rack?
Yes — provided the replacement unit is configured with identical DIP switch address settings as the original. The module slots directly into the TELEPERM M subrack backplane without mechanical modification. No firmware update or CPU restart is required in most cases, though a channel verification scan via COM TELEPERM is recommended after installation.
Q2: Can I use the 6DS1723-8BB as part of a migration to SIMATIC PCS 7?
The 6DS1723-8BB is a TELEPERM M native module and cannot be installed directly in a PCS 7 or SIMATIC S7 rack. For PCS 7 migration, the recommended path is to retain the existing field wiring and transition to ET 200M remote I/O with IM 153-2 interface modules, which support the same 4–20 mA and voltage signal types. The 6DS1723-8BB continues to serve the TELEPERM M system during the transition period until full cutover is complete.
Q3: What testing is performed before shipment, and what does the 12-month warranty cover?
Every 6DS1723-8BB unit supplied by SMARTNEXMSK undergoes functional verification including channel signal integrity, backplane connector inspection, and power consumption measurement. The 12-month warranty covers hardware defects arising under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or use outside the module’s rated environmental specifications.
Q4: How quickly can I receive the 6DS1723-8BB, and do you support emergency breakdown orders?
Standard orders are processed within 1–2 business days with international express shipping available. For emergency breakdown situations, contact our team directly for priority handling. We maintain buffer stock of the 6DS1723-8BB and related TELEPERM M components to support urgent plant recovery scenarios.
