Siemens 6ED1055-1NB10-0BA0 Safety-Enhanced Digital I/O Module

Siemens 6ED1055-1NB10-0BA0 Safety-Enhanced Digital I/O Module: Reliable Control for Harsh Industrial Sites

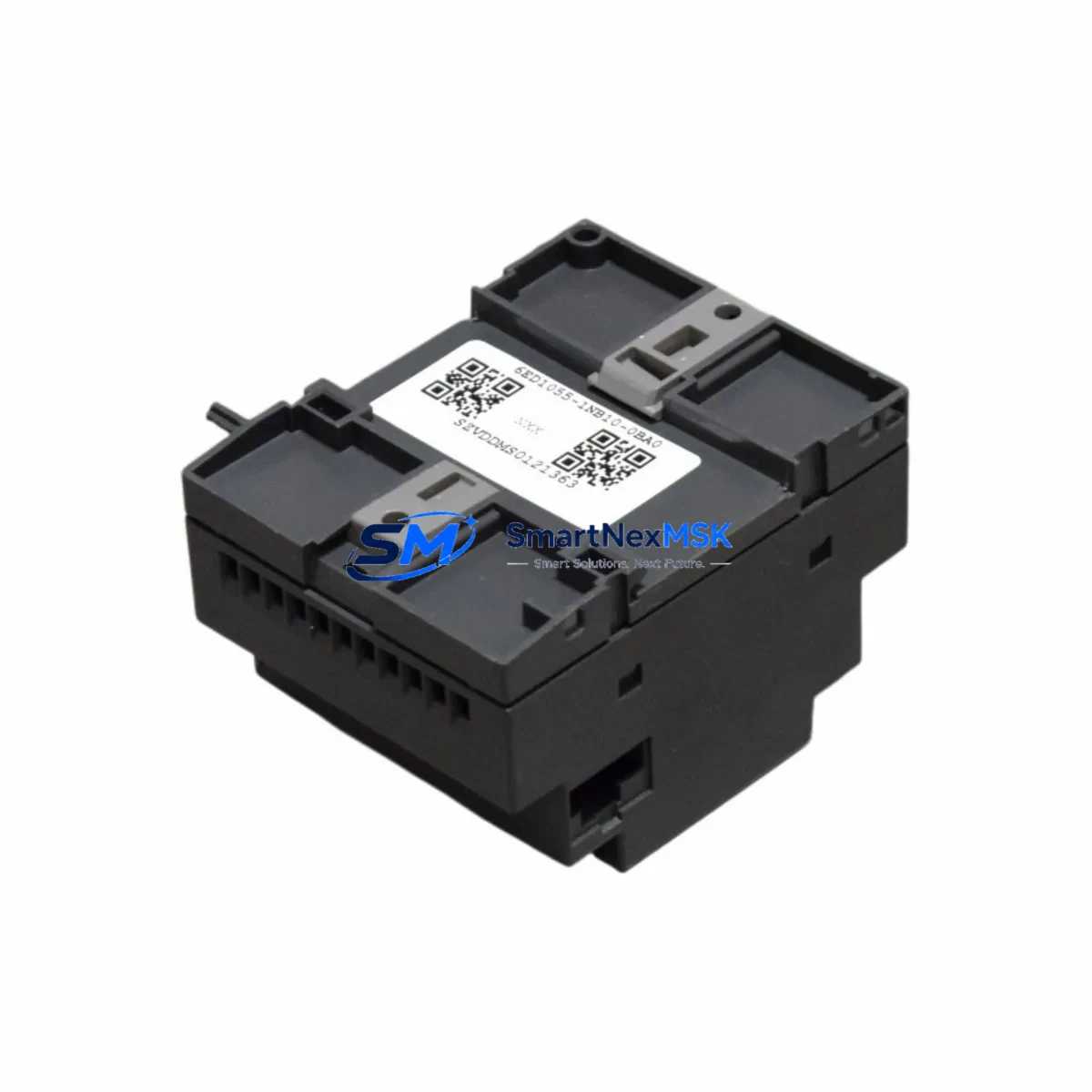

The Siemens 6ED1055-1NB10-0BA0 is a LOGO! DM8 24 digital expansion module engineered for demanding industrial environments where control continuity, signal integrity, and operational safety are non-negotiable. Designed to extend the I/O capacity of the Siemens LOGO! logic module series, this unit delivers 4 digital inputs and 4 relay outputs rated at 24 VDC, making it a trusted component in safety-critical control cabinets across petrochemical plants, power distribution substations, mining operations, water treatment facilities, metallurgical processing lines, port logistics systems, and continuous manufacturing environments.

In high-load industrial applications, the risk of control interruption, signal drift, and module misoperation is ever-present. The 6ED1055-1NB10-0BA0 addresses these risks through its robust EMI-shielded housing, wide operating temperature tolerance (0°C to +55°C), and compliance with IEC 61131-2 standards for programmable controller input/output devices. Its relay output contacts are rated for resistive loads, providing clean switching action that minimizes arc interference in adjacent signal circuits — a critical factor in environments where proximity to variable frequency drives, high-current contactors, and inductive motor loads can induce transient voltages that degrade lesser modules.

When integrated into a LOGO! 8 base unit such as the Siemens 6ED1052-1MD08-0BA1 or 6ED1052-1FB08-0BA1, the 6ED1055-1NB10-0BA0 expands the system’s I/O footprint without introducing additional communication latency, preserving the deterministic scan cycle that safety interlock logic depends upon. In applications where the LOGO! controls emergency shutdown sequences, pump interlock chains, or valve position feedback loops, the reliability of each expansion module directly affects the integrity of the overall safety function.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust industrial control cabinet is only as reliable as its weakest component. When deploying the 6ED1055-1NB10-0BA0 in a safety-oriented control architecture, system integrators typically pair it with complementary protection and communication components to form a layered defense against operational failure.

On the power supply side, a Siemens LOGO! Power 24V/2.5A (6EP1332-1SH43) or equivalent DIN-rail SMPS provides stable, regulated 24 VDC to both the base unit and expansion modules. Pairing this with a Siemens 5SD7 series surge protection device on the incoming supply rail guards against voltage spikes from nearby switching equipment or lightning-induced transients on field cable runs — a common cause of module latch-up in outdoor or semi-outdoor installations.

For communication integrity in distributed control architectures, the LOGO! base unit can interface with upstream SCADA or DCS systems via the Siemens LOGO! CMR2020 communication module, enabling remote monitoring of I/O states and alarm conditions without requiring a dedicated PLC. In larger installations where the LOGO! system operates alongside a Siemens S7-1200 CPU 1214C (6ES7214-1AG40-0XB0) or S7-300 series CPU, the expansion module’s relay outputs can serve as hardwired interlock signals that bypass fieldbus communication entirely — ensuring that critical shutdown commands execute even during network faults.

To protect relay output contacts from inductive load kickback — particularly when switching solenoid valves, motor contactors, or relay coils — installing Siemens 3RT2 series contactor suppression modules or RC snubber circuits across each load is strongly recommended. This practice extends relay contact life significantly and reduces high-frequency noise injection into the control cabinet’s signal wiring. Similarly, using Siemens SITOP PSU100S series power supplies with built-in buffer modules ensures that brief mains interruptions (50–500ms) do not cause the LOGO! system to reset, which could trigger unintended actuator states during power recovery.

For installations in environments with high ambient vibration — such as compressor rooms, press lines, or ship engine control rooms — securing the DIN rail assembly with Siemens 8WA1011 end clamps and vibration-damping rail mounts prevents mechanical loosening of the expansion module’s bus connector, which is a known failure mode in high-cycle industrial machinery. Combining the 6ED1055-1NB10-0BA0 with a Siemens LOGO! TD text display (6ED1055-4MH08-0BA1) further enhances on-site diagnostics, allowing maintenance personnel to read I/O status and fault codes directly at the cabinet door without laptop access.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In hazardous area control panels located in Zone 2 classified environments (with appropriate barrier isolation), the 6ED1055-1NB10-0BA0 is used to monitor field sensor states — including pressure switches, level switches, and temperature contacts — and to actuate shutdown valves or alarm annunciators. Its relay outputs provide galvanic isolation between the control logic and field actuators, a fundamental requirement in process safety management systems.

Power Distribution and Substation Automation: In medium-voltage switchgear control panels, the module handles auxiliary contact monitoring for circuit breakers and disconnectors, feeding status signals into the LOGO! logic for interlocking sequences that prevent unsafe switching operations. The module’s immunity to conducted and radiated EMI — inherent in high-voltage switching environments — ensures that interlock logic remains stable during breaker operations that generate significant electromagnetic transients.

Mining and Mineral Processing: Conveyor belt interlock systems, crusher overload protection circuits, and ventilation fan control panels in underground and surface mining operations rely on compact, DIN-rail-mounted logic controllers for their simplicity and maintainability. The 6ED1055-1NB10-0BA0 extends the I/O capacity of LOGO! controllers managing these functions, supporting safe-stop sequences that protect both equipment and personnel.

Water and Wastewater Treatment: Pump station control panels managing lift pumps, dosing pumps, and UV disinfection systems use the module to monitor float switch inputs and control pump contactors. In continuous-duty applications where pumps run 24/7, the relay output’s rated electrical endurance ensures long-term contact reliability without premature failure.

Metallurgical and Steel Processing: Rolling mill auxiliary control panels, furnace atmosphere control systems, and cooling water interlock circuits benefit from the module’s wide temperature tolerance and DIN rail form factor, which simplifies integration into existing cabinet layouts during plant upgrades or capacity expansions.

Safety and Quality FAQ

Q: What warranty coverage does the 6ED1055-1NB10-0BA0 carry?
A: Every unit is covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. If a unit fails within the warranty period, we provide replacement or full refund support with minimal lead time to minimize your site downtime.

Q: How is each unit tested before shipment?
A: All 6ED1055-1NB10-0BA0 modules undergo full functional verification prior to dispatch. This includes input signal response testing, relay output switching verification, and supply voltage tolerance checks. Units that do not meet Siemens OEM performance specifications are quarantined and not shipped.

Q: Is this module compatible with all LOGO! 8 base units?
A: Yes. The 6ED1055-1NB10-0BA0 is fully compatible with all Siemens LOGO! 8 series base units, including 12/24RCE, 24CE, 24RCE, and 230RCE variants. It connects via the integrated expansion bus on the right side of the base unit and is recognized automatically without additional configuration.

Q: Can you guarantee long-term supply availability for ongoing maintenance and spare parts programs?
A: We maintain dedicated stock of the 6ED1055-1NB10-0BA0 to support both immediate replacement needs and planned spare parts programs. For customers managing multi-site installations or long-term maintenance contracts, we offer reserved stock arrangements and priority fulfillment to ensure you are never left without a critical spare when a field replacement is needed.
