Siemens 6EP1333-2BA00 Maintenance-Ready Spare SITOP

Siemens 6EP1333-2BA00 Maintenance-Ready Spare SITOP: Spare Replacement and Industrial Downtime Risk Control

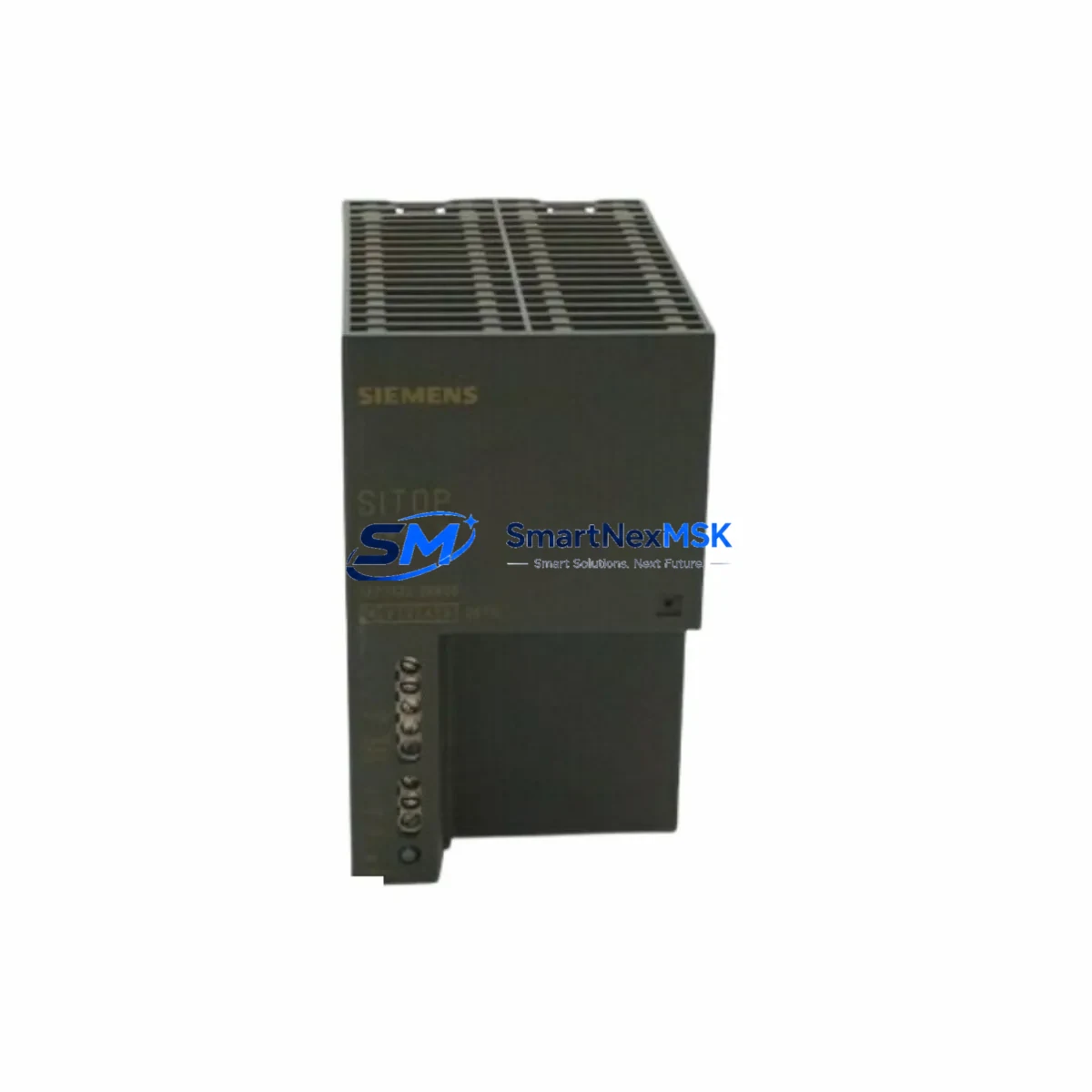

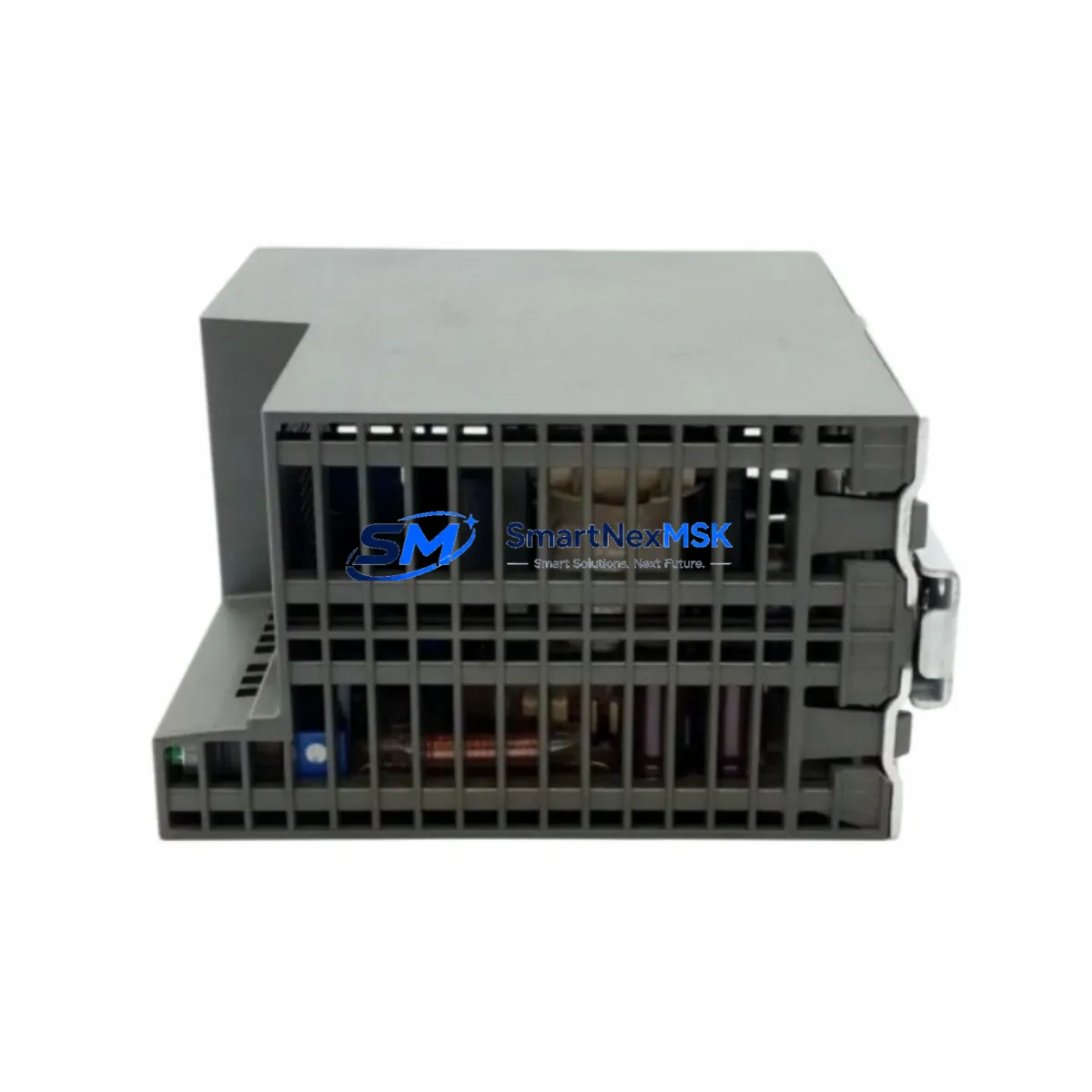

The Siemens 6EP1333-2BA00 is a SITOP Modular series regulated power supply delivering 24 VDC at 5 A output, designed for continuous-duty industrial automation environments. As a maintenance-ready spare, this unit is a critical component in control cabinet power distribution for SIMATIC S7-300, S7-400, and equivalent PLC-based systems. Sourced as an original Siemens spare, the 6EP1333-2BA00 supports rapid field replacement, minimizing unplanned downtime and restoring system availability with full electrical compatibility.

For maintenance engineers managing aging automation infrastructure, having a verified spare of the 6EP1333-2BA00 on the shelf is a fundamental risk-mitigation strategy. Power supply failures are among the most common root causes of unexpected PLC shutdowns. A failed or degraded SITOP unit can cascade into I/O module faults, communication dropouts, and HMI loss — all of which extend recovery time well beyond the replacement itself. Stocking this unit as a certified spare eliminates the sourcing delay that typically accounts for 60–80% of total downtime duration in unplanned outages.

All units are pre-shipment tested, verified against original Siemens specifications, and covered by a 12-month warranty. Global shipping is available with lead times confirmed at order placement.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 6EP1333-2BA00 in a live control cabinet, a disciplined inspection of the surrounding electrical circuit is essential to prevent repeat failures and ensure system stability. Maintenance engineers should treat this replacement as an opportunity for a broader cabinet health check.

Begin by verifying the incoming AC supply quality — voltage sags, harmonic distortion, or transient spikes from upstream equipment are common causes of premature SITOP failure. If the cabinet feeds a SIMATIC S7-300 CPU (such as the 6ES7315-2EH14-0AB0 or 6ES7314-6EH04-0AB0), confirm that the CPU power rail voltage is stable after the new supply is installed. Check the 24 VDC bus for correct voltage under full I/O load before closing the cabinet.

Inspect all digital and analog I/O modules connected to the 24 VDC rail — modules such as the SM 321 digital input or SM 331 analog input cards draw directly from this supply and may exhibit erratic behavior if the supply was degraded prior to failure. Similarly, relay output modules (SM 322 series) should be checked for contact wear if the power supply failure was preceded by load switching anomalies.

Review the terminal block connections on the output side of the 6EP1333-2BA00. Loose or corroded terminals on Phoenix Contact or Weidmüller-style terminal strips are a frequent secondary fault point. Inspect fuse holders and miniature circuit breakers (MCBs) on the 24 VDC distribution rail — a blown fuse or tripped MCB downstream may have contributed to the overload condition that caused the original supply failure.

If the cabinet includes a PROFIBUS DP or PROFINET communication module (such as the CP 342-5 or CP 343-1), verify that the communication bus recovers cleanly after power restoration. Communication modules are sensitive to power sequencing and may require a cold restart if the supply was lost abruptly. For cabinets with SIMATIC HMI panels (TP700, KTP900, or similar), confirm that the HMI power input is within spec and that the panel boots to the correct project without alarm suppression errors.

For systems using signal isolators or loop-powered transmitters on analog input channels, verify 4–20 mA loop integrity after the supply swap. A degraded supply can introduce ground loops or offset errors that persist even after replacement if the loop is not re-zeroed. Cabinets with SITOP UPS modules (6EP1931-2EC42 or similar) should have the UPS battery condition checked — a power supply failure event may have discharged the buffer battery, reducing its effective backup time.

Document the replacement in the cabinet maintenance log, including the date, measured output voltage under load, and any secondary components inspected or replaced. This record supports future planned maintenance intervals and provides traceability for warranty claims.

Site Replacement Workflow

The 6EP1333-2BA00 is a direct form-fit-function replacement for earlier SITOP Modular variants including the 6EP1333-1SL11 and 6EP1333-2BA20, subject to input voltage range confirmation. The DIN rail footprint and terminal layout are compatible, allowing swap-out without cabinet rewiring in most installations.

Step 1 — Isolation: De-energize the cabinet at the main isolator. Confirm zero voltage on the 24 VDC bus with a calibrated multimeter before touching any terminals.

Step 2 — Documentation: Photograph the existing wiring connections on the AC input (L, N, PE) and DC output terminals before disconnection. Note the output voltage adjustment potentiometer setting if it has been modified from factory default.

Step 3 — Removal: Disconnect AC input wiring, then DC output wiring. Release the DIN rail locking tab and slide the unit off the rail.

Step 4 — Installation: Clip the 6EP1333-2BA00 onto the DIN rail. Reconnect DC output wiring first, then AC input. Torque terminals to the specified 0.5–0.6 Nm to prevent loose connections under vibration.

Step 5 — Commissioning: Energize the cabinet and measure output voltage under no-load, then under full I/O load. Adjust the output trim potentiometer if required. Confirm PLC CPU status LED shows RUN and all I/O modules report healthy in the diagnostic buffer.

Step 6 — Verification: Run a 15-minute loaded burn-in observation. Monitor output voltage stability and supply temperature. Log results and close the maintenance record.

This workflow reduces mean time to repair (MTTR) and ensures the replacement is commissioned to the same standard as the original installation, maintaining system reliability and audit compliance.

Spare Parts Support FAQ

Q1: Is the 6EP1333-2BA00 still available as a new original spare, or has it been discontinued?
The 6EP1333-2BA00 remains available as a new original spare through authorized industrial distribution channels. While Siemens has introduced successor models in the SITOP PSU100S and PSU200M series, the 6EP1333-2BA00 continues to be supplied to support installed base maintenance. We maintain stock specifically to support legacy system operators who require exact-match replacements without system reconfiguration.

Q2: How is the unit tested before shipment?
Each 6EP1333-2BA00 unit undergoes pre-shipment electrical verification including output voltage measurement at rated load, input voltage range confirmation, and visual inspection for physical integrity. Units are shipped in original or equivalent protective packaging with ESD precautions. A test report is available upon request for quality-critical procurement processes.

Q3: Can this unit replace the 6EP1333-1SL11 or 6EP1333-2BA20 without cabinet modification?
In most installations, yes. The 6EP1333-2BA00 shares the same DIN rail mounting profile and terminal layout as earlier SITOP Modular 5 A variants. Confirm that your input supply is within the wide-range AC input specification (120/230 VAC). If the existing unit had a modified output voltage trim, re-adjust the potentiometer on the replacement unit after installation. No firmware or PLC configuration changes are required.

Q4: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects and electrical failure under normal operating conditions as defined by the Siemens SITOP product specification. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside rated parameters. To initiate a warranty claim, contact our sales team with the order reference, a description of the failure mode, and photographs of the installation. Replacement or repair is processed within 5–10 business days of claim approval.
