Siemens 6EP3436-8SB00-0AY0 Retrofit-Ready 24VDC 40A PSU8200

Siemens 6EP3436-8SB00-0AY0 Retrofit-Ready 24VDC 40A Power Supply for SITOP PSU8200 Control Systems

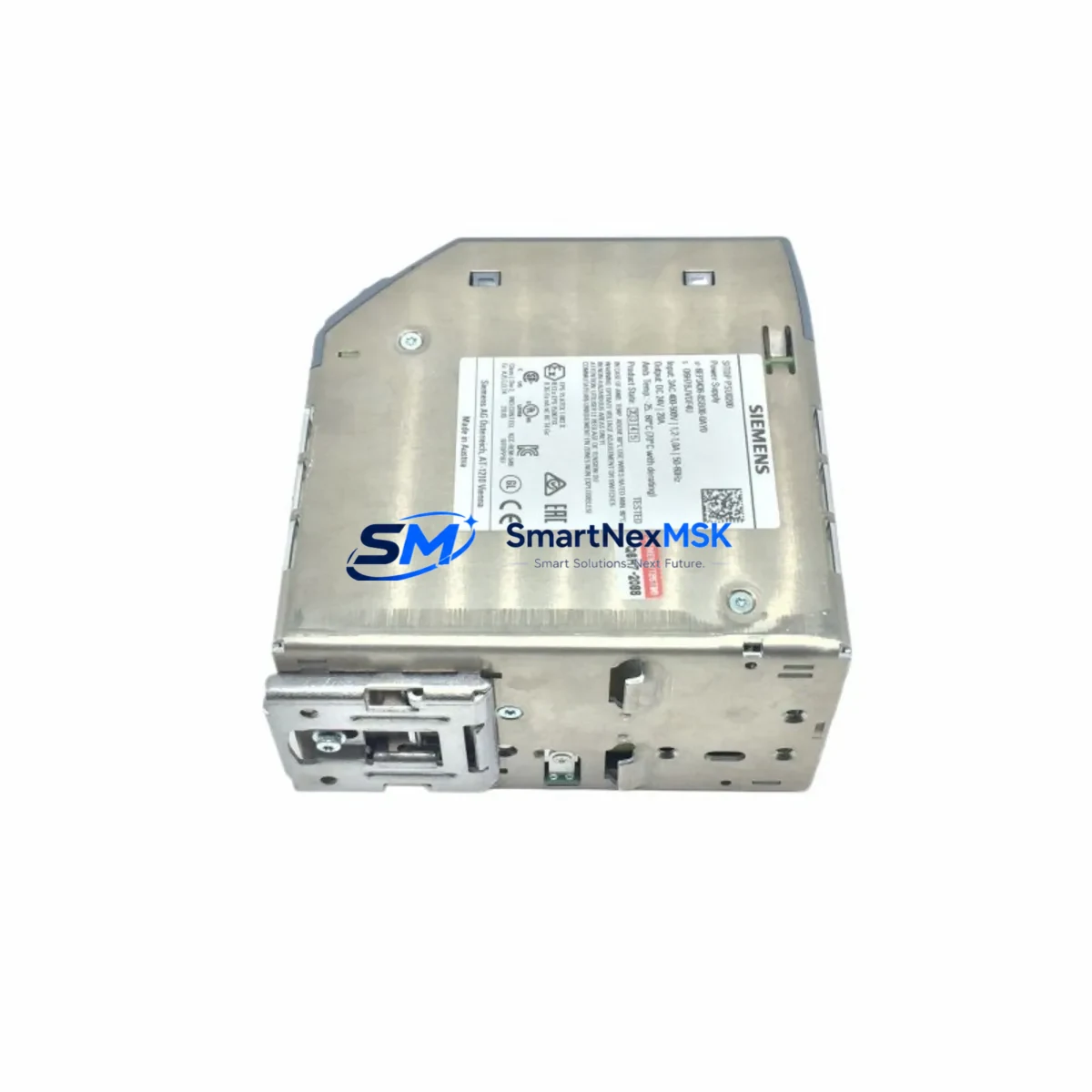

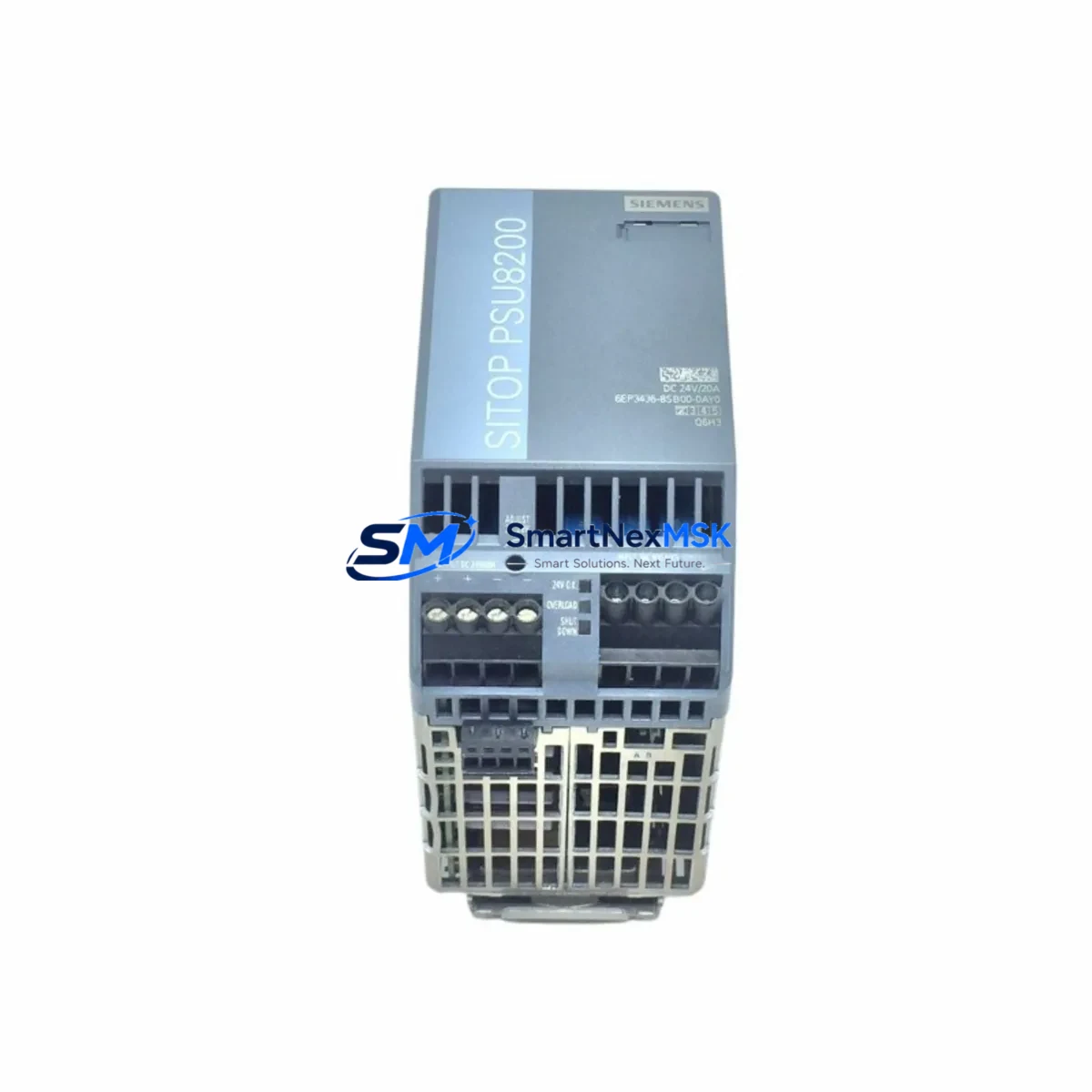

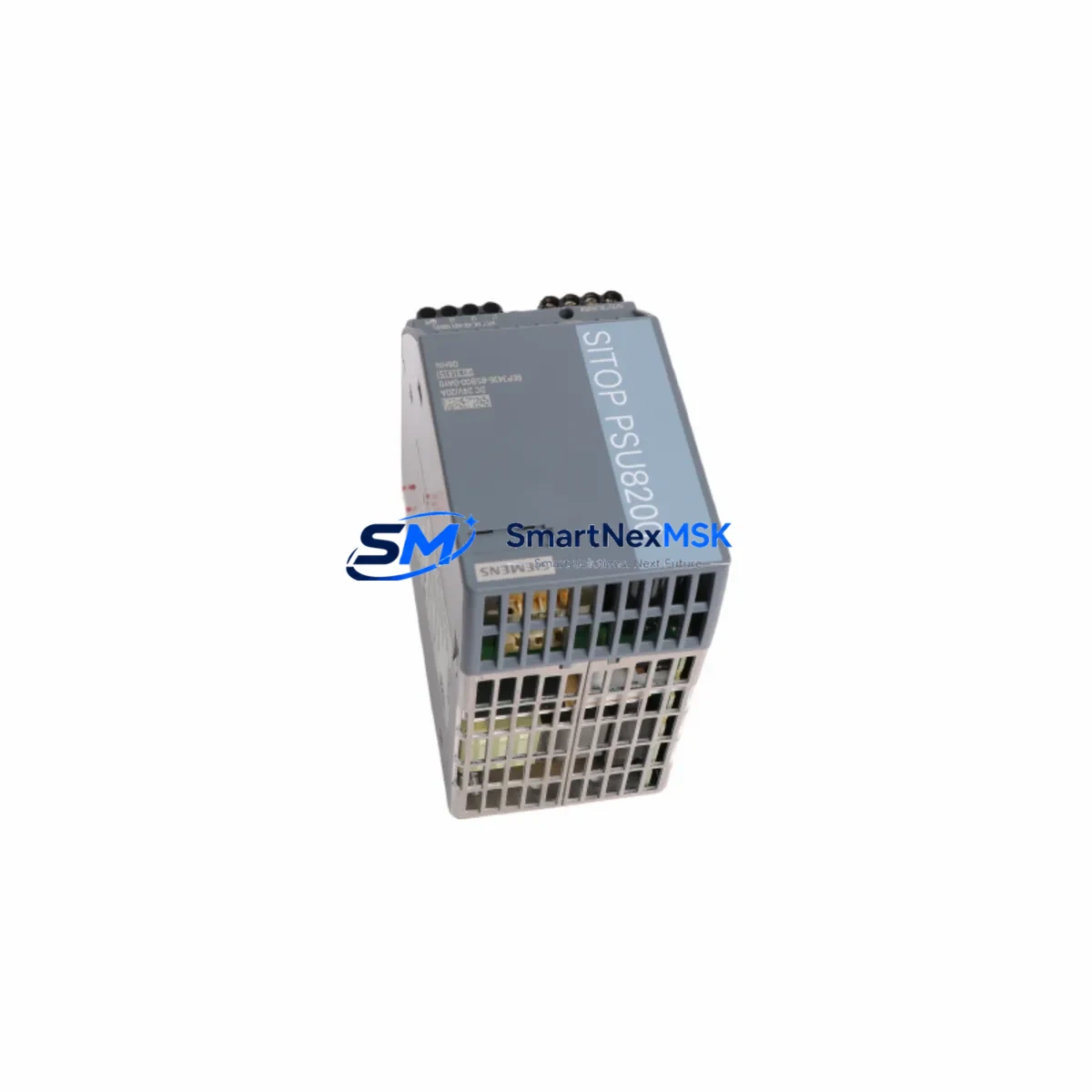

The Siemens 6EP3436-8SB00-0AY0 is a high-capacity 24VDC / 40A stabilized power supply module from the SITOP PSU8200 series, engineered for demanding industrial control environments. As legacy automation infrastructure reaches end-of-life, this unit serves as a direct retrofit replacement for aging SITOP PSU100S, SITOP modular 40A, and earlier PSU8200 variants that are no longer in production. It is fully compatible with Siemens S7-300, S7-400, and ET 200 distributed I/O systems, making it the preferred choice for control cabinet upgrades, panel rebuilds, and power rail modernization projects across process, manufacturing, and utility automation sectors.

When planning a power supply retrofit, engineers must verify several critical parameters before swapping units in the field. The 6EP3436-8SB00-0AY0 accepts a wide AC input range (120–230VAC, 50/60Hz), which simplifies cross-regional deployments and eliminates the need for external voltage transformers in most retrofit scenarios. Output terminals are screw-type with standard 24VDC bus bar compatibility, allowing direct connection to existing terminal blocks without rewiring the entire cabinet. Before installation, confirm that the existing DIN rail mounting depth and cabinet clearance accommodate the PSU8200 housing dimensions, as some older enclosures designed for the SITOP modular series may require bracket adapters.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 6EP3436-8SB00-0AY0 into an existing control system begins with a thorough power budget audit. In a typical S7-300 rack configuration, the CPU module — such as a CPU 315-2 PN/DP or CPU 317-2 DP — draws between 1.5A and 2.5A from the 24VDC bus, while each SM 321 digital input module or SM 331 analog input module adds incremental load. When the rack also hosts a CP 343-1 PROFINET communications processor or an FM 355 closed-loop control module, the aggregate current demand can approach 15–20A for a fully populated rack. The PSU8200 40A output provides substantial headroom for multi-rack configurations connected via IM 360/361 interface modules or ET 200M expansion racks.

For distributed I/O architectures using ET 200SP or ET 200MP stations, the 6EP3436-8SB00-0AY0 is commonly installed in the main control cabinet to supply both the backplane bus and field device loops simultaneously. Engineers should account for voltage drop across long cable runs to remote I/O stations and consider installing a SITOP PSU8200 10A or 20A unit locally at the ET 200 cabinet to reduce line losses. When the existing installation uses a SITOP UPS1600 uninterruptible power supply module for bridging power during mains interruptions, the 6EP3436-8SB00-0AY0 integrates directly via the 24VDC bus without additional interface wiring.

Terminal block compatibility is a frequent concern during cabinet retrofits. The PSU8200 output terminals accept conductors up to 16mm², which is compatible with standard 10mm² and 16mm² power distribution wiring used in most industrial panels. If the legacy installation used a SITOP modular 40A (6EP1437-3BA10) with a separate buffer module such as the SITOP BUF8600, verify that the buffer module’s input voltage range and connection interface remain compatible with the PSU8200 output characteristics before reusing it in the upgraded system.

Communication protocol migration is another key consideration. Older SITOP units without PROFINET capability relied on discrete alarm relay contacts for fault signaling to the PLC. The PSU8200 retains these relay outputs while adding optional PROFINET IO diagnostics when paired with the SITOP PSU8200 expansion module. This allows a phased migration: maintain existing relay-based fault monitoring during initial commissioning, then enable PROFINET diagnostics once the control program has been updated in STEP 7 or TIA Portal to handle the new diagnostic data records. Programming cables such as the PC Adapter USB A2 or MPI/PROFIBUS adapter remain relevant during this transition for direct CPU access without network dependency.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any live-system power supply replacement. The recommended approach is a staged cutover: install the 6EP3436-8SB00-0AY0 on a temporary DIN rail section within the cabinet, pre-wire all output terminals and alarm relay connections, and perform a full load test at reduced production capacity before the final switchover. This allows verification of output voltage stability, alarm relay continuity, and thermal performance under realistic load conditions without interrupting the production line.

Before disconnecting the legacy power supply, create a complete backup of the PLC program using STEP 7 or TIA Portal and store it on a secure offline medium. For S7-300 systems, use the CPU’s memory card slot to retain the program independently of the power supply. For S7-400 systems with a CPU 414 or CPU 416, verify that the battery-backed RAM retains the program during the brief power interruption. If the system includes an HMI panel — such as a SIMATIC TP700 Comfort or MP377 — ensure that the HMI project is backed up and that the panel’s 24VDC supply is temporarily maintained via a portable UPS or a secondary power feed during the switchover to prevent loss of runtime data and alarm history.

After installing the 6EP3436-8SB00-0AY0, perform a systematic commissioning sequence: power up the supply without PLC load first, verify output voltage at the terminals, then connect the PLC rack and confirm CPU startup. Check all I/O module status LEDs, verify PROFIBUS or PROFINET link status on communications modules, and confirm that field devices — including variable frequency drives, solenoid valve banks, and sensor power loops — receive stable 24VDC within specification. Document the final output voltage trim setting and alarm relay wiring configuration for the maintenance record.

Retrofit Support FAQ

Q1: Is the 6EP3436-8SB00-0AY0 a direct drop-in replacement for the SITOP PSU100S 40A?
A: Yes, in most installations. Both units share the same 24VDC / 40A output rating and DIN rail mounting. The PSU8200 housing is slightly wider, so verify cabinet clearance before installation. Output terminal pitch and conductor size ratings are compatible, and no rewiring of the 24VDC distribution bus is typically required.

Q2: Does this unit require any firmware configuration or PLC program changes after installation?
A: No firmware programming is required for basic operation. The 6EP3436-8SB00-0AY0 is a plug-and-play replacement for standard 24VDC supply applications. If you choose to enable PROFINET IO diagnostics via the optional expansion interface, a minor addition to the TIA Portal hardware configuration is needed to add the PSU8200 as a PROFINET device — but this does not affect existing PLC logic or I/O addressing.

Q3: What pre-shipment testing is performed on this unit?
A: Each 6EP3436-8SB00-0AY0 unit undergoes full-load output testing at 24VDC / 40A, input voltage range verification across 120–230VAC, alarm relay continuity testing, and thermal stability verification before shipment. A test report is available upon request. All units are covered by a 12-month warranty against manufacturing defects, output voltage deviation, and component failure under normal operating conditions.

Q4: Can this power supply operate in parallel with an existing PSU8200 unit for redundancy?
A: Yes. The PSU8200 series supports current sharing and parallel redundancy when units are connected via the 24VDC bus with appropriate diode decoupling or active current-sharing modules. This configuration is commonly used in high-availability control systems where a single power supply failure must not interrupt production. Verify that the total connected load does not exceed the combined rated output of the parallel units, and ensure that both units are set to the same output voltage trim value.
