Siemens 6ES5465-4UA12 Maintenance-Ready Spare for SIMATIC S5 Automation

Siemens 6ES5465-4UA12 Maintenance-Ready Spare for SIMATIC S5 Automation

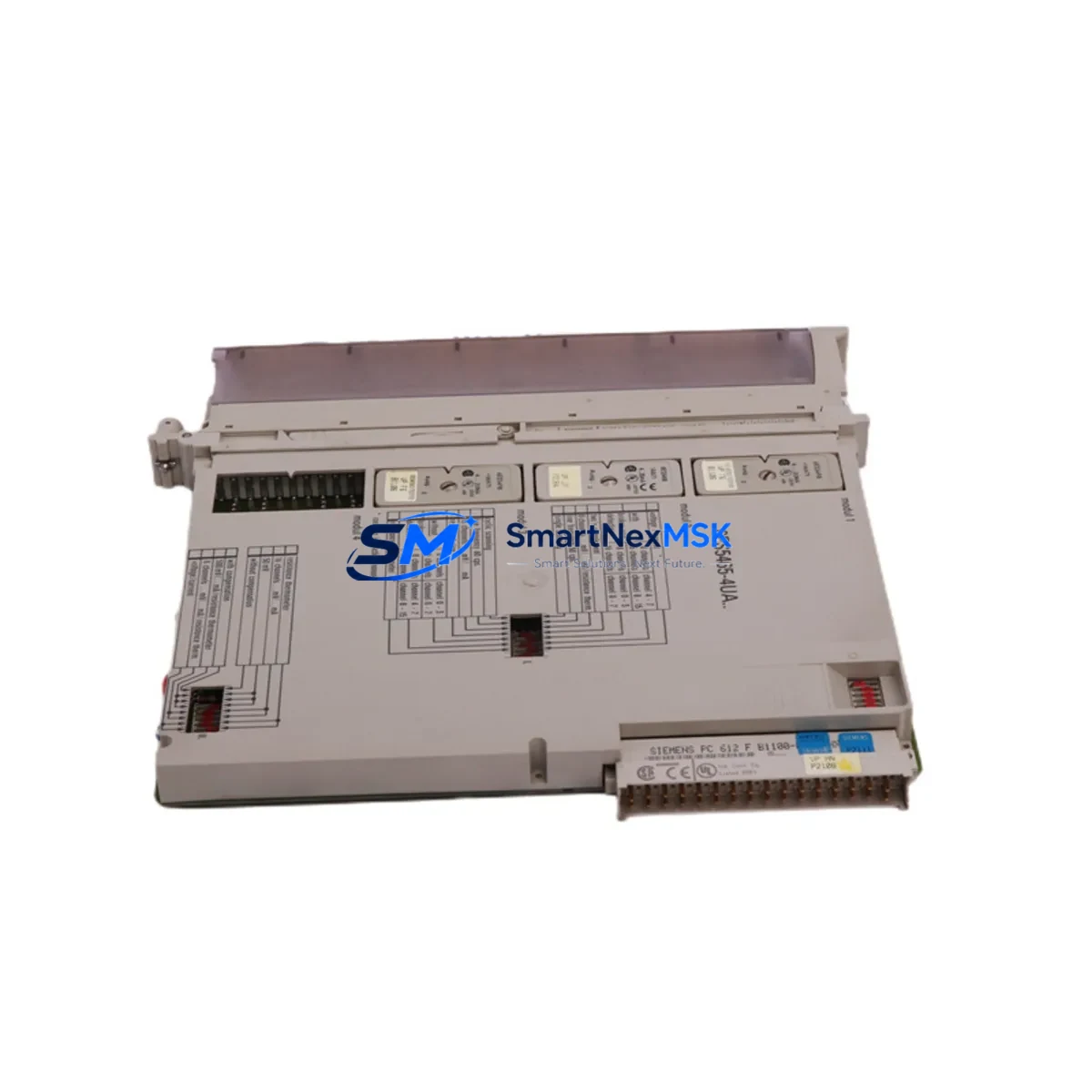

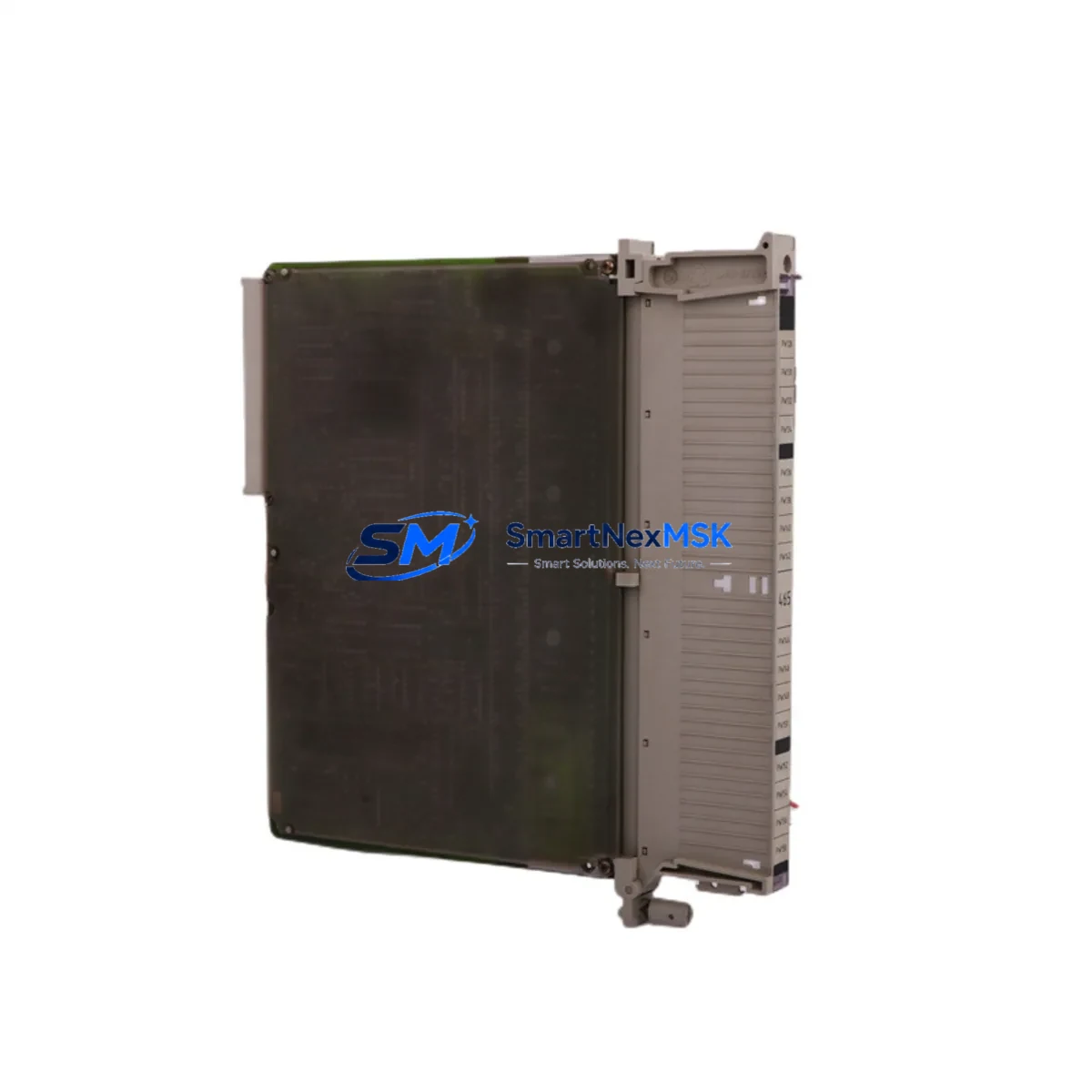

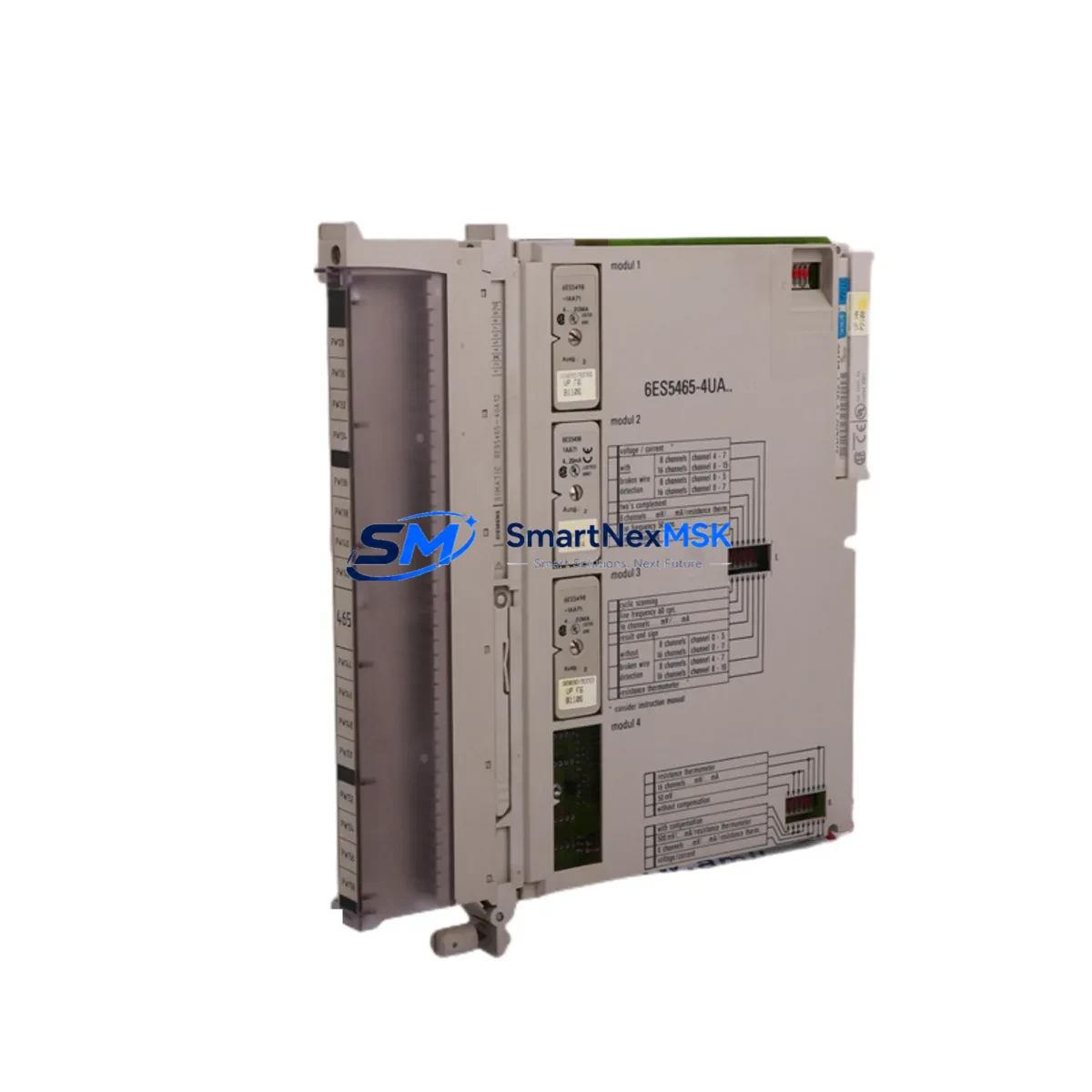

The Siemens 6ES5465-4UA12 is an original 8-channel, 12-bit analog input module designed for the SIMATIC S5 programmable logic controller platform. Engineered for continuous industrial operation, this module serves as a critical measurement interface between field instrumentation and the S5 CPU — converting analog process signals (voltage and current) into digital values for real-time control logic. For maintenance engineers managing aging SIMATIC S5-115U, S5-135U, or S5-155U systems, maintaining a verified spare of the 6ES5465-4UA12 is a fundamental strategy for minimizing unplanned downtime and protecting long-term production continuity.

As Siemens SIMATIC S5 hardware reaches end-of-production status, sourcing genuine, tested replacement modules becomes increasingly critical. Each 6ES5465-4UA12 unit supplied by SMARTNEXMSK is inspected, functionally tested, and dispatched with full traceability documentation — ensuring your maintenance team receives a drop-in replacement that restores system operation without reconfiguration or signal scaling adjustments.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 6ES5465-4UA12 analog input module fails or degrades in a SIMATIC S5 control cabinet, the fault rarely exists in isolation. Experienced maintenance engineers know that analog signal faults — drifting readings, channel dropouts, or ADC saturation — are often accompanied by issues in adjacent components sharing the same electrical loop or backplane segment. A thorough site inspection during module replacement should include the following areas:

Power Supply Integrity: The Siemens 6ES5955-3LC41 or equivalent S5 power supply module should be checked for output voltage stability. Ripple or undervoltage on the 24 V DC rail can cause erratic analog readings that mimic module failure. Verify the power supply’s capacitor health and output regulation before condemning the input module.

Signal Wiring and Terminal Blocks: Inspect all field wiring connected to the 6ES5465-4UA12’s front connector. Corroded or loose terminals on the 6ES5490-8AA00 front connector assembly are a common root cause of intermittent channel faults. Replace any terminal blocks showing oxidation, and re-torque all screw connections to specification.

Shielding and Grounding: Analog input modules are highly susceptible to electromagnetic interference. Verify that cable shields are terminated correctly at the cabinet entry point and that the module’s reference ground is properly bonded. Poor shielding on 4–20 mA loops feeding the 6ES5465-4UA12 can introduce noise that corrupts process values.

I/O Bus and Backplane Connectors: Inspect the S5 expansion rack backplane for bent pins or contamination at the module slot. A faulty backplane connector can cause communication errors between the 6ES5465-4UA12 and the 6ES5101-8UA13 or 6ES5102-8UA13 CPU module, resulting in diagnostic alarms that appear as module faults.

CPU and Memory Modules: If the S5 CPU — such as the 6ES5095-8MA02 — is logging persistent I/O errors after module replacement, verify that the CPU’s EPROM or RAM module (e.g., 6ES5374-1FH21) is seated correctly and that the program addressing the analog channels has not been corrupted.

Communication and Coordinator Modules: In distributed S5 architectures, the 6ES5316-8MA12 IM (Interface Module) or similar coordinator modules should be inspected for proper rack addressing. Incorrect rack/slot addressing after a module swap can cause the CPU to read from the wrong channel map.

Signal Isolators and Barriers: For hazardous-area installations, Zener barriers or galvanic isolators in the 4–20 mA loop should be tested for correct output. A degraded isolator can clamp or distort the signal before it reaches the 6ES5465-4UA12, producing false readings that are misdiagnosed as module failure.

Fuses and Protection Devices: Check all fuse holders and miniature circuit breakers protecting the analog input circuits. A blown fuse on a channel group will cause multiple channels to read zero simultaneously — a pattern that is sometimes mistaken for module failure rather than a protection device fault.

Maintaining a structured spare parts inventory that includes the 6ES5465-4UA12 alongside these associated components — power supplies, front connectors, CPU modules, and interface modules — is the most effective strategy for reducing mean time to repair (MTTR) in SIMATIC S5 installations.

Site Replacement Workflow

Replacing the 6ES5465-4UA12 in a live SIMATIC S5 system follows a structured procedure to minimize downtime and ensure signal integrity is restored correctly:

1. Pre-Replacement Verification: Before removing the faulty module, document the current channel configuration using the STEP 5 programming software. Record the input type (voltage/current), scaling parameters, and any channel-specific diagnostics. Photograph the front connector wiring for reference during reinstallation.

2. Safe Isolation: Place the affected control loop in manual mode at the DCS or SCADA level. Isolate field instruments connected to the module’s input channels. Do not remove the module under power if the rack does not support hot-swap — most SIMATIC S5 racks require a controlled power-down sequence for module replacement.

3. Module Swap: Remove the front connector from the faulty 6ES5465-4UA12 and retain it for reinstallation on the new module. Slide the replacement module into the same slot position. The 6ES5465-4UA12 is a direct drop-in replacement for earlier revisions of the same part number — no hardware reconfiguration is required provided the slot address remains unchanged.

4. Wiring Reconnection and Verification: Reconnect the front connector to the new module. Verify terminal torque and shield continuity. Apply power and confirm that the CPU recognizes the module without generating a hardware fault alarm (OB 85 or equivalent).

5. Channel Calibration Check: Apply known reference signals to each channel and verify that the CPU reads the expected engineering unit values. If scaling deviates, adjust the STEP 5 analog value conversion (FC) parameters accordingly. This step is critical for 4–20 mA process loops where zero-offset errors can cause incorrect control actions.

6. Return to Automatic: Once all channels are verified, return the control loops to automatic mode and monitor for 15–30 minutes to confirm stable operation. Log the replacement in the plant maintenance system with the new module’s serial number and test date.

This workflow applies equally to planned maintenance replacements and emergency fault recovery scenarios. Having a pre-tested, SMARTNEXMSK-supplied 6ES5465-4UA12 on the shelf reduces the replacement cycle from days to hours — a critical advantage in continuous-process industries where every hour of downtime carries significant production cost.

Spare Parts Support FAQ

Q1: Is the 6ES5465-4UA12 still available as a new original part, and what is its supply outlook?
The Siemens 6ES5465-4UA12 is part of the SIMATIC S5 product family, which has been discontinued from series production. However, original new-old-stock (NOS) and refurbished units remain available through specialist industrial spare parts suppliers. SMARTNEXMSK maintains stock of verified original units to support long-term S5 system operation. We recommend customers secure a minimum of one spare unit per installed system to protect against supply interruptions as global NOS inventory depletes.

Q2: How is each unit tested before shipment, and what does the 12-month warranty cover?
Every 6ES5465-4UA12 dispatched by SMARTNEXMSK undergoes functional testing that includes power-on verification, channel response testing across all 8 inputs, and communication handshake confirmation with an S5 CPU. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail within the warranty period are replaced or refunded. Warranty claims require the original invoice and a fault description — no return authorization delays.

Q3: Can the 6ES5465-4UA12 replace earlier or later revisions of the same module?
Yes. The 6ES5465-4UA12 is backward-compatible with earlier hardware revisions of the 6ES5465 series installed in SIMATIC S5-115U, S5-135U, and S5-155U racks. No firmware changes or STEP 5 program modifications are required for a same-slot replacement. If migrating from a different channel count or resolution variant, consult the S5 hardware manual to verify address mapping and scaling compatibility before installation.

Q4: What is the recommended spare parts inventory strategy for a plant running multiple SIMATIC S5 systems?
For plants operating 3 or more SIMATIC S5 racks, we recommend maintaining at least 2 units of the 6ES5465-4UA12 in the on-site spare parts store, with a replenishment trigger set at 1 unit remaining. Given the increasing scarcity of S5 analog modules, a forward-buy of 3–5 units provides 3–5 years of coverage for most installations. Pair this with spares for the associated power supply, CPU, and front connector to ensure complete fault recovery capability without external sourcing delays.
