SIEMENS 6ES5927-3SA12 Spare for SIMATIC S5 Automation

SIEMENS 6ES5927-3SA12 Spare for SIMATIC S5 Automation: Spare Replacement & Industrial Downtime Risk Control

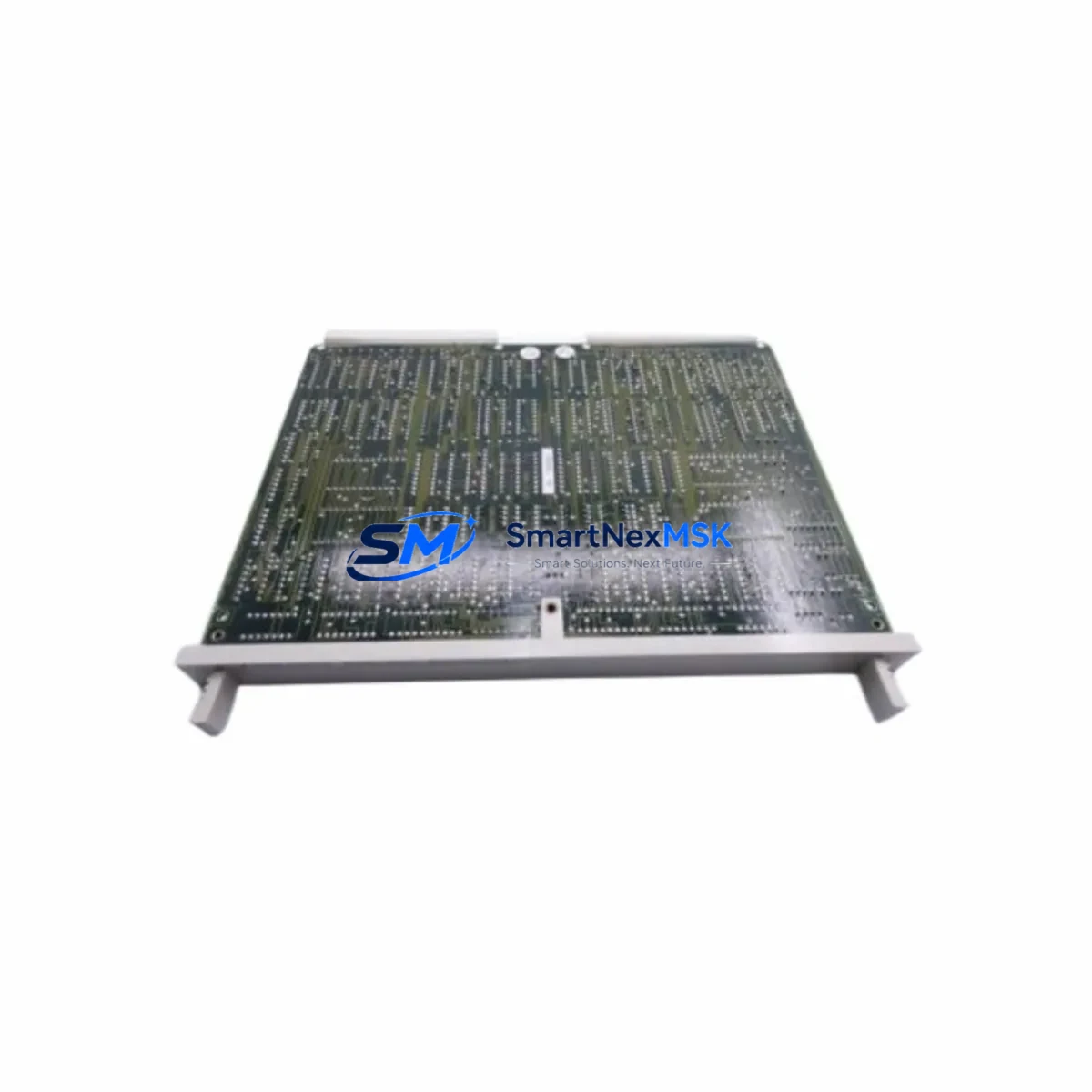

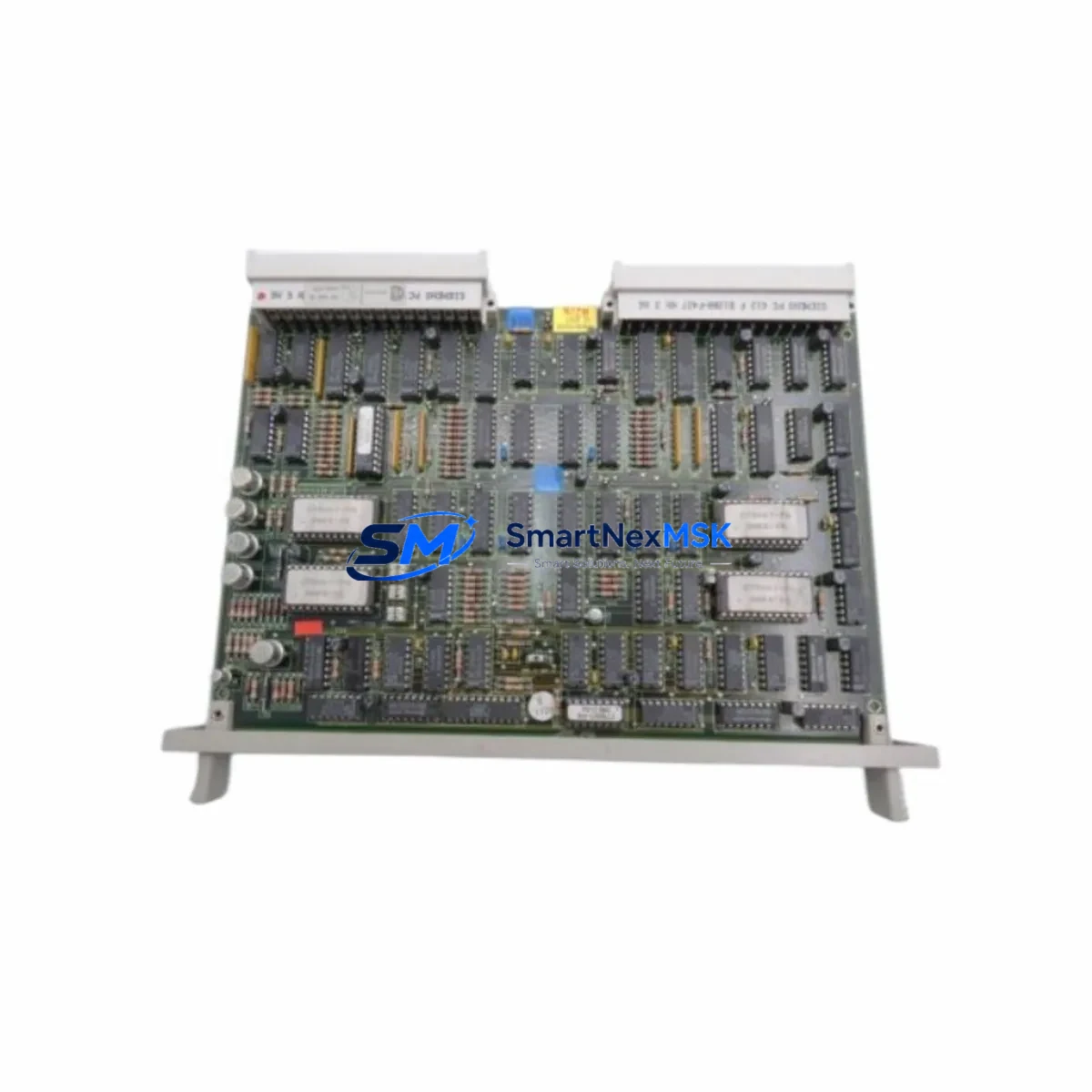

The SIEMENS 6ES5927-3SA12 is the CPU 927 central processing unit for the SIMATIC S5-900U programmable controller system — a cornerstone of legacy industrial automation infrastructure still operating across manufacturing plants, utilities, and process industries worldwide. When this CPU fails or degrades, the entire control loop is at risk. Sourcing a verified, original-grade spare is not optional — it is a maintenance imperative.

At SMARTNEXMSK, every 6ES5927-3SA12 unit is sourced from authenticated supply channels, subjected to pre-shipment functional testing, and dispatched with a 12-month warranty. Our inventory is maintained specifically to support maintenance engineers and procurement teams who cannot afford extended lead times or compatibility uncertainty during planned shutdowns or emergency recovery scenarios.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 6ES5927-3SA12 CPU is rarely an isolated task. Experienced maintenance engineers know that a CPU fault in an S5-900U rack is often symptomatic of broader electrical stress across the control cabinet. A disciplined replacement workflow should include inspection of the following components before returning the system to service:

The 6ES5921-3WA13 power supply module should be checked for output voltage stability and ripple — an aging PSU is a common root cause of CPU resets and memory corruption. Alongside it, the 6ES5700-8MA11 digital input module and 6ES5700-8MB11 digital output module should be verified for correct signal levels and terminal integrity, as I/O faults can mask themselves as CPU errors during diagnostics.

If the system uses analog process signals, the 6ES5460-4UA13 analog input module warrants calibration verification after any CPU swap. Communication continuity should be confirmed on the 6ES5734-3BD20 SINEC L2 interface module or equivalent CP module used in the rack, as firmware state and baud rate settings may need to be re-initialized post-replacement.

Terminal blocks and wiring harnesses — particularly 6ES5490-8MB11 front connectors — should be inspected for oxidation, loose crimps, and insulation degradation, especially in high-humidity or high-vibration environments. Relay output modules such as the 6ES5700-8MB21 should be tested for contact resistance if the system controls motor starters or solenoid valves. Signal isolators and surge protection devices on field wiring inputs are also worth replacing on a scheduled basis to protect the new CPU from transient damage.

For sites running extended S5 lifecycles, maintaining a minimum buffer stock of the CPU module, one PSU, and at least one I/O module per rack is the recommended spare parts strategy. This approach eliminates single-point-of-failure exposure and reduces mean time to repair (MTTR) from days to hours.

Site Replacement Workflow

Step 1 — Pre-replacement backup: Use STEP 5 programming software to perform a full program backup from the existing CPU to an offline PG/PC. Document the current memory submodule configuration and any EPROM-loaded blocks.

Step 2 — Power isolation: De-energize the rack via the main disconnect. Verify zero-voltage on the backplane bus before handling the CPU module. Ground yourself with an ESD wrist strap — the 6ES5927-3SA12 is sensitive to electrostatic discharge.

Step 3 — Module extraction: Release the front panel locking lever, disconnect the bus connector, and slide the CPU out of its slot. Note the slot position — the CPU 927 must occupy the designated CPU slot in the S5-900U rack.

Step 4 — Spare installation: Insert the 6ES5927-3SA12 replacement unit, reconnect the bus connector, and secure the locking lever. Transfer the memory submodule from the old CPU if it contains the active program and is confirmed functional.

Step 5 — Power-on and verification: Re-energize the rack and observe the CPU status LEDs. A solid RUN LED with no STOP or BASP fault indicators confirms successful initialization. Perform a full I/O scan and verify process values against expected ranges before releasing the system to production.

This workflow is compatible with direct replacement of older 6ES5927-3SA11 and 6ES5927-3SA13 variants where hardware revision differences are within acceptable tolerance. Always confirm firmware compatibility with your STEP 5 version before commissioning.

Spare Parts Support FAQ

Q1: Is the 6ES5927-3SA12 still available as a new original spare, or only as refurbished stock?
We supply original-grade 6ES5927-3SA12 units sourced from authenticated industrial channels. Each unit undergoes pre-shipment functional testing. While SIEMENS has officially discontinued this part, our supply chain maintains verified stock to support legacy S5 installations. Units are dispatched with a 12-month warranty covering functional defects.

Q2: How do I confirm compatibility before ordering?
The 6ES5927-3SA12 is designed for the SIMATIC S5-900U rack system. Compatibility is determined by rack type, slot designation, and STEP 5 software version. Share your existing CPU label, rack model, and STEP 5 version with our technical team at sales@smartnexmsk.com and we will confirm fit before shipment.

Q3: What testing is performed before dispatch?
Every unit is powered on, initialized, and verified for correct LED status, bus communication, and memory access prior to packaging. Units that fail any test parameter are quarantined and not dispatched. A test report is available upon request for critical installations.

Q4: What is your recommended inventory strategy for S5-900U systems?
For facilities running S5-900U systems in critical process roles, we recommend maintaining at minimum one CPU spare (6ES5927-3SA12), one power supply spare, and one each of your most-used I/O modules on-site. This buffer stock strategy eliminates procurement lead time from your MTTR calculation and is especially important for sites where STEP 5-licensed engineers are not available 24/7.
