Siemens 6ES7151-8AB01-0AB0 Maintenance-Ready Spare for ET 200S Automation

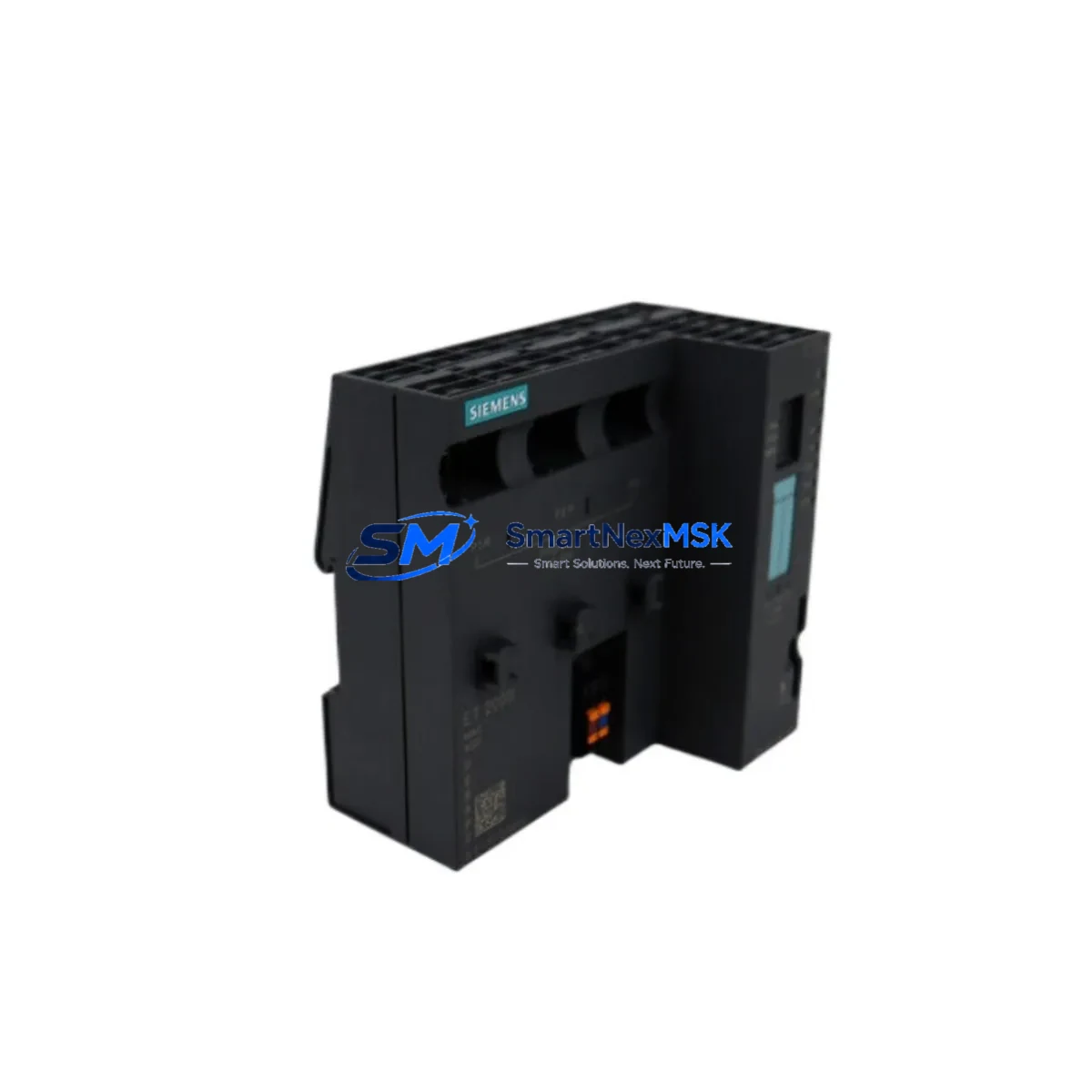

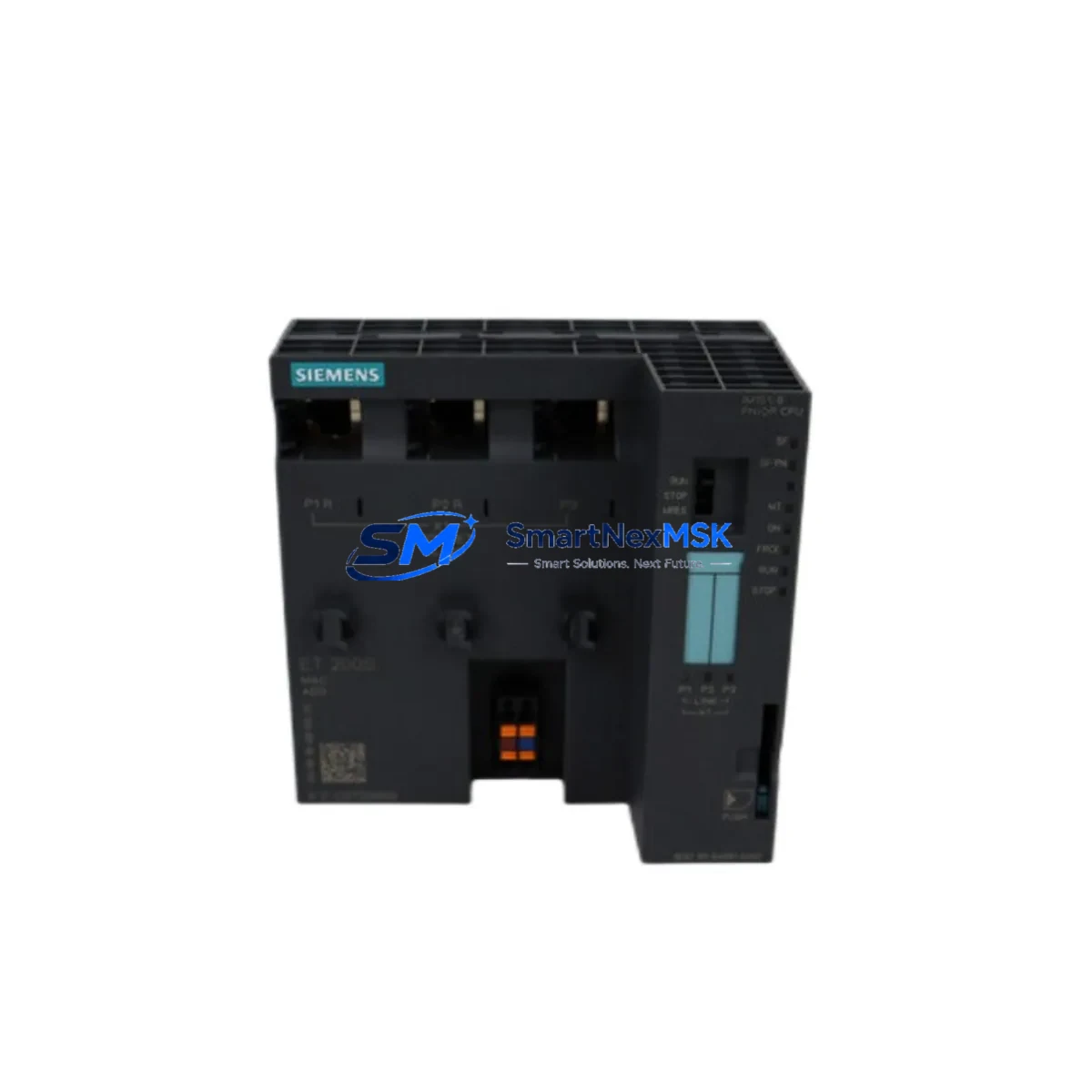

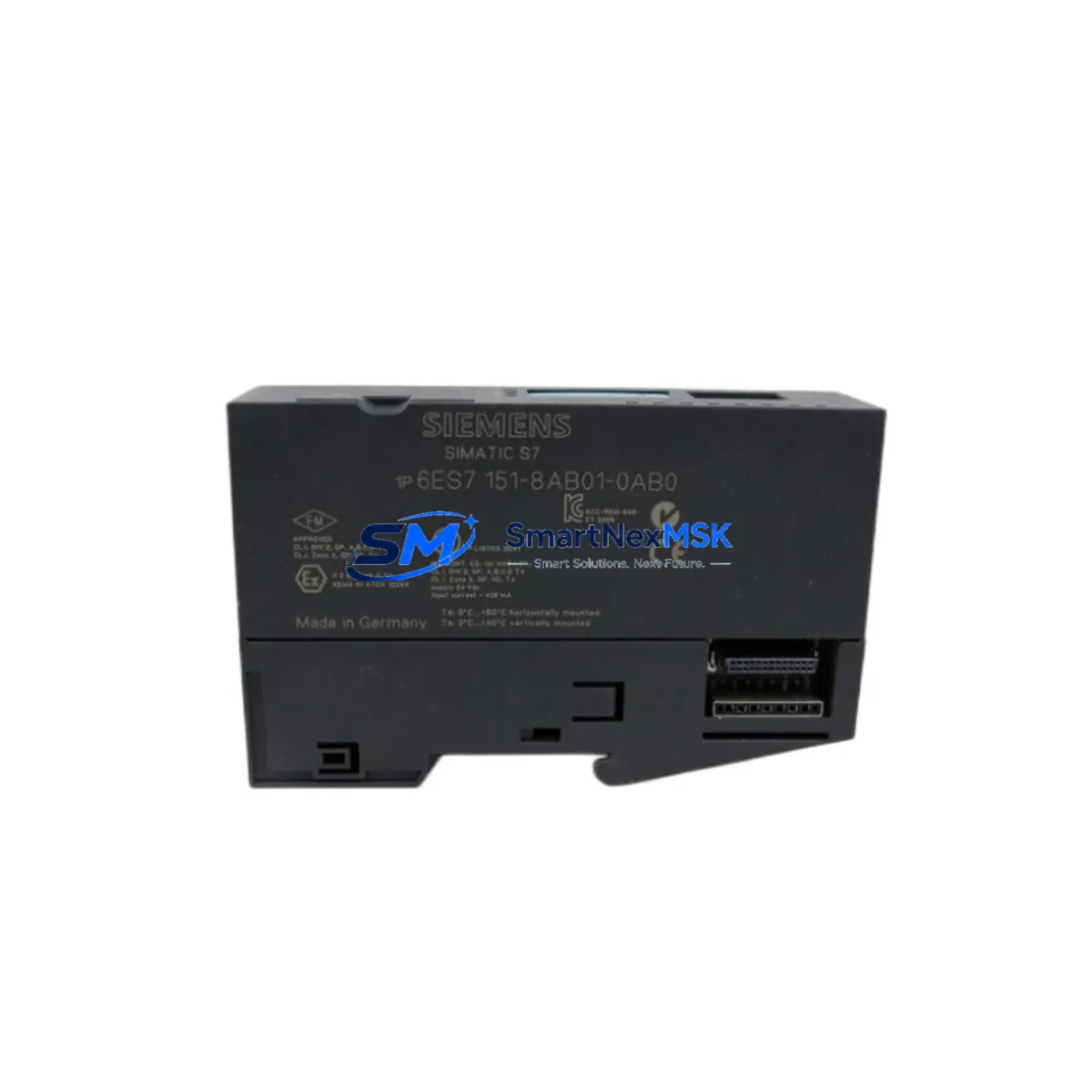

The Siemens 6ES7151-8AB01-0AB0 is the IM151-8 PN/DP CPU Interface Module designed for the ET 200S distributed I/O station within the SIMATIC S7-300/S7-400 automation architecture. As a maintenance-ready original spare, this module serves as the central intelligence of the ET 200S rack — managing PROFINET IO and PROFIBUS DP communication, executing local control programs, and coordinating all connected terminal modules and power modules within the station. For maintenance engineers managing aging SIMATIC installations, securing a verified replacement unit of the 6ES7151-8AB01-0AB0 is a critical step in any spare parts strategy aimed at minimizing unplanned downtime and extending the operational life of existing control infrastructure.
Whether you are responding to an unplanned fault, executing a scheduled overhaul, or building a strategic spare parts buffer for a multi-line facility, this module ships tested, firmware-verified, and ready for immediate installation. All units carry a 12-month warranty and are dispatched with full inspection documentation.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number / SKU | 6ES7151-8AB01-0AB0 |
| Module Designation | IM151-8 PN/DP CPU Interface Module |
| Compatible System | SIMATIC ET 200S Distributed I/O |
| Communication Interfaces | PROFINET IO (RJ45 × 2), PROFIBUS DP (RS-485) |
| Supply Voltage | DC 24 V (via PM-E power module) |
| Program Memory | 192 KB work memory (integrated) |
| Max. I/O Modules per Station | Up to 63 terminal modules |
| Operating Temperature | 0 °C to +60 °C (horizontal installation) |
| Protection Rating | IP20 |
| Dimensions (W × H × D) | 30 × 81 × 52 mm (approx.) |
| Weight | Approx. 300 g |
| Country of Origin | Germany |
| Firmware Compatibility | STEP 7 V5.5+, TIA Portal V13+ |
| Replacement Scope | Direct drop-in for 6ES7151-8AB01-0AB0 (same hardware revision) |
| Warranty | 12 Months — Tested & Verified Before Dispatch |
Maintenance Planning for Continuous Operation
When a fault is traced to the 6ES7151-8AB01-0AB0 interface module, experienced maintenance engineers know that the root cause may extend beyond the module itself. A systematic inspection of the surrounding components is essential before returning the ET 200S station to service.
Begin with the PM-E DC 24V power module (e.g., 6ES7138-4CA01-0AA0) that feeds the interface module rail — voltage ripple or transient spikes are a common cause of premature CPU interface failures. Verify that the 24 VDC bus voltage is stable and within tolerance before inserting the replacement unit. Next, inspect all digital input terminal modules (such as the 4DI 24VDC HF series, e.g., 6ES7131-4BD01-0AA0) and digital output terminal modules (e.g., 6ES7132-4BD02-0AA0) seated on the same rack — a shorted output channel can generate backfeed conditions that stress the interface module’s internal power regulation.
For stations operating in mixed signal environments, check the analog input modules (e.g., 6ES7134-4FB01-0AB0) for correct shielding and grounding. Unshielded signal cables running parallel to power conductors are a frequent source of EMI-induced communication errors that are often misdiagnosed as interface module failures. If the station communicates over PROFIBUS DP, inspect the bus connector termination resistors and cable impedance — a degraded PROFIBUS segment can cause repeated DP timeouts that trigger watchdog resets on the IM151-8.
Where the ET 200S station is integrated into a larger SIMATIC S7-300 or S7-400 control cabinet, also verify the upstream CPU module (e.g., CPU 315-2 PN/DP, 6ES7315-2EH14-0AB0) and the PROFINET switch or managed switch port to which the ET 200S connects. A faulty switch port or incorrect PROFINET device name assignment will prevent the replacement IM151-8 from coming online even after a successful hardware swap. Additionally, review the 24V DC distribution fuse block and any surge protection devices on the control cabinet’s incoming power rail — these are often overlooked during emergency replacements and can cause repeat failures if left unchecked.
For facilities running legacy ET 200S stations beyond their standard product lifecycle, maintaining a minimum stock of one spare 6ES7151-8AB01-0AB0 per production line — alongside matched PM-E power modules and a selection of high-frequency I/O terminal modules — is a proven strategy for achieving sub-four-hour recovery times on critical process lines.
Site Replacement Workflow
Step 1 — Preparation: Before removing the faulty module, export the current hardware configuration from STEP 7 or TIA Portal and note the assigned PROFINET device name and IP address of the ET 200S station. This information is required to commission the replacement unit.
Step 2 — Safe Isolation: De-energize the ET 200S station by switching off the PM-E power module. Do not remove the IM151-8 under live voltage. Disconnect the PROFINET and PROFIBUS cables and label them clearly.
Step 3 — Module Swap: Slide the 6ES7151-8AB01-0AB0 out of the head station slot. Insert the replacement unit — no tools required for the standard snap-fit mounting. Reconnect all communication cables in the original configuration.
Step 4 — Commissioning: Re-energize the station. Using a PROFINET-capable PG/PC, assign the correct device name to the replacement module via the TIA Portal or STEP 7 hardware configuration tool. Download the hardware configuration if the firmware revision of the replacement unit differs from the original.
Step 5 — Functional Verification: Confirm that all I/O terminal modules are recognized, all PROFIBUS DP slaves are online, and the CPU LED indicators show RUN status. Perform a short functional test of all connected I/O channels before returning the station to production.
This workflow is compatible with direct replacement of older hardware revisions of the IM151-8 PN/DP, making the 6ES7151-8AB01-0AB0 a reliable long-term spare for both current and legacy ET 200S installations.
Spare Parts Support FAQ
Q1: Is the 6ES7151-8AB01-0AB0 a direct replacement for earlier IM151-8 hardware revisions?
Yes. The 6ES7151-8AB01-0AB0 is backward compatible with earlier hardware revisions of the IM151-8 PN/DP within the ET 200S platform. A firmware download via TIA Portal or STEP 7 may be required if the hardware revision differs from the original unit. We recommend confirming the target firmware version with your system integrator before installation.
Q2: How is each unit tested before shipment?
Every 6ES7151-8AB01-0AB0 unit undergoes a pre-shipment functional test covering power-on self-test, communication interface verification, and visual inspection for physical damage. A test report is available upon request. All units are dispatched in anti-static packaging with a 12-month warranty from the date of delivery.
Q3: What is the recommended spare parts holding strategy for ET 200S-based lines?
For production lines with high uptime requirements, we recommend holding a minimum of one IM151-8 PN/DP module per line, paired with at least one PM-E power module and a representative set of the most-used I/O terminal modules. For facilities with multiple ET 200S stations, a centralized spare parts cabinet with standardized module types reduces both inventory cost and mean time to repair.
Q4: Can you support long-term supply for this part number?
Yes. We maintain ongoing stock of the 6ES7151-8AB01-0AB0 and can support scheduled procurement programs, blanket orders, and emergency same-day dispatch for qualified industrial customers. Contact our team to discuss volume pricing, lead times, and consignment stock arrangements for your facility.
