Siemens 6ES7314-1AG14-0AB0 Maintenance-Ready Spare S7-300

Siemens 6ES7314-1AG14-0AB0 Maintenance-Ready Spare S7-300: Spare Replacement & Industrial Downtime Risk Control

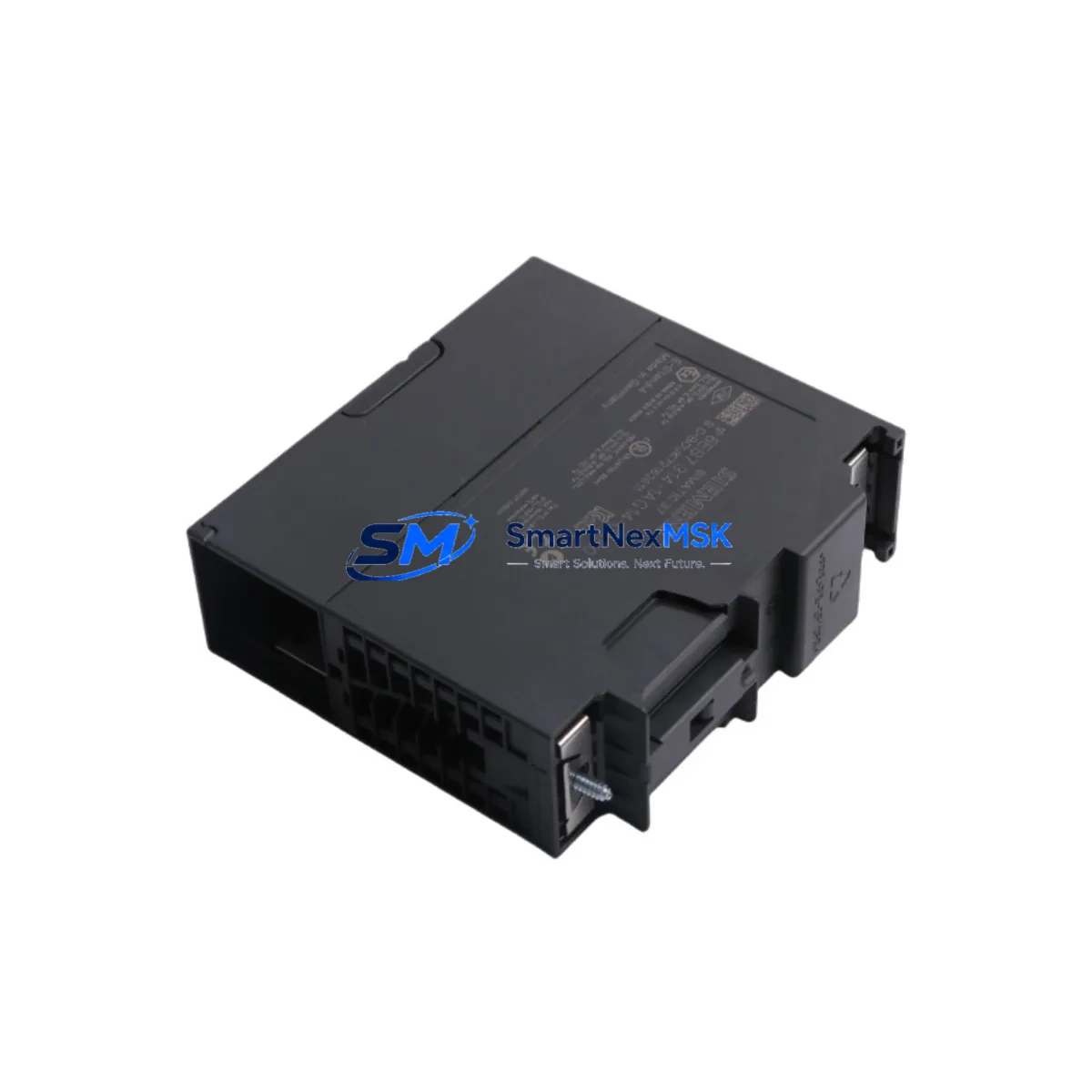

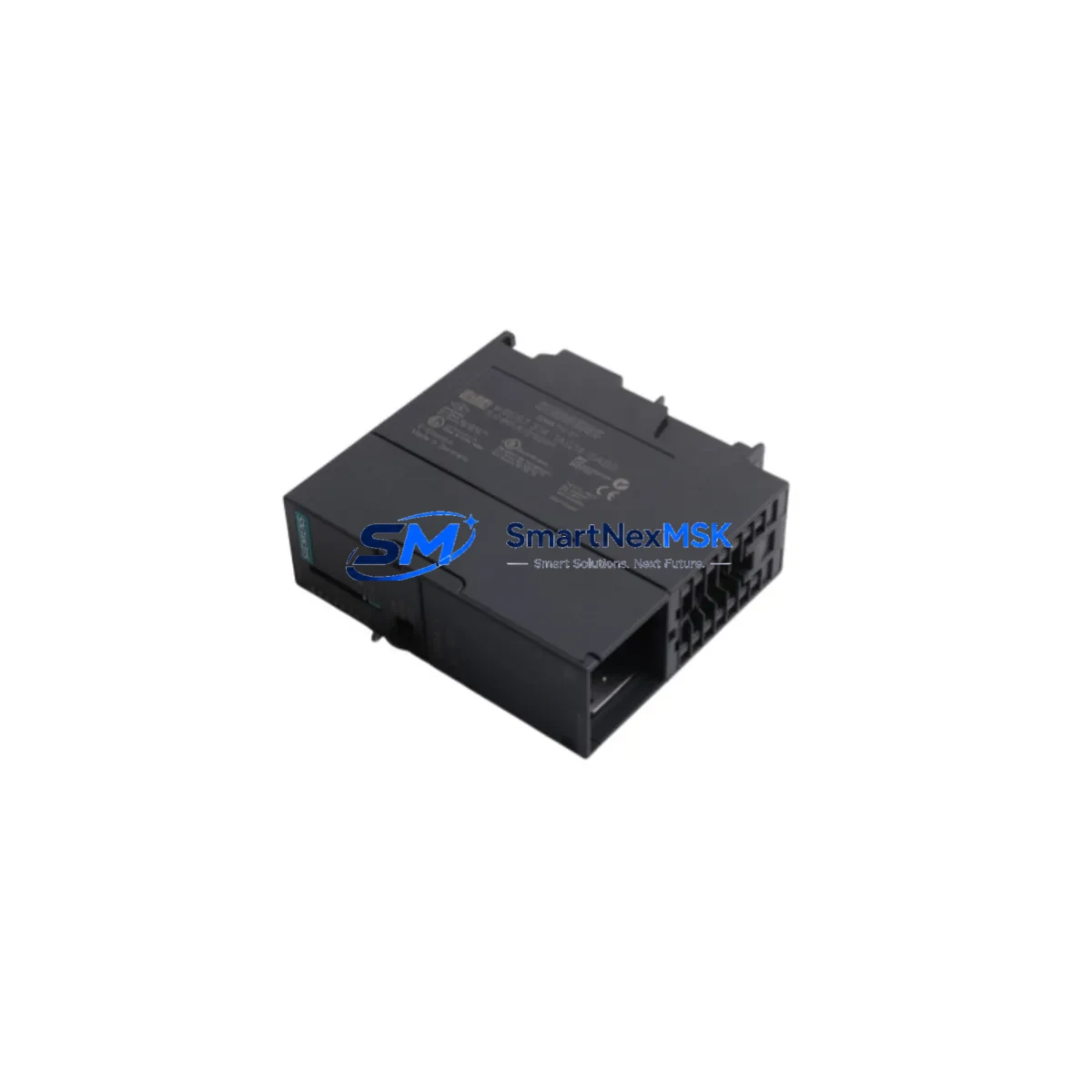

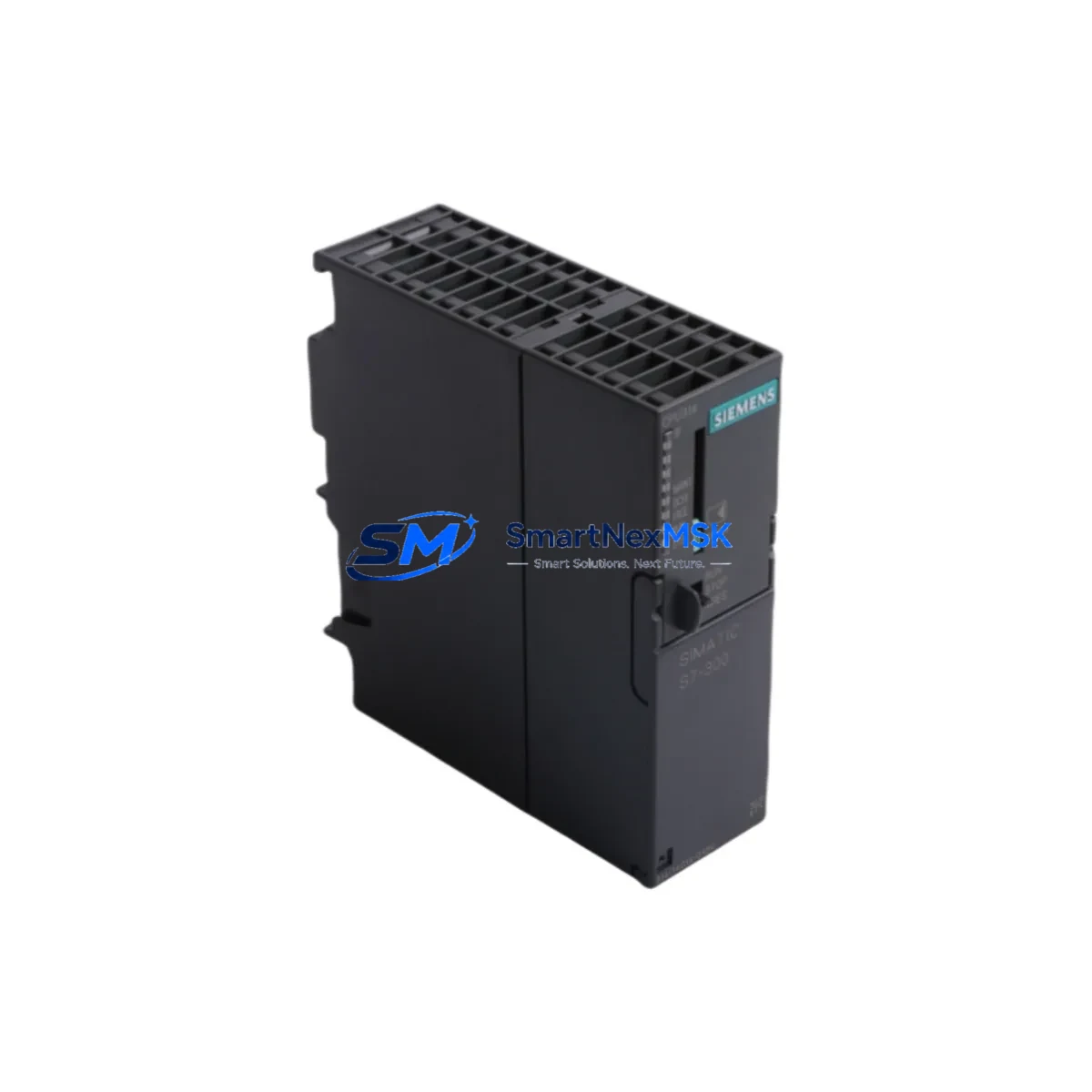

The Siemens 6ES7314-1AG14-0AB0 is a CPU 314 central processing unit designed for the SIMATIC S7-300 programmable logic controller platform — one of the most widely deployed automation architectures in discrete manufacturing, process control, and utility infrastructure worldwide. As production environments age and OEM support windows close, maintaining a verified, tested spare of the 6ES7314-1AG14-0AB0 is a critical element of any responsible maintenance strategy. This unit supports MPI and PROFIBUS-DP communication, onboard digital I/O, and is fully compatible with the S7-300 backplane and standard 24 VDC power supply modules, making it a direct drop-in replacement for aging or failed CPUs without requiring system reconfiguration.

For maintenance engineers managing legacy S7-300 installations, the 6ES7314-1AG14-0AB0 represents a high-risk single point of failure. A CPU fault without a ready spare can translate to hours or days of unplanned downtime. Stocking this module — alongside matched power supply units such as the PS 307 series and the appropriate front connectors and memory cards — ensures that fault isolation and recovery can be completed within a single maintenance window.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 6ES7314-1AG14-0AB0 CPU fault is identified during routine inspection or emergency fault isolation, the replacement procedure should be treated as a system-level event — not a single-component swap. Experienced maintenance engineers know that a CPU failure in an S7-300 rack is often accompanied by stress on adjacent modules. Before or immediately after installing the replacement CPU, the following components should be inspected and, where appropriate, replaced from your spare parts inventory:

• PS 307 Power Supply Module (e.g., 6ES7307-1BA01-0AA0 or 6ES7307-1EA01-0AA0): Verify output voltage stability under load. A degraded power supply is a common root cause of intermittent CPU faults and memory errors.
• S7-300 Backplane Bus Connector: Inspect for oxidation, mechanical damage, or loose seating. Bus connector failures cause communication errors that mimic CPU faults.
• SM 321 Digital Input Modules: Check for blown input channels caused by field-side voltage spikes that may have contributed to the CPU fault event.
• SM 322 Digital Output Modules: Verify output transistor integrity, especially in high-cycle applications such as solenoid valve or motor starter control.
• SM 331 / SM 332 Analog I/O Modules: Confirm signal accuracy and channel isolation, particularly in process control loops where analog drift can trigger CPU watchdog faults.
• CP 342-5 or CP 343-1 Communication Processors: If the system uses PROFIBUS-DP or Industrial Ethernet, verify that the communication processor is functioning correctly after CPU replacement and re-initialization.
• IM 360 / IM 361 Interface Modules: In multi-rack configurations, inspect interface modules for proper rack-to-rack communication continuity.
• Signal Isolators and Zener Barriers: In hazardous area or mixed-signal environments, check signal isolators in the I/O loop to ensure they have not been damaged by transient events.
• 24 VDC Field Wiring Fuses and Terminal Blocks: Inspect fuse holders and terminal strips for signs of overheating, loose connections, or corrosion — common causes of intermittent faults in aging control cabinets.
• SIMATIC Memory Card (e.g., 6ES7954-8LF03-0AA0): Confirm that the program backup on the memory card is current and that the card seats correctly in the replacement CPU before powering up.

Procurement engineers should note that the 6ES7314-1AG14-0AB0 is a long-lifecycle Siemens product with broad third-party spare parts availability. Maintaining a minimum of one cold-standby unit per production line — alongside matched I/O modules and a current program backup — is the industry-standard approach for S7-300 installations with no planned migration to S7-1500 in the near term.

Site Replacement Workflow

Replacing the 6ES7314-1AG14-0AB0 in the field is a structured process that, when executed correctly, minimizes downtime and eliminates the risk of configuration errors:

1. Document current configuration: Before powering down, upload the current CPU program to a PG/PC using STEP 7 or TIA Portal in S7-300 compatibility mode. Confirm the program version matches your backup archive.
2. Power down safely: Switch the PS 307 power supply to OFF. Verify zero voltage on the backplane before removing the CPU module.
3. Remove and inspect: Extract the 6ES7314-1AG14-0AB0 from the rack. Inspect the backplane connector and adjacent module connectors for damage.
4. Install replacement unit: Seat the replacement 6ES7314-1AG14-0AB0 firmly into the rack. Transfer the SIMATIC memory card from the old unit if it contains the current program, or insert a pre-programmed card.
5. Power up and verify: Restore power via the PS 307. Confirm the CPU transitions to RUN mode. Verify MPI/PROFIBUS-DP communication with connected HMI panels (e.g., TP 177B or MP 277 series) and remote I/O stations.
6. Functional test: Execute a controlled I/O test sequence to confirm all SM 321/322 digital channels and SM 331/332 analog channels are responding correctly before returning the system to production.
7. Update maintenance records: Log the replacement event, serial numbers, firmware version, and test results in your CMMS or maintenance logbook.

This workflow is applicable whether the 6ES7314-1AG14-0AB0 is replacing a failed unit in an emergency or being installed as part of a planned preventive maintenance cycle. The same procedure applies when upgrading from an earlier CPU 314 variant, as the 1AG14 revision maintains full backward compatibility with existing S7-300 hardware configurations.

Spare Parts Support FAQ

Q1: Is the 6ES7314-1AG14-0AB0 compatible with all S7-300 racks and power supplies?
Yes. The 6ES7314-1AG14-0AB0 is designed for the standard S7-300 rack system and is compatible with all PS 307 power supply variants (2A, 5A, 10A) and all standard S7-300 signal modules. It can be used in single-rack and multi-rack configurations with IM 360/361 interface modules. Always confirm firmware compatibility with your existing program before deployment.

Q2: What is your spare parts lifecycle and long-term supply commitment?
We maintain stock of the 6ES7314-1AG14-0AB0 as a long-term spare parts item. Each unit is sourced from verified supply channels, inspected upon receipt, and tested before shipment. We support customers with ongoing procurement needs for legacy S7-300 systems, including bulk orders for spare parts kits covering CPU, power supply, and I/O modules.

Q3: How is the unit tested before shipment?
Every 6ES7314-1AG14-0AB0 unit undergoes a pre-shipment functional test that includes power-on verification, CPU RUN mode confirmation, MPI communication check, and onboard I/O channel validation. Units that do not pass all test criteria are not shipped. A test report is available upon request for quality-critical procurement processes.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions as specified in the Siemens S7-300 hardware manual. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the rated environmental specifications. Warranty claims are processed with priority to minimize customer downtime, and replacement units are dispatched promptly upon claim approval.
