Siemens 6ES7407-0KA02-0AA0 Maintenance-Ready Spare S7-400

Siemens 6ES7407-0KA02-0AA0 Maintenance-Ready Spare S7-400: Spare Parts Replacement & Industrial Downtime Risk Control

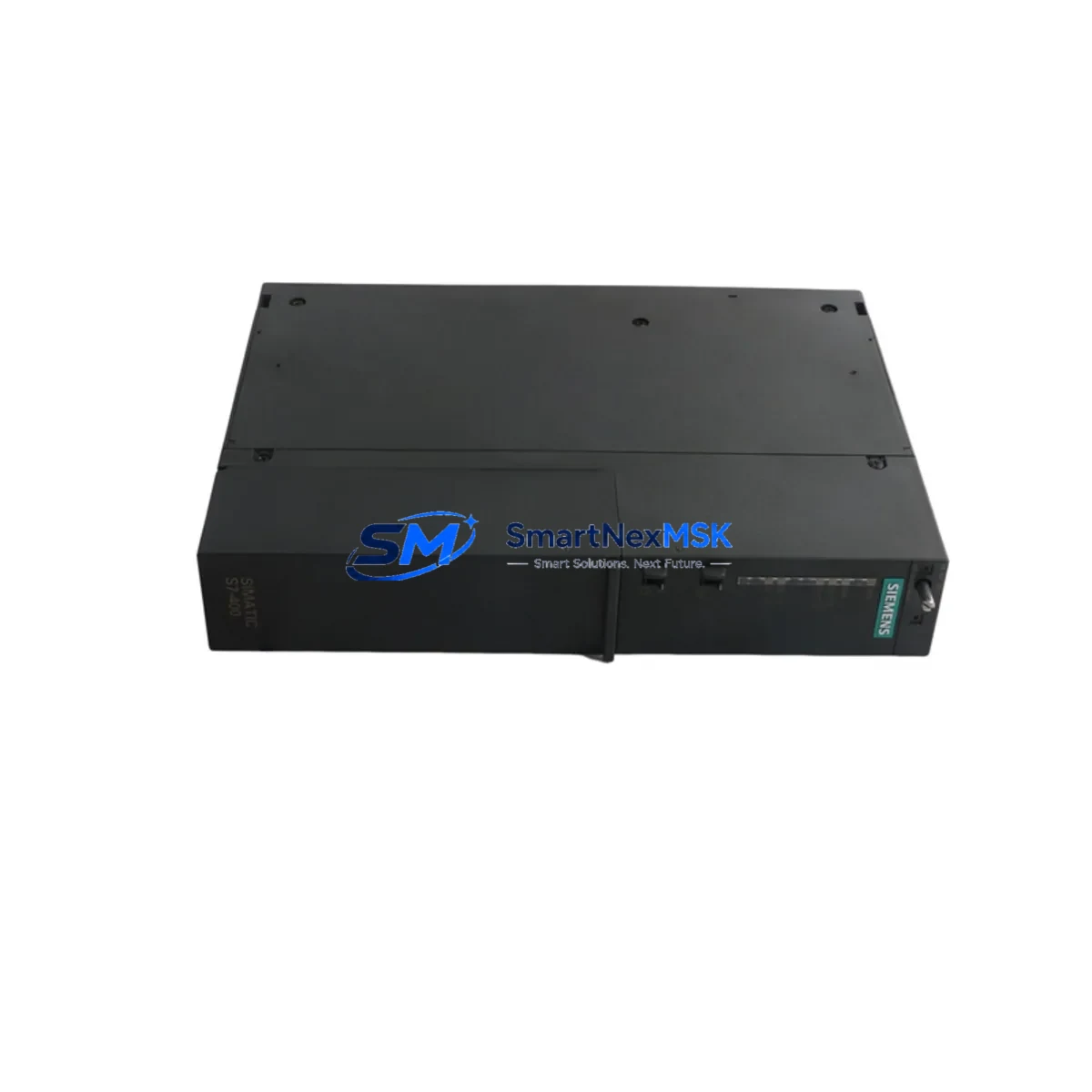

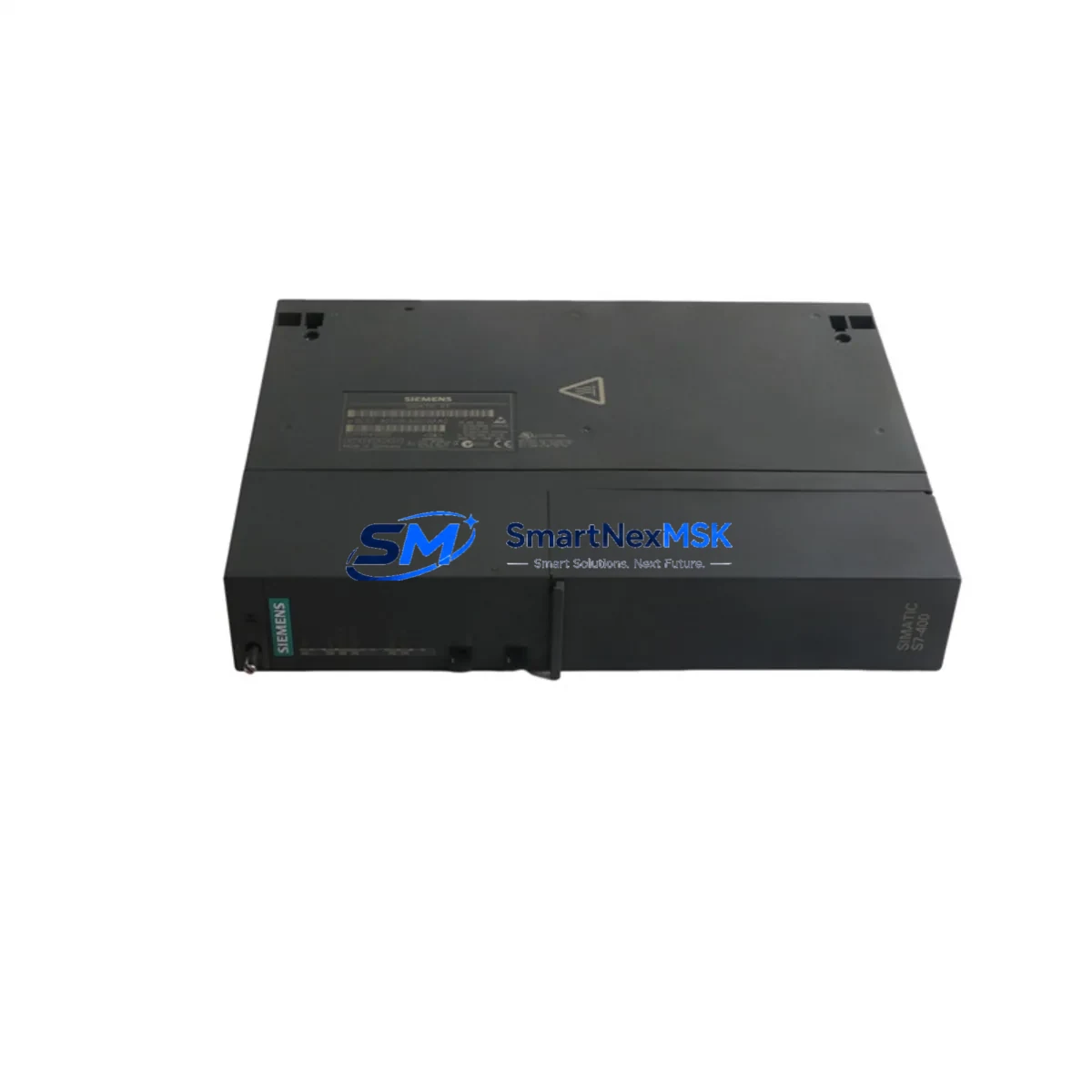

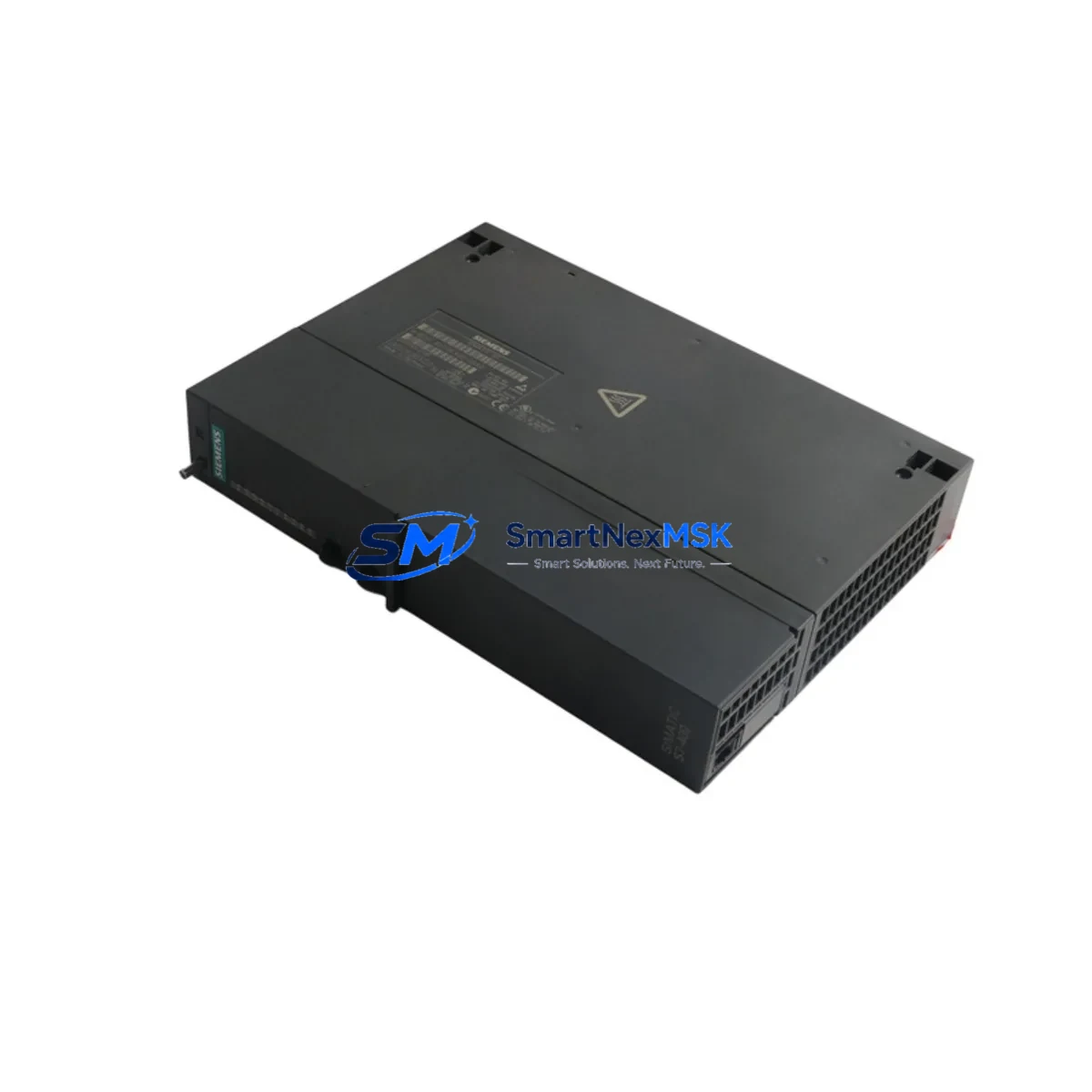

The Siemens 6ES7407-0KA02-0AA0 is a PS 407 10A power supply module designed for the SIMATIC S7-400 programmable logic controller platform — one of the most widely deployed high-availability PLC architectures in process automation, heavy manufacturing, and critical infrastructure worldwide. As a maintenance-ready original spare, this module is sourced, inspected, and dispatched to support rapid field replacement, minimizing unplanned downtime and protecting continuous production cycles.

For maintenance engineers managing aging S7-400 control cabinets, the PS 407 10A is a foundational component. Its failure directly interrupts power delivery to the CPU rack, I/O modules, and communication processors — making fast, verified spare availability a non-negotiable element of any preventive maintenance program. Procurement engineers sourcing this module should confirm compatibility with their installed rack configuration and CPU generation before deployment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a PS 407 10A module is flagged for replacement during a scheduled shutdown or emergency callout, experienced maintenance engineers treat the event as a trigger for a broader control cabinet inspection. The power supply is the backbone of the entire S7-400 rack — its degradation often correlates with stress on adjacent components that share the same DC bus or thermal environment.

Begin by verifying the CPU 414 or CPU 416 module’s diagnostic buffer for any logged undervoltage or watchdog events that preceded the fault. These entries frequently indicate that the PS 407 had been operating in a marginal state for weeks before visible failure. Simultaneously, inspect the IM 460-0 or IM 461-0 interface modules used for rack expansion — these draw directly from the PS bus and are sensitive to supply ripple.

On the I/O side, check the SM 321 digital input modules and SM 322 digital output modules installed in the same rack. Voltage instability from a failing power supply can cause intermittent I/O errors that are misdiagnosed as field wiring faults. While the cabinet is open, inspect the CP 443-1 Ethernet communication processor for any link-loss events logged during the same period — communication modules are particularly sensitive to power quality.

For sites running redundant configurations, the PS 407 20A (6ES7407-0KR02-0AA0) is the higher-capacity sibling of this module and is commonly stocked alongside the 10A variant in facilities with mixed rack configurations. Procurement teams should consider holding both variants in their critical spare inventory to cover all installed rack types without delay.

Beyond the rack itself, inspect the 24 VDC SITOP power supply feeding field devices and sensor loops — a failing rack PS can mask upstream SITOP degradation. Check terminal blocks and DIN rail wiring in the cabinet for signs of thermal stress, loose connections, or insulation discoloration near the PS module slot. Verify that miniature circuit breakers (MCBs) protecting the AC input line to the PS 407 are rated correctly and show no signs of contact wear.

For sites with SIMATIC HMI TP700 or OP77B operator panels connected to the S7-400 via MPI or PROFIBUS, confirm that the HMI communication link is restored and stable after the PS replacement — power cycling the rack can occasionally reset MPI node addresses. Finally, if the installation includes signal isolators or loop-powered transmitters on analog input channels (SM 331 modules), verify 4–20 mA loop integrity post-replacement to confirm no field instruments were affected by the power interruption.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the installed module’s order number matches 6ES7407-0KA02-0AA0. Check the rack type (UR1/UR2) and slot position (Slot 1). Download the current CPU diagnostic buffer via STEP 7 or TIA Portal before powering down.

Step 2 — Safe isolation: Switch the PS 407 mode selector to OFF. Isolate the AC input MCB. Wait for the DC bus capacitors to discharge (minimum 30 seconds). Verify zero voltage on the bus with a calibrated multimeter before handling adjacent modules.

Step 3 — Module swap: Release the front connector and slide the PS 407 out of Slot 1. Insert the replacement 6ES7407-0KA02-0AA0, ensuring the guide rails engage fully. Reconnect the AC input connector and tighten the strain relief.

Step 4 — Power-up and validation: Switch the PS 407 to RUN. Observe the green DC 5V and DC 24V LEDs. Confirm the CPU transitions from STOP to RUN without fault. Verify all I/O modules report OK status in the hardware diagnostics. Restore HMI communication and confirm process visualization is live.

Step 5 — Documentation: Record the replacement date, module serial number, and post-replacement diagnostic buffer snapshot. Update the site’s spare parts register and reorder a replacement unit to restore buffer stock.

This workflow is designed to minimize rack downtime to under 30 minutes for a prepared maintenance team, preserving system compatibility and eliminating the risk of configuration loss associated with CPU module disturbance.

Spare Parts Support FAQ

Q1: Is the 6ES7407-0KA02-0AA0 compatible with all S7-400 rack variants?
This module is compatible with the UR1, UR2, UR2-H, CR2, and CR3 rack types. It occupies the dedicated PS slot (Slot 1) and is not interchangeable with CPU or I/O slots. Always verify your rack order number before ordering. If your installation uses a redundant PS configuration, confirm whether a second PS 407 slot is available in your rack.

Q2: How is the module tested before shipment?
Each unit undergoes functional power-on testing to verify DC 5V and DC 24V output regulation, fan operation, and LED status indication. Modules are inspected for physical damage, connector integrity, and label legibility. A test report is available upon request. All units ship with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Q3: What is the recommended spare inventory strategy for S7-400 power supplies?
For facilities with three or more S7-400 racks in continuous operation, industry best practice recommends holding a minimum of one PS 407 10A spare per five installed units, with a reorder trigger set at depletion to one unit. Sites running 24/7 processes with no scheduled maintenance windows should consider holding two units. The PS 407 20A variant should be stocked separately if mixed rack configurations are present.

Q4: Can this module replace an older PS 407 variant with a different firmware revision?
The 6ES7407-0KA02-0AA0 is a direct hardware replacement for earlier PS 407 10A revisions. No firmware configuration is required — the module is plug-and-play within compatible racks. If your site uses STEP 7 hardware configuration files, no changes to the HW Config are necessary as the module order number remains identical across revisions. Confirm with your system integrator if the installation uses any custom rack parameterization.
