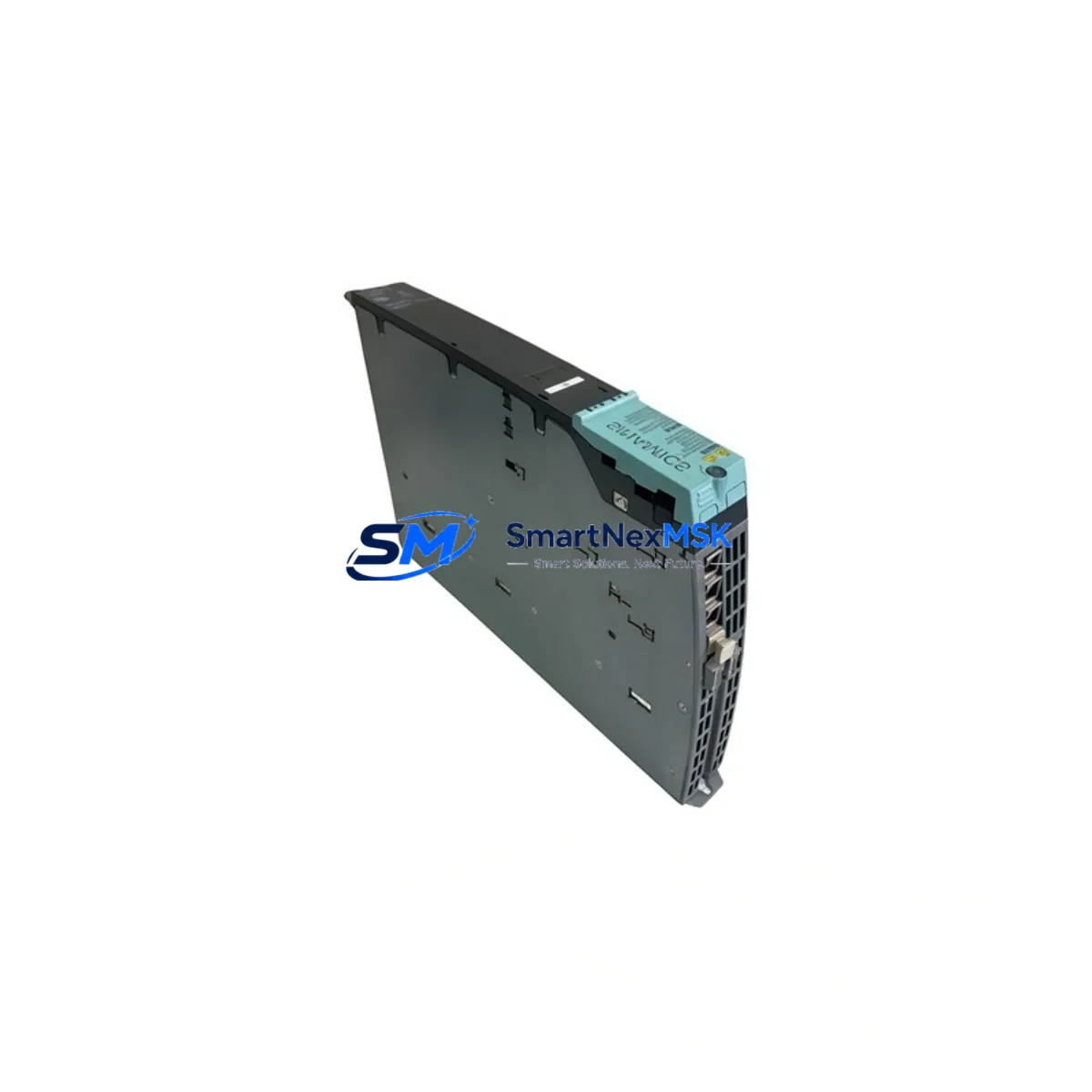

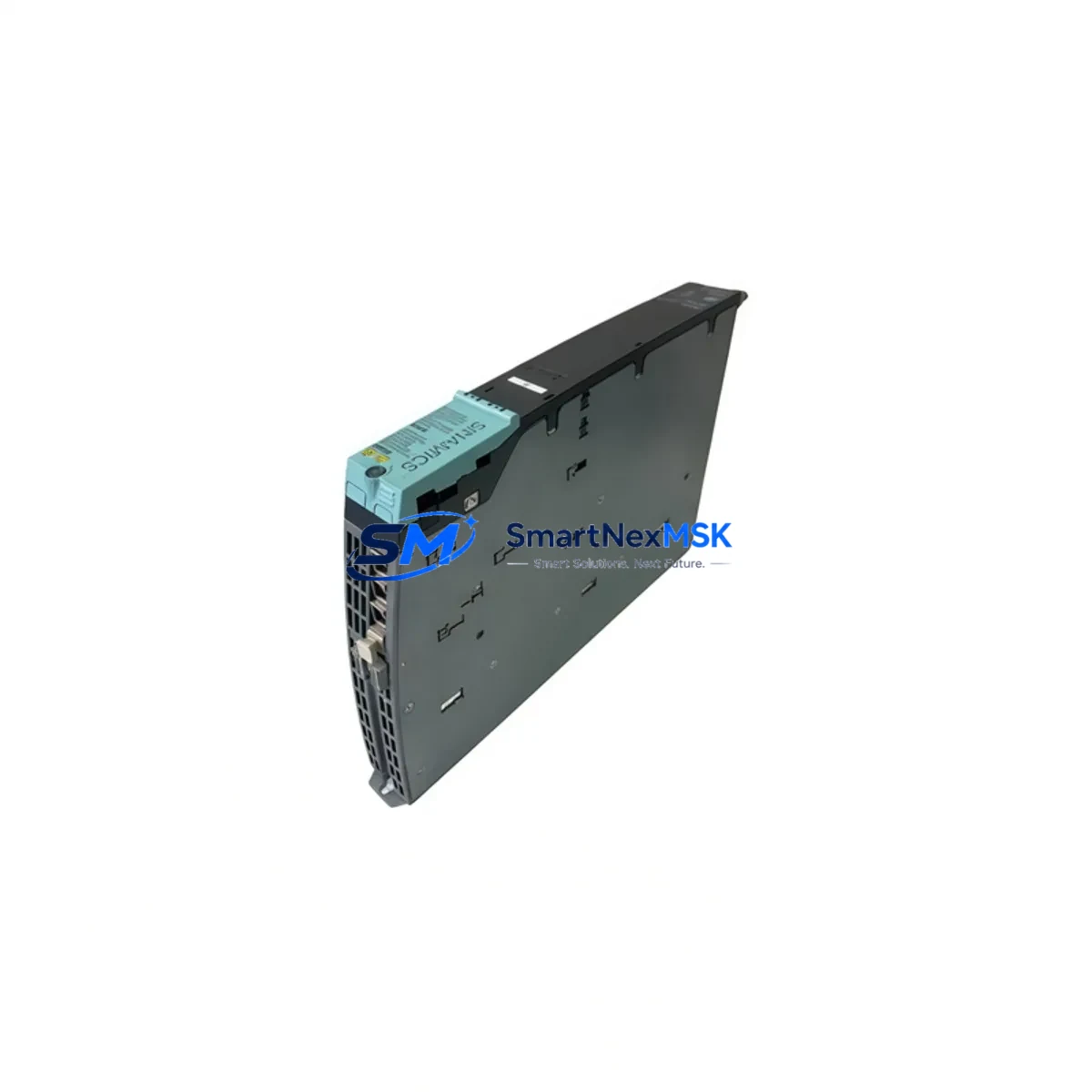

The Siemens 6SL3120-11E23-0AA3 is a SINAMICS S120 Booksize Single Motor Module rated at 3A continuous output current, designed for precise axis control in multi-axis servo and vector drive systems. As a maintenance-ready original spare, this module supports rapid replacement in production lines, CNC machining centers, packaging equipment, and material handling systems where unplanned downtime carries significant operational cost. Every unit shipped by SMARTNEXMSK undergoes pre-shipment functional verification and is backed by a 12-month warranty, ensuring your maintenance team can install with confidence and your procurement team can plan with certainty.

Whether you are executing a planned shutdown, responding to a fault code on the CU320-2 Control Unit, or building a strategic spare parts buffer for an aging S120 Booksize cabinet, the 6SL3120-11E23-0AA3 is a direct, pin-compatible replacement that requires no firmware re-parameterization when the drive object configuration is preserved in the STARTER or TIA Portal project.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 6SL3120-11E23-0AA3 Single Motor Module triggers an F30001 (power unit: overcurrent) or F30002 (power unit: DC link overvoltage) fault, the root cause is rarely isolated to the module alone. A disciplined maintenance engineer will simultaneously inspect the following components before returning the axis to service:

The Active Line Module (e.g., 6SL3130-6AE21-0AB1) that feeds the shared DC bus should be checked for capacitor aging and pre-charge relay condition — a degraded line module can stress downstream motor modules even after replacement. The DRIVE-CLiQ cable connecting the motor module to the CU320-2 Control Unit is a frequent silent failure point; inspect for bent pins, loose latches, and cable routing that may cause intermittent signal loss. The 24 V DC SITOP power supply (such as the 6EP1334-3BA10) powering the control electronics must be verified for voltage stability under load, as a sagging 24 V rail can cause spurious fault trips across multiple axes.

The motor encoder feedback cable and the SMC30 Sensor Module Cabinet-Mounted (6SL3055-0AA00-5BA3) should be inspected for insulation damage, especially in high-vibration or high-temperature environments. A faulty encoder signal will cause the replacement module to fault immediately on enable. Additionally, review the terminal block wiring on the motor power output (U2/V2/W2) for signs of thermal discoloration or loose crimps — a high-resistance connection at the motor terminals can cause asymmetric phase loading that damages a new module within hours of commissioning.

For cabinets running multiple S120 axes, it is best practice to also inspect the DC bus bar connectors and the Braking Module (e.g., 6SL3100-1BE21-3AA0) for signs of overheating. If the system includes a Basic Operator Panel BOP20 or an AOP30 Advanced Operator Panel, use the diagnostic screens to review historical fault buffers before clearing alarms — this data is invaluable for identifying whether the failure was a one-time event or a recurring pattern. Where PROFINET or PROFIBUS communication is involved, verify that the CBE20 Communication Board and network switch port assignments remain intact after the module swap, as slot changes can alter the PROFINET device name mapping.

Procurement engineers building a spare parts strategy for S120 Booksize installations should consider stocking at least one 6SL3120-11E23-0AA3 per production line alongside a matched set of DRIVE-CLiQ cables, a spare 24 V SITOP module, and one set of motor power terminal connectors. This combination covers the majority of unplanned downtime scenarios without requiring a full drive cabinet spare.

Site Replacement Workflow

Step 1 — Isolation: Inhibit the drive object in TIA Portal or STARTER, then isolate the cabinet from mains via the upstream circuit breaker. Verify DC bus discharge using a calibrated multimeter — wait for the DC link voltage to drop below 50 V before opening the cabinet door.

Step 2 — Documentation: Photograph the existing wiring, DRIVE-CLiQ connections, and DC bus bar position before removal. Note the slot position of the module on the mounting rail — the CU320-2 assigns drive objects by slot order, and incorrect reinstallation will cause a topology mismatch fault (F01375).

Step 3 — Removal: Disconnect the DRIVE-CLiQ cable, motor power cables (U2/V2/W2), and the DC bus bar connector. Release the DIN rail locking tab and slide the module out. Do not force — the bus bar connector requires a firm but controlled pull.

Step 4 — Installation of 6SL3120-11E23-0AA3: Slide the new module into the same slot position. Connect the DC bus bar first, then motor power cables, then the DRIVE-CLiQ cable. Torque all terminal screws to the values specified in the S120 Booksize Hardware Installation Manual (A5E03264351).

Step 5 — Commissioning: Power up the cabinet and allow the CU320-2 to perform automatic topology recognition. If the drive project was saved prior to the fault, the new module will be recognized automatically and no re-parameterization is required. Perform a no-load enable test before reconnecting the motor load. Confirm encoder feedback, current limits, and ramp parameters before returning to production.

This workflow minimizes mean time to repair (MTTR) and eliminates the most common commissioning errors that extend downtime beyond the physical replacement time.

Spare Parts Support FAQ

Q1: Is the 6SL3120-11E23-0AA3 a direct drop-in replacement for older S120 Booksize motor modules?
Yes. The 6SL3120-11E23-0AA3 is fully compatible with the SINAMICS S120 Booksize platform and uses the standard DRIVE-CLiQ interface for automatic topology recognition. No firmware changes are required when replacing a module of the same rating in the same slot position, provided the drive project file is intact on the CU320-2.

Q2: How does SMARTNEXMSK verify the module before shipment?
Every 6SL3120-11E23-0AA3 unit undergoes a pre-shipment functional test covering DC link integrity, DRIVE-CLiQ communication handshake, and output stage continuity. Units that do not pass are not shipped. A test report is available upon request for critical infrastructure procurement.

Q3: What is the recommended spare parts inventory strategy for S120 Booksize installations?
For production environments with three or more S120 axes, we recommend maintaining one 6SL3120-11E23-0AA3 per line as a hot spare, alongside a spare CU320-2 Control Unit, one set of DRIVE-CLiQ cables, and a 24 V SITOP power supply. This covers the statistically most common failure modes and supports same-shift recovery from most drive faults.

Q4: What warranty and after-sales support does SMARTNEXMSK provide?
All units are covered by a 12-month warranty from the date of shipment. Warranty claims are processed within 5 business days. SMARTNEXMSK provides long-term supply continuity for obsolete and hard-to-source S120 components, with stock replenishment planning available for OEM and system integrator accounts. Contact sales@smartnexmsk.com for volume pricing and consignment stock arrangements.
