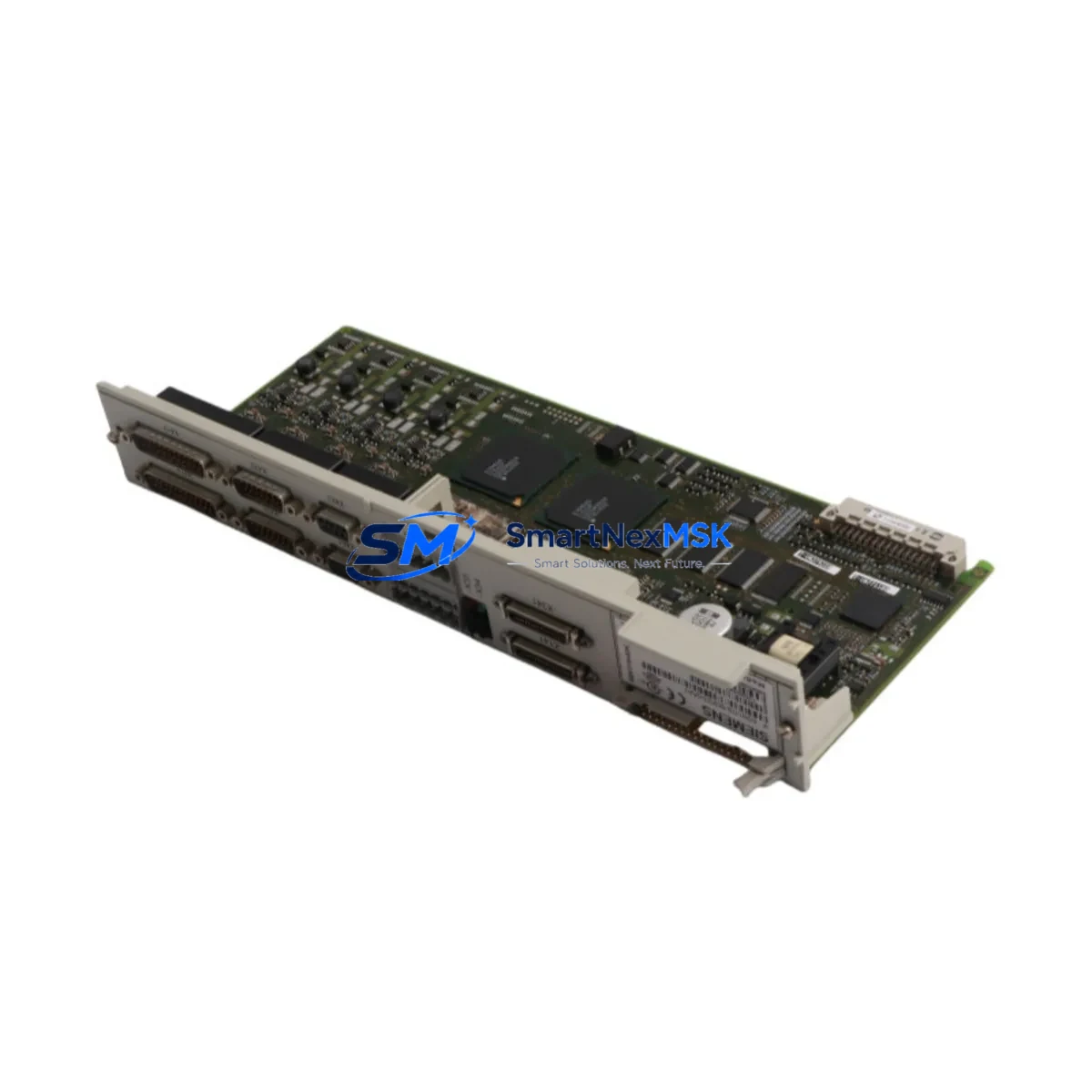

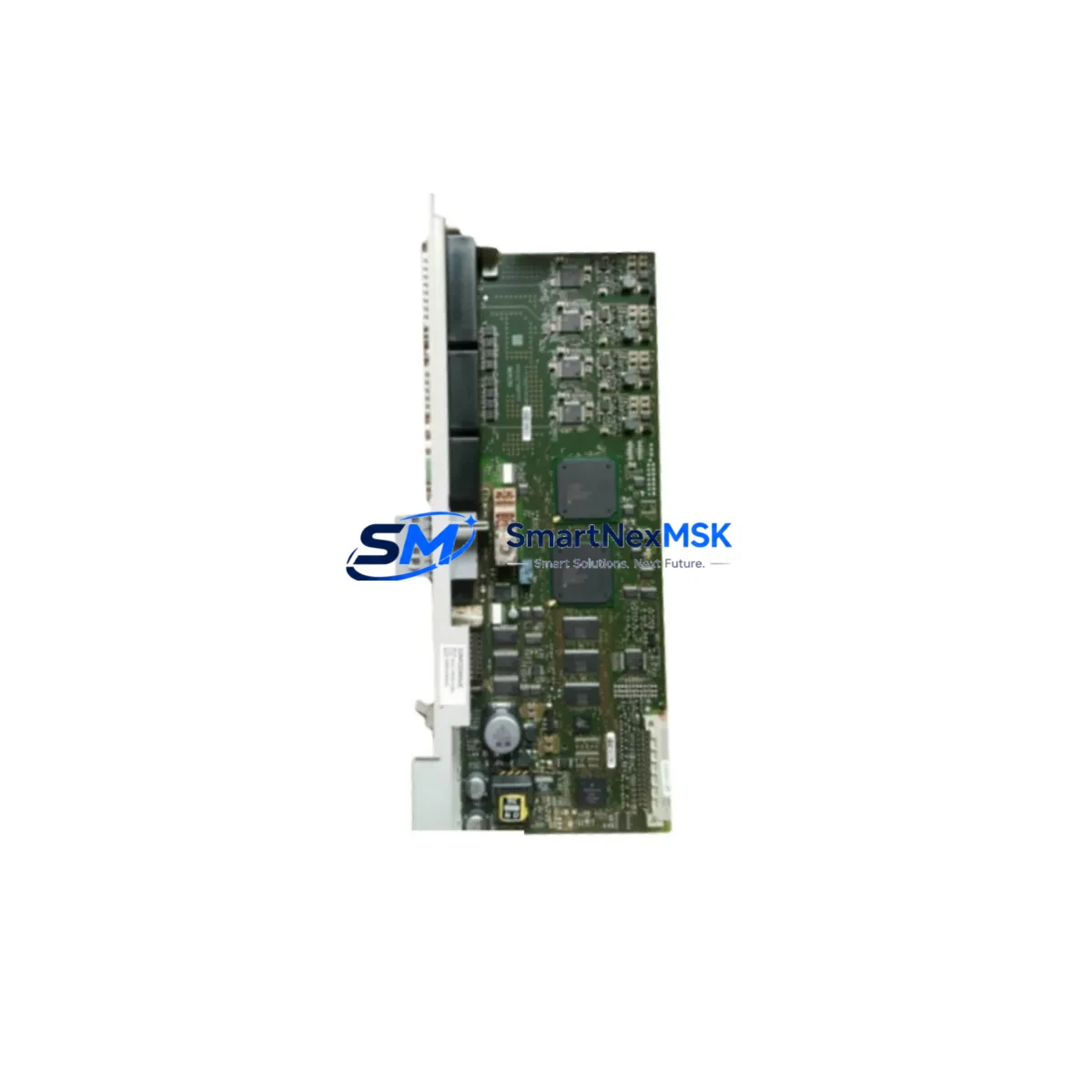

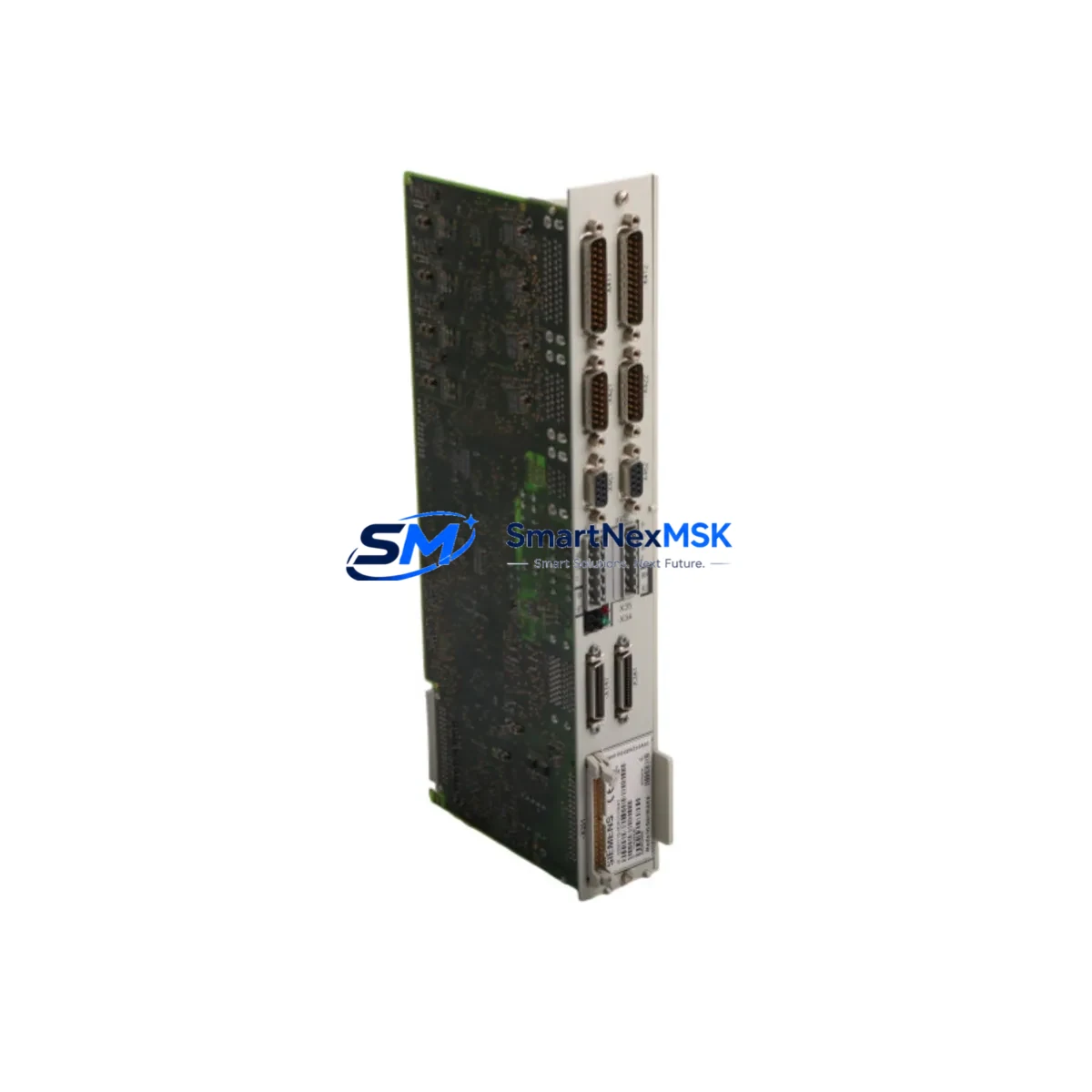

Unplanned downtime in servo-driven production lines is one of the most costly disruptions a maintenance team can face. The Siemens 6SN1118-0DK23-0AA1 is a dual-axis digital control module for the SIMODRIVE 611 drive system — a platform widely deployed across CNC machining centers, transfer lines, and precision manufacturing equipment. When this module fails or degrades, axis control is lost, and the machine cannot operate safely. Having a verified, original-specification replacement on hand is the single most effective way to restore operation within a single shift rather than waiting days for emergency procurement.

This listing provides a maintenance-ready, original-specification 6SN1118-0DK23-0AA1 spare module, sourced, inspected, and tested prior to shipment. Each unit is verified for electrical integrity and functional output before leaving our facility, and is backed by a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 6SN1118-0DK23-0AA1 is rarely an isolated task. Maintenance engineers working on SIMODRIVE 611 systems understand that a control module fault often signals stress across adjacent components in the same drive cabinet. A thorough inspection and planned replacement strategy should address the full electrical environment around this module.

Begin with the SIMODRIVE 611 infeed/regenerative module (e.g., 6SN1145-series), which supplies the DC bus voltage to the control module. A degraded infeed module can cause intermittent faults that appear to originate in the control axis module. Verify DC bus voltage stability under load before condemning the 6SN1118-0DK23-0AA1.

Inspect the SIMODRIVE 611 power module paired to each axis — these are the 6SN1123- or 6SN1124-series units that interface directly with the servo motors. Worn power modules can generate overcurrent conditions that stress the control module’s feedback circuits. Check for discoloration, capacitor bulging, or abnormal heat signatures on the power module heatsink.

Review the motor feedback cables and encoder connectors (typically SMC or SME encoder evaluation boards, 6FX-series cables) for insulation damage, connector corrosion, or intermittent signal loss. Encoder signal errors are a leading cause of axis faults that are misdiagnosed as control module failures. A replacement 6SN1118-0DK23-0AA1 will not resolve the fault if the encoder signal chain is compromised.

Examine the SIMODRIVE 611 terminal board and setpoint interface for loose wiring, oxidized terminals, and correct torque on all screw connections. The 24 VDC control power supply feeding the module logic should be measured under load — voltage sag below 22 V can cause random resets and parameter loss. A dedicated SITOP power supply (e.g., 6EP1-series) is the recommended source for control logic power in SIMODRIVE cabinets.

For systems integrated with SINUMERIK 840D or 810D CNC controllers, verify the NCU (Numerical Control Unit) firmware version compatibility with the replacement module. Parameter sets stored in the NCU (machine data, drive parameters) should be backed up before module swap using SINUMERIK HMI or SIMATIC S7 backup tools. The CompactFlash card or PCU 50/70 HMI unit holding the machine configuration should be confirmed readable before the replacement module is commissioned.

Also inspect the PROFIBUS DP or DRIVE-CLiQ communication wiring between the NCU and the drive modules. Damaged shielding or incorrect termination resistors on the PROFIBUS segment can cause communication timeouts that are logged as drive faults. A PROFIBUS diagnostic repeater or bus monitor can isolate these issues before the new module is installed.

Finally, check the cabinet ventilation fans and filter mats. SIMODRIVE 611 modules are sensitive to elevated ambient temperatures. A blocked filter or failed fan can cause thermal derating and accelerated component aging across the entire drive stack. Replacing the control module without addressing thermal management is a short-term fix.

Site Replacement Workflow

Step 1 — Documentation and Backup: Before powering down, record all active alarms from the SINUMERIK HMI. Back up drive parameters using the STARTER commissioning tool or SINUMERIK HMI service menu. Note the physical slot position of the 6SN1118-0DK23-0AA1 within the SIMODRIVE 611 rack — axis assignment is position-dependent.

Step 2 — Safe Isolation: Follow LOTO (Lockout/Tagout) procedures. Discharge the DC bus capacitors by waiting a minimum of 5 minutes after main power isolation before touching any drive components. Verify bus voltage with a calibrated meter before proceeding.

Step 3 — Module Removal: Disconnect the encoder feedback connectors, setpoint cables, and any DRIVE-CLiQ or PROFIBUS connections from the existing module. Release the module retention clips and slide the 6SN1118-0DK23-0AA1 out of the rack. Note the orientation of all connectors for reinstallation reference.

Step 4 — Replacement Installation: Insert the new 6SN1118-0DK23-0AA1 into the same rack slot. Reconnect all cables in the documented order. Verify connector seating and locking. Restore control power and check for 24 VDC logic supply before applying main power.

Step 5 — Parameter Restore and Commissioning: Restore the backed-up drive parameters via STARTER or SINUMERIK HMI. Perform a motor identification run if required by the firmware. Run the axis through its full travel range at reduced speed before returning to production. Confirm no active alarms remain and log the replacement in the maintenance record.

This workflow minimizes downtime, ensures system compatibility, and provides a documented audit trail for future maintenance planning.

Spare Parts Support FAQ

Q1: Is the 6SN1118-0DK23-0AA1 compatible with both SINUMERIK 840D and 810D systems?
Yes. The 6SN1118-0DK23-0AA1 is designed for the SIMODRIVE 611D platform, which is the standard drive system for both SINUMERIK 840D sl and 810D CNC controllers. Compatibility depends on the firmware version of the NCU and the drive parameter set. We recommend verifying the machine data backup before commissioning the replacement module to ensure parameter compatibility.

Q2: How is each unit tested before shipment?
Every 6SN1118-0DK23-0AA1 unit undergoes electrical continuity testing, insulation resistance verification, and functional output checks prior to dispatch. Units that do not meet original specification thresholds are not shipped. A test report is available upon request. All units are shipped in anti-static packaging with physical protection to prevent transit damage.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage caused by incorrect installation, overvoltage events, physical impact, or use outside the specified environmental parameters. In the event of a warranty claim, we provide a replacement unit or full refund after fault verification.

Q4: Can you support long-term spare parts supply for aging SIMODRIVE 611 systems?
Yes. We maintain stock of SIMODRIVE 611 control modules, power modules, infeed modules, and associated components to support legacy system life extension programs. For facilities managing multiple machines with SIMODRIVE 611 drives, we recommend establishing a standing spare parts agreement to ensure availability of critical modules without emergency procurement lead times. Contact our team to discuss volume pricing and reserved stock arrangements.
