Siemens E3M111 Retrofit-Ready Fire Module for Cerberus Systems

Siemens E3M111 Retrofit-Ready Fire Module for Cerberus Systems: Compatible Upgrade for Legacy Fire Detection Infrastructure

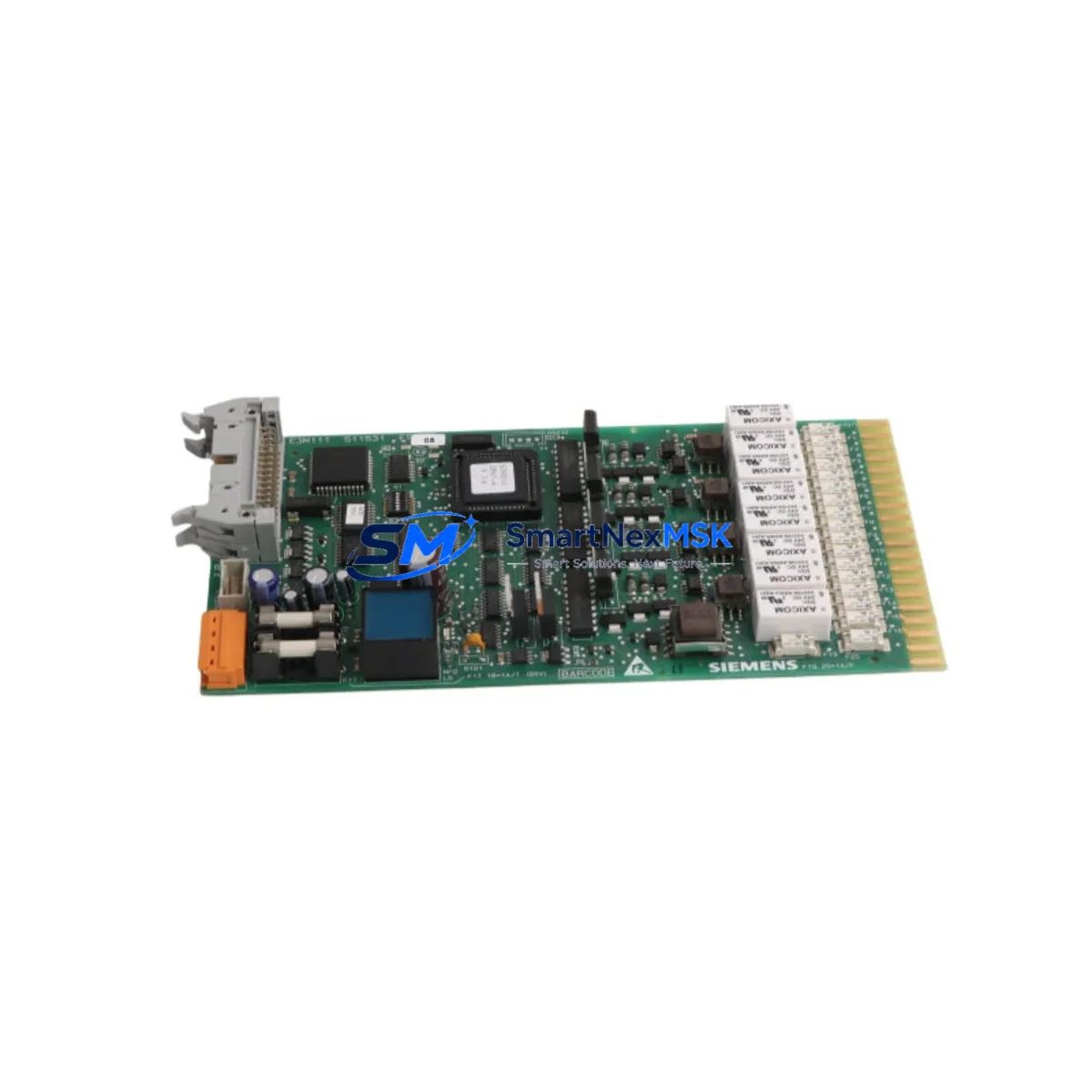

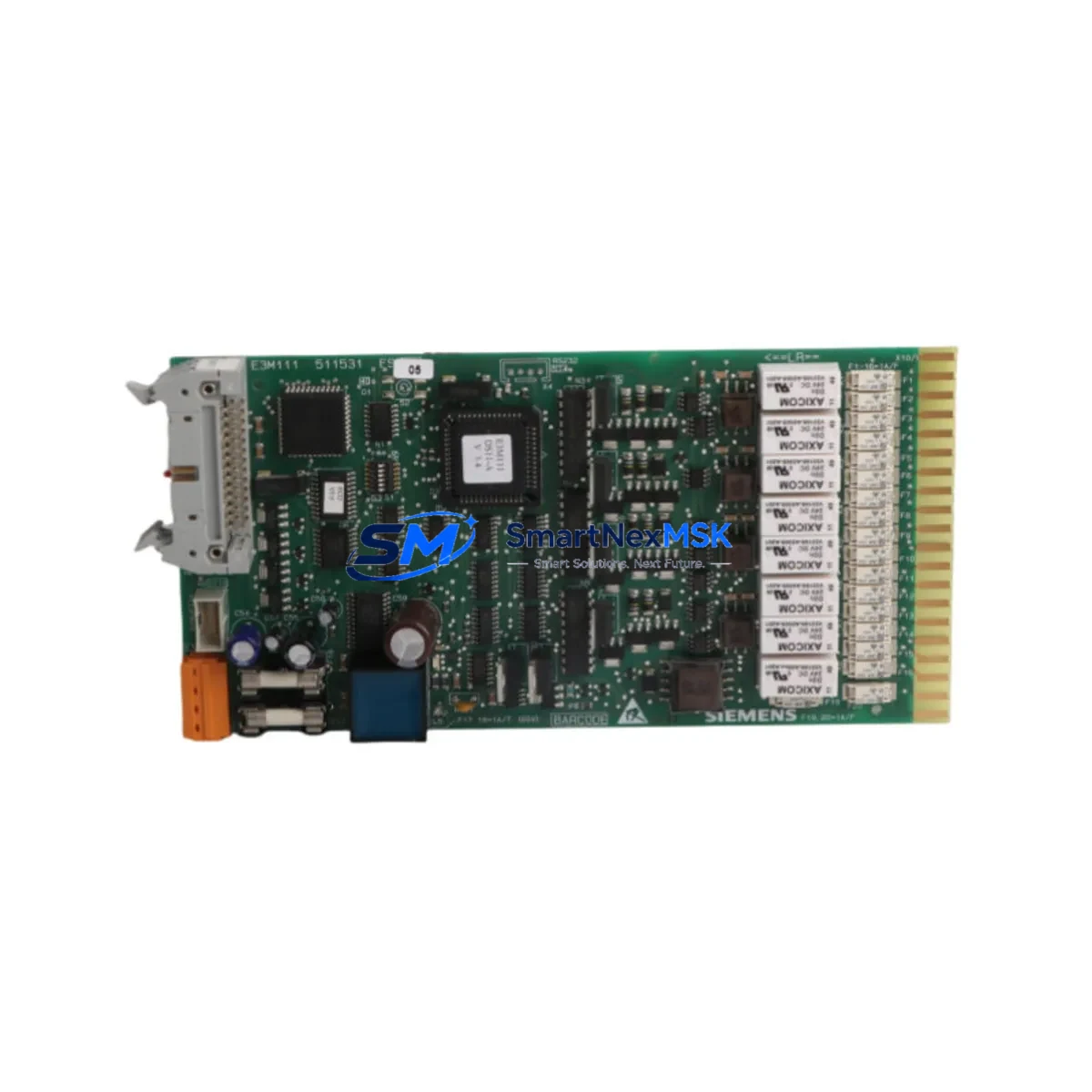

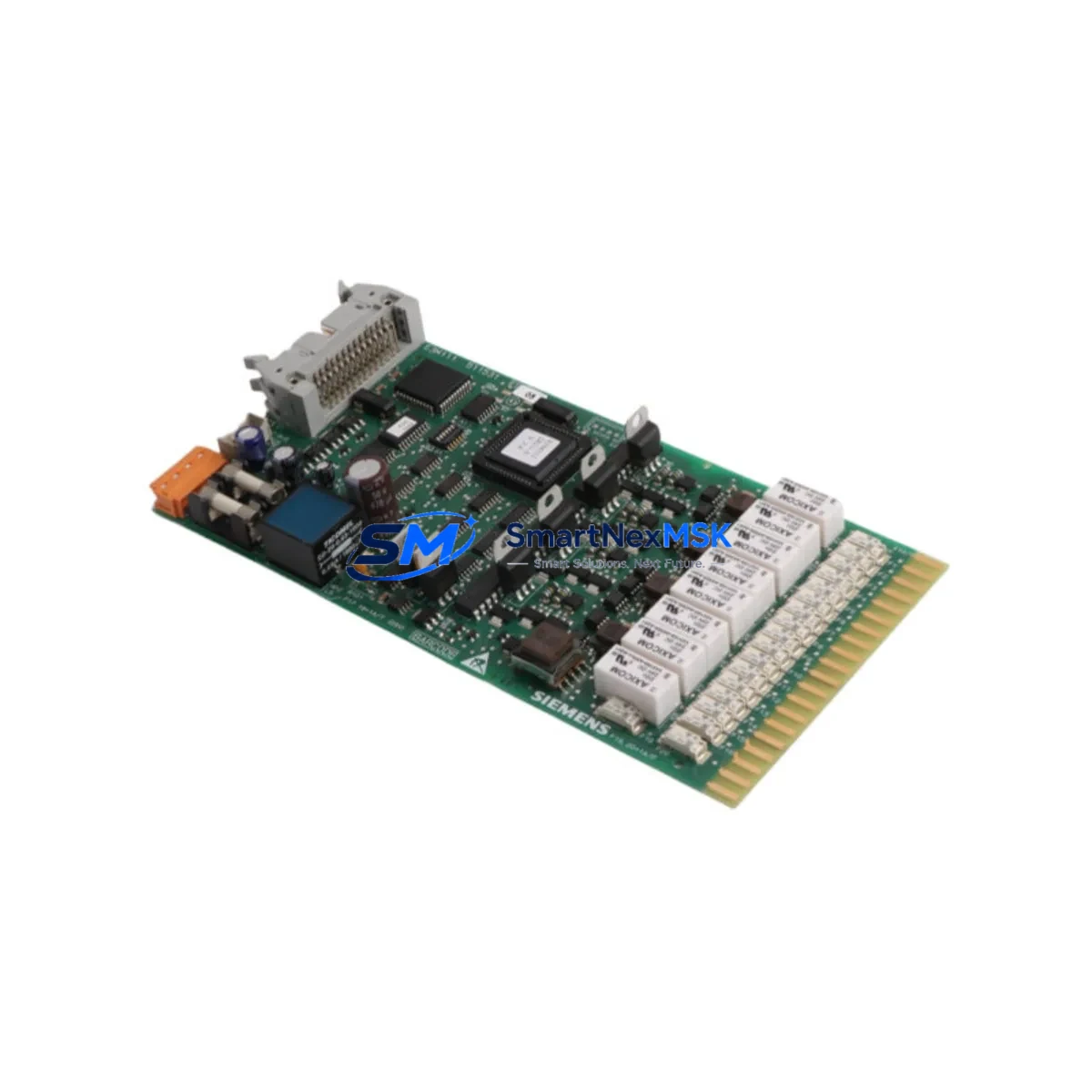

The Siemens E3M111 is a fire detection input/output module engineered for the Cerberus PRO and Cerberus CS building automation and fire safety platforms. As legacy Cerberus installations age and original spare parts become increasingly scarce, the E3M111 serves as a critical retrofit component — enabling facilities managers and system integrators to extend the operational life of existing fire detection networks without committing to a full panel replacement. Whether you are managing a planned system upgrade, responding to an end-of-life notification, or sourcing emergency replacement stock for a discontinued board, the E3M111 provides a verified, drop-in compatible solution backed by a 12-month warranty.

SMARTNEXMSK maintains ready inventory of the E3M111 and related Cerberus-series components, pre-tested and shipped with full documentation to support your retrofit or emergency recovery project. Our technical team has extensive experience supporting Siemens fire system migrations across commercial, industrial, and critical infrastructure environments.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing an E3M111 in an operational Cerberus fire detection system requires careful pre-planning to avoid unintended alarm activations or system faults. Before beginning any retrofit work, engineers should obtain the current panel configuration file from the Siemens HIT (Hardware Integration Tool) or equivalent commissioning software, and verify that the replacement module’s firmware is compatible with the installed Cerberus PRO FC922 or FC924 fire alarm control panel.

The E3M111 connects to the addressable detection loop via a two-wire interface. During the retrofit, technicians must confirm that the existing loop wiring — typically installed alongside Siemens FDM221 detector bases and FDO221 optical smoke detectors — meets the loop resistance and capacitance specifications for the replacement module. If the installation includes Siemens FDCL221 call points or FDM230 multi-sensor detectors, these devices must remain addressable and correctly sequenced on the loop after the E3M111 is re-commissioned.

For systems that include a Siemens OCI700.1 building network interface or integration with a Desigo CC building management platform, the retrofit plan must account for the communication link between the fire panel and the BMS. Any change to module addressing or loop topology may require a corresponding update to the BMS graphics and alarm routing tables. Similarly, if the site uses a Siemens FT2010 fire telephone system or voice evacuation panel integrated with the Cerberus network, the retrofit team should verify that the E3M111 replacement does not affect the trigger logic for evacuation announcements.

Power budget verification is essential. The Cerberus panel’s internal PSU (power supply unit) — often a Siemens FC721A or FC722A — must have sufficient residual capacity to support the replacement E3M111 alongside all other loop devices and standby battery requirements. If the existing PSU is operating near its rated output, a supplementary Siemens FC726A auxiliary power supply may be required before the retrofit can proceed safely.

All replacement modules supplied by SMARTNEXMSK are functionally tested prior to shipment. Each unit is verified for loop communication, I/O response, and LED indicator behavior. Units are shipped with original or equivalent terminal labeling to simplify field wiring verification during installation.

Downtime Control During System Migration

Minimizing system downtime during an E3M111 replacement is a primary concern for any occupied building or critical facility. The recommended approach is to schedule the physical swap during a pre-agreed maintenance window, with the fire alarm system placed in test mode and the relevant zone isolated at the panel to prevent unwanted alarm transmission to the monitoring center or sprinkler release circuits.

Before isolating the zone, the commissioning engineer should export the current panel database — including all device addresses, zone assignments, cause-and-effect logic, and delay timers — to ensure that the original program logic can be fully restored if the replacement module requires re-addressing. The E3M111’s loop address is set via the panel software, not via physical DIP switches, so the address assignment process is non-destructive to the wiring and can be completed within the maintenance window without disturbing adjacent devices on the loop.

Once the replacement module is physically installed and the loop is re-energized, the panel will perform an automatic device discovery scan. The commissioning engineer should verify that the E3M111 appears at the correct address, that all associated input and output points are mapped correctly in the panel database, and that the zone’s cause-and-effect logic is functioning as designed before the zone is taken out of isolation. A full functional test — including activation of connected detectors and verification of output relay operation — should be completed before the maintenance window is closed and the system is returned to normal monitoring status.

SMARTNEXMSK’s pre-shipment testing protocol ensures that every E3M111 unit is confirmed operational before dispatch, reducing the risk of a failed installation during a time-critical maintenance window. Express shipping options are available for emergency replacement scenarios where downtime must be minimized.

Retrofit Support FAQ

Q1: Is the E3M111 a direct drop-in replacement for the original Siemens E3M111 installed in my Cerberus PRO panel?
In most cases, yes. The E3M111 is designed as a form-fit-function replacement for the original module. However, you should verify the firmware revision of your panel against the module’s compatibility matrix. If your panel is running an older firmware version, a panel firmware update may be required before the replacement module is recognized. SMARTNEXMSK can advise on compatibility based on your panel’s serial number and installed firmware version.

Q2: What wiring changes are required when installing the E3M111 as a replacement?
The E3M111 uses the same terminal layout as the original module, so in most retrofit scenarios no wiring changes are required. Technicians should inspect the existing terminal connections for corrosion or loose terminations before re-using them with the replacement module. If the installation uses Siemens FDM221 detector bases or other loop devices with polarized wiring, polarity must be verified before energizing the loop.

Q3: How is the module address assigned, and does it need to be reconfigured after replacement?
Yes — the loop address must be re-assigned after physical installation. The E3M111’s address is configured via the Siemens HIT commissioning tool or directly through the Cerberus panel’s front-end interface. The address assignment process takes approximately 5–10 minutes per module and does not require any physical modification to the module or wiring. SMARTNEXMSK provides commissioning guidance documentation with each shipment.

Q4: What does the 12-month warranty cover, and what is the return process?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or physical impact. If a warranty claim is required, contact SMARTNEXMSK at sales@smartnexmsk.com with your order number and a description of the fault. Replacement units are dispatched within 3 business days of claim approval, and return shipping labels are provided for defective units.
