SIPOS 2SY5010-0LB05 Spare for 5 Flash Series Automation

SIPOS 2SY5010-0LB05 Spare for 5 Flash Series Automation: Actuator Control Card for Industrial Downtime Recovery

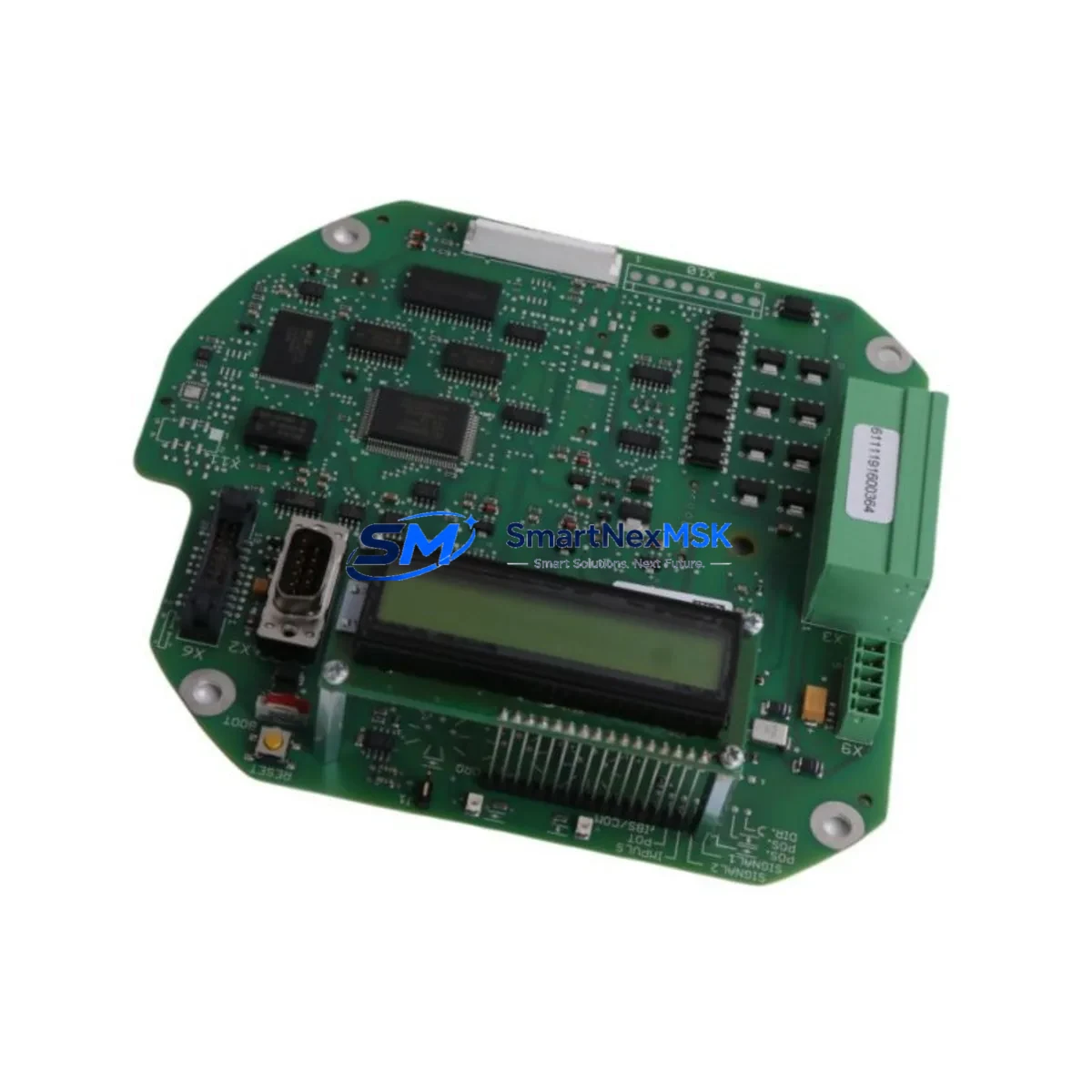

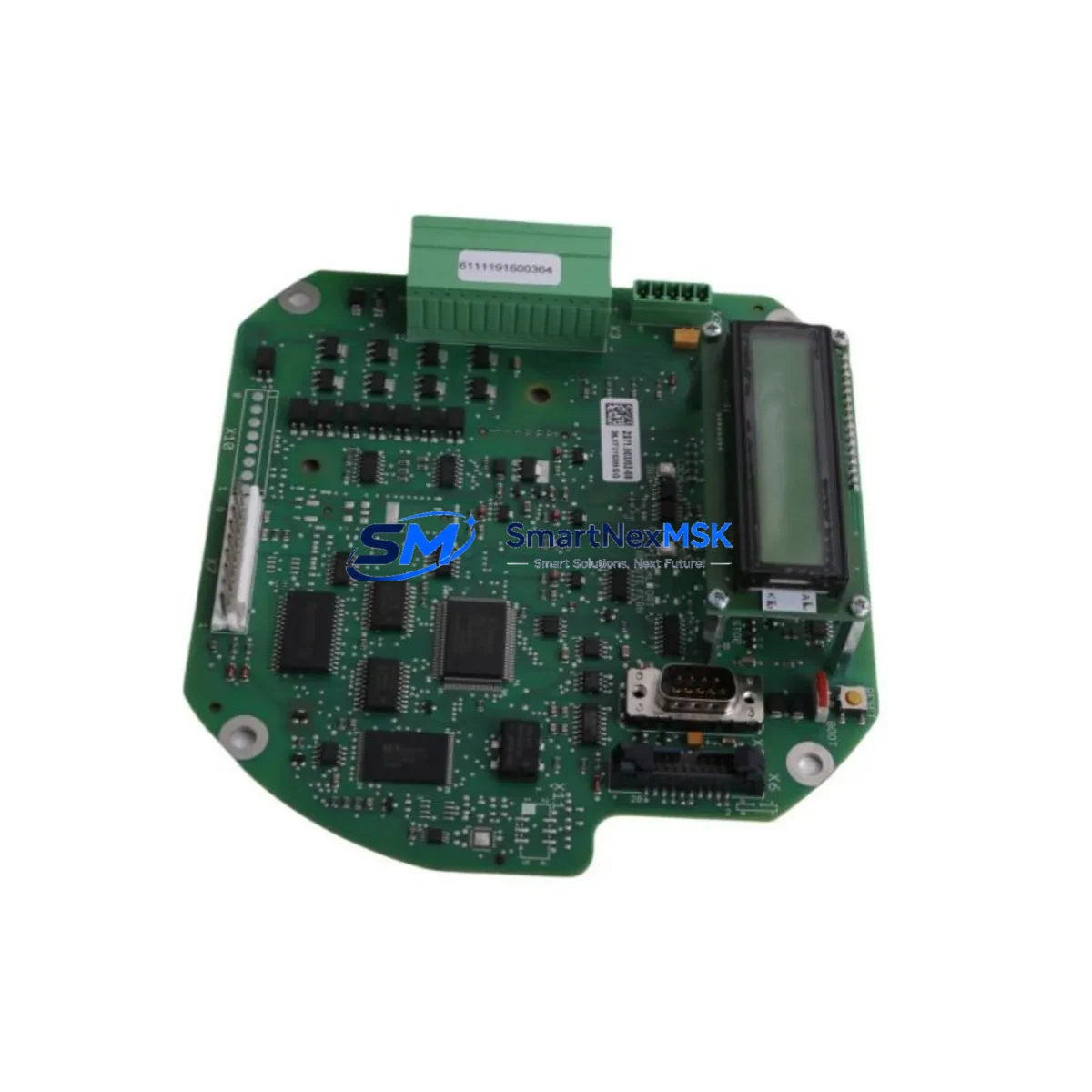

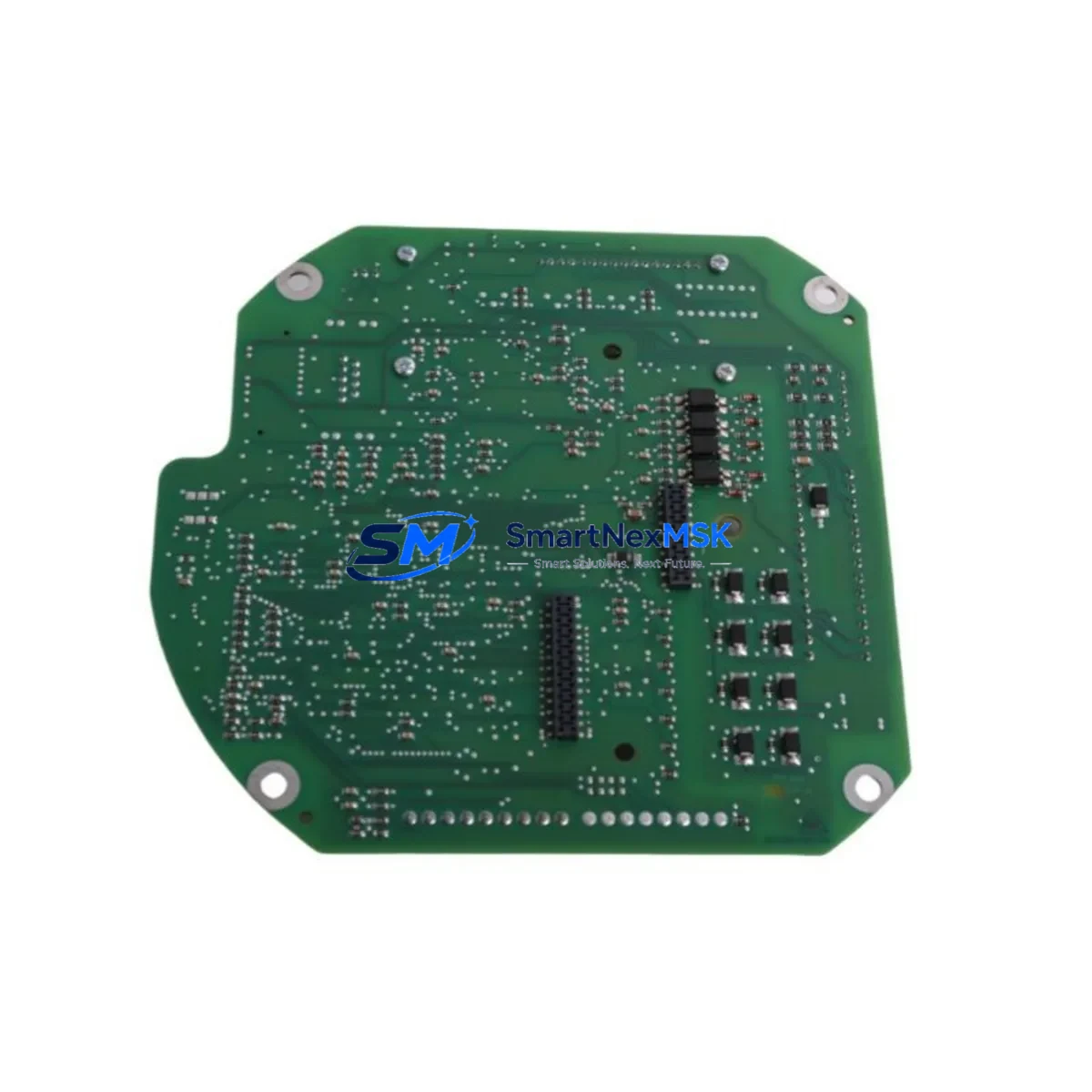

The SIPOS 2SY5010-0LB05 is an original actuator control card designed for the SIPOS 5 Flash series of electric actuators, widely deployed in process automation, valve control, and pipeline management across petrochemical, water treatment, power generation, and industrial plant environments. When this control card fails or degrades, the actuator loses its positioning intelligence — resulting in uncontrolled valve behavior, process interruption, and unplanned downtime. Maintaining a verified spare of the 2SY5010-0LB05 in your critical spare parts inventory is a fundamental risk-mitigation strategy for any facility running SIPOS 5 Flash actuators.

This unit is sourced as an original SIPOS Aktorik component, manufactured in Germany, and fully tested prior to shipment. It is compatible with the SIPOS 5 Flash actuator platform and serves as a direct replacement for worn, damaged, or end-of-life control cards in the field. Each unit ships with a 12-month warranty covering manufacturing defects and functional performance under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a SIPOS 5 Flash actuator exhibits erratic positioning, loss of feedback signal, or communication faults on the PROFIBUS DP or Modbus network, the 2SY5010-0LB05 control card is a primary suspect. However, experienced maintenance engineers know that replacing the control card alone is rarely sufficient for a complete and reliable restoration. A thorough site inspection should accompany any control card replacement to prevent repeat failures and ensure system stability.

Begin by verifying the 24 VDC auxiliary power supply feeding the actuator electronics. A degraded or undersized power supply module can cause intermittent resets and corrupt the control card’s internal parameters — replacing the card without addressing the power source will result in premature failure of the new unit. Check the terminal blocks and field wiring for loose connections, corrosion, or insulation breakdown, particularly in outdoor or high-humidity installations.

Inspect the I/O signal wiring between the control card and the DCS or PLC system. Verify that the 4–20 mA position feedback signal and the digital command inputs are within specification. If the site uses a HART-enabled configuration, confirm that the HART modem or multiplexer is functioning correctly and that the device descriptor (DD) file matches the firmware version of the replacement card.

For installations integrated into a PROFIBUS DP network, check the bus termination resistors, cable shielding continuity, and the GSD file configuration in the PLC or DCS engineering station. A mismatch between the GSD file and the new card’s firmware can prevent the actuator from coming online after replacement. Similarly, if the system uses a PROFIBUS repeater or segment coupler, verify its operating status before commissioning the replacement card.

Relay output modules within the actuator’s local control panel — including end-of-travel limit switch relays and torque switch relays — should be inspected for contact wear and correct setpoint calibration. These components interact directly with the control card’s digital inputs and can generate false fault signals if they are out of adjustment. Fuse holders and miniature circuit breakers protecting the actuator’s control circuit should also be checked for continuity and correct rating.

If the actuator is part of a larger control cabinet assembly, inspect the backplane connectors and ribbon cable interfaces between the control card and any local HMI display or parameter setting unit. Connector oxidation is a common cause of intermittent communication errors that are often misdiagnosed as control card failures. Signal isolators or galvanic separators in the feedback loop should be tested for correct output range and isolation integrity.

For aging SIPOS 5 Flash installations approaching end-of-service life, consider stocking companion components alongside the 2SY5010-0LB05: the motor control board, the position sensor assembly, the local control unit (LCU) display module, and the power electronics module. Maintaining a coordinated spare parts kit for the complete actuator platform significantly reduces mean time to repair (MTTR) and supports a proactive maintenance strategy rather than a reactive one.

Site Replacement Workflow

Step 1 — Isolation and Safety: De-energize the actuator at the local isolator and confirm zero-energy state using a calibrated voltage tester. Lock out / tag out (LOTO) per site procedure. Note the current valve position before disconnecting power.

Step 2 — Parameter Backup: If the existing control card is still partially functional, use the SIPOS PC Tool or the local parameter setting unit to export the current configuration — including torque limits, speed settings, position limits, and communication address — before removal. This data will be required to commission the replacement card.

Step 3 — Card Removal: Open the actuator electronics housing following the SIPOS 5 Flash service manual procedure. Photograph all connector positions and cable routing before disconnecting. Remove the 2SY5010-0LB05 card carefully, avoiding static discharge. Inspect the housing interior for moisture ingress, contamination, or signs of overheating.

Step 4 — Replacement Installation: Install the new 2SY5010-0LB05 card, reconnect all connectors in the documented sequence, and verify secure seating of all interface connectors. Restore the housing seal and confirm IP integrity before re-energizing.

Step 5 — Commissioning and Verification: Restore power and use the SIPOS PC Tool to load the backed-up parameter set or re-enter parameters manually. Perform a full end-to-end stroke test, verify position feedback accuracy, confirm communication on the fieldbus network, and document the commissioning results in the site maintenance log.

Step 6 — Return to Service: Remove LOTO, restore the actuator to automatic control mode, and monitor the first several operating cycles for stable behavior before closing the work order.

Spare Parts Support FAQ

Q1: Is the 2SY5010-0LB05 a direct replacement for older SIPOS 5 Flash control card variants?
The 2SY5010-0LB05 is designed for the SIPOS 5 Flash actuator platform. Compatibility with specific older sub-variants depends on the actuator’s hardware revision and firmware version. We recommend confirming the actuator’s nameplate data and existing card part number before ordering. Our technical team can assist with compatibility verification based on your actuator serial number.

Q2: How is each unit tested before shipment?
Every 2SY5010-0LB05 unit undergoes functional testing prior to dispatch, including power-on verification, communication interface check, and I/O signal validation. Units that do not pass testing are not shipped. A test record is available upon request for quality-critical procurement programs.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or use outside the specified environmental ratings. Warranty claims are processed through our sales team with return merchandise authorization (RMA) support.

Q4: Can I stock multiple units for a long-term spare parts program?
Yes. We support multi-unit procurement for planned maintenance programs, shutdown kits, and critical spare inventories. Volume pricing and reserved stock arrangements are available for facilities operating multiple SIPOS 5 Flash actuators. Contact our sales team to discuss a tailored supply agreement that aligns with your maintenance cycle and budget planning.
