SIPOS 2SY5016-1SB00 Retrofit-Ready Actuator Control Board

SIPOS 2SY5016-1SB00 Retrofit-Ready Actuator Control Board for 2SY5 Series Control Systems

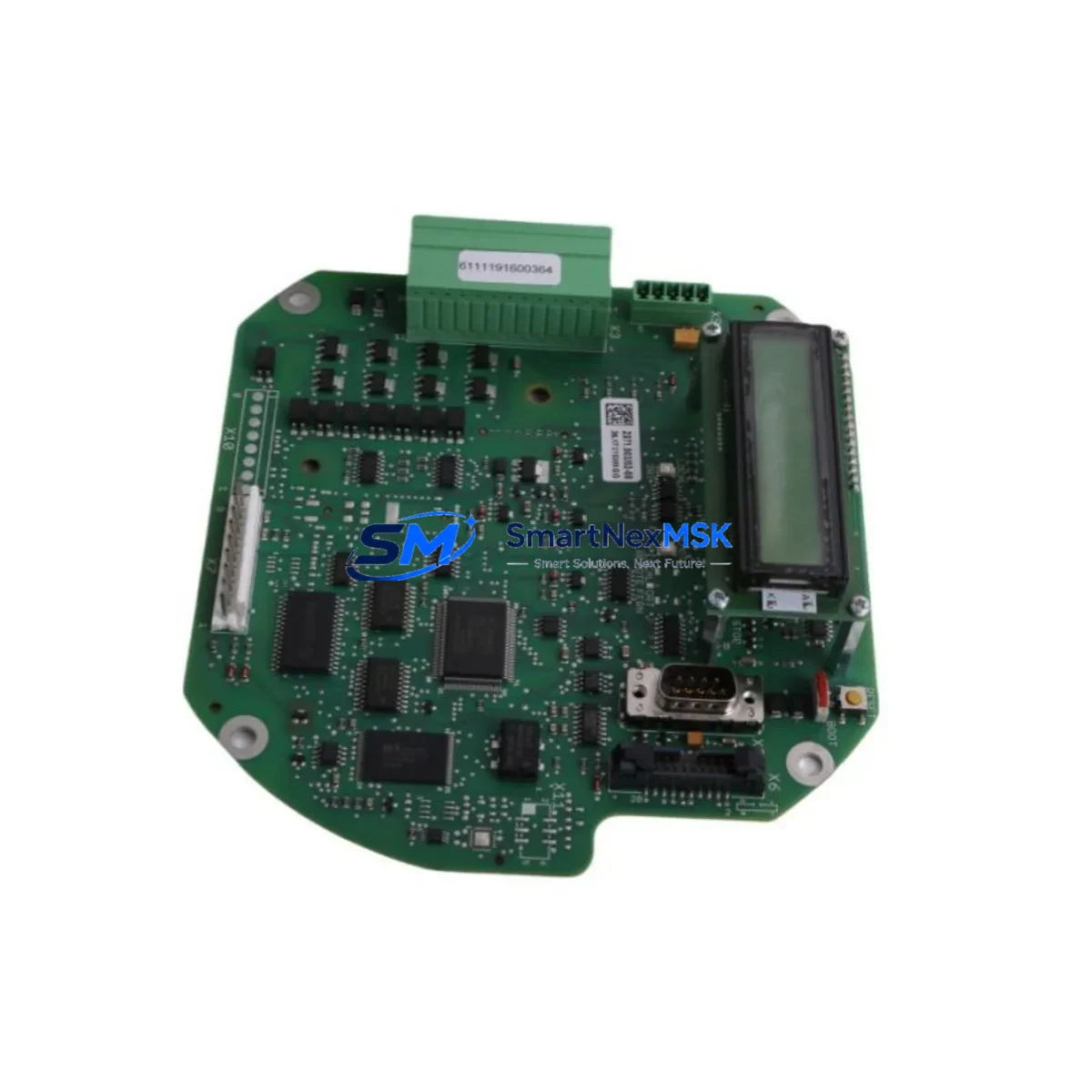

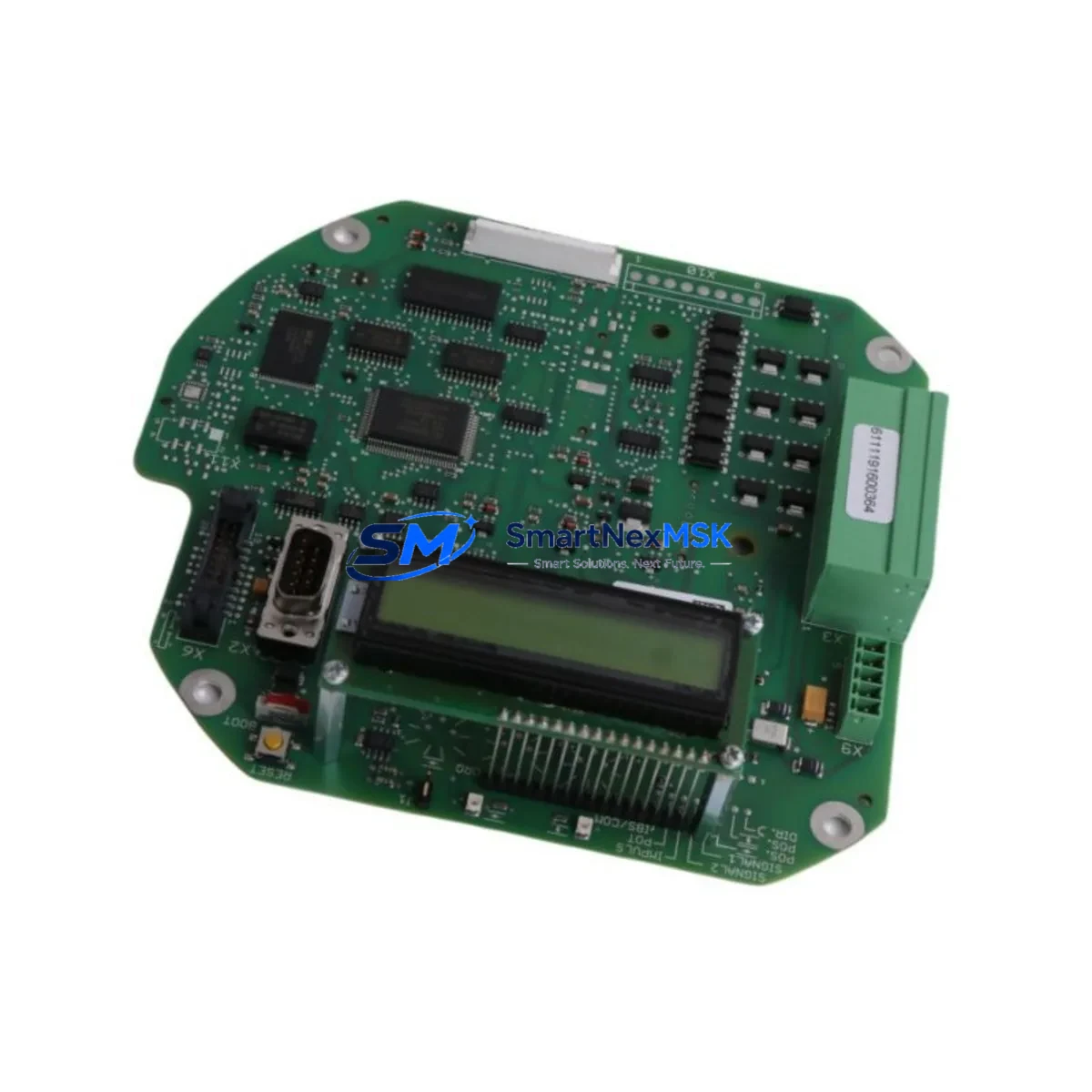

The SIPOS 2SY5016-1SB00 is a purpose-engineered actuator control board designed for the SIPOS 2SY5 series of electric actuators, widely deployed in process automation, valve control, and pipeline management systems across power generation, water treatment, and petrochemical industries. As legacy 2SY5 actuator installations age and original control electronics become increasingly difficult to source, the 2SY5016-1SB00 serves as a verified retrofit-ready replacement that restores full actuator functionality without requiring mechanical modifications or complete actuator replacement.

This control board governs the core logic of the 2SY5 actuator: position feedback processing, torque limit monitoring, motor direction control, and fieldbus communication interfacing. Engineers undertaking a control system modernization project will find that the 2SY5016-1SB00 integrates directly into existing actuator housings, preserving the original wiring harness and terminal block layout. Before installation, technicians should verify the actuator’s power supply voltage (typically 24 VDC or 115/230 VAC depending on variant), confirm the terminal strip pinout against the original wiring diagram, and check that the backplane connector on the actuator chassis matches the board’s edge connector profile.

In retrofit scenarios where the original SIPOS 2SY5 actuator was integrated into a PROFIBUS DP or HART communication network, the 2SY5016-1SB00 maintains protocol compatibility, allowing the replacement board to be recognized by the existing DCS or PLC without re-engineering the communication segment. If the plant’s control architecture has since migrated to PROFINET or Modbus TCP, a supplementary communication gateway module may be required to bridge the legacy fieldbus to the new network layer — a common consideration when upgrading from older SIPOS 5 Flash or SIPOS 5 PROFIBUS actuator generations.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 2SY5016-1SB00 retrofit begins well before the maintenance window opens. Start by pulling the actuator’s original commissioning documentation and confirming the installed firmware version using the SIPOS PC Tool connected via the actuator’s USB service port. If the existing control board has accumulated parameter customizations — torque curves, position limits, ramp times, or interlock logic — these must be exported and saved before the board is removed, as they will need to be re-uploaded to the replacement unit.

In multi-actuator installations, the 2SY5016-1SB00 is frequently found alongside other 2SY5 series components sharing a common control cabinet. A typical valve control panel in a water treatment or power plant may include multiple SIPOS 2SY5 actuators, each with its own control board, sharing a common 24 VDC power distribution rail fed by a SITOP PSU300M or equivalent DIN-rail power supply module. Verify that the cabinet’s power budget accommodates the replacement board’s inrush current during startup, particularly in cold-start scenarios where multiple actuators may initialize simultaneously.

For plants running a Siemens S7-300 or S7-400 PLC as the supervisory controller, the actuator’s PROFIBUS DP address must match the GSD file configuration in the PLC’s hardware catalog. After board replacement, use STEP 7 or TIA Portal to perform a hardware scan and confirm the actuator node is recognized before re-enabling automatic control. In systems where a Siemens ET 200M distributed I/O rack handles local actuator signals, verify that the digital input/output assignments in the rack’s SM 321 or SM 322 modules still correspond to the actuator’s control wiring after the board swap.

Where the plant has already partially migrated to a newer control platform — such as a Siemens S7-1500 with PROFINET backbone — a PROFIBUS-to-PROFINET proxy device (for example, a Siemens IE/PB Link PN IO) may already be in place. Confirm that the proxy’s device table includes the 2SY5 actuator’s PROFIBUS address and that the GSD file version is compatible with the replacement board’s firmware. This step is critical to avoid communication faults that could trigger emergency valve closure or loss of position feedback at the DCS level.

Terminal block verification is a mandatory step. Cross-reference the actuator’s terminal diagram (typically found on the inside of the actuator housing cover) against the replacement board’s connector layout. Pay particular attention to the motor phase connections, the torque switch inputs, the position transmitter (4–20 mA or potentiometer), and the remote/local selector input. In older installations, field wiring may use non-standard color codes or have been modified during previous maintenance — photograph the existing wiring before disconnection.

Downtime Control During System Migration

Minimizing process disruption during a control board replacement requires a structured pre-outage preparation protocol. Before the maintenance window, place the affected valve in a safe process position (fully open or fully closed, depending on the process fail-safe requirement) and switch the actuator to LOCAL control mode at the actuator’s local control panel. This isolates the actuator from DCS commands during the board swap and prevents unintended valve movement if the DCS issues a control signal during the changeover.

Export the full parameter set from the existing board using the SIPOS PC Tool before removal. This file serves as both a backup and the configuration source for the replacement 2SY5016-1SB00. Once the new board is installed and powered, upload the saved parameter file, then perform a manual end-position calibration run to confirm that the position transmitter feedback matches the physical valve position. Only after successful calibration should the actuator be returned to REMOTE mode and handed back to DCS control.

For critical process valves where even a brief loss of position feedback is unacceptable, consider pre-staging a fully configured spare board with the correct parameters pre-loaded. This reduces the in-situ commissioning time to under 30 minutes in most cases, limiting the process impact to a single short maintenance window. All units supplied by SMARTNEXMSK are function-tested prior to shipment, with a test report available on request, and are covered by a 12-month warranty from the date of shipment.

Retrofit Support FAQ

Q1: Is the 2SY5016-1SB00 a direct drop-in replacement for the original board in my 2SY5 actuator?
A: Yes, under standard retrofit conditions. The board matches the original mechanical mounting, backplane connector, and terminal block layout of the 2SY5 series. However, always verify the actuator’s power supply voltage and communication protocol variant against the replacement board’s specifications before installation, as sub-variants exist within the 2SY5 product family.

Q2: Do I need to reconfigure the PLC or DCS after replacing the control board?
A: In most cases, no PLC or DCS reconfiguration is required if the replacement board is loaded with the original parameter set and the PROFIBUS DP node address is set identically to the removed board. A hardware scan in STEP 7 or TIA Portal is recommended to confirm node recognition. If the actuator’s GSD file version has changed between board revisions, a GSD update in the PLC hardware configuration may be necessary.

Q3: What commissioning steps are required after installation?
A: Connect the SIPOS PC Tool via USB programming cable, upload the saved parameter file, and perform an end-position calibration run (OPEN and CLOSE limit positions). Verify torque limit settings, position transmitter feedback (4–20 mA signal range), and communication link status on the DCS. Switch to REMOTE mode only after all feedback signals are confirmed correct at the control room level.

Q4: What warranty and pre-shipment testing does SMARTNEXMSK provide?
A: All 2SY5016-1SB00 units are function-tested prior to shipment. A test report is available on request. Each unit is covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Expedited shipping options are available to support urgent maintenance requirements.
