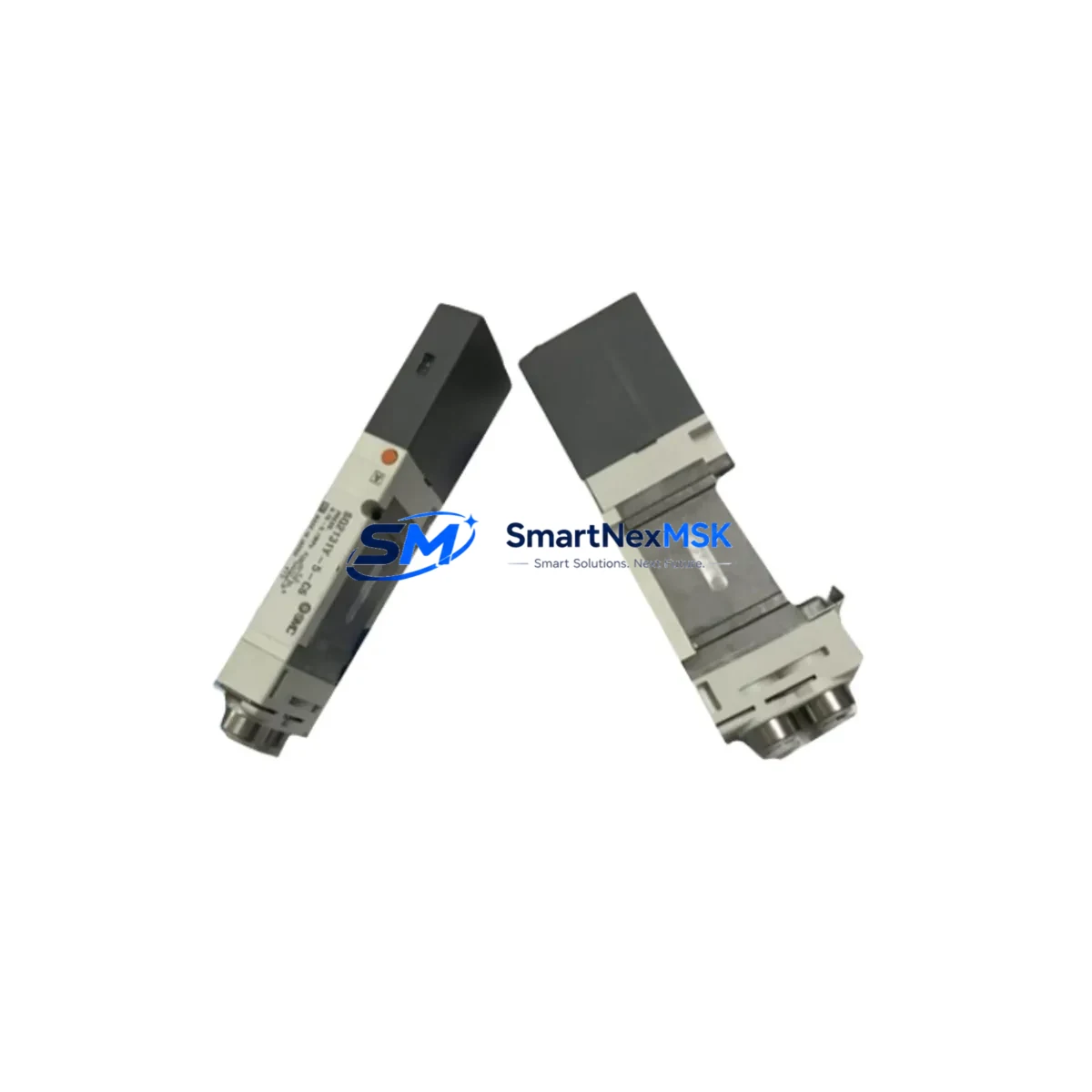

SMC SQ2431N-5-C6-Q Safety-Enhanced Solenoid Valve

SMC SQ2431N-5-C6-Q Safety-Enhanced Solenoid Valve for Harsh Industrial Sites

The SMC SQ2431N-5-C6-Q is a 4/2-way single solenoid valve from SMC’s proven SQ2000 series, engineered for continuous-duty safety control in the most demanding industrial environments. Rated IP65 for dust and water ingress protection, this valve delivers consistent, repeatable actuation in high-load pneumatic circuits where control interruption is not an option. Whether deployed in a critical interlock loop, a hazardous-area control cabinet, or a high-cycle automated production line, the SQ2431N-5-C6-Q is built to maintain signal integrity and mechanical reliability under sustained operational stress.

In heavy industrial settings — petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical processing lines, port automation systems, and continuous manufacturing environments — pneumatic solenoid valves are the last line of defense between a controlled process and an unplanned shutdown. The SQ2431N-5-C6-Q addresses this responsibility with a low-wattage coil design that minimizes heat generation inside densely packed control cabinets, reducing the thermal stress on adjacent components such as SMC SY series manifold valves, terminal blocks, and DIN-rail mounted relay modules. Its compact body integrates directly into SQ2000 series manifold assemblies, enabling modular expansion without rewiring or reconfiguring the pneumatic circuit.

Signal stability is a persistent challenge in industrial environments where variable-frequency drives, servo amplifiers, high-current motor starters, and inductive loads generate significant electromagnetic interference. The SQ2431N-5-C6-Q’s coil assembly incorporates surge suppression circuitry that protects against voltage transients and inductive kickback — a common cause of solenoid coil failure and spurious valve actuation in facilities without dedicated EMI shielding. This built-in protection reduces the risk of nuisance trips in safety interlock circuits and extends coil service life in environments where power quality fluctuations are routine.

For control cabinet designers specifying components for SIL-rated or safety-instrumented systems, the SQ2431N-5-C6-Q pairs reliably with SMC VQ series pilot valves, SMC EX series fieldbus manifolds, and Omron or Siemens PLC digital output modules. Its 4/2-way configuration supports fail-safe spring-return operation, ensuring the valve returns to a defined safe state on de-energization — a critical requirement in emergency shutdown (ESD) circuits and process isolation applications. The C6 port size and 5-port body format allow direct integration with standard pneumatic tubing systems without adapters, minimizing potential leak points in the pneumatic circuit.

In petrochemical and refinery applications, where process gas isolation and burner management systems demand zero-tolerance for valve hesitation, the SQ2431N-5-C6-Q’s fast response time and consistent flow characteristics ensure actuator commands are executed within specification across the full operating temperature range. In mining and mineral processing environments, where vibration, dust ingress, and humidity cycling degrade conventional solenoid valves rapidly, the IP65 enclosure and robust coil potting compound maintain electrical isolation and mechanical function through extended service intervals. Water treatment and desalination facilities benefit from the valve’s corrosion-resistant body materials and compatibility with clean dry air and inert gas media, supporting reliable operation in chlorine-adjacent atmospheres.

From a maintenance and spare-parts perspective, the SQ2431N-5-C6-Q is a direct replacement for earlier SQ2000 series variants and is cross-compatible with existing SQ2000 manifold bases, reducing the engineering effort required for like-for-like substitution during planned maintenance shutdowns. Facilities maintaining a critical-spares inventory for pneumatic control systems can stock this valve alongside SMC SQ2131, SQ2231, and SQ2531 series units to cover a range of port sizes and actuation configurations within a single valve family. This standardization reduces training overhead for maintenance technicians and simplifies procurement across multi-site operations.

Every unit supplied by SMARTNEXMSK undergoes pre-shipment functional testing, including coil continuity verification, actuation cycle testing, and leak-down inspection, before dispatch. Stock is maintained in-warehouse for immediate availability, supporting urgent replacement requirements without extended lead times. All units are covered by a 12-month warranty against manufacturing defects, with technical support available for compatibility verification, installation guidance, and cross-reference confirmation.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust pneumatic control cabinet in a continuous-process facility is only as reliable as its weakest component. The SQ2431N-5-C6-Q is typically deployed alongside a coordinated set of protective and control components to ensure system-level safety. In a typical SIL-rated control cabinet, this valve operates in conjunction with SMC EX260 fieldbus manifold systems that provide distributed I/O communication over PROFIBUS or EtherNet/IP, eliminating long individual solenoid wiring runs that are susceptible to induced noise. Power supply integrity is maintained by Phoenix Contact QUINT series 24VDC power supplies with built-in selectivity and buffer modules, ensuring that a downstream short circuit does not collapse the control bus voltage and cause unintended valve de-energization across the entire manifold.

Surge protection at the cabinet entry point — typically provided by Dehn or Phoenix Contact Type 2 SPD modules — prevents lightning-induced transients from reaching solenoid coils and PLC output cards. Within the cabinet, Weidmüller or Phoenix Contact terminal block assemblies with integrated fuse holders provide per-circuit overcurrent protection, isolating individual solenoid circuits without affecting adjacent control loops. For applications requiring hardwired safety interlock logic, Pilz PNOZ or Sick Flexi Soft safety relay modules provide the monitored output channels that drive the SQ2431N-5-C6-Q in ESD and emergency stop circuits, ensuring the valve’s de-energization is confirmed and logged by the safety system. In high-vibration environments such as compressor stations or mining conveyors, SMC KQ2 series push-in fittings are specified at the valve ports to prevent pneumatic tubing pullout under mechanical shock, maintaining circuit integrity without requiring periodic retightening.

Critical Industrial Safety Applications

In petrochemical and refinery operations, the SQ2431N-5-C6-Q is used in burner management system (BMS) pneumatic actuator circuits, where fast, reliable valve response is required to execute fuel isolation commands within the safety system’s response time budget. Its spring-return fail-safe configuration ensures the actuator moves to the safe (closed) position on loss of control power or solenoid signal, meeting the fundamental safety requirement of process isolation systems.

In power generation facilities — including coal, gas, and hydroelectric plants — the valve is deployed in turbine control and cooling system pneumatic circuits, where continuous operation and resistance to electrical interference from high-voltage switchgear are essential. The built-in surge suppression protects the coil from transients generated by nearby high-voltage switching events.

In mining and mineral processing environments, the IP65 rating and robust coil encapsulation allow the valve to operate reliably in dusty, humid, and vibration-intensive conditions typical of crusher stations, conveyor drive rooms, and flotation cell control panels. The valve’s compatibility with standard SQ2000 manifold bases simplifies spare-parts management at remote mine sites where procurement lead times are long.

In water treatment and desalination plants, the SQ2431N-5-C6-Q controls pneumatic actuators on isolation and dosing valves in chlorination, filtration, and reverse osmosis circuits. Its corrosion-resistant body and compatibility with inert gas media support reliable operation in chemically aggressive atmospheres without accelerated degradation of seals or body materials.

In metallurgical and steel processing facilities, the valve is used in hydraulic press control circuits, furnace atmosphere control systems, and rolling mill pneumatic interlocks, where high ambient temperatures and electromagnetic interference from induction heating equipment demand a valve with proven thermal and EMI resilience.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. If a unit fails under normal operating conditions within the warranty period, SMARTNEXMSK will provide a replacement unit or issue a credit after fault verification. Contact sales@smartnexmsk.com with the order reference and a description of the fault to initiate a claim.

Q2: What pre-shipment testing is performed on each SQ2431N-5-C6-Q unit?
Every unit undergoes coil continuity measurement, full actuation cycle testing under rated supply voltage, and pneumatic leak-down inspection before dispatch. Units that do not meet SMC’s original performance specifications are quarantined and not shipped. A test record is available on request for quality-critical procurement.

Q3: Is the SQ2431N-5-C6-Q compatible with existing SQ2000 series manifold bases and wiring?
Yes. The SQ2431N-5-C6-Q is fully compatible with standard SQ2000 series manifold bases and uses the same DIN connector interface as other SQ2000 series solenoid valves, allowing direct like-for-like replacement without mechanical or electrical modification. Cross-reference confirmation is available from our technical team prior to order.

Q4: Can long-term supply continuity be guaranteed for critical spare-parts programs?
SMARTNEXMSK maintains warehouse stock of the SQ2431N-5-C6-Q and related SQ2000 series components to support ongoing spare-parts programs for industrial facilities. For customers requiring guaranteed stock reservation or scheduled delivery agreements, please contact sales@smartnexmsk.com to discuss a supply arrangement tailored to your maintenance planning cycle.
