TEL TF906276-001 Retrofit-Ready Pin Base for Trias PM Systems

TEL TF906276-001 Retrofit-Ready Pin Base for Trias PM Systems: Compatible Modernization & Smooth Legacy Upgrade

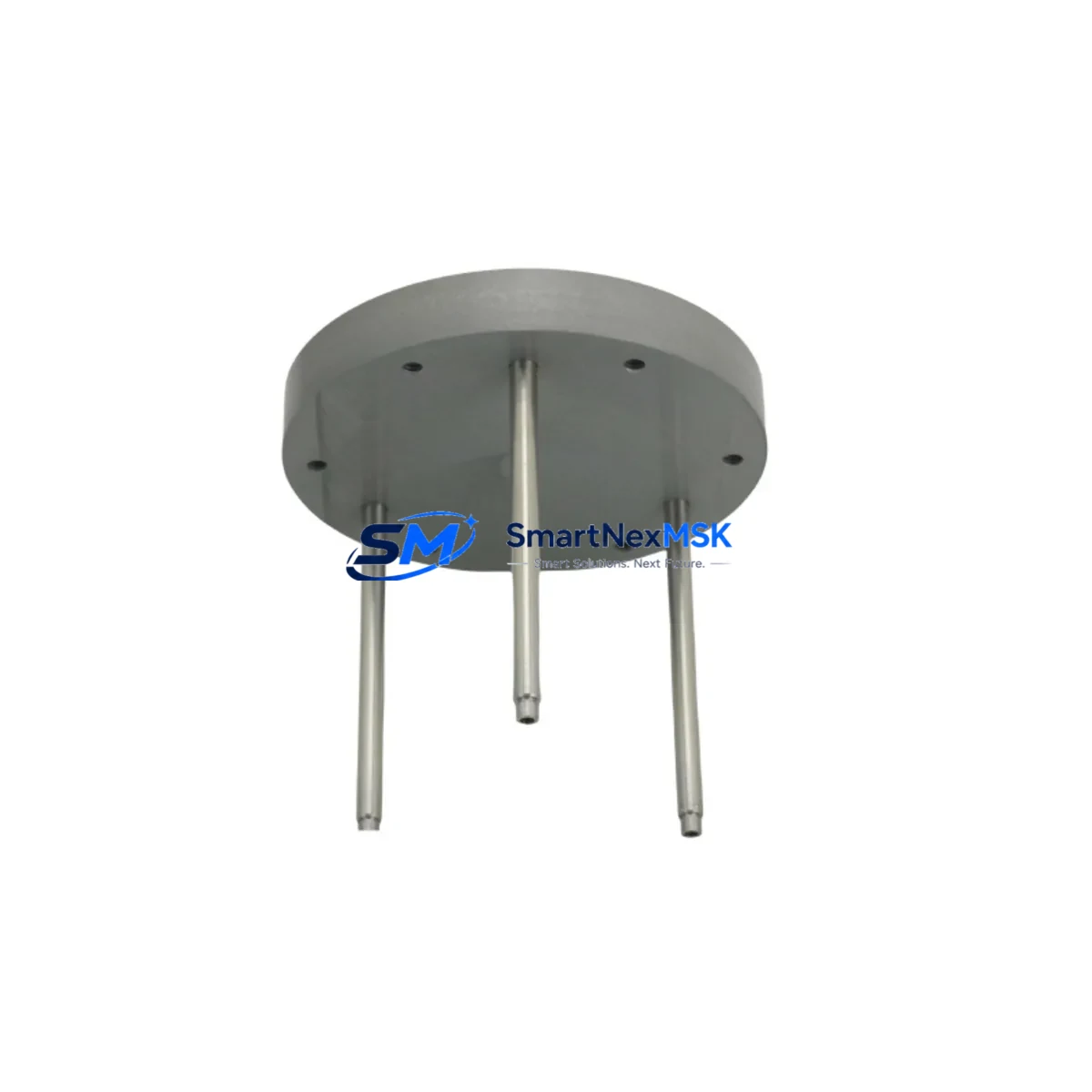

The Tokyo Electron TF906276-001 is a precision-engineered pin base assembly designed for process module (PM) chamber applications within the TEL Trias TMH-064 platform. With dimensions of 480mm × 190mm and cross-reference compatibility with part numbers 414713-001 and 0010-33417, this component is a direct retrofit solution for facilities managing aging Trias process modules, executing PM chamber overhauls, or recovering from unplanned downtime caused by discontinued OEM spare parts.

As semiconductor fabs and industrial automation facilities extend the operational life of legacy TEL Trias systems, sourcing verified replacement components becomes a critical bottleneck. The TF906276-001 addresses this challenge by providing a mechanically and functionally compatible pin base that integrates into existing chamber assemblies without requiring structural modification to the process module frame or lift pin guide assembly.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the TF906276-001 into a live Trias production environment requires systematic pre-replacement planning. Before scheduling a chamber vent and module pull, engineering teams should audit the full PM assembly to identify co-dependent components that may require simultaneous replacement or inspection.

In most Trias TMH-064 retrofit scenarios, the pin base assembly is replaced in conjunction with the lift pin guide sleeve, wafer lift pin set, and the lower electrode assembly. Facilities running extended PM intervals often find that the chamber liner and focus ring have reached end-of-life concurrently, making a combined replacement the most cost-effective approach to minimizing future downtime.

For systems where the TEL Trias process module controller (PMC) communicates with the host via a SEMI E37 HSMS or proprietary TEL communication protocol, no software reconfiguration is required for a mechanical pin base swap. However, if the retrofit is part of a broader chamber upgrade that includes replacing the RF match network, gas flow controller (MFC) manifold, or ESC (electrostatic chuck) assembly, the host recipe parameters and process endpoint detection thresholds should be re-validated after commissioning.

Facilities migrating from older TEL Unity Express or TEL Mark 8 platforms to the Trias architecture should note that the pin base mounting geometry differs between generations. Cross-platform substitution is not recommended without dimensional verification. Within the Trias family, however, the TF906276-001 is confirmed compatible across standard P02 and 360-series chamber configurations.

When planning the retrofit, confirm the following before ordering:

• Chamber base mounting pattern — verify bolt circle and dowel pin positions match the 480×190mm footprint.
• Lift pin stroke clearance — ensure the replacement base does not interfere with the wafer transfer robot end-effector path during load/unload sequences.
• Backside gas port alignment — if the PM uses helium backside cooling, confirm the port position is preserved in the replacement assembly.
• Grounding strap continuity — re-torque and verify RF ground integrity after installation to prevent arcing or process drift.
• PM interlock reset — after reassembly, clear any chamber status interlocks via the TEL Trias system controller before initiating a conditioning run.

Downtime Control During System Migration

Unplanned chamber downtime in a semiconductor fab or industrial process environment carries significant production cost. When the TF906276-001 is sourced as a pre-positioned spare, replacement can be completed within a standard scheduled PM window — typically 4 to 8 hours for a Trias TMH-064 module — without extending the maintenance cycle.

To protect original process logic and maintain control continuity during the swap:

• Back up the current PM recipe set from the TEL Trias host controller before beginning any mechanical work. Recipe parameters including lift pin position offsets, wafer temperature setpoints, and RF power ramp profiles should be archived to a secure location.
• Document the existing lift pin height calibration values from the system’s maintenance terminal. After installing the TF906276-001, re-enter these values as the baseline and perform a calibration verification run with a dummy wafer before resuming production.
• Maintain chamber pressure history logs — if the PM uses a capacitance manometer or Baratron pressure transducer for process pressure feedback, verify sensor zero-point calibration is unaffected by the mechanical replacement.
• Coordinate with the host MES or SCADA system to place the affected PM in a maintenance hold state, preventing automated job dispatch to the chamber during the retrofit window.
• Perform a post-installation conditioning run of at least 3–5 wafer cycles using a non-critical process recipe before returning the chamber to production qualification status.

By pre-staging the TF906276-001 as an on-hand spare alongside other high-wear Trias PM components — such as the upper electrode assembly, chamber O-ring kit, and quartz window assembly — facilities can reduce mean time to repair (MTTR) and maintain process availability targets above 95%.

Retrofit Support FAQ

Q1: Is the TF906276-001 a direct replacement for 414713-001 and 0010-33417 without modification?
Yes. The TF906276-001 is dimensionally and functionally equivalent to both cross-reference part numbers. No machining, shimming, or adapter hardware is required for installation in a standard Trias TMH-064 PM chamber. Verify the chamber base mounting surface is clean and free of debris before installation.

Q2: What commissioning steps are required after installing the pin base assembly?
After mechanical installation, perform a lift pin height calibration using the TEL Trias maintenance software. Verify wafer centering accuracy with a test wafer and confirm backside gas seal integrity if helium cooling is in use. Run a minimum of 3 conditioning cycles before returning the PM to production status.

Q3: Can this part be used in TEL Trias chambers running different process chemistries (e.g., oxide etch vs. CVD)?
The TF906276-001 is a mechanical structural component and is not process-chemistry-specific. Its suitability depends on the chamber configuration (P02 / 360 series) rather than the process chemistry. Confirm the chamber model designation before ordering if your facility operates multiple Trias variants.

Q4: What warranty coverage is provided, and what does it include?
All units ship with a 12-month warranty from the date of shipment. Coverage includes manufacturing defects and dimensional non-conformance. Each unit undergoes pre-shipment functional inspection and dimensional verification. Warranty claims are supported by our technical team with replacement or credit resolution within 5 business days of confirmed defect documentation.
