TELEDYNE 3110 Maintenance-Ready Spare for 3000 Series

TELEDYNE 3110 Maintenance-Ready Spare for 3000 Series Automation

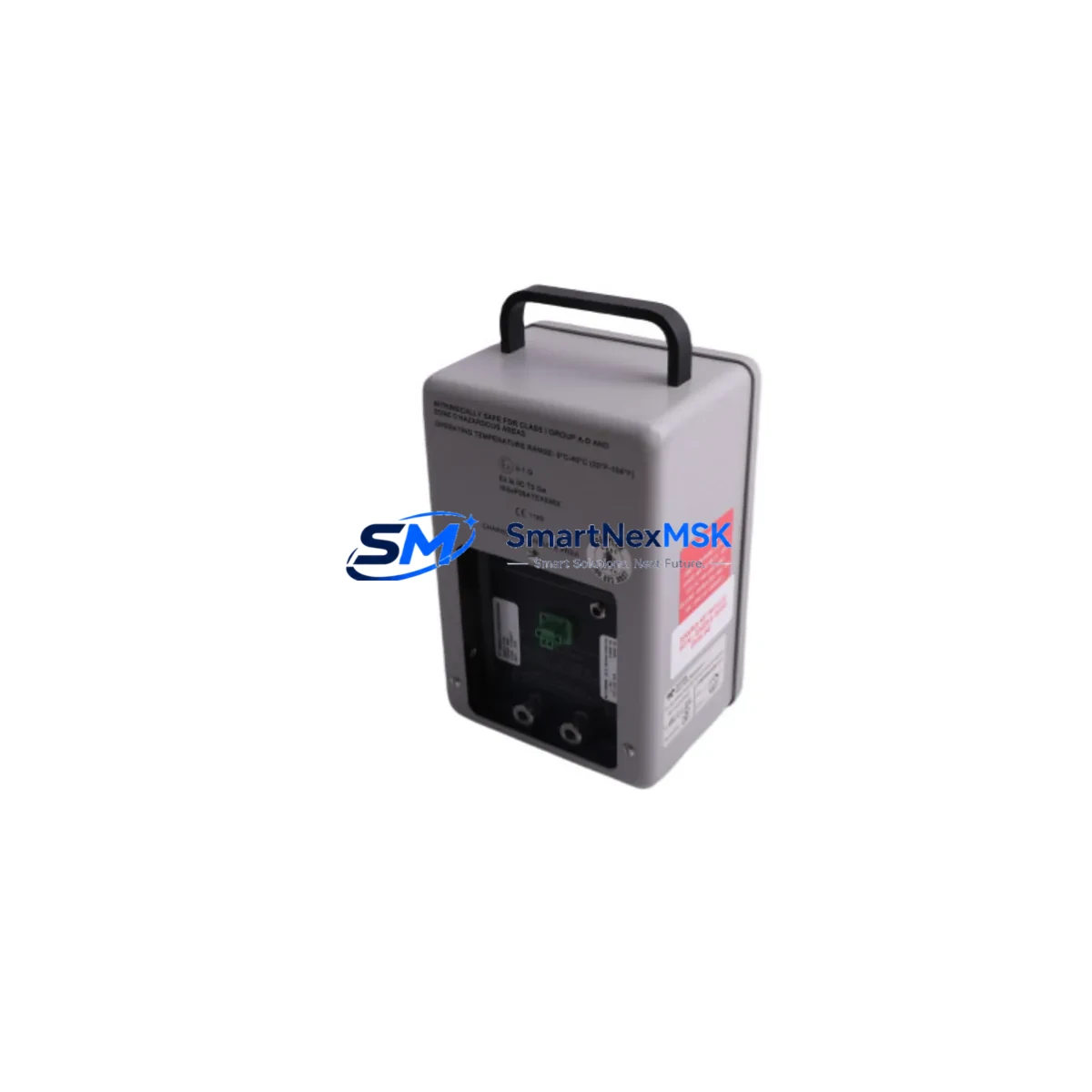

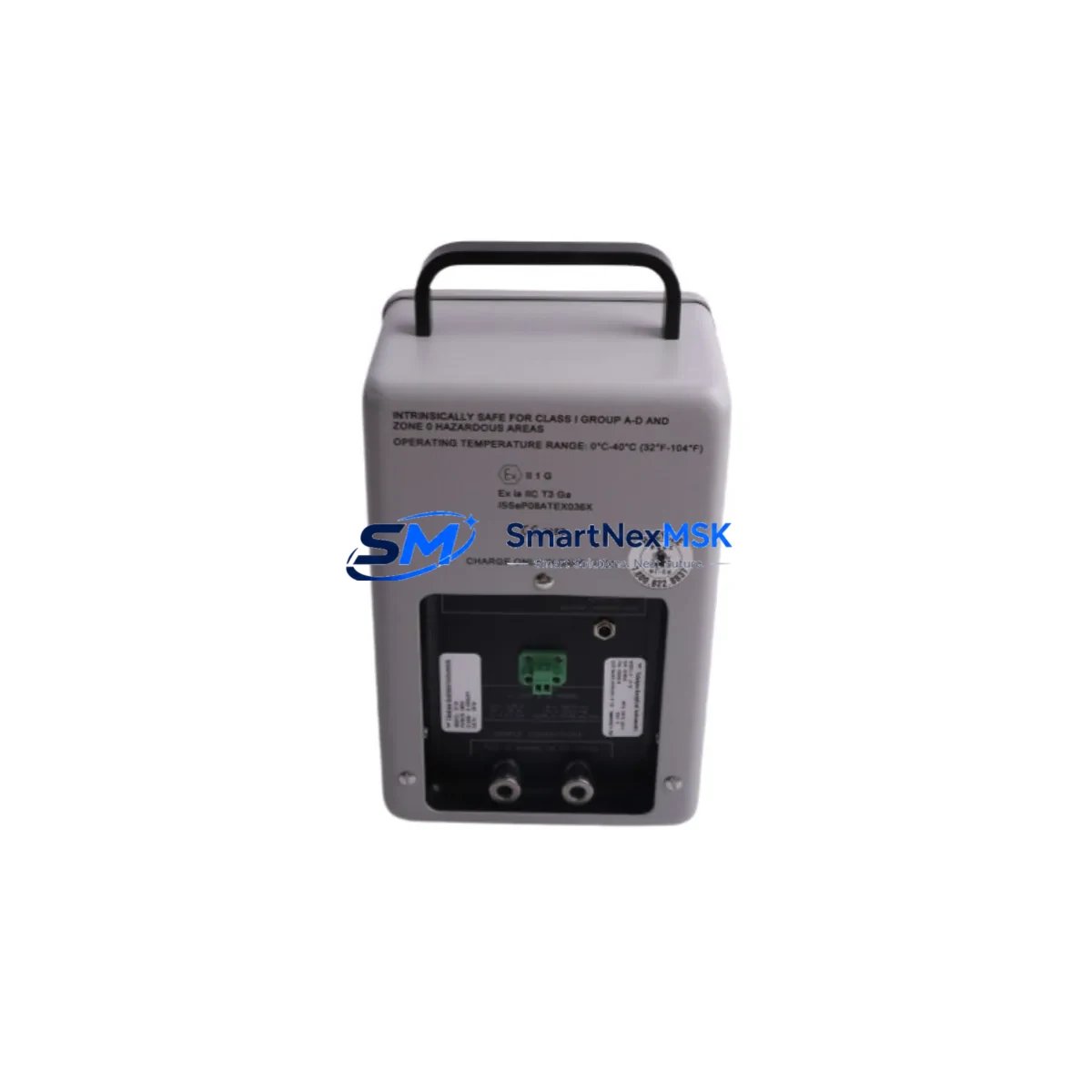

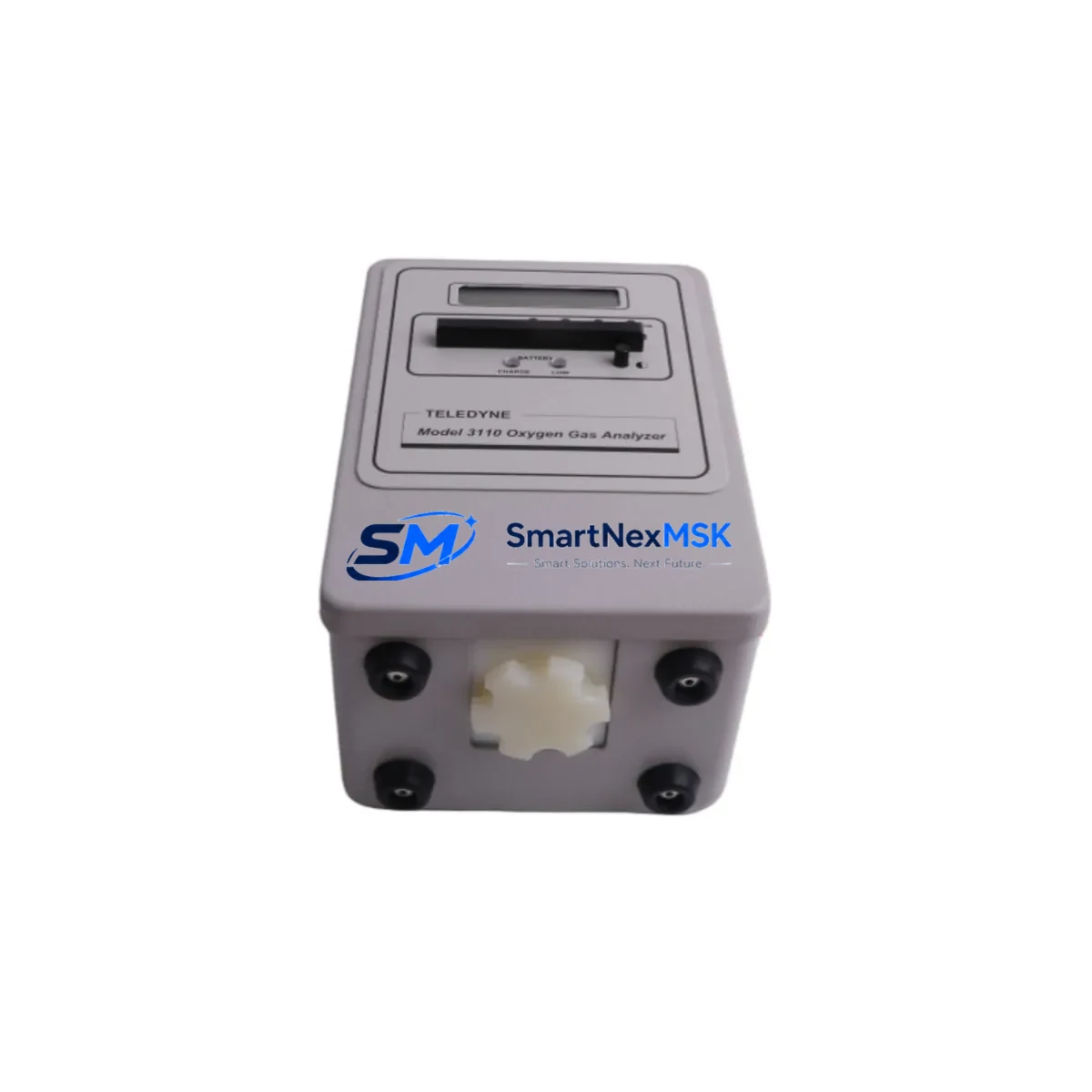

The TELEDYNE 3110 is a precision trace oxygen analyzer module engineered for continuous gas monitoring in demanding industrial environments. As a maintenance-ready original spare for the TELEDYNE 3000 Series platform, the 3110 is a critical component in process control systems where oxygen measurement accuracy directly impacts product quality, safety compliance, and regulatory reporting. Whether you are managing a scheduled turnaround, responding to an unplanned shutdown, or building a proactive spare parts inventory, the 3110 delivers the measurement reliability and drop-in compatibility that maintenance and procurement engineers depend on.

Industrial facilities operating TELEDYNE 3000 Series analyzers in petrochemical, pharmaceutical, food and beverage, power generation, and specialty gas applications recognize the 3110 as a long-lifecycle component with a well-established field replacement record. Sourcing a verified original spare before failure occurs is the single most effective strategy for minimizing mean time to repair (MTTR) and protecting continuous operation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A field replacement of the TELEDYNE 3110 is rarely an isolated event. Experienced maintenance engineers treat an analyzer module swap as an opportunity to audit the entire measurement loop and associated control infrastructure. When pulling the 3110 for replacement, the following components and subsystems should be inspected or simultaneously serviced to prevent secondary failures and ensure the restored system meets its original performance specification.

Begin with the sample conditioning system: check the sample pump, particulate filter, and moisture trap upstream of the analyzer. A degraded filter or saturated trap is frequently the root cause of premature sensor cell failure in the 3110. Next, inspect the 3000 Series power supply module — voltage ripple or transient spikes on the 24 VDC rail can shorten electrochemical cell life significantly. If the analyzer chassis houses a TELEDYNE 3000 Series display/HMI board, verify that alarm setpoints and calibration coefficients are backed up before the swap, as some firmware versions reset parameters on module re-initialization.

On the signal side, check the 4–20 mA output wiring and terminal blocks for corrosion, loose terminations, or insulation breakdown — particularly in high-humidity or chemically aggressive enclosures. If the 3110 feeds a DCS or PLC analog input card, confirm that the input channel scaling and engineering unit configuration match the replacement module’s output range. Where signal isolators are installed between the analyzer and the control system, verify isolation barrier integrity and loop power budget.

For facilities running multiple 3000 Series analyzers in parallel streams, consider stocking a TELEDYNE 3110 calibration gas assembly and a spare reference cell alongside the module itself. Calibration gas cylinders (certified O₂-in-N₂ or O₂-in-background gas blends) should be checked for expiry and pressure before the replacement procedure begins. If the analyzer communicates via RS-485 Modbus to a SCADA or historian, re-verify the device address and baud rate configuration after module installation to prevent data gaps in the process record.

Finally, inspect the enclosure door seals, cable glands, and earthing/grounding conductors on the analyzer cabinet. Moisture ingress and ground loops are leading causes of measurement drift and spurious alarms in trace oxygen systems operating in outdoor or wash-down environments.

Site Replacement Workflow

Replacing the TELEDYNE 3110 in a live production environment requires a structured approach to minimize downtime and avoid introducing new faults. The following workflow reflects best practice for maintenance engineers performing a planned or emergency swap on a 3000 Series analyzer platform.

Step 1 — Pre-Replacement Preparation: Obtain the current calibration record, alarm setpoints, and communication parameters from the existing module or the site DCS historian. Confirm that the replacement 3110 carries the correct sub-variant designation for your specific 3000 Series chassis. Verify that the replacement unit has been tested and certified prior to shipment — all units supplied through this listing are function-tested before dispatch.

Step 2 — Safe Isolation: Follow site lock-out/tag-out (LOTO) procedures. Isolate the sample gas supply, vent the sample line to a safe location, and de-energize the analyzer chassis. Do not attempt hot-swap of the 3110 module without confirming the chassis design supports live insertion.

Step 3 — Module Removal and Inspection: Remove the 3110 carefully, noting connector orientation and any mechanical retention features. Inspect the module bay for contamination, corrosion, or damaged connector pins. Clean the bay before installing the replacement.

Step 4 — Installation and Re-commissioning: Seat the replacement 3110 firmly, reconnect all signal and power connectors, and restore the sample gas supply. Power up the analyzer and allow the electrochemical cell to stabilize per the OEM warm-up specification (typically 30–60 minutes for trace O₂ cells). Perform a two-point calibration using certified reference gases before returning the analyzer to service.

Step 5 — System Verification: Confirm that the 4–20 mA output, serial communication, and alarm functions are operating correctly at the DCS or SCADA level. Log the replacement in the site maintenance management system (CMMS) and update the spare parts inventory accordingly.

This workflow applies equally to planned maintenance windows and emergency shutdowns. Having a pre-tested TELEDYNE 3110 spare on-site reduces the replacement cycle from days to hours, directly protecting production continuity and regulatory compliance.

Spare Parts Support FAQ

Q1: How do I confirm that the 3110 is compatible with my specific 3000 Series analyzer model?
The TELEDYNE 3000 Series encompasses several sub-variants with different chassis configurations and sensor cell specifications. Provide your full analyzer model number and serial number when placing your order. Our technical team will cross-reference the part matrix and confirm fit before shipment. If you have the existing module’s label data, that is the most reliable compatibility reference.

Q2: What does the 12-month warranty cover, and how is it claimed?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage caused by incorrect installation, exposure to out-of-specification sample gases, or physical mishandling. To initiate a warranty claim, contact sales@smartnexmsk.com with your order reference, a description of the fault, and photographic evidence of the failure mode. Replacement or repair will be arranged promptly.

Q3: Is the 3110 tested before shipment, and what documentation is provided?
Yes. All TELEDYNE 3110 units are function-tested prior to dispatch. A test report confirming basic electrical and measurement functionality is available upon request. For applications requiring full calibration traceability, please specify this requirement at the time of order so that a calibration certificate with reference gas data can be prepared.

Q4: Can I source the 3110 as part of a broader 3000 Series spare parts kit for long-term inventory planning?
Yes. We support bulk and kit-based procurement for maintenance teams managing multiple TELEDYNE 3000 Series analyzers. Contact us to discuss a tailored spare parts package that may include the 3110 module, sensor cells, calibration gas assemblies, and associated consumables. Long-term supply agreements with reserved stock allocation are available for facilities with critical uptime requirements.
