TERADYNE 879-363-00 AD363 Retrofit-Ready Handler for 810NM ATE

TERADYNE 879-363-00 AD363 Retrofit-Ready Handler Interface for 810NM ATE Control Systems

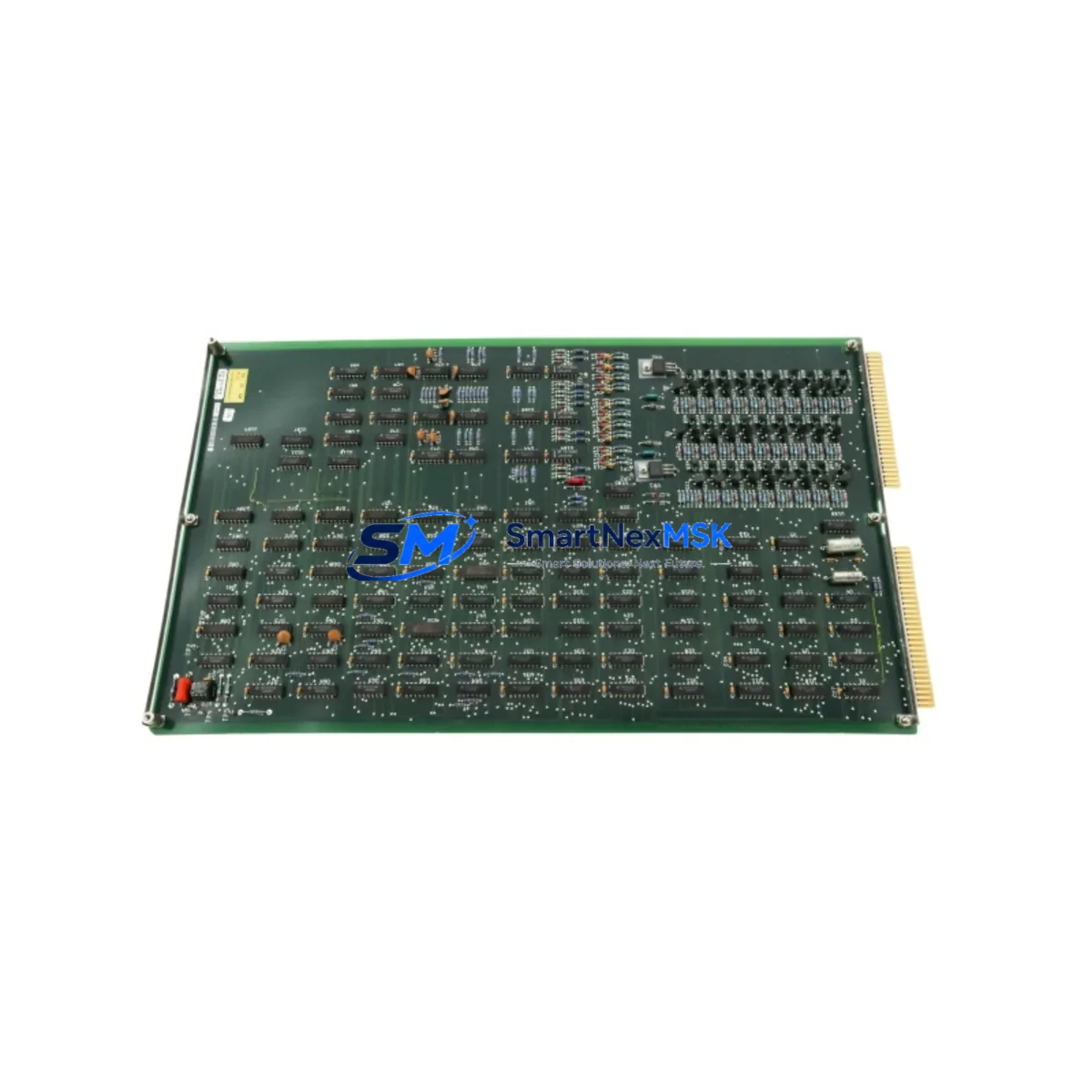

The TERADYNE 879-363-00 (AD363) is a handler interface board engineered for seamless integration into TERADYNE 810NM Automatic Test Equipment (ATE) platforms. As legacy ATE systems age and original spare parts become increasingly scarce, the 879-363-00 AD363 serves as a verified drop-in replacement for the discontinued 15-118976-00 and 02-134263-00 interface boards. Whether you are managing a scheduled upgrade, responding to an unplanned board failure, or executing a broader test-floor modernization program, this module delivers the electrical compatibility, signal integrity, and mechanical fit required to restore full system operation with minimal downtime.

Our inventory of the 879-363-00 AD363 is sourced, inspected, and function-tested prior to shipment. Each unit undergoes bench verification against 810NM system interface specifications, covering connector pinout continuity, signal path integrity, and handler synchronization logic. All units ship with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting a TERADYNE 810NM ATE system requires careful coordination across multiple subsystems. The 879-363-00 AD363 handler interface board sits at the intersection of the test executive software, the device handler, and the DUT load board — making it a critical node in the overall test cell architecture. Before initiating a board swap, engineers should audit the existing system configuration to confirm the chassis slot assignment, the handler cable harness wiring, and the system software version currently managing handler synchronization.

In many retrofit scenarios, the 879-363-00 is replaced alongside other aging components. It is common to simultaneously address the TERADYNE 810NM power supply module, which may show voltage drift after extended service life, and the system’s DIO (digital I/O) interface cards, which manage handler interlock signals. The TERADYNE 880-series interface cables connecting the handler to the ATE mainframe should also be inspected for insulation degradation and connector wear. If the facility is migrating from an older handler model — such as a gravity-feed handler — to a more modern pick-and-place handler, the AD363 board’s handler control signal mapping must be re-verified against the new handler’s I/O specification sheet.

For systems that also incorporate a TERADYNE 810NM prober interface or wafer-level test capability, the handler interface board replacement should be coordinated with the prober controller card and the system’s timing reference module to avoid synchronization conflicts. Additionally, if the test cell includes a temperature-controlled handler or a burn-in board interface, the thermal interlock signals routed through the AD363 must be confirmed against the updated handler wiring diagram. Engineers performing the retrofit should also verify the TERADYNE 810NM system’s UPS (uninterruptible power supply) capacity, as adding a replacement board with slightly different power draw characteristics can affect overall chassis power budget calculations.

Where the 810NM system communicates with a factory MES (Manufacturing Execution System) or SPC (Statistical Process Control) platform via SECS/GEM or RS-232 protocol, the handler interface replacement should be followed by a full end-to-end communication link test to confirm that lot tracking, bin sorting commands, and yield data reporting remain uninterrupted. Our technical team can provide pre-shipment configuration documentation to support your site’s validation and qualification process.

Downtime Control During System Migration

Unplanned ATE downtime on a production test floor carries significant cost — both in direct lost throughput and in the downstream impact on device delivery schedules. When replacing the TERADYNE 879-363-00 AD363 handler interface board, the most effective downtime control strategy begins before the replacement unit arrives on site.

First, back up the current 810NM system configuration file, including the handler interface parameters, slot assignments, and any customized handler timing offsets stored in the test executive. This ensures that if the replacement board requires any parameter adjustment, the original baseline is preserved and recovery is straightforward. Second, prepare the handler cable harness for disconnection by labeling each connector with its corresponding signal group — handler ready, DUT present, bin sort outputs, and interlock signals — so reconnection to the 879-363-00 AD363 is systematic and error-free.

During the physical swap, confirm that the chassis is fully powered down and that the system’s ESD (electrostatic discharge) protocols are followed, as the AD363 board contains sensitive CMOS logic components. After seating the replacement board and reconnecting the handler harness, perform a cold-start system initialization and run the 810NM’s built-in handler interface diagnostic sequence before loading any device-specific test program. This diagnostic will confirm that the handler ready signal, the DUT transfer interlock, and the bin sort output lines are all responding correctly.

For facilities that cannot afford extended downtime, we recommend maintaining a spare 879-363-00 AD363 in local inventory. Our standard lead time for in-stock units is 3–5 business days for international shipment, and we can support expedited dispatch for critical production situations. All units are shipped with function-test records and a 12-month warranty, giving your maintenance team confidence in the replacement’s reliability from day one.

Retrofit Support FAQ

Q1: Is the 879-363-00 AD363 a direct replacement for the 15-118976-00 and 02-134263-00 boards?
Yes. The 879-363-00 AD363 is designed as a form-fit-function replacement for both the 15-118976-00 and 02-134263-00 handler interface boards used in TERADYNE 810NM ATE systems. No firmware changes or system software modifications are required for a direct swap. We recommend verifying the handler cable harness pinout against the AD363 connector diagram before power-on to confirm wiring compatibility with your specific handler model.

Q2: What commissioning steps are required after installing the 879-363-00 AD363?
After physical installation, power on the 810NM system and run the handler interface diagnostic routine from the system maintenance menu. Verify that the handler ready signal, DUT present interlock, and bin sort output lines all respond correctly. Then load a known-good test program and execute a dry-run handler cycle (without DUTs) to confirm load/unload timing and interlock sequencing before resuming production testing.

Q3: Can the 879-363-00 AD363 be used with updated handler models not originally qualified on the 810NM platform?
The AD363 board supports the standard 810NM handler interface signal set. Compatibility with newer handler models depends on whether the handler’s I/O specification matches the 810NM interface standard. We recommend providing your handler model number to our technical team prior to ordering so we can confirm signal mapping compatibility and advise on any wiring adapter requirements.

Q4: What does the 12-month warranty cover, and what is the return process?
The 12-month warranty covers functional failures and manufacturing defects under normal operating conditions, starting from the shipment date. It does not cover damage resulting from incorrect installation, ESD mishandling, or operation outside the specified voltage and environmental ranges. To initiate a warranty claim, contact our sales team at sales@smartnexmsk.com with your order reference and a description of the observed failure. We will arrange return shipping and provide a replacement or repair within an agreed turnaround time.
