VAT 61246-PAGI-0001/0103 A-1174333 Spare Series 61246: Vacuum Pressure Control Valve for Industrial Downtime Recovery

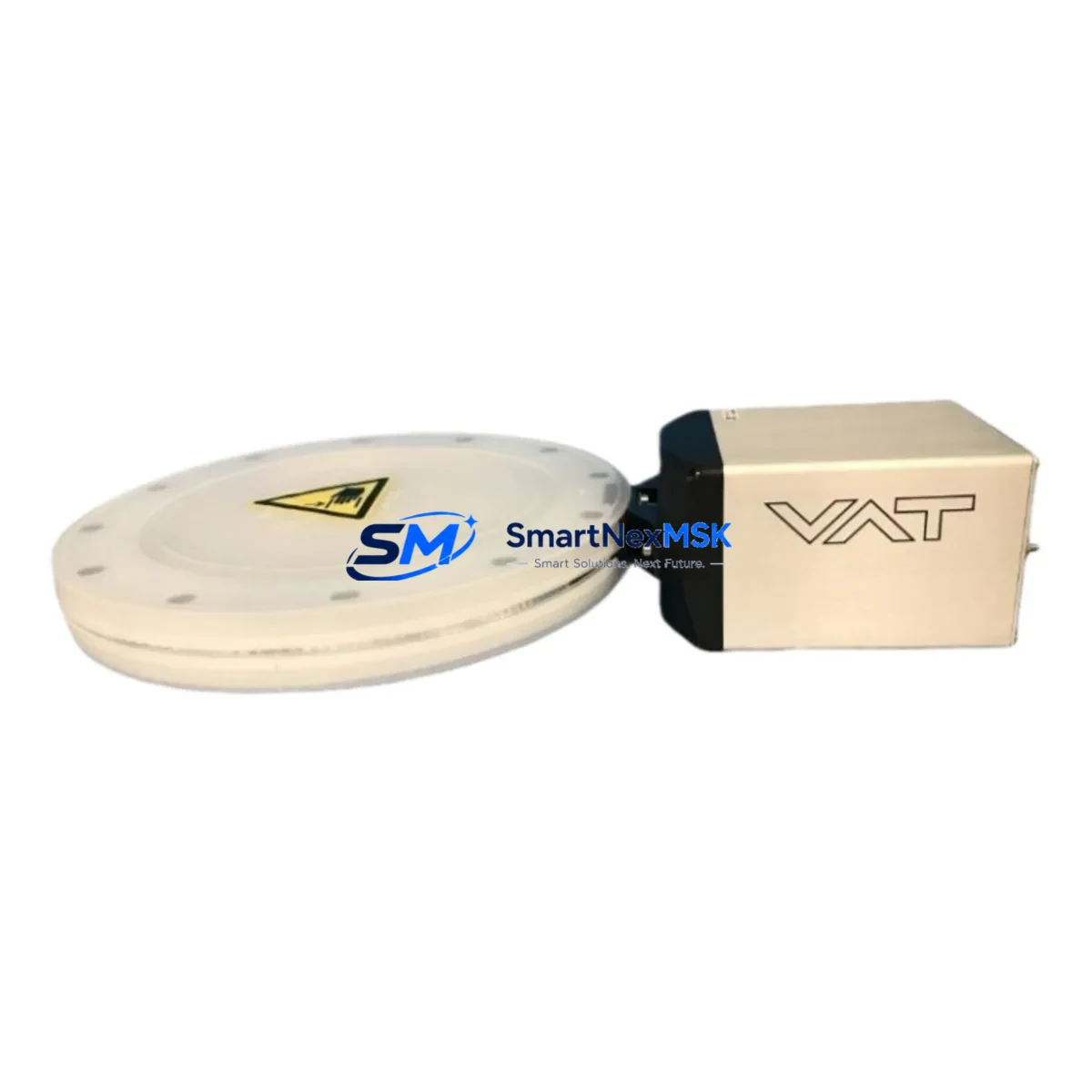

The VAT 61246-PAGI-0001/0103 A-1174333 is an original spare vacuum pressure control valve from VAT Group AG, engineered for Series 61246 process systems. In semiconductor fabrication, thin-film deposition, flat-panel display manufacturing, and precision vacuum process environments, this valve is a critical flow-control component. When it fails, the entire process chamber goes offline — making rapid, verified spare availability the single most important factor in minimizing production loss.

At SMARTNEXMSK, this unit is sourced, inspected, and dispatched with full traceability. Each valve undergoes pre-shipment functional verification and ships with a 12-month warranty, giving maintenance engineers and procurement teams the confidence to stock it as a primary replacement unit rather than a last-resort emergency order.

Whether you are executing a planned shutdown, responding to an unscheduled trip, or building a preventive maintenance kit for a multi-chamber vacuum system, the 61246-PAGI-0001/0103 A-1174333 is the correct OEM-equivalent replacement to restore process integrity without requalification delays.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A vacuum pressure control valve does not operate in isolation. When the 61246-PAGI-0001/0103 A-1174333 is flagged for replacement during a scheduled inspection or after an unplanned trip, experienced maintenance engineers treat the event as a trigger for a broader system audit. The following components should be inspected or replaced concurrently to prevent secondary failures and avoid repeat downtime within the same maintenance window.

Start with the VAT Series 61246 pneumatic actuator assembly — if the valve body is worn, the actuator diaphragm and position feedback sensor are likely at a similar service age. Check the VAT Series 650 or 651 pressure controller that governs the valve’s setpoint; a drifting controller will cause the new valve to hunt or oscillate. Inspect the MKS Instruments 627D or 628D capacitance manometer used for chamber pressure feedback — a contaminated or out-of-cal sensor will misreport pressure and mask valve performance issues post-replacement.

Review the process gas supply solenoid valves (typically 24 VDC, 2/2-way) upstream of the control valve; a leaking solenoid will introduce uncontrolled gas flow that the pressure control valve cannot compensate for. Inspect KF or CF flange gaskets and O-rings at every joint in the vacuum line adjacent to the valve — elastomer seals degrade at similar rates and a new valve installed against a leaking flange will fail its leak-up rate test immediately.

For systems using a turbomolecular pump (e.g., Pfeiffer HiPace or Edwards STP series) backed by a dry scroll or rotary vane roughing pump, verify that the foreline pressure is within specification before commissioning the replacement valve. Elevated foreline pressure is a common root cause of premature valve seal degradation. Also check the VAT Series 01 or 02 right-angle valve used as the chamber isolation valve — if the pressure control valve has been cycling frequently due to a process upset, the isolation valve seat may show accelerated wear.

Finally, review the PLC I/O module driving the valve’s solenoid pilot signal — confirm that the digital output card (e.g., Siemens ET 200SP DO module or equivalent) is delivering the correct 24 VDC signal without voltage drop, and that the signal cable and M12 connector to the valve positioner are free of corrosion or intermittent contact. A clean electrical signal is as important as a clean mechanical seal for reliable valve operation.

Site Replacement Workflow

Step 1 — Isolate and vent. Close the upstream isolation valve (VAT Series 01 or equivalent), vent the chamber to atmosphere through the controlled vent port, and confirm pressure equalization with a Bourdon or capacitance gauge before breaking any flange connection.

Step 2 — Document the as-found condition. Photograph the valve orientation, actuator cable routing, and pneumatic tubing connections before removal. Record the leak-up rate and any fault codes from the pressure controller or PLC HMI. This baseline is essential for post-replacement acceptance testing.

Step 3 — Remove and inspect. Unbolt the KF or CF flange connections, remove the valve, and inspect the mating flanges for scoring, contamination, or O-ring extrusion. Replace all flange gaskets — never reuse elastomer seals on a vacuum joint.

Step 4 — Install the 61246-PAGI-0001/0103 A-1174333. Verify the flow direction arrow on the valve body matches the system drawing. Torque flange bolts to the manufacturer’s specification in a star pattern. Reconnect pneumatic supply (typically 4–6 bar clean dry air) and the solenoid pilot signal cable.

Step 5 — Leak test and commission. Pump down to base pressure and perform a leak-up rate test per your site acceptance criteria. Confirm the pressure controller achieves setpoint without oscillation. Log the as-left condition and update the equipment maintenance record.

This workflow is applicable to both like-for-like replacement of the 61246-PAGI-0001/0103 A-1174333 and cross-replacement from an older or discontinued VAT Series 61246 variant. The standardized flange interface and pneumatic actuation make the transition straightforward, with no firmware or parameter changes required in most installations.

Spare Parts Support FAQ

Q1: Is the 61246-PAGI-0001/0103 A-1174333 a direct replacement for older Series 61246 variants?
Yes. The Series 61246 platform uses a standardized flange interface and pneumatic actuator configuration across its production history. The A-1174333 revision designation reflects internal manufacturing updates and does not affect dimensional or functional compatibility with earlier Series 61246 installations. Always confirm the flange size (KF or CF) and actuator port configuration against your system drawing before ordering.

Q2: What is included in the 12-month warranty, and how is a warranty claim handled?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage caused by improper installation, operation outside rated parameters, or exposure to incompatible process gases. To initiate a warranty claim, contact sales@smartnexmsk.com with the order number, failure description, and photographic evidence. Replacement or repair is coordinated within 5 business days of claim acceptance.

Q3: How should I stock this valve for a multi-chamber facility to avoid emergency lead times?
For facilities operating 3 or more vacuum process chambers using Series 61246 valves, a minimum stock of 1 spare per 3 chambers is recommended, with a reorder trigger at 50% stock depletion. Given that unplanned downtime in semiconductor or PVD processes can cost tens of thousands of dollars per hour, the carrying cost of a spare valve is negligible compared to the risk of a 2–4 week emergency procurement lead time from the OEM. SMARTNEXMSK offers volume pricing and reserved-stock agreements for facilities requiring guaranteed availability.

Q4: Can you verify compatibility with my specific system before I order?
Yes. Send your system model number, chamber drawing reference, or existing valve part number to sales@smartnexmsk.com. Our technical team will confirm compatibility, identify any revision differences, and advise on any installation notes specific to your configuration. Pre-order compatibility verification is provided at no charge and typically completed within 24 business hours.
