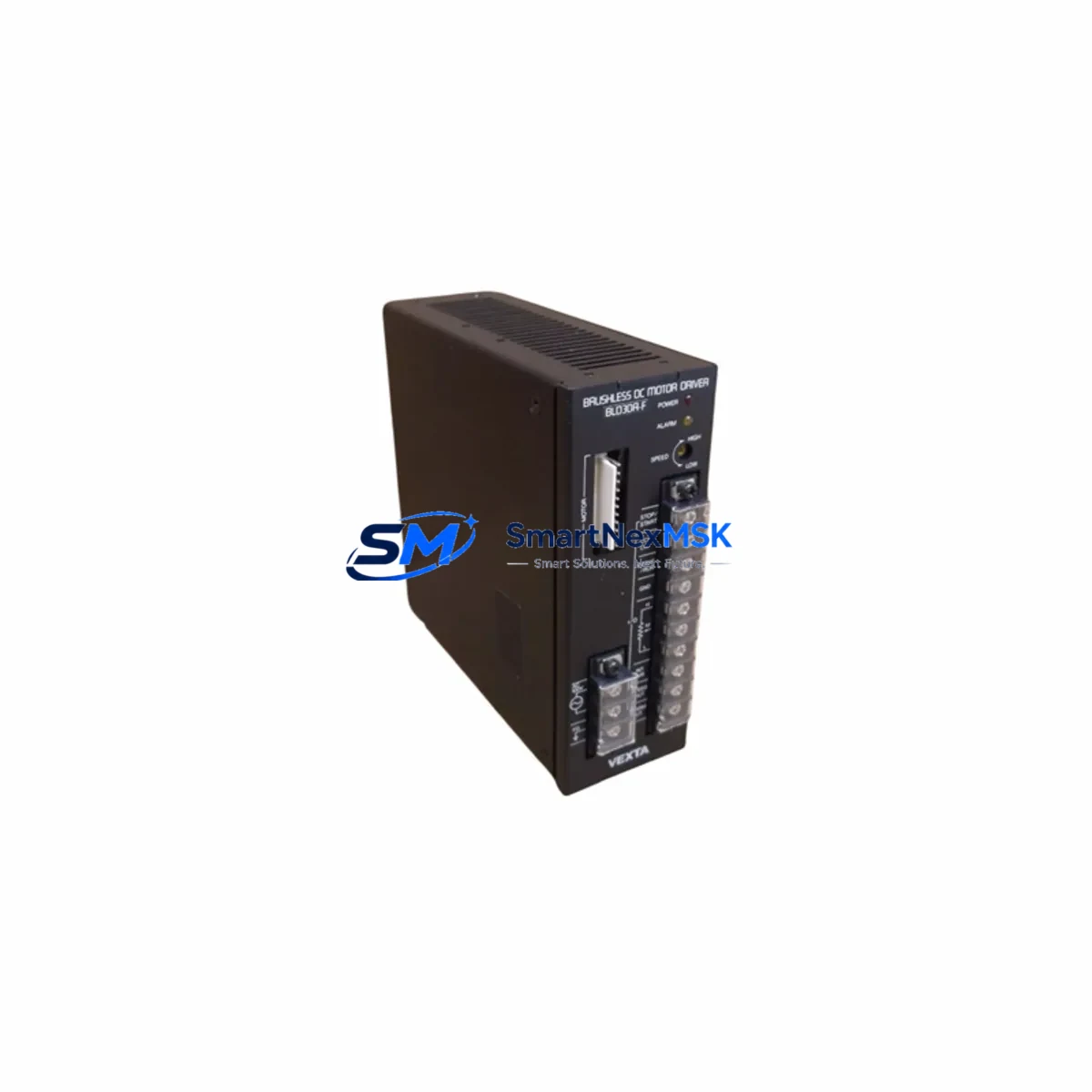

VEXTA BLD30A-F Safety-Enhanced Brushless DC Speed Controller: Reliable Control for Harsh Industrial Sites
The VEXTA BLD30A-F is a 30W brushless DC speed controller from Oriental Motor’s BLD Series, engineered for continuous, uninterrupted operation in demanding industrial environments. Designed to pair with VEXTA BLD Series brushless DC motors, this controller delivers precise, stable speed regulation even under high electrical noise, fluctuating supply voltages, and extreme ambient conditions — making it a trusted choice for control cabinet integrators, process engineers, and safety system designers across petrochemical, power generation, mining, water treatment, metallurgy, port logistics, and continuous manufacturing facilities.
Safety Reliability Table
| Parameter | Specification / Rating |
|---|---|
| Model / SKU | BLD30A-F |
| Brand / Series | VEXTA / BLD Series |
| Rated Output Power | 30W |
| Input Voltage | Single-phase 100–115 VAC / 200–230 VAC, 50/60 Hz |
| Speed Control Range | 80–4000 r/min (variable via external potentiometer or 0–5 VDC signal) |
| Speed Regulation | ±0.5% or better (load regulation) |
| Control Method | Hall-sensor feedback, closed-loop PWM drive |
| Protection Functions | Overcurrent protection, overvoltage protection, thermal shutdown, alarm output |
| EMI / Noise Immunity | Built-in noise filter; compliant with CE EMC directives |
| Operating Temperature | 0°C to +50°C (non-condensing) |
| Storage Temperature | -20°C to +65°C |
| Humidity | 85% RH max (non-condensing) |
| Enclosure / Mounting | Panel-mount, DIN-rail compatible chassis |
| Alarm Output | Open-collector signal for PLC interlock integration |
| Compatible Motors | VEXTA BLD Series brushless DC motors (30W frame) |
| Country of Origin | Japan |
| Warranty | 12 Months — covers manufacturing defects and functional failure under normal operating conditions |
Control Cabinet Protection Strategy
In modern industrial control cabinets, the VEXTA BLD30A-F is rarely deployed in isolation. Its alarm output signal is typically wired directly into a PLC digital input module — such as a Mitsubishi MELSEC Q-series QX40 input card or a Siemens S7-300 SM321 digital input module — enabling the control program to execute an immediate safe-stop interlock the moment a drive fault is detected. This closed-loop interlock architecture is fundamental to preventing uncontrolled runaway in conveyor, pump, and fan drive applications.
On the power supply side, the BLD30A-F operates from a regulated AC source. To protect against voltage surges and transient spikes common in heavy industrial environments, engineers typically install a VEXTA-compatible surge suppressor or a dedicated AC line filter upstream of the controller. Pairing the BLD30A-F with a Phoenix Contact QUINT-series 24VDC power supply for the control logic rail, or an Omron S8VS switching power supply for auxiliary circuits, ensures that voltage fluctuations on the main bus do not propagate into the speed reference signal or the Hall-sensor feedback circuit.
For communication-intensive installations, the BLD30A-F’s analog speed reference input (0–5 VDC) can be driven by a D/A output module such as a Mitsubishi Q62DA or a Yokogawa DAQSTATION analog output channel, allowing the host SCADA or DCS to command precise speed setpoints without manual potentiometer adjustment. In safety-instrumented systems (SIS), the alarm output can be monitored by a Pilz PNOZ safety relay or a Rockwell Automation GuardLogix safety controller to satisfy SIL 1 or SIL 2 interlock requirements for motor-driven auxiliary systems.
Thermal management within the cabinet is equally critical. The BLD30A-F’s built-in thermal shutdown protects the drive itself, but cabinet-level protection is enhanced by pairing it with a Rittal SK series cabinet cooling unit or a Pfannenberg PWS series air/water heat exchanger, maintaining ambient temperatures within the 0–50°C operating window even in summer peak-load conditions at outdoor substations or rooftop mechanical rooms.
For installations requiring motor cable runs exceeding 10 meters, a ferrite core EMI suppressor fitted to the motor cable — or a dedicated output line reactor — reduces reflected wave stress on the motor windings and minimizes radiated interference that could affect nearby Profibus DP or HART field instrument signals. This is particularly important in petrochemical control rooms where intrinsically safe barriers and flame-proof (Ex d) enclosures are mandated by IEC 60079 area classification requirements.
Critical Industrial Safety Applications
Petrochemical & Refinery Plants: In continuous process units such as crude distillation columns and catalytic cracking reactors, auxiliary cooling fans and lube oil pump motors driven by the BLD30A-F must maintain uninterrupted operation. The controller’s overcurrent and thermal protection functions prevent motor burnout during process upsets, while the alarm output enables the DCS to initiate a controlled shutdown sequence rather than an abrupt trip that could cause pressure surges in piping systems.
Power Generation & Substations: Battery room ventilation fans, transformer cooling blowers, and governor actuator motors in power plants demand speed controllers with proven EMI immunity. The BLD30A-F’s built-in noise filter and closed-loop Hall-sensor feedback maintain stable speed regulation despite the high-frequency switching noise generated by adjacent variable-frequency drives and high-voltage switchgear.
Mining & Mineral Processing: In underground mining environments and surface ore processing plants, conveyor belt tensioning systems and slurry pump auxiliary drives require controllers that can withstand vibration, dust ingress, and wide ambient temperature swings. The BLD30A-F’s robust panel-mount chassis and wide operating temperature range make it suitable for installation in NEMA 12 or IP54 control enclosures at mine-site motor control centers (MCCs).
Water & Wastewater Treatment: Dosing pump drives, aeration blower speed controls, and UV disinfection lamp cooling fans in water treatment plants operate continuously for months without scheduled downtime. The BLD30A-F’s speed regulation accuracy (±0.5%) ensures consistent chemical dosing rates and airflow volumes, directly supporting process safety and regulatory compliance with effluent discharge standards.
Metallurgy & Steel Mills: Rolling mill auxiliary drives, furnace atmosphere circulation fans, and cooling water pump motors in steel production facilities are exposed to intense electromagnetic interference from arc furnaces and induction heaters. The BLD30A-F’s EMC-compliant design and Hall-sensor feedback loop maintain speed stability under these extreme electrical noise conditions, reducing the risk of process interruptions that could result in product defects or equipment damage.
Port Logistics & Container Handling: Crane cabin ventilation systems, spreader beam positioning motors, and ship-to-shore conveyor auxiliary drives in port environments require speed controllers that can operate reliably in salt-laden, high-humidity coastal atmospheres. The BLD30A-F’s sealed panel-mount enclosure and wide humidity tolerance (up to 85% RH) support long-term reliable operation in these corrosive environments.
Safety and Quality FAQ
Q1: What does the 12-month warranty cover for the VEXTA BLD30A-F?
The 12-month warranty covers all manufacturing defects and functional failures occurring under normal operating conditions within the specified voltage, temperature, and load ratings. If the unit fails due to a verified manufacturing fault within the warranty period, we provide a free replacement or full repair at no additional cost. Warranty claims are processed with documented test reports and traceable shipping records.
Q2: What pre-shipment testing is performed on each BLD30A-F unit?
Every BLD30A-F unit undergoes functional verification testing prior to shipment, including power-on operation check, speed regulation verification across the control range, alarm output signal continuity test, and visual inspection for physical damage. Units are shipped with original manufacturer packaging and, where available, with original test documentation or inspection certificates.
Q3: Is the BLD30A-F compatible with all VEXTA BLD Series motors, and can it replace an existing controller in the field?
The BLD30A-F is designed specifically for VEXTA BLD Series 30W brushless DC motors and is a direct functional replacement for other BLD30-series controllers in the same power class. Wiring pinouts and mounting dimensions are consistent across the BLD Series, enabling drop-in replacement without panel modification in most installations. Always verify motor nameplate ratings and connector types before installation.
Q4: Can long-term supply continuity be guaranteed for the BLD30A-F?
We maintain dedicated stock of the BLD30A-F and key VEXTA BLD Series components to support ongoing MRO (maintenance, repair, and operations) requirements for industrial customers. For large-volume or long-term supply agreements, we offer scheduled delivery programs and priority allocation to ensure your production lines are never halted by spare parts shortages. Contact our sales team to discuss your annual consumption requirements and establish a supply framework agreement.
