VIPA 315-2AG12 Maintenance-Ready Spare for SPEED7 Automation

VIPA 315-2AG12 Maintenance-Ready Spare for SPEED7 Automation

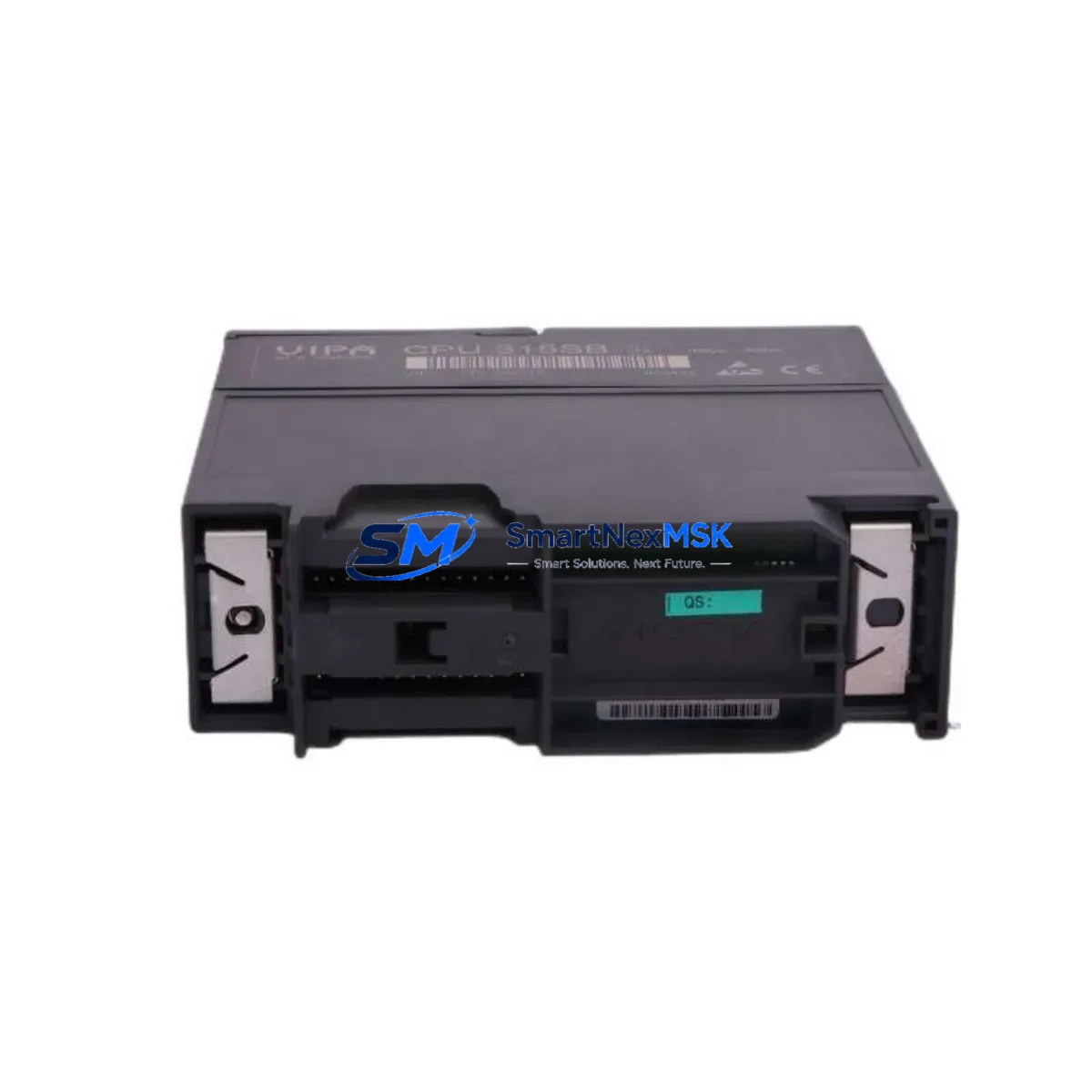

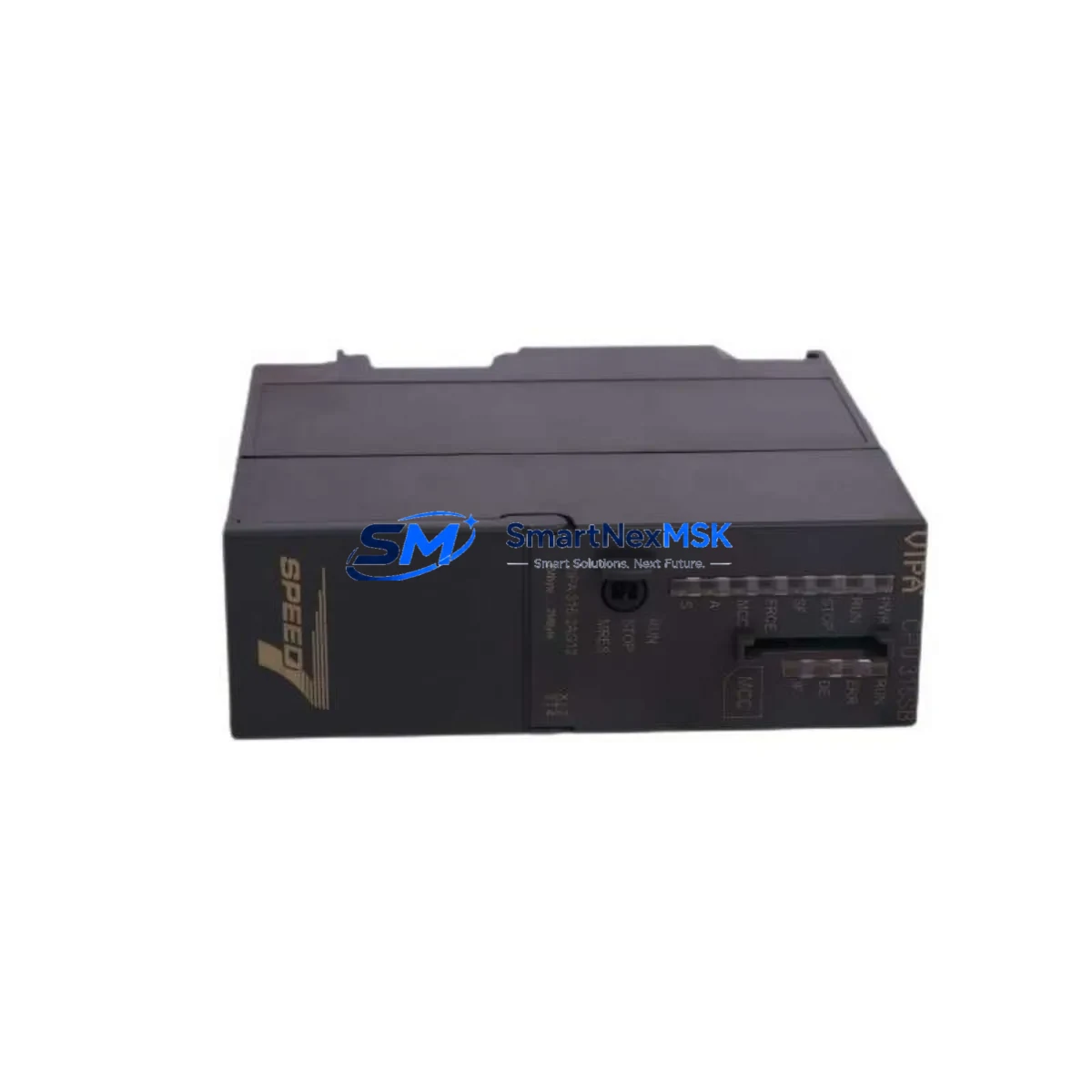

The VIPA 315-2AG12 is a high-performance SPEED7 CPU module — designated 315SB/DPM — engineered for demanding industrial automation environments where unplanned downtime carries significant operational and financial consequences. As an original spare part, this unit is fully compatible with Siemens S7-315 hardware architectures, enabling maintenance engineers to execute a direct, drop-in replacement without reprogramming or hardware reconfiguration. Whether you are managing a planned shutdown, responding to an emergency fault, or building a resilient spare parts inventory for a critical production line, the VIPA 315-2AG12 delivers the reliability and compatibility assurance that industrial maintenance teams require.

Sourced directly from authorized supply channels and subjected to pre-shipment functional verification, every unit shipped by SMARTNEXMSK carries a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions. Our logistics infrastructure supports fast global dispatch, ensuring that your replacement module reaches site within the shortest possible lead time — a critical factor when production assets are offline.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a VIPA 315-2AG12 CPU module is flagged for replacement — whether through predictive diagnostics, cyclic inspection, or an unplanned fault event — experienced maintenance engineers understand that the CPU is rarely the only component requiring attention. A thorough site assessment during the replacement window significantly reduces the risk of repeat failures and secondary downtime.

Begin by inspecting the VIPA SPEED7 power supply module (such as the VIPA 307-1EA00 or equivalent PS 307 series) that feeds the CPU rack. Voltage ripple, capacitor aging, and thermal stress on the power supply are common root causes of CPU instability that may be misdiagnosed as CPU failure. Simultaneously, verify the condition of the PROFIBUS-DP network cable and connectors — the 315-2AG12’s integrated DP Master port is sensitive to termination resistance errors and cable impedance mismatches that can cause intermittent communication faults.

The VIPA 321-series digital input modules and 322-series digital output modules installed in the same rack should be inspected for blown fuses, damaged terminal blocks, and degraded optocoupler response times. I/O modules in high-cycle applications often reach end-of-life before the CPU itself, and replacing the CPU without auditing the I/O rack can result in persistent process errors post-restart. Pay particular attention to any VIPA 331-series analog input modules connected to process sensors — signal drift and ground loop issues in analog channels are frequently masked by CPU fault codes.

For systems utilizing VIPA 340-series PROFIBUS communication modules or CP 343-compatible Ethernet modules, verify firmware version compatibility with the replacement 315-2AG12 CPU. Firmware mismatches between the CPU and communication processors can prevent network initialization after a CPU swap. If the control cabinet includes VIPA HMI panels (such as the VIPA 605-series or compatible TP/OP units), confirm that the HMI project’s PLC connection parameters reference the correct CPU slot address and DP node ID.

Additionally, inspect the 24 VDC distribution rail and miniature circuit breakers supplying field devices. Overcurrent events that triggered the original CPU fault may have caused latent damage to Phoenix Contact or Weidmüller terminal blocks and associated signal isolators in the I/O marshalling zone. Replacing these low-cost components during the same maintenance window prevents future nuisance trips. Finally, check the MMC (Micro Memory Card) seated in the 315-2AG12 — the program backup card should be verified for data integrity before the replacement CPU is powered up for the first time.

Site Replacement Workflow

Step 1 — Pre-Replacement Preparation: Back up the existing CPU program via STEP 7 or SPEED7 Studio if the CPU is still partially functional. Confirm the MMC contains the latest validated program version. Document the current rack slot configuration, DP node addresses, and I/O module order.

Step 2 — Safe Isolation: Follow your site’s Lockout/Tagout (LOTO) procedure. De-energize the control cabinet and discharge any residual voltage on the 24 VDC bus. Remove the faulty 315-2AG12 by releasing the DIN rail locking mechanism and disconnecting the bus connector.

Step 3 — Module Installation: Insert the replacement VIPA 315-2AG12 into the same rack slot. Reconnect the bus connector and verify that the module is firmly seated. Transfer the MMC from the old unit (if intact) or insert a pre-programmed MMC with the validated project backup.

Step 4 — Power-Up and Diagnostics: Re-energize the rack and observe the CPU’s LED status indicators. The VIPA 315-2AG12 should transition from STOP to RUN mode automatically if the MMC program is valid. Use STEP 7 or SPEED7 Studio to perform an online diagnostic — verify all I/O modules are recognized, DP slaves are communicating, and no hardware fault codes are active.

Step 5 — Functional Verification: Execute a controlled process test cycle to confirm that all field signals, interlocks, and HMI displays are operating correctly. Document the replacement in your CMMS (Computerized Maintenance Management System) and update the spare parts inventory record.

This structured workflow minimizes total downtime, eliminates re-work caused by overlooked secondary faults, and ensures full system compatibility is maintained after the CPU replacement.

Spare Parts Support FAQ

Q1: Is the VIPA 315-2AG12 a direct drop-in replacement for a Siemens S7-315 CPU?
Yes. The VIPA 315-2AG12 (CPU 315SB/DPM) is hardware-compatible with the Siemens S7-300 rack and electrically interchangeable with S7-315 series CPUs. It supports STEP 7 programming and can also be programmed with VIPA’s SPEED7 Studio for enhanced performance. No rack modification is required for a standard slot replacement.

Q2: What is included in the 12-month warranty and how is a warranty claim processed?
Every VIPA 315-2AG12 unit shipped by SMARTNEXMSK is covered by a 12-month warranty from the date of delivery. The warranty covers manufacturing defects and functional failures under normal operating conditions. To initiate a claim, contact sales@smartnexmsk.com with your order reference and a description of the fault. We will arrange return logistics and provide a replacement or repair within the agreed service timeline.

Q3: How do you verify the unit before shipment, and what documentation is provided?
All units undergo pre-shipment functional testing to confirm power-up, memory integrity, and communication port operation. A test report is available upon request. Each shipment includes the module, original packaging where available, and a packing list. CE declaration and product datasheets can be provided for customs and engineering documentation purposes.

Q4: Can SMARTNEXMSK support long-term or recurring spare parts supply for the VIPA SPEED7 platform?
Yes. SMARTNEXMSK maintains stock of VIPA SPEED7 series modules and can support scheduled procurement programs for maintenance teams managing multiple sites or aging automation systems. Contact us at sales@smartnexmsk.com or +86 18259474341 to discuss volume pricing, reserved stock agreements, and lead time commitments tailored to your maintenance planning cycle.
