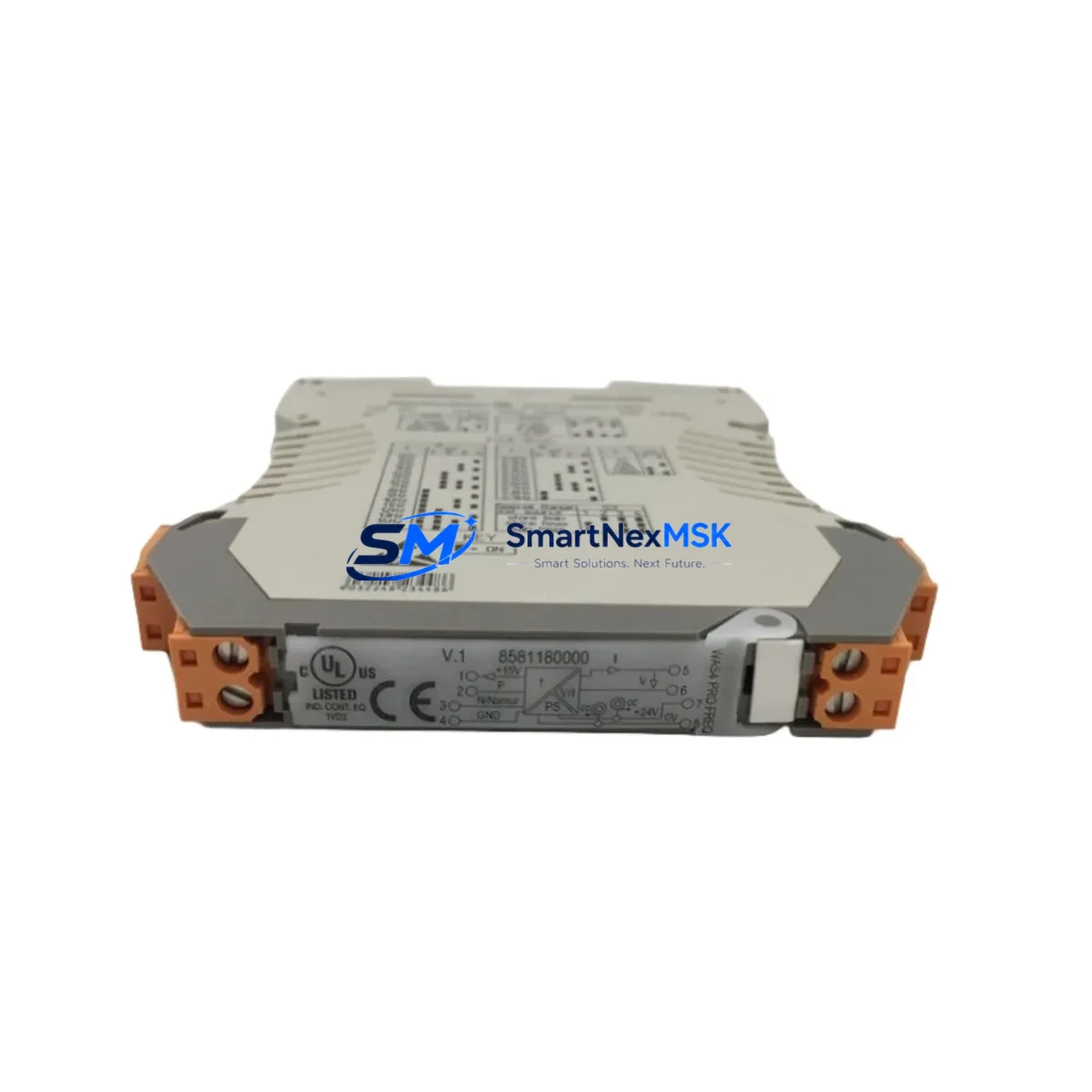

WEIDMULLER 8581180000 ACT20X Retrofit-Ready Signal Isolator

WEIDMULLER 8581180000 ACT20X Retrofit-Ready Frequency Signal Isolator for Legacy Control Systems

The WEIDMULLER 8581180000 is a high-precision frequency signal isolating converter from the ACT20X series, engineered to serve as a direct retrofit replacement for aging signal conditioning modules in industrial automation environments. Whether you are upgrading a legacy DCS panel, modernizing a PLC-based control cabinet, or restoring a discontinued signal chain, the ACT20X platform delivers galvanic isolation, configurable input/output ranges, and DIN-rail mounting compatibility that makes it the preferred drop-in solution for system integrators and maintenance engineers worldwide.

This module accepts frequency or pulse signals from field sensors — including proximity switches, encoders, and flow meters — and converts them into isolated analog output signals (typically 0–10 V or 4–20 mA) suitable for direct connection to SIMATIC S7-300, S7-400, S7-1500, or equivalent PLC analog input modules. Its wide supply voltage tolerance (24 V DC ±25%) ensures compatibility with both older 24 V bus systems and modern PROFIBUS-powered control cabinets without requiring additional power conditioning hardware.

When replacing an older ACT20 or ACT series isolator, engineers should verify the terminal assignment against the existing wiring diagram. The ACT20X uses a standard 6-terminal screw connection block compatible with 0.14–2.5 mm² conductors, which aligns with most legacy panel wiring practices. No re-termination is typically required when replacing like-for-like within the ACT20X family, significantly reducing downtime during planned maintenance windows.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the WEIDMULLER 8581180000 into an existing control system requires a structured approach to ensure signal continuity and program compatibility. In a typical retrofit scenario, the 8581180000 replaces a failed or end-of-life frequency isolator mounted on a 35 mm DIN rail inside the control cabinet. Before removal of the old module, engineers should document the existing terminal wiring, confirm the input frequency range from the connected field device (e.g., a turbine flow meter or rotary encoder), and note the analog output scaling configured in the PLC program.

In systems built around a SIMATIC S7-300 with SM 331 analog input modules, the 4–20 mA output of the 8581180000 connects directly to the existing analog input channel without requiring changes to the PLC hardware configuration or the STEP 7 / TIA Portal program. Similarly, in Allen-Bradley ControlLogix or CompactLogix environments, the module’s 0–10 V output is compatible with standard 1756-IF16 or 1769-IF4 analog input cards, preserving existing ladder logic scaling blocks.

For panels that also include WEIDMULLER W-Series terminal blocks, ACT20X-UI-UI-S universal signal conditioners, or ACT20X-HART-AO-S HART signal converters, the 8581180000 slots into the same DIN rail segment without disrupting adjacent wiring. In multi-drop analog loops shared with Endress+Hauser or Yokogawa field transmitters, the galvanic isolation of the ACT20X prevents ground loop interference that commonly causes signal drift in aging control cabinets.

Where the retrofit involves migrating from a legacy PROFIBUS DP network to a PROFINET architecture, the 8581180000 serves as a stable analog bridge: field frequency signals are converted to 4–20 mA, fed into a PROFINET-compatible remote I/O station such as a SIMATIC ET 200SP or Beckhoff EK1100 EtherCAT coupler with analog input terminals, and then transmitted digitally to the new controller. This approach avoids the need to replace field wiring or sensors during the protocol migration phase, protecting the existing capital investment in field instrumentation.

Engineers planning a full control cabinet upgrade should also account for the WEIDMULLER ACT20X-24VDC-D power supply module to ensure stable 24 V DC rail voltage, and consider adding ACT20X-HART-UI-UI-S modules for any HART-enabled transmitters in the same loop. For I/O expansion, WEIDMULLER’s UR20 remote I/O system provides a modular platform that integrates cleanly with the ACT20X signal conditioning layer, supporting both PROFIBUS and PROFINET without requiring a full PLC replacement.

Downtime Control During System Migration

Minimizing production downtime is the primary concern during any signal isolator replacement or control system upgrade. The WEIDMULLER 8581180000 is designed to support hot-swap-style replacement procedures: because it is a passive signal conditioner with no internal program memory, there is no firmware upload or device configuration backup required before removal. The existing PLC program, HMI screen tags, and historian data mappings remain fully intact throughout the swap.

The recommended procedure is to perform the replacement during a scheduled maintenance window. First, place the PLC in manual or safe-state mode to prevent unintended actuator commands during the signal interruption. Disconnect the field sensor input terminals and the analog output terminals from the old module, noting the wire labels. Install the 8581180000 on the DIN rail, reconnect the terminals in the same order, and restore power. The module requires no warm-up time and begins converting signals within milliseconds of power application.

Before returning the system to automatic mode, verify the analog output value at the PLC input channel using the engineering workstation. Compare the live reading against the expected value from the field sensor to confirm correct scaling. If the output range was previously configured via DIP switches on the old module, replicate the same switch settings on the 8581180000 using the ACT20X configuration guide. For systems with redundant signal paths, the secondary channel can remain active during the swap, reducing the effective downtime to zero for critical process loops.

HMI screens connected to SIMATIC WinCC, iFIX, or Ignition SCADA platforms do not require tag remapping, as the PLC analog input address remains unchanged. Alarm setpoints, trend historians, and interlock logic continue to function without modification, ensuring that the control system returns to full automatic operation within minutes of completing the physical replacement.

Retrofit Support FAQ

Q1: Is the WEIDMULLER 8581180000 a direct replacement for older ACT20 series frequency isolators?
Yes. The 8581180000 is part of the ACT20X platform, which is the current-generation successor to the legacy ACT20 series. Terminal pinout and DIN rail footprint are compatible with most ACT20 installations. Verify the input frequency range and output signal type (voltage or current) before installation to confirm the specific variant matches your application requirements.

Q2: What wiring checks are required before commissioning?
Confirm that the field sensor output frequency falls within the configured input range of the module. Check that the analog output wiring polarity is correct at the PLC analog input card. Ensure the 24 V DC supply is within ±25% tolerance. Inspect terminal screw torque (recommended 0.5–0.6 Nm) to prevent intermittent signal loss after installation.

Q3: Will the replacement affect my existing PLC program or HMI configuration?
No. The 8581180000 is a hardware signal conditioner with no digital interface to the PLC. It does not appear as a device on PROFIBUS, PROFINET, or any other fieldbus network. The PLC analog input channel address, scaling parameters, and HMI tag assignments remain unchanged. No program modifications are required.

Q4: What does the 12-month warranty cover, and is pre-shipment testing performed?
All units are covered by a 12-month warranty against manufacturing defects from the date of shipment. Each module undergoes functional output verification and isolation resistance testing before dispatch. In the event of a warranty claim, replacement units are dispatched within 3 business days upon confirmation of the defect. Contact sales@smartnexmsk.com with your order reference and a description of the fault for warranty processing.
