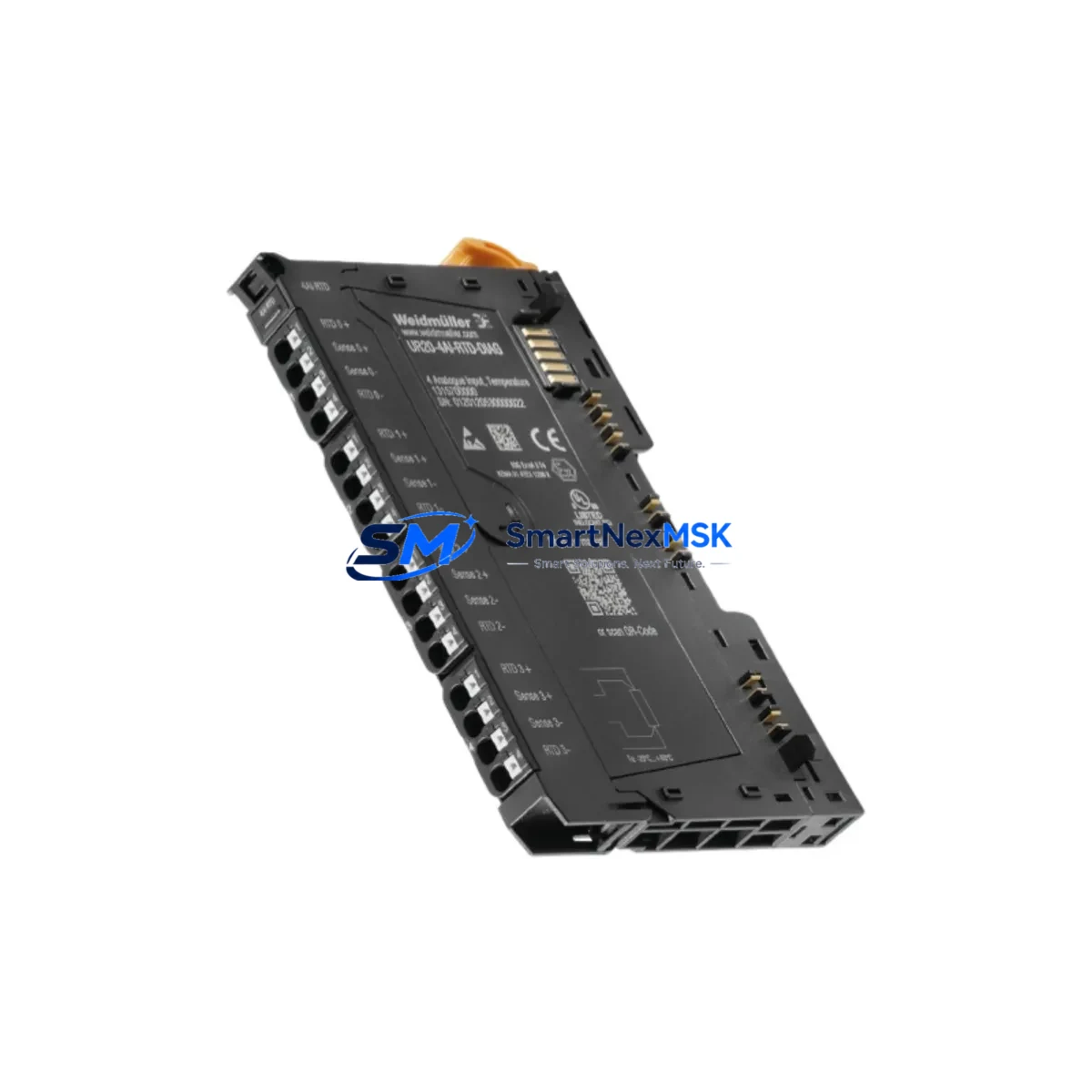

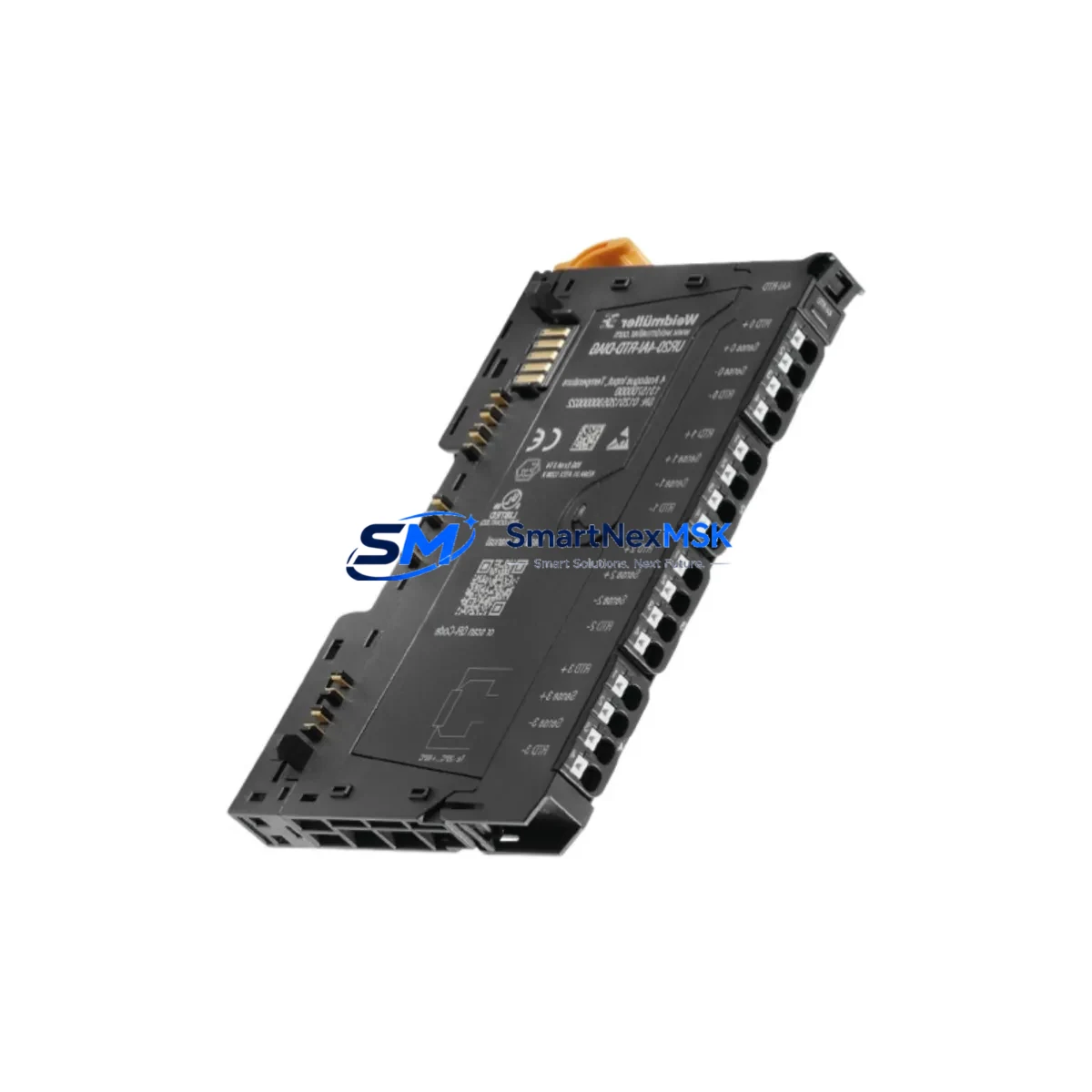

Weidmuller UR20-4AI-RTD-DIAG Retrofit-Ready RTD Input Module

Weidmuller UR20-4AI-RTD-DIAG Retrofit-Ready RTD Input Module for u-remote UR20 Control Systems

The Weidmuller UR20-4AI-RTD-DIAG is a 4-channel RTD/thermocouple analog input module engineered for the u-remote UR20 distributed I/O platform. Designed with retrofit and system modernization in mind, this module delivers a direct, drop-in upgrade path for aging or discontinued analog input configurations within existing UR20 control architectures. Whether you are replacing a failed module on a running production line or executing a planned migration from an older Weidmuller I/O generation, the UR20-4AI-RTD-DIAG provides the compatibility, diagnostic depth, and signal accuracy that industrial retrofit projects demand.

For engineers managing legacy automation infrastructure, the UR20-4AI-RTD-DIAG eliminates the guesswork from analog input replacement. Its integrated channel-level diagnostics — including wire-break detection, short-circuit monitoring, and out-of-range signal alerts — allow maintenance teams to identify faults without removing the module from the backplane, dramatically reducing troubleshooting time during system migration windows. The module supports PT100, PT200, PT500, PT1000, Ni100, Ni120, and a range of thermocouple types, making it suitable for temperature measurement applications across diverse process environments.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the UR20-4AI-RTD-DIAG begins with a thorough review of the existing UR20 system architecture. The first step is to confirm the firmware version of the UR20 fieldbus coupler — such as the UR20-FBC-PN-IRT for PROFINET or the UR20-FBC-EIP for EtherNet/IP — as older coupler firmware versions may require an update to correctly enumerate the DIAG variant’s extended diagnostic data objects. This is a non-invasive step that can be completed during a scheduled maintenance window without disturbing field wiring.

Terminal wiring is one of the most critical compatibility checkpoints. The UR20-4AI-RTD-DIAG uses the standard UR20 push-in terminal base, which is mechanically identical to earlier UR20 analog input bases. In most cases, existing field cables can be reconnected directly without re-termination, provided the original wiring followed the 3-wire or 4-wire RTD convention. For 2-wire installations, engineers should verify that the compensation offset configured in the controller program accounts for lead resistance, as the DIAG variant’s higher resolution will expose measurement errors that older modules may have masked.

On the controller side, the PLC program — whether running on a Siemens S7-300, S7-1500, Allen-Bradley CompactLogix, or a Schneider Electric Modicon M340 — will need to have its I/O configuration updated to reflect the new module’s GSD or EDS file. The UR20-4AI-RTD-DIAG’s GSD file is available from Weidmuller’s engineering portal and maps cleanly to the same process data structure used by its predecessor, meaning that existing ladder logic or function block diagrams referencing the analog input addresses typically require no modification beyond the hardware configuration update in the engineering tool.

For systems that also include UR20-4AO-UI or UR20-8AI-I-16-DIAG analog output and input modules in the same rack, the retrofit sequence should proceed channel by channel rather than replacing all modules simultaneously. This staged approach allows the control system to remain in a known-good state while each module is validated individually. Similarly, if the system includes UR20-2FCNT-100 counter modules or UR20-4DI-P digital input modules sharing the same backplane segment, their process data addresses remain unaffected by the analog input module swap.

HMI screens connected via the PROFINET coupler — whether a Siemens TP700 Comfort, a Weintek MT8000 series, or a Proface GP4000 panel — will continue to display temperature values correctly after the module swap, provided the PLC tag addresses are preserved. If the HMI reads diagnostic status bits directly from the module’s status word, the DIAG variant exposes additional diagnostic bits that may trigger new alarm conditions if the HMI alarm configuration is not updated accordingly. This is a straightforward configuration task in the HMI engineering software and does not require on-site panel work.

Communication link integrity should be verified after module installation using the coupler’s built-in web diagnostic interface, which provides real-time module status, process data values, and diagnostic event logs. This step confirms that the UR20-4AI-RTD-DIAG has been correctly recognized by the coupler and that all four channels are reporting valid measurement data before the system is returned to automatic operation.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any retrofit involving the UR20-4AI-RTD-DIAG in a live production environment. The recommended approach is to pre-configure the replacement module offline using a spare UR20 coupler and a laptop running the Weidmuller u-remote configuration tool or the relevant PLC engineering software. By loading the updated hardware configuration and verifying the module’s diagnostic response in a bench environment before the scheduled maintenance window, the on-site swap can be completed in under 15 minutes.

The UR20 platform’s hot-swap capability — supported on most UR20 coupler variants when the system is configured for module replacement mode — allows the UR20-4AI-RTD-DIAG to be inserted and removed from the backplane without powering down the entire I/O station. This is particularly valuable in multi-zone control cabinets where other I/O modules, such as UR20-4DO-P digital output modules or UR20-2PWM-PN power management modules, must remain operational during the analog input replacement.

Before initiating the swap, the control program should be placed in manual mode or the affected control loops should be transferred to a safe fallback setpoint. Temperature control loops relying on RTD feedback from the UR20-4AI-RTD-DIAG should be switched to manual output with the last known good value held, preventing process upsets during the brief period when the module is offline. After reinstallation, a channel-by-channel comparison of the new module’s readings against a calibrated reference thermometer confirms measurement accuracy before the loops are returned to automatic control.

All pre-shipment testing records and the 12-month warranty documentation are included with each UR20-4AI-RTD-DIAG unit supplied by SMARTNEXMSK, providing the traceability required for maintenance records and audit compliance in regulated industries.

Retrofit Support FAQ

Q1: Is the UR20-4AI-RTD-DIAG a direct drop-in replacement for older Weidmuller UR20 RTD analog input modules?
A: Yes. The UR20-4AI-RTD-DIAG is mechanically and electrically compatible with the standard UR20 backplane and terminal base system. It replaces earlier UR20 RTD analog input variants without requiring new terminal bases or backplane adapters. A GSD/EDS file update in the PLC hardware configuration is required to enable the extended diagnostic features.

Q2: What compatibility verification is required before installation?
A: Confirm the UR20 fieldbus coupler firmware version supports the DIAG module variant, verify the wiring configuration (2/3/4-wire RTD), and update the PLC hardware configuration with the correct GSD or EDS file. No physical wiring changes are required in most 3-wire or 4-wire installations.

Q3: Does each unit undergo pre-shipment testing?
A: Yes. Every UR20-4AI-RTD-DIAG supplied by SMARTNEXMSK is functionally tested prior to shipment, covering channel measurement accuracy, diagnostic response, and backplane communication. Test records are available upon request.

Q4: What warranty and long-term supply support is provided?
A: Each unit carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. SMARTNEXMSK maintains stock of the UR20-4AI-RTD-DIAG and related UR20 series components to support long-term spare parts programs and planned retrofit projects. Contact our team for volume pricing and scheduled delivery arrangements.
