WOODHEAD SST-DN3-PCU-1 Spare for SST Automation

WOODHEAD SST-DN3-PCU-1 Maintenance-Ready Spare for SST Automation

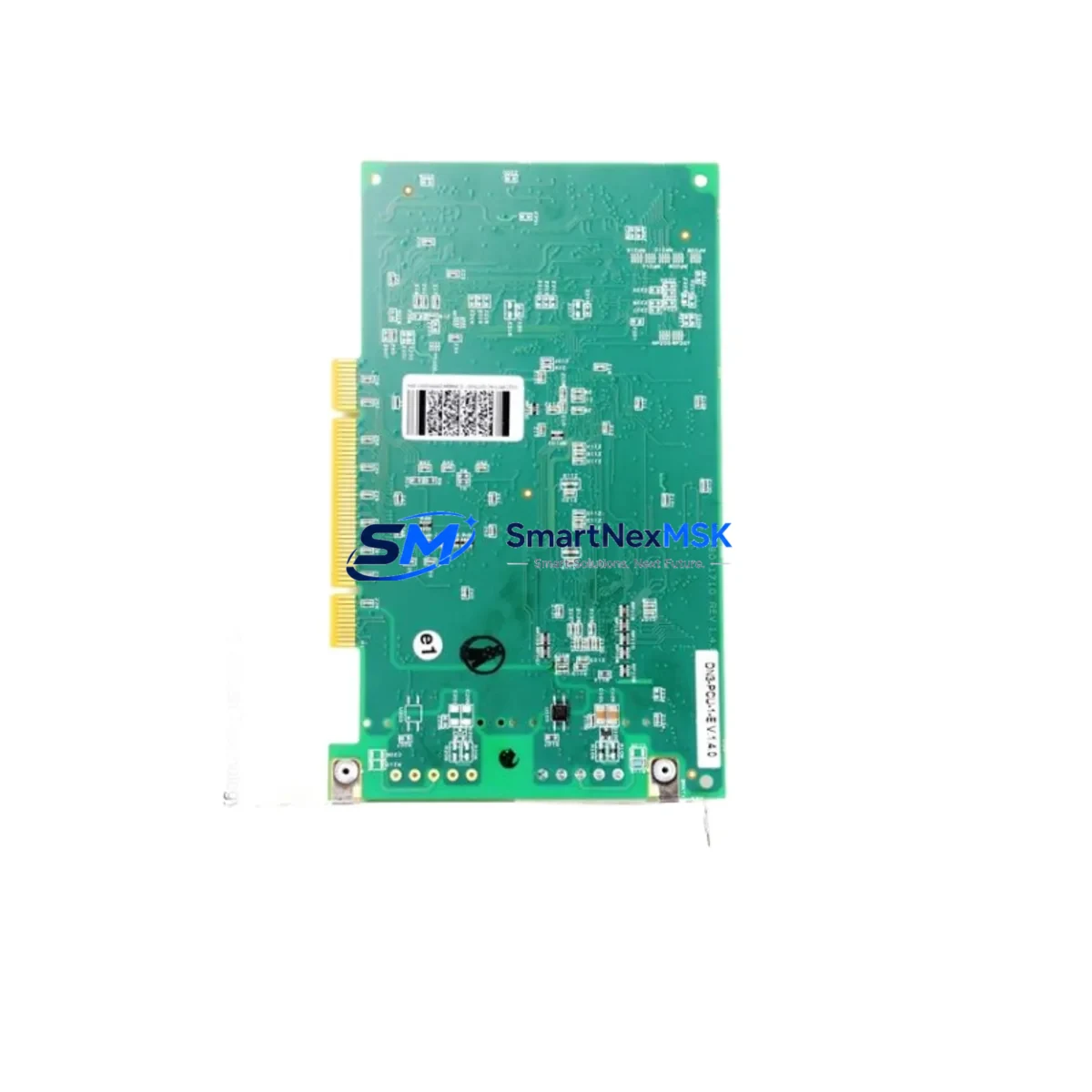

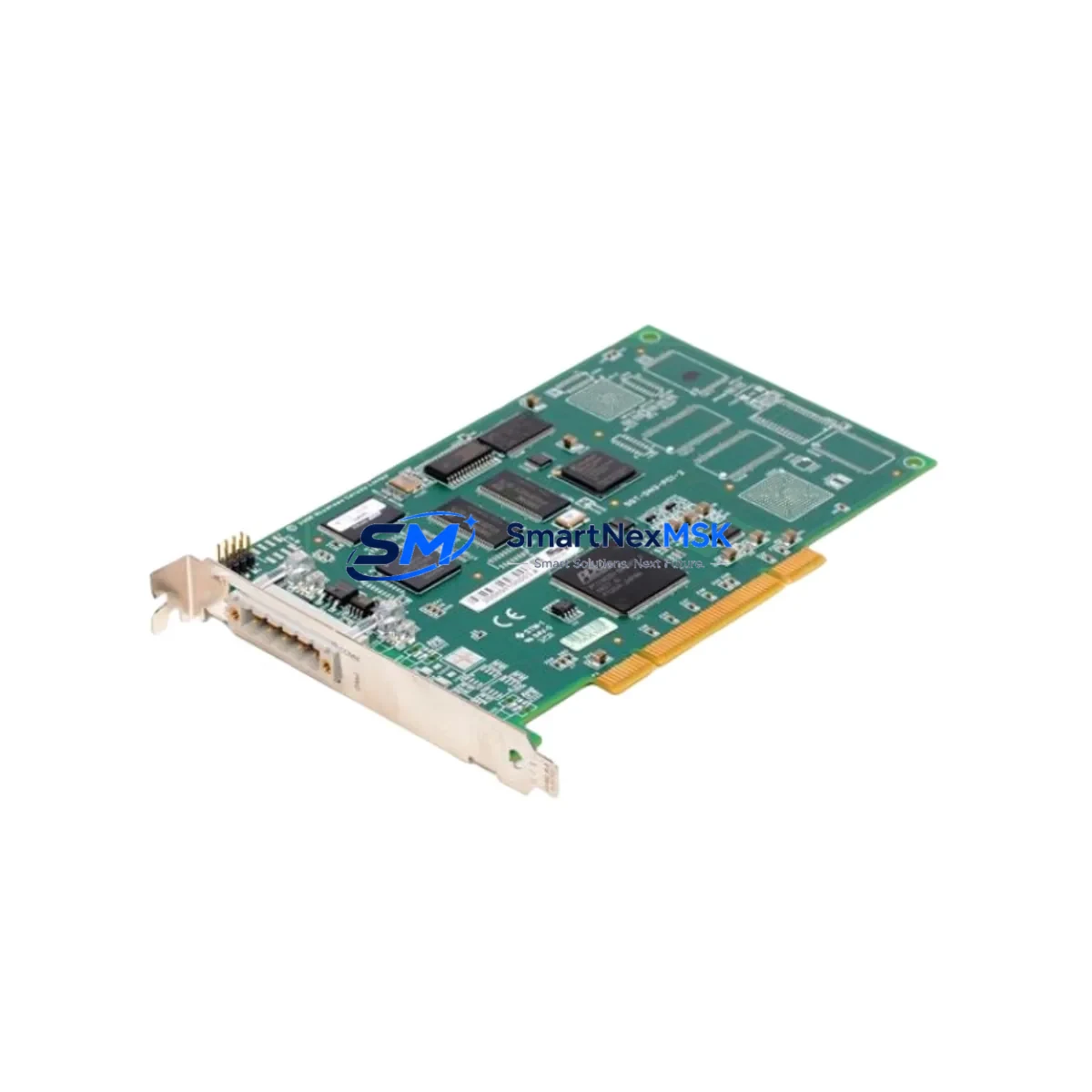

The WOODHEAD SST-DN3-PCU-1 is an original DeviceNet PCI interface card engineered for industrial automation environments where network reliability and minimal downtime are non-negotiable. As a maintenance-ready spare, this card is sourced, inspected, and dispatched to support rapid replacement in active DeviceNet control architectures. Whether you are managing a scheduled overhaul, responding to an unplanned network fault, or building a strategic spare parts inventory, the SST-DN3-PCU-1 delivers the compatibility, signal integrity, and long-term supply assurance that maintenance and procurement engineers depend on.

DeviceNet PCI interface cards are a critical communication bridge between the host PC or industrial workstation and the DeviceNet field bus network. When an SST-DN3-PCU-1 fails or degrades, the entire DeviceNet segment — including connected drives, sensors, valve manifolds, and remote I/O nodes — can become unreachable from the supervisory layer. Rapid spare availability is therefore essential to restoring production continuity and avoiding cascading downtime across the automation cell.

This unit is tested prior to dispatch, supplied with a 12-month warranty, and supported by long-term sourcing infrastructure to ensure repeat availability for multi-site maintenance programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the SST-DN3-PCU-1 in a live industrial environment, a disciplined maintenance approach requires more than a card swap. Maintenance engineers should treat this replacement as an opportunity to audit the entire DeviceNet communication chain and the surrounding control cabinet infrastructure.

Begin by verifying the DeviceNet trunk cable and drop cable integrity — damaged shielding or loose termination resistors at either end of the network segment are a common root cause of intermittent communication faults that are often misattributed to the interface card itself. Confirm that the DeviceNet power supply (typically a dedicated 24 VDC network power supply, separate from the control power rail) is within specification and free of ripple or voltage sag under load.

Inspect the PCI slot and backplane connector on the host workstation or industrial PC for oxidation, bent pins, or mechanical stress. If the host system is aging, consider whether the industrial PC chassis or embedded controller itself is approaching end-of-service life and whether a companion spare should be stocked alongside the SST-DN3-PCU-1.

On the DeviceNet network segment, check the status of connected remote I/O adapter modules and DeviceNet scanner modules in the PLC rack — these are frequently the next components to exhibit faults following a communication card failure. If the system includes a Rockwell Automation 1756-DNB or 1771-SDN DeviceNet scanner, verify its node configuration and health indicators as part of the same maintenance window.

For control cabinets housing the host PC, inspect terminal blocks and DIN rail wiring for loose connections, particularly on the DeviceNet connector (Mini or Micro style). Review the condition of cabinet cooling fans and filters — thermal stress is a leading cause of PCI card degradation in enclosed industrial enclosures. If the cabinet includes signal isolators or surge protection devices on the DeviceNet trunk, verify their condition and replace any that show signs of clamping fatigue.

For facilities running extended DeviceNet networks across multiple zones, maintaining a minimum of one SST-DN3-PCU-1 spare per site — alongside compatible DeviceNet termination resistors, network taps, and node commissioning tools — is a recognized best practice for reducing mean time to repair (MTTR) in the event of an unplanned outage.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Document the current node address, baud rate, and I/O mapping configuration of the existing SST-DN3-PCU-1 using the SST Configuration Utility or RSNetWorx for DeviceNet before powering down the host system. Export the EDS file and network configuration backup.

Step 2 — Safe shutdown: Place the DeviceNet network in a safe state. Notify the control system operator and, where applicable, engage the machine safety interlock or place the PLC in program mode to prevent unintended actuator movement during the communication interruption.

Step 3 — Card removal and installation: Power down the host PC or workstation. Remove the faulty SST-DN3-PCU-1 from the PCI slot. Inspect the slot for debris or damage. Seat the replacement card firmly and secure the bracket. Reconnect the DeviceNet cable to the card’s DB9 or open-style connector.

Step 4 — Driver and configuration restore: Power up the host system. Install or confirm the SST DeviceNet driver is recognized. Restore the node address and baud rate settings. Re-import the network configuration and verify all nodes are online in RSNetWorx or the equivalent commissioning tool.

Step 5 — Functional test: Cycle the PLC or DCS scanner through an online scan. Confirm all DeviceNet nodes report healthy status. Verify I/O data exchange is active and within expected parameters before returning the system to automatic operation.

This workflow is designed to minimize downtime and ensure the replacement SST-DN3-PCU-1 is fully commissioned before production resumes — typically achievable within one to two hours for a prepared maintenance team with the spare on hand.

Spare Parts Support FAQ

Q1: Is the SST-DN3-PCU-1 still available as a new or original spare, and what is the lead time?
Yes. We maintain stock of original SST-DN3-PCU-1 units sourced through verified supply channels. Standard lead time for in-stock units is 3–7 business days for international shipments. Express dispatch options are available for emergency maintenance situations. Each unit is tested prior to shipment and covered by a 12-month warranty from the date of delivery.

Q2: How do I confirm compatibility with my existing DeviceNet network before ordering?
The SST-DN3-PCU-1 is compatible with any DeviceNet network operating at 125, 250, or 500 kbps baud rates and is designed for installation in standard 32-bit PCI slots. Compatibility with your host PC or workstation should be confirmed by checking the available PCI slot type and the operating system version against the SST driver support matrix. If you can provide your system configuration details, our technical team can confirm compatibility before order placement.

Q3: What pre-shipment testing is performed on each unit?
Every SST-DN3-PCU-1 dispatched from our inventory undergoes functional verification including PCI interface continuity checks, DeviceNet transceiver signal testing, and driver recognition confirmation on a reference system. Units that do not pass testing are not dispatched. A test report summary is available upon request for quality-critical procurement processes.

Q4: Can you support ongoing spare parts requirements for multi-site maintenance programs?
Yes. We support blanket order arrangements, scheduled replenishment, and reserved stock agreements for maintenance teams managing multiple facilities or aging DeviceNet installations. Long-term supply continuity for the SST-DN3-PCU-1 and related SST series components is a core part of our industrial spare parts service model. Contact our team to discuss volume pricing and inventory reservation options.
