WOODWARD 5466-253 Safety-Enhanced Analog TMR I/O Module

WOODWARD 5466-253 Safety-Enhanced Analog TMR I/O Module: Reliable Control in Harsh Industrial Sites

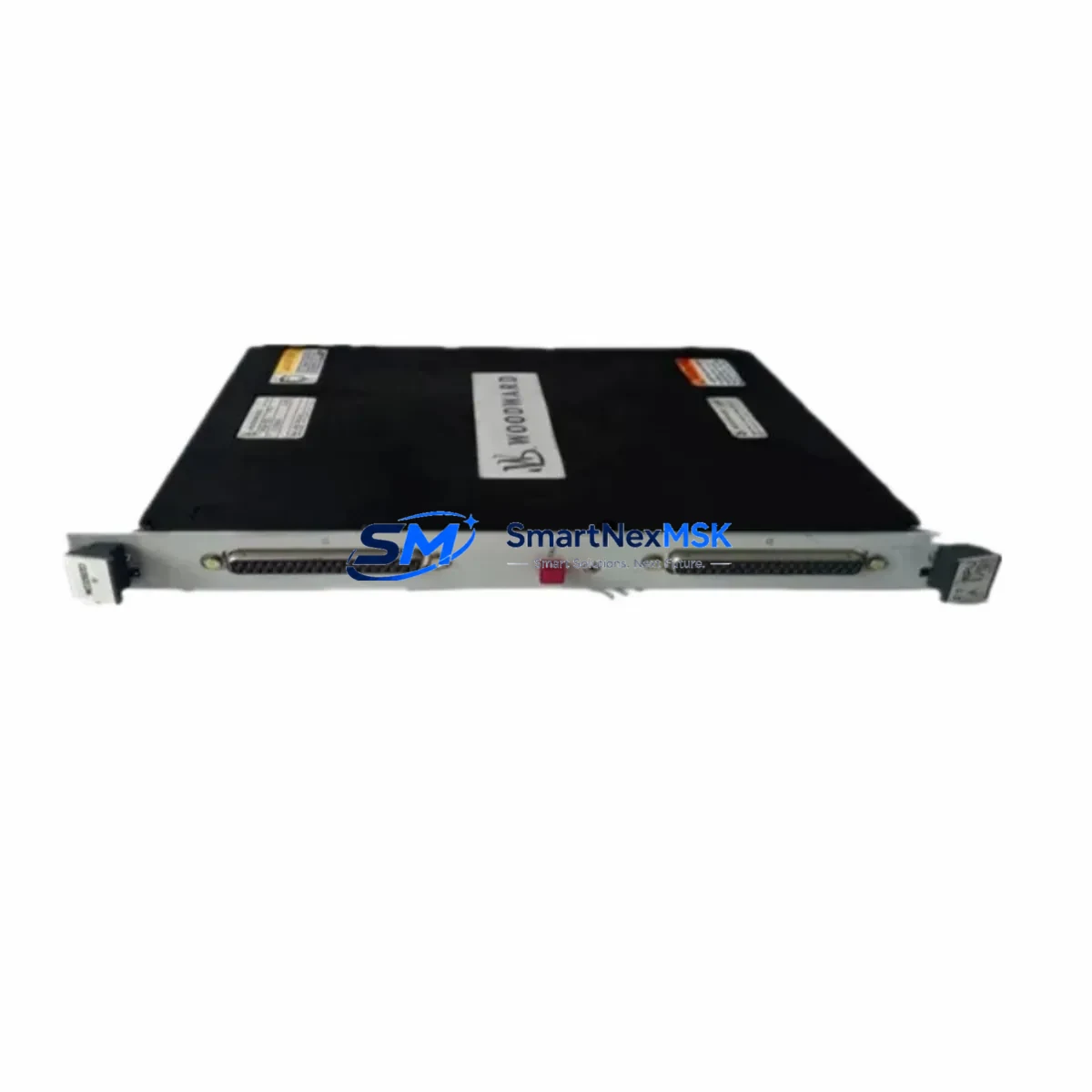

The WOODWARD 5466-253 is a Triple Modular Redundancy (TMR) Analog I/O Module engineered for mission-critical industrial control environments where signal integrity, continuous uptime, and functional safety are non-negotiable. Designed to operate within WOODWARD’s proven TMR architecture, this module delivers fault-tolerant analog signal processing across three independent voting channels, ensuring that no single-point hardware failure can interrupt a safety-critical control loop. Whether deployed in turbine governor systems, compressor control panels, or emergency shutdown (ESD) interlocks, the 5466-253 maintains deterministic output even under extreme electrical noise, power fluctuations, and thermal stress.

In high-load continuous production facilities — petrochemical plants, power generation stations, offshore platforms, and metallurgical processing lines — analog I/O modules are among the most failure-sensitive components in a control cabinet. Signal drift, ground loops, common-mode interference, and surge transients can cause false trips, missed alarms, or undetected process deviations. The WOODWARD 5466-253 addresses each of these failure modes through hardware-level redundancy, isolated analog channels, and onboard diagnostics that continuously cross-check channel outputs. When one channel deviates beyond tolerance, the TMR voting logic isolates it without interrupting the control output — a capability that is essential in applications where a spurious trip costs hundreds of thousands of dollars per hour.

Safety Reliability Table

Control Cabinet Protection Strategy

The WOODWARD 5466-253 does not operate in isolation — its safety value is maximized when integrated into a fully coordinated control cabinet architecture. In a typical TMR turbine or compressor control system, the 5466-253 analog I/O module works in concert with the WOODWARD 5466-258 Digital I/O Module, which handles discrete safety interlocks and solenoid valve commands. Upstream, a WOODWARD 5466-470 Power Supply Module provides triple-redundant 24 VDC rails, ensuring that no single power fault can collapse the I/O bus. The WOODWARD 5466-752 Communication Interface Module bridges the TMR backplane to Modbus RTU or PROFIBUS DP networks, maintaining supervisory visibility without introducing single-point communication failure risk.

For analog signal conditioning upstream of the 5466-253, engineers frequently pair it with WOODWARD 5466-231 Analog Input Conditioner Modules to filter thermocouple and RTD signals before they enter the TMR voting logic. On the output side, WOODWARD 5466-261 Analog Output Modules drive actuator positioners and control valves with the same fault-tolerant architecture. Surge protection at the field terminal level is reinforced by Phoenix Contact TRABTECH surge arresters or equivalent DIN-rail mounted SPDs, which clamp transient voltages before they reach the module’s I/O terminals.

In safety instrumented systems (SIS) designed to IEC 61511, the 5466-253 is often installed alongside Pepperl+Fuchs isolated barriers or MTL Instruments Zener barriers for intrinsically safe field wiring in Zone 1 and Zone 2 hazardous areas. The module’s galvanic isolation and high common-mode rejection ratio (CMRR) make it compatible with long cable runs in electrically noisy environments — a critical requirement in mining, offshore, and heavy steel production facilities where variable-frequency drives (VFDs) and large motor starters generate significant conducted and radiated interference. Proper grounding of the TMR chassis, combined with shielded twisted-pair field wiring terminated at a single-point ground bus, completes the cabinet-level EMC protection strategy.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In hydrocarbon processing, the WOODWARD 5466-253 is deployed in turbine-driven compressor trains and fired heater fuel gas control systems. Its TMR voting logic prevents spurious shutdowns caused by single-channel analog faults, while its SIL-rated architecture satisfies the functional safety requirements of IEC 61511 safety instrumented functions (SIFs) for high-demand mode operation.

Power Generation — Gas and Steam Turbines: WOODWARD’s TMR platform is the industry benchmark for turbine governor control. The 5466-253 handles speed, temperature, and pressure analog feedback signals within the governor loop, where a missed or erroneous signal can cause turbine overspeed or flame-out. Its 2-out-of-3 voting ensures the governor continues to operate correctly even with one degraded sensor channel.

Mining and Mineral Processing: In underground and surface mining operations, control systems face extreme vibration, dust ingress, and wide temperature swings. The 5466-253’s ruggedized construction and extended temperature range make it suitable for conveyor drive control, crusher automation, and ventilation fan management — all applications where unplanned downtime has direct safety and production cost implications.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on continuous analog monitoring of flow, pressure, pH, and chlorine dosing. The 5466-253 provides the signal integrity and fault tolerance required for critical dosing control loops, where an incorrect analog output could result in regulatory non-compliance or public health risk.

Metallurgy and Steel Production: Electric arc furnaces, rolling mills, and continuous casting lines operate under extreme electrical noise conditions generated by high-current switching equipment. The 5466-253’s galvanic isolation and surge suppression protect the control system from the conducted interference that routinely damages standard analog I/O modules in these environments.

Port and Terminal Automation: Ship-to-shore cranes, automated stacking cranes, and conveyor systems in port terminals require reliable analog control of variable-speed drives and load monitoring systems. The 5466-253 supports continuous operation in coastal environments with high humidity and salt-laden air, where corrosion and condensation are persistent reliability threats.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the WOODWARD 5466-253?
The 12-month warranty covers all manufacturing defects, component failures, and functional non-conformances under normal operating conditions. If the module fails to perform to its published specifications within the warranty period, we will repair or replace it at no charge. Warranty claims are processed with priority to minimize control system downtime.

Q2: What pre-shipment testing is performed on the 5466-253 before dispatch?
Every WOODWARD 5466-253 unit undergoes a full functional test protocol prior to shipment, including analog channel accuracy verification, TMR voting logic validation, isolation resistance measurement, and a burn-in cycle to screen for early-life component failures. A test report is available upon request for quality-critical procurement processes.

Q3: Is the WOODWARD 5466-253 compatible with existing WOODWARD TMR control system installations?
Yes. The 5466-253 is designed as a direct replacement module within the WOODWARD TMR platform backplane. It is backward-compatible with existing 5466-series chassis and power supply configurations. No firmware changes or backplane modifications are required for standard replacement installations. Always verify the firmware revision of your existing system against the module’s compatibility matrix before installation in safety-critical applications.

Q4: Can you guarantee long-term supply and replacement support for the 5466-253?
We maintain dedicated stock of the WOODWARD 5466-253 and key companion modules to support both planned maintenance schedules and emergency replacement requirements. Our procurement network covers both new and certified refurbished units, ensuring supply continuity even for legacy TMR installations. Contact our technical sales team to discuss blanket order arrangements or consignment stock programs for high-criticality sites.
