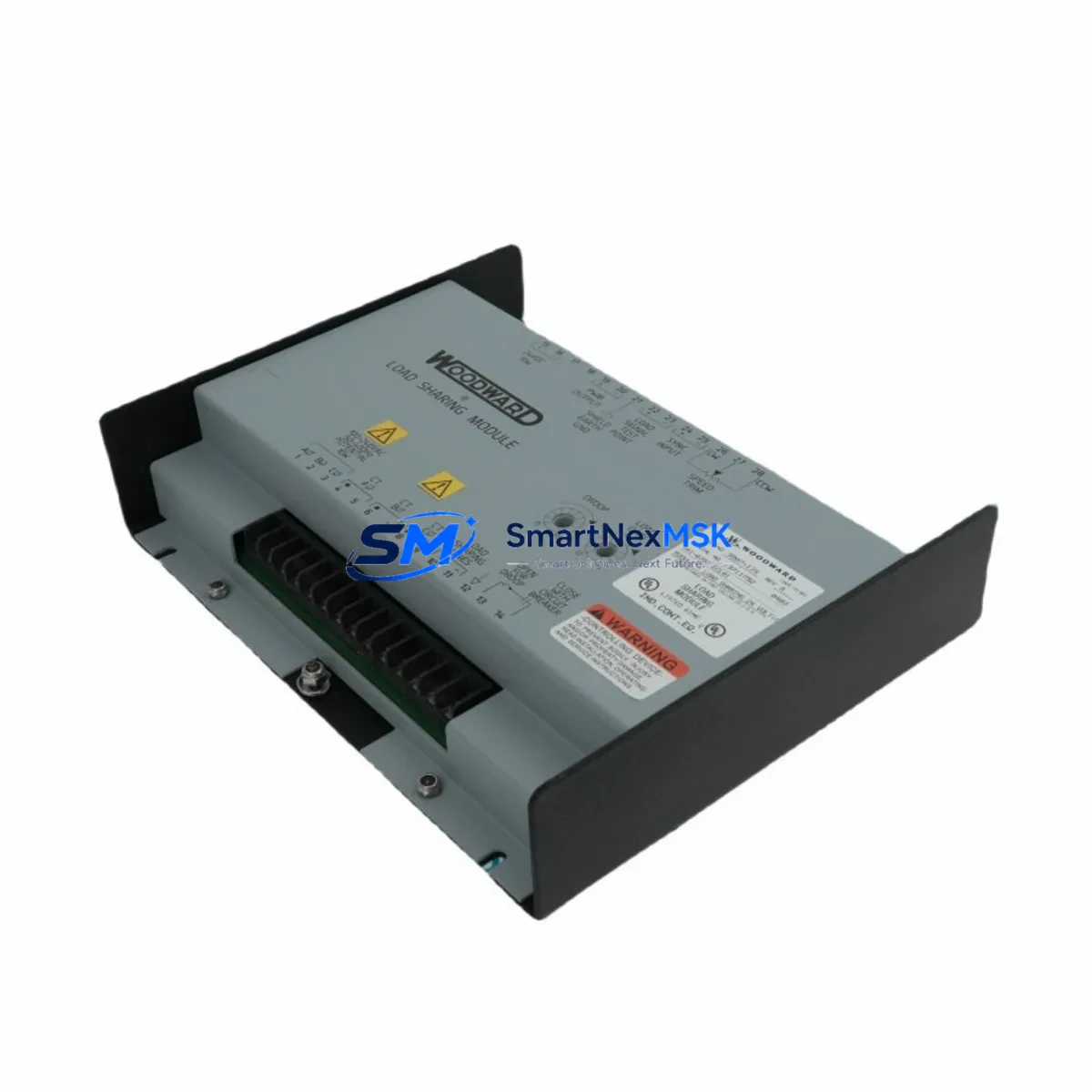

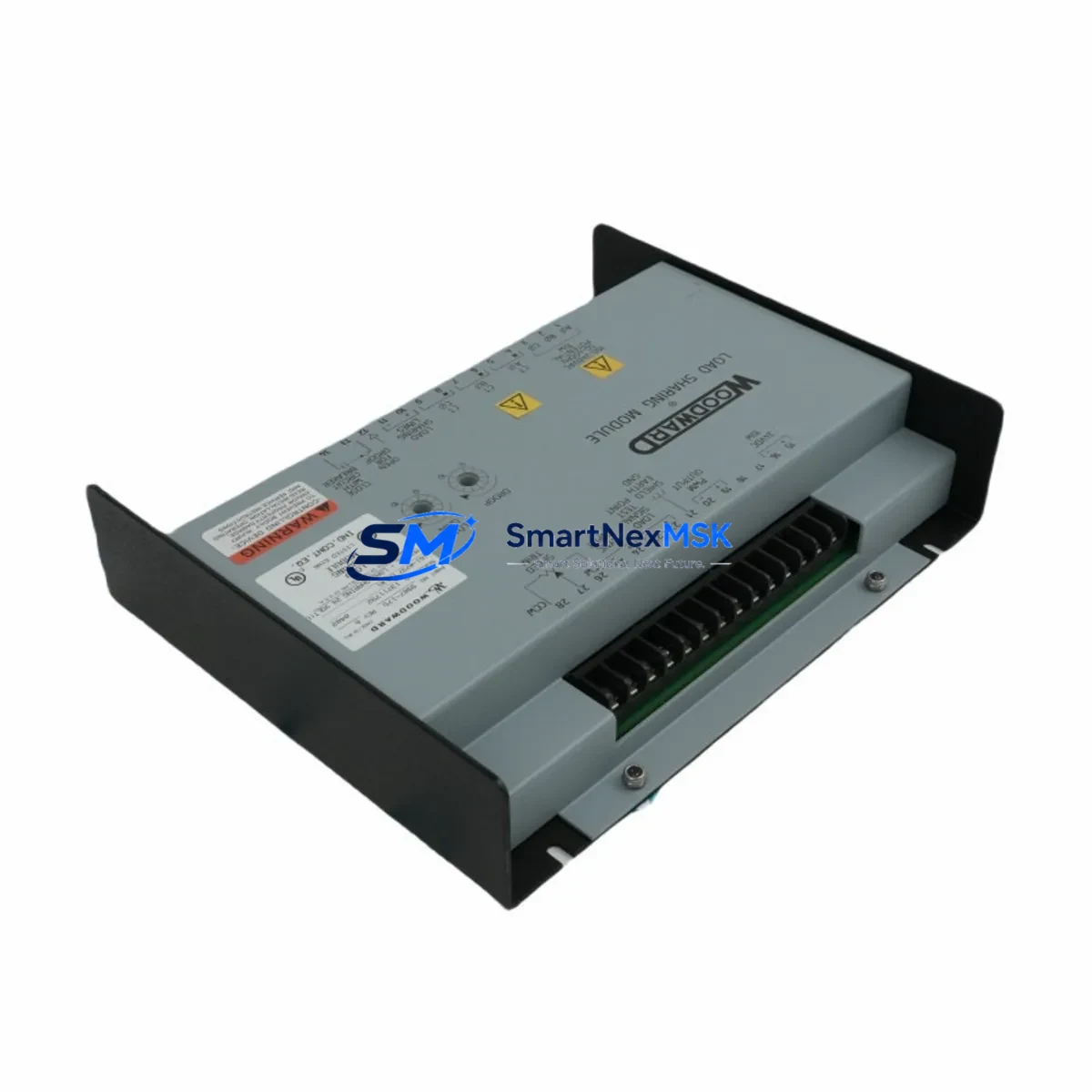

The Woodward 9907-175 Load Sharing Module is a critical spare part for EG Governor-based power generation and industrial automation systems. Designed for parallel generator sets and turbine control applications, this module ensures precise load distribution across multiple generating units, preventing overload conditions and protecting prime movers from unbalanced operation. For maintenance engineers managing aging governor control systems, having a verified replacement unit on the shelf is the single most effective strategy for minimizing unplanned downtime and accelerating fault recovery.

Whether you are conducting a scheduled annual inspection, responding to a load-sharing fault alarm, or executing an emergency swap during a plant outage, the 9907-175 is a direct-fit replacement that restores system stability without requiring panel rewiring or software reconfiguration. Our units are sourced from authorized channels, individually tested prior to dispatch, and backed by a 12-month warranty covering both component integrity and functional performance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the Woodward 9907-175 Load Sharing Module, a thorough site inspection of the surrounding control circuit is essential to prevent repeat failures and confirm system-wide integrity. Maintenance engineers should begin by verifying the 24 VDC power supply feeding the governor panel — a failing or undersized power supply module is a common root cause of load sharing instability that is frequently misdiagnosed as a module fault. Inspect the terminal blocks and wiring harness connected to the load sharing bus for signs of oxidation, loose crimps, or insulation breakdown, particularly in high-vibration environments.

The EG actuator (such as the EG-3P or EG-6P) should be tested for correct response to the analog control signal from the 9907-175. A sluggish or non-responsive actuator will mask the improvement from a new module and may cause the replacement unit to be incorrectly condemned. Similarly, the magnetic pickup sensor and its signal conditioner should be inspected for air gap compliance and output signal amplitude, as a degraded pickup signal directly affects governor speed sensing and load sharing accuracy.

For multi-generator paralleling panels, the load sharing lines connecting each 9907-175 unit across the bus should be checked for continuity and correct polarity. A reversed or open load sharing line will cause hunting or load swings even with a new module installed. If the panel includes a Woodward 2301A or 2301D speed control, verify that the droop setting and load sharing gain are correctly configured after module replacement. Relay output contacts for generator breaker control, reverse power protection relays, and synchronizing check relays should also be exercised and tested during the same maintenance window.

Where the control cabinet includes a Woodward 723 or 505 digital control, confirm that the analog I/O card interfacing with the load sharing module is functioning within calibration. Signal isolators between the governor output and the plant DCS or SCADA system should be inspected for drift. Fuse holders and MCBs protecting the governor power circuit should be replaced on a scheduled basis regardless of apparent condition, as thermal cycling causes contact degradation that is not visible during routine inspection.

Site Replacement Workflow

Step 1 — Isolation and Documentation: Before removing the 9907-175, photograph the existing wiring layout and record all terminal assignments. Isolate the governor panel from the generator control bus and confirm zero voltage at the module terminals using a calibrated multimeter.

Step 2 — Module Removal: Disconnect the plug-in terminal block from the 9907-175. Remove the module from its mounting position. Inspect the terminal block contacts for corrosion or deformation and clean or replace as required before installing the new unit.

Step 3 — Replacement Installation: Mount the new 9907-175 in the same orientation. Reconnect the terminal block, verifying wire positions against your documentation. Confirm that the load sharing bus connections to other parallel units are intact and correctly polarized.

Step 4 — Power-Up and Functional Test: Restore power to the governor panel. Observe the module status indicators. Bring the generator online at no-load and verify speed stability before connecting to the bus. Gradually apply load and confirm that load sharing between parallel units is balanced within the specified droop band.

Step 5 — System Handover: Record the replacement in the maintenance log with the new module serial number, installation date, and test results. Update the spare parts inventory to trigger reorder of a replacement 9907-175 for the next maintenance cycle.

This workflow is applicable to both planned maintenance outages and emergency fault recovery scenarios. The 9907-175 is a plug-compatible replacement for earlier EG Governor load sharing modules, requiring no firmware changes or panel modifications in standard installations.

Spare Parts Support FAQ

Q1: Is the 9907-175 compatible with all EG Governor series actuators?
The 9907-175 is designed for use with the full range of Woodward EG series actuators including the EG-3P, EG-6P, EG-10P, EG-3C, and EG-6C. It is also compatible with Woodward 2301-series speed controls used in parallel generator applications. If your installation uses a non-standard actuator or a third-party governor interface, please provide your panel schematic for compatibility confirmation before ordering.

Q2: What does the 12-month warranty cover?
The warranty covers component-level failures and functional defects under normal operating conditions for 12 months from the date of shipment. It includes free replacement or repair of the module if it fails to perform to specification. The warranty does not cover damage caused by incorrect installation, overvoltage, reverse polarity, or physical impact. All units are functionally tested before dispatch to minimize field failures.

Q3: How do I verify the module is functioning correctly after installation?
After installation, monitor the load sharing bus voltage with a multimeter while the generator is running at rated speed. The 9907-175 should produce a stable analog output proportional to the generator’s load. In a parallel configuration, all units on the bus should show balanced load distribution within the droop setting. If load hunting or oscillation is observed, check the load sharing line connections and the actuator response before suspecting the module.

Q4: Can you supply the 9907-175 for long-term or project-based procurement?
Yes. We maintain ongoing stock of the Woodward 9907-175 and can support both single-unit emergency orders and bulk procurement for planned maintenance programs or new project builds. Long-term supply agreements with scheduled delivery are available. Contact our team to discuss volume pricing, lead times, and consignment stock arrangements for critical spare parts programs.
