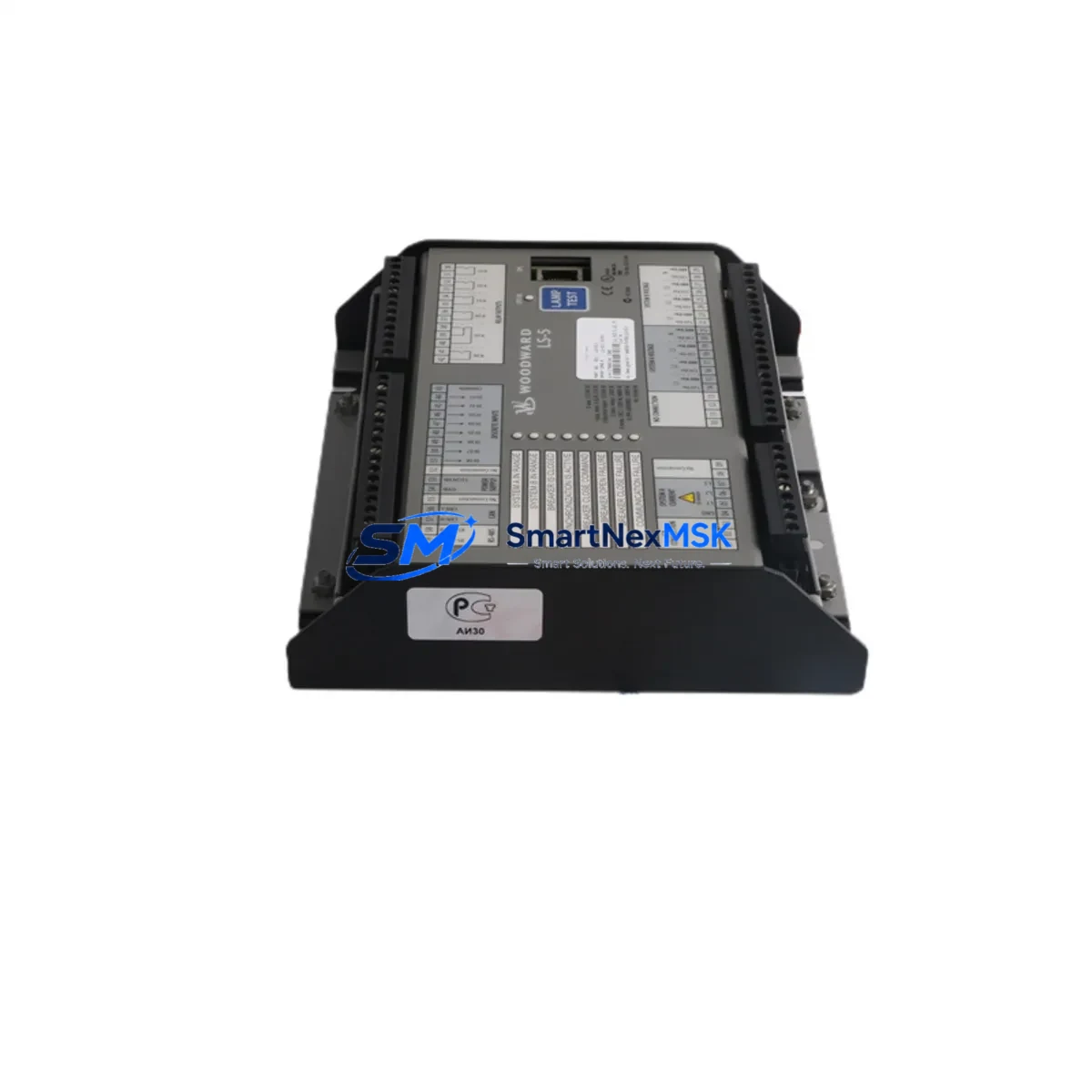

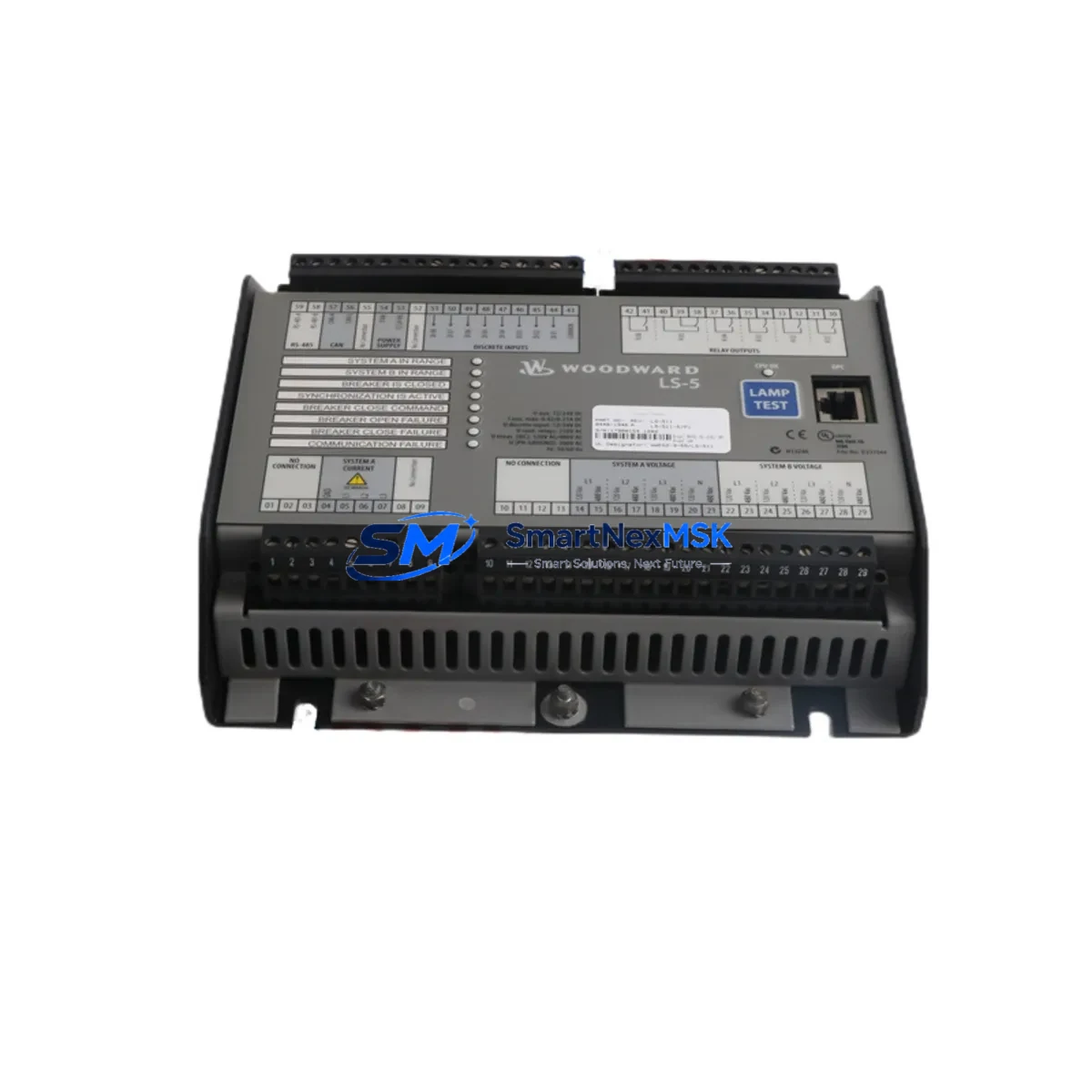

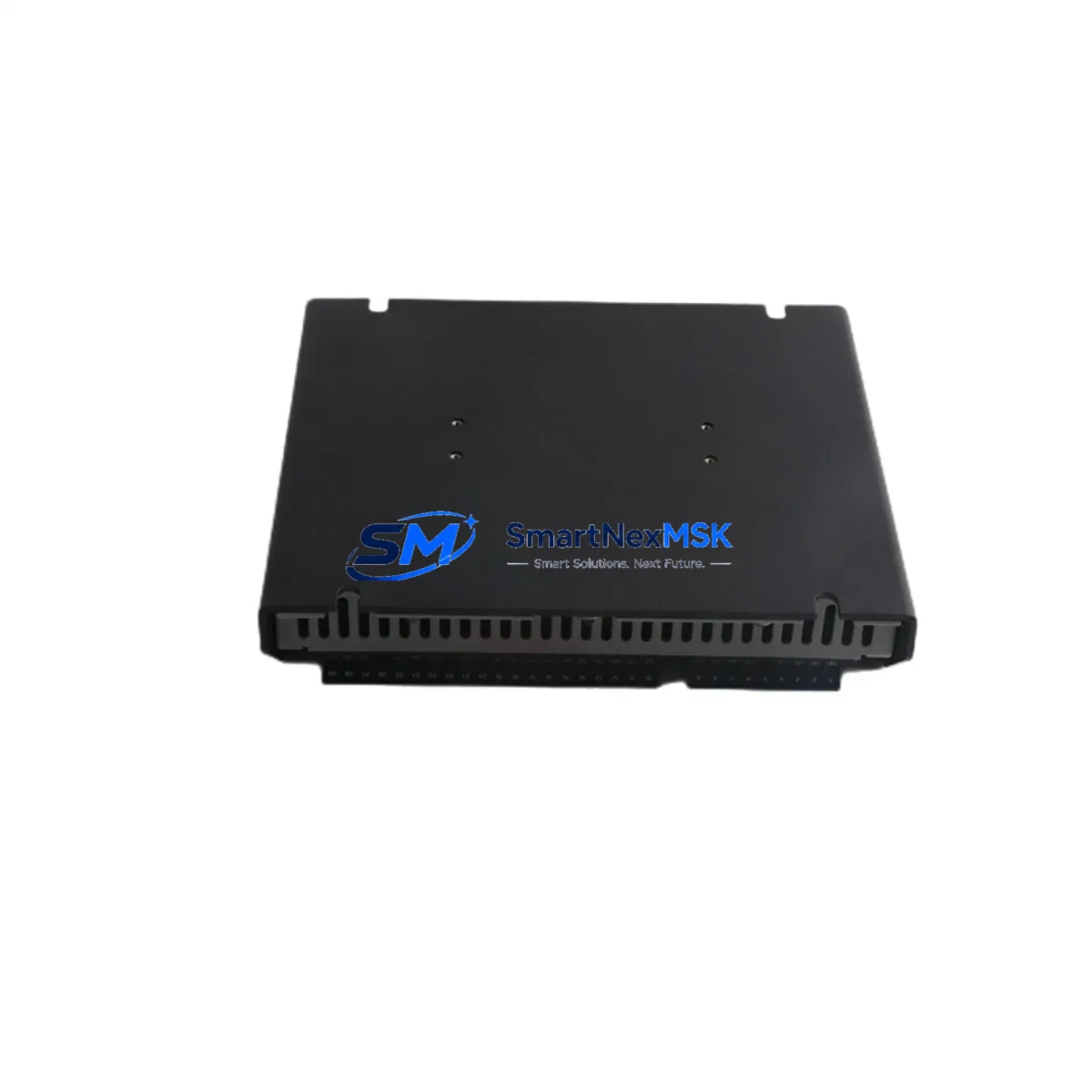

WOODWARD LS-5 8440-1946 Safety-Enhanced Breaker Control Module

WOODWARD LS-5 8440-1946 Safety-Enhanced Breaker Control Module for Harsh Industrial Sites

The WOODWARD LS-5 8440-1946 is a ruggedized circuit breaker control and protection module engineered for continuous, high-reliability operation in the most demanding industrial environments. Designed as a core component of the WOODWARD LS-5 generator protection and control platform, this module delivers deterministic breaker trip and close commands, real-time fault detection, and robust signal integrity — all critical requirements for safety-critical control loops in power generation, petrochemical processing, mining, and heavy manufacturing facilities.

In high-load, high-interference industrial control cabinets, the integrity of breaker control signals is non-negotiable. The LS-5 8440-1946 module addresses the most common failure modes in field installations: control signal drift under electromagnetic interference, nuisance tripping caused by power supply transients, module mis-operation during surge events, and communication anomalies on shared control buses. Its hardened I/O architecture and onboard diagnostics ensure that breaker state feedback remains accurate even under sustained electrical noise from variable frequency drives, large motor starters, and high-current switching equipment operating in the same switchgear lineup.

Safety Reliability Table

Control Cabinet Protection Strategy

Reliable breaker control in a critical switchgear panel depends on the coordinated performance of every component in the protection chain. The WOODWARD LS-5 8440-1946 is typically deployed alongside the WOODWARD LS-5 8440-1945 synchronizer and load control module, which manages generator paralleling and load sharing — ensuring that breaker trip commands from the 8440-1946 are always coordinated with real-time load conditions to prevent dangerous islanding or out-of-phase closing events.

On the power supply side, a dedicated 24 VDC redundant power supply module (such as those from the Phoenix Contact QUINT series or equivalent industrial-grade units) is strongly recommended to eliminate voltage sag and ripple that can cause false breaker operations. Upstream, a WOODWARD LS-5 8440-1940 digital I/O expansion module extends the number of hardwired interlock and status inputs available to the protection system, enabling comprehensive interlocking with field devices such as pressure switches, temperature relays, and emergency stop circuits.

For communication integrity in distributed control architectures, the LS-5 platform communicates over a dedicated control bus. Pairing the 8440-1946 with a WOODWARD LS-5 8440-1948 communication gateway module allows seamless integration with Modbus RTU, Modbus TCP, or DNP3 SCADA systems — maintaining full remote visibility of breaker status and protection events without introducing latency or data corruption risks. In installations where the control cabinet is located in a high-vibration or high-humidity zone, supplementary cabinet climate control units (thermostat-controlled fan/heater combinations) and anti-condensation heaters are recommended to maintain the operating environment within the module’s rated limits.

Surge protection at the field wiring terminals is equally critical. Installing DIN-rail surge protective devices (SPDs) — rated for the signal voltage class of the breaker control wiring — on all incoming field cables prevents transient energy from reaching the 8440-1946’s I/O terminals during nearby lightning strikes or large inductive switching events. This layered protection strategy, combining the WOODWARD LS-5 8440-1946 with coordinated power, I/O, communication, and environmental protection components, forms a complete and defensible control cabinet safety architecture.

Critical Industrial Safety Applications

The WOODWARD LS-5 8440-1946 is deployed across a wide range of safety-critical and continuous-process industries where unplanned breaker mis-operation or control system downtime carries severe operational and safety consequences.

Power Generation & Utilities: In gas turbine, diesel generator, and combined-cycle power plants, the LS-5 8440-1946 manages generator breaker trip and close sequences with millisecond-level response times. It prevents out-of-synchronism closing events that could cause catastrophic generator damage and grid disturbances. Its deterministic control logic ensures that protection relay commands are executed without delay, even under heavy SCADA communication loads.

Petrochemical & Refinery Sites: In classified hazardous areas and process control rooms, the module’s optically isolated I/O and surge-hardened design protect against the high levels of electromagnetic interference generated by large motor drives, heat tracing systems, and high-voltage switchgear. Reliable breaker control in these environments is a fundamental requirement of process safety management (PSM) programs and SIL-rated safety instrumented systems (SIS).

Mining & Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The LS-5 8440-1946’s ruggedized construction and wide operating temperature range make it suitable for deployment in mine hoist control systems, conveyor drive protection panels, and ventilation fan motor control centers — applications where a single breaker mis-operation can trigger a site-wide safety shutdown.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on continuous pump and blower operation. The LS-5 8440-1946 provides reliable motor feeder breaker control and protection coordination, preventing nuisance trips that would interrupt treatment processes and potentially compromise public health compliance obligations.

Metallurgy & Steel Production: Electric arc furnace (EAF) and rolling mill environments generate some of the most severe electrical disturbances found in any industrial setting. The module’s transient suppression and EMI shielding capabilities allow it to maintain accurate breaker control in the face of rapid, high-magnitude current fluctuations that would compromise less robust control hardware.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the WOODWARD LS-5 8440-1946?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the module fails to perform its specified breaker control and protection functions within the warranty period, we will repair or replace the unit at no charge. The warranty does not cover damage resulting from incorrect installation, overvoltage beyond rated limits, or physical mishandling.

Q2: What pre-shipment testing is performed on each unit?
Every WOODWARD LS-5 8440-1946 unit undergoes a full functional test before dispatch. This includes verification of all digital I/O channels, relay output operation, power supply input range, communication bus response, and onboard diagnostic self-test routines. A test record is available upon request. This process ensures that no latent defects reach your site.

Q3: Is the 8440-1946 compatible with existing WOODWARD LS-5 systems already installed in the field?
Yes. The 8440-1946 is a direct form-fit-function replacement for the corresponding circuit breaker control slot in the WOODWARD LS-5 platform. It is compatible with all standard LS-5 backplane configurations and communicates natively with other LS-5 modules including synchronizer, load control, and I/O expansion cards. No firmware reconfiguration is required for like-for-like replacement in most installations — always verify the application software version with your site engineer before commissioning.

Q4: Can long-term supply and spare parts support be guaranteed?
We maintain dedicated stock of the WOODWARD LS-5 8440-1946 and related LS-5 series modules to support ongoing maintenance, planned outage spares, and emergency replacement requirements. Our inventory is sourced from verified supply channels and is available for immediate dispatch globally. For customers with critical installed bases, we recommend establishing a consignment or scheduled replenishment arrangement to ensure spare availability without lead-time risk.
