WOODWARD SST-DN3-PCI-2 Safety-Enhanced DeviceNet Interface

WOODWARD SST-DN3-PCI-2 Safety-Enhanced DeviceNet Interface for Harsh Industrial Sites

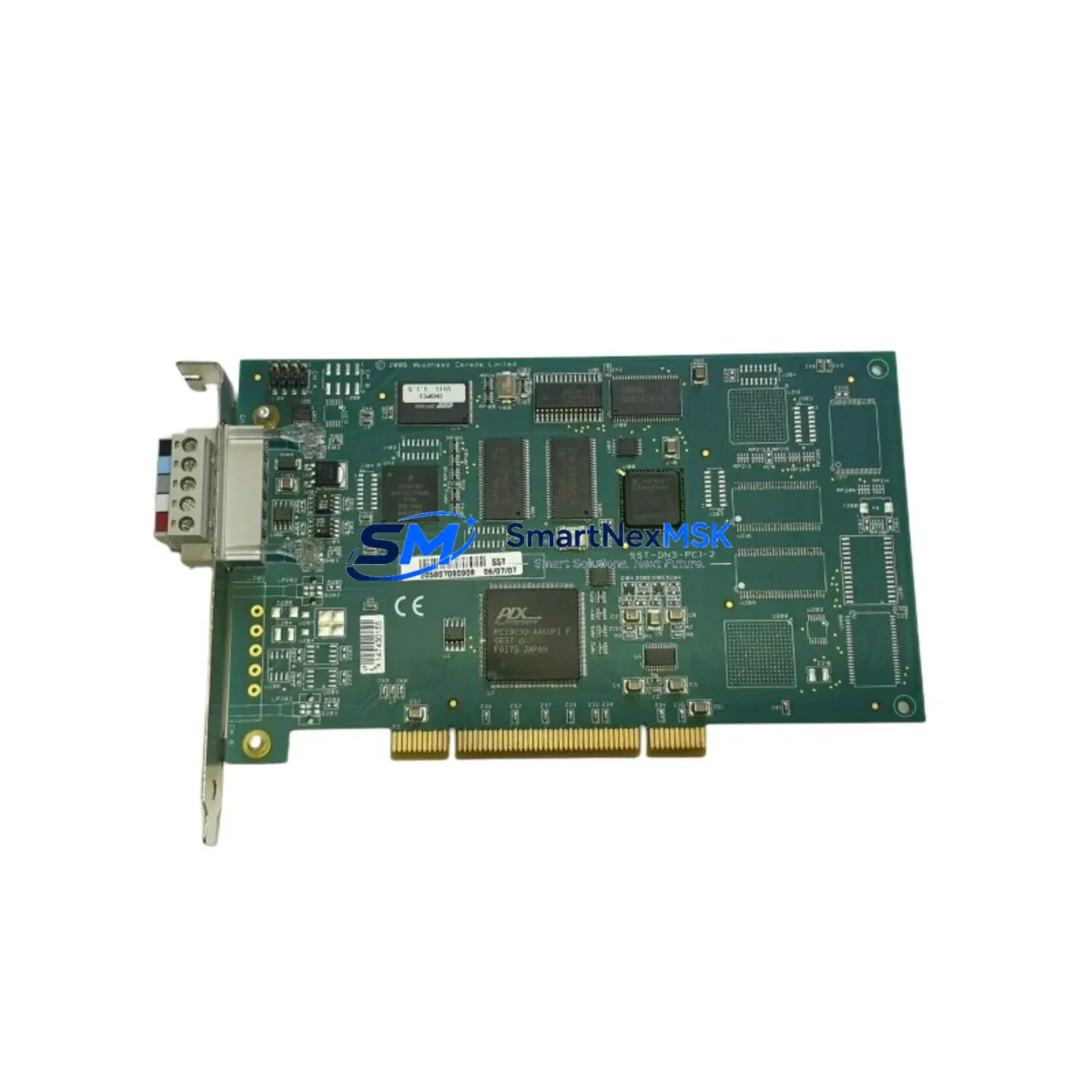

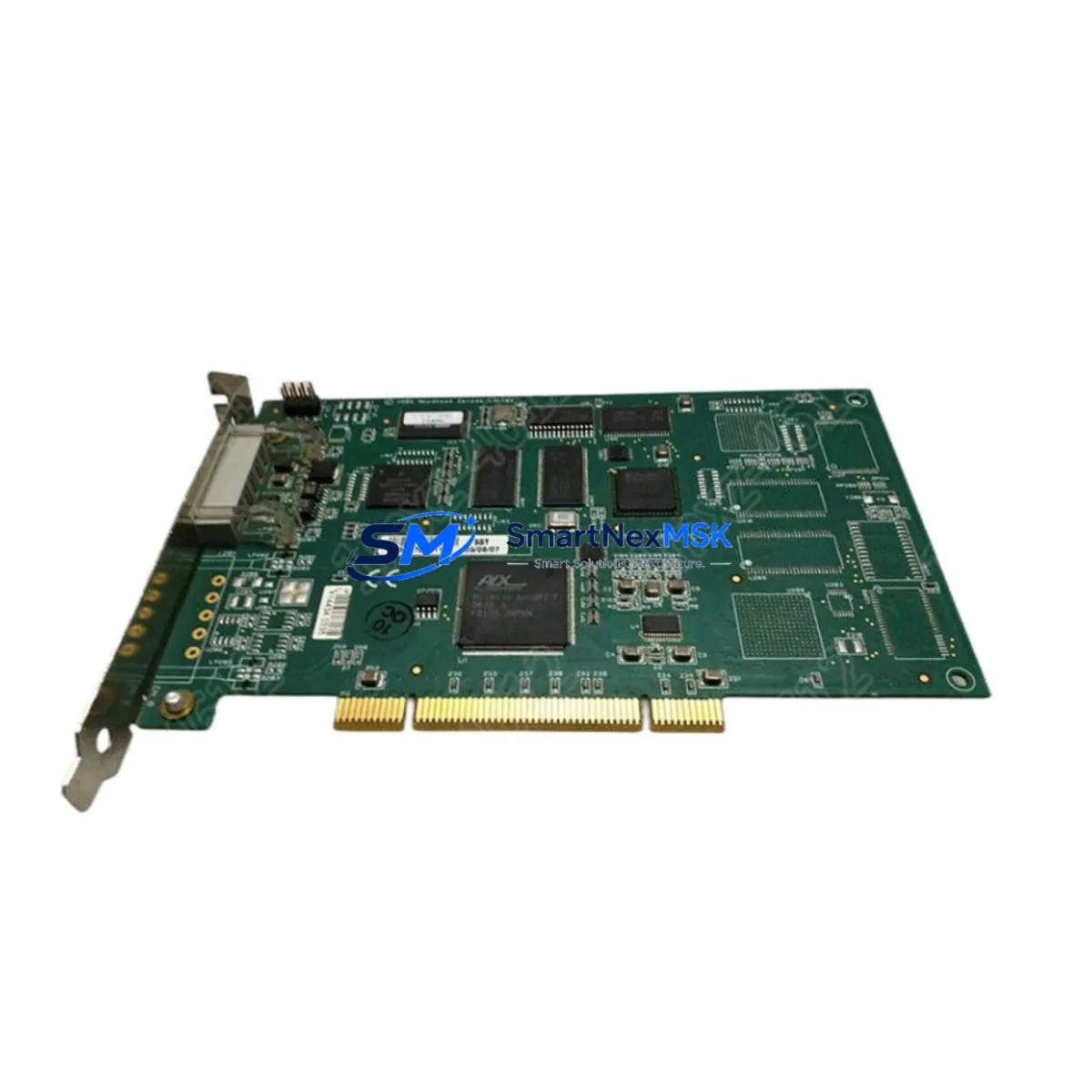

The WOODWARD SST-DN3-PCI-2 is a dual-channel DeviceNet PCI interface card engineered for mission-critical industrial automation environments where control continuity, signal integrity, and network reliability are non-negotiable. Designed to operate within demanding control cabinets, safety interlocking systems, and high-availability production lines, this module delivers consistent DeviceNet communication performance even under conditions of electrical noise, power fluctuation, and mechanical vibration. Whether deployed in a petrochemical distributed control system, a power generation switchgear panel, or a continuous mining conveyor control loop, the SST-DN3-PCI-2 provides the communication backbone that keeps safety-critical processes running without interruption.

Built on WOODWARD’s proven SST platform — the same architecture trusted in SST-DN3-104-2 and SST-PBMS-PCI series cards — this module integrates seamlessly into Allen-Bradley ControlLogix, CompactLogix, and third-party PLC environments via standard DeviceNet protocol. Its ruggedized PCB construction and conformal coating options make it suitable for control rooms adjacent to heavy machinery, where airborne particulates, humidity, and EMI are persistent threats to unprotected electronics.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the SST-DN3-PCI-2 functions as the central DeviceNet communication hub, coordinating real-time I/O data exchange between the host controller and field devices. To ensure maximum protection of the control loop, it is typically deployed alongside a suite of complementary components. Upstream power conditioning is handled by devices such as the Phoenix Contact QUINT-PS/1AC/24DC/10 power supply or equivalent DIN-rail mounted SMPS units, which protect the PCI card from voltage sags and transient spikes originating from motor starters and variable frequency drives sharing the same panel.

On the network side, DeviceNet trunk line terminators (121Ω, 1%) and Belden 3082A DeviceNet cable are essential to prevent signal reflection and communication errors at high baud rates. For nodes operating in electrically noisy zones — such as near servo drives or high-current contactors — Allen-Bradley 1485T-P2T5-T5 DeviceNet taps provide clean, isolated branch connections that maintain signal quality across the trunk.

Where the SST-DN3-PCI-2 interfaces with safety interlocking circuits, it is commonly paired with Pilz PNOZ X safety relays or Rockwell Automation GuardLogix safety PLCs to enforce SIL 2-rated emergency stop and machine guarding functions. The dual-channel architecture of the SST-DN3-PCI-2 allows one channel to handle standard I/O polling while the second channel is dedicated to safety-critical device monitoring — a configuration widely adopted in automotive body-in-white welding lines and chemical reactor control systems.

For surge and lightning protection at field cable entry points, Phoenix Contact TRABTECH surge arresters or Weidmüller VPU DeviceNet surge protectors are recommended to prevent transient energy from propagating back to the PCI card. Additionally, Moxa NPort DeviceNet-to-Ethernet gateways are frequently used in conjunction with the SST-DN3-PCI-2 to extend remote monitoring capability to SCADA systems without disrupting the primary DeviceNet network topology.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In hazardous area control rooms classified as Zone 2 or Division 2, the SST-DN3-PCI-2 manages DeviceNet communication between the DCS host and field instruments including smart valve positioners, pressure transmitters, and flame detectors. Its isolated CAN transceivers prevent ground loop currents — a common cause of spurious trips in refinery safety instrumented systems — from corrupting network data frames.

Power Generation & Substation Automation: Deployed in turbine governor control panels and generator protection relay cabinets, the SST-DN3-PCI-2 provides reliable low-latency communication between WOODWARD governor controllers and DeviceNet-enabled actuators. In this environment, the card’s surge suppression capability is critical, as switching transients from high-voltage bus bars can induce destructive voltage spikes on unprotected communication lines.

Mining & Mineral Processing: Underground conveyor control systems and surface crusher automation rely on the SST-DN3-PCI-2 to maintain continuous DeviceNet polling of motor protection relays, belt misalignment switches, and emergency pull-cord stations. The card’s wide operating temperature range and vibration tolerance make it suitable for surface-mounted control enclosures exposed to ambient temperature extremes and mechanical shock from blasting operations.

Water & Wastewater Treatment: In pump station SCADA panels and membrane bioreactor control systems, the SST-DN3-PCI-2 coordinates DeviceNet I/O for variable speed pump drives, level sensors, and chemical dosing actuators. Its stable communication under high-humidity conditions — common in wet well pump stations — ensures that critical process interlocks remain active and responsive at all times.

Metallurgy & Steel Production: Hot rolling mill and electric arc furnace control systems demand communication hardware that can withstand intense electromagnetic interference from high-current bus systems and induction heating equipment. The SST-DN3-PCI-2’s isolated architecture and robust firmware error recovery mechanisms prevent communication timeouts that could trigger unplanned mill stops, protecting both equipment and personnel.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the SST-DN3-PCI-2?
The 12-month warranty covers all manufacturing defects, component failures, and functional anomalies that occur under normal industrial operating conditions. Each unit is pre-tested prior to shipment using a DeviceNet network loopback test and PCI bus enumeration verification. If a fault is confirmed within the warranty period, we provide a replacement unit or full repair at no additional cost, including return shipping coordination.

Q2: How is each SST-DN3-PCI-2 tested before shipment?
Every unit undergoes a multi-stage outgoing quality inspection: visual inspection for PCB defects and connector integrity, powered PCI bus initialization test, dual-channel DeviceNet communication loopback test at all three baud rates (125/250/500 kbps), and isolation resistance verification between the CAN bus and host interface. A test report is available upon request for customers requiring incoming inspection documentation.

Q3: Is the SST-DN3-PCI-2 compatible with my existing Allen-Bradley or Siemens PLC system?
The SST-DN3-PCI-2 is compatible with any host system that supports a standard PCI 2.2 slot and runs a supported operating system (Windows, Linux, or VxWorks). It communicates via the DeviceNet protocol (ISO 11898 / CAN), making it interoperable with Allen-Bradley ControlLogix, CompactLogix, Siemens S7 with DeviceNet CP modules, Omron CJ-series, and other DeviceNet-compliant controllers. SST’s NetView and SST Configuration Utility software are included for network commissioning and diagnostics.

Q4: Can you guarantee long-term supply and replacement support for this module?

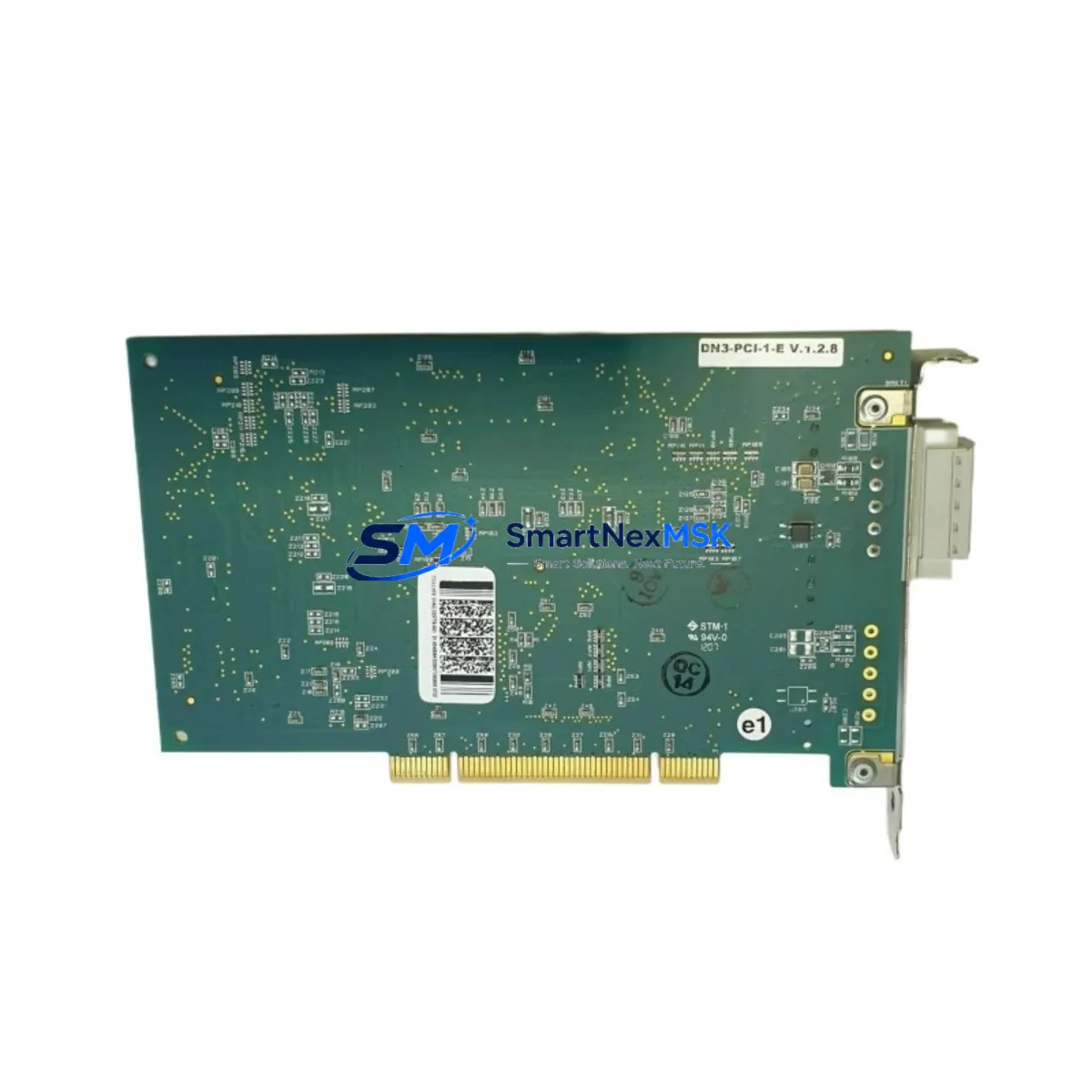

Yes. We maintain dedicated stock of the SST-DN3-PCI-2 and its functional equivalent DN3-PCI-1-E to support ongoing spare parts programs for customers with installed base systems. For facilities running legacy DeviceNet architectures where the original card is discontinued or difficult to source, we offer cross-reference verification and compatibility confirmation before shipment. Long-term supply agreements are available for customers requiring guaranteed annual allocation.
