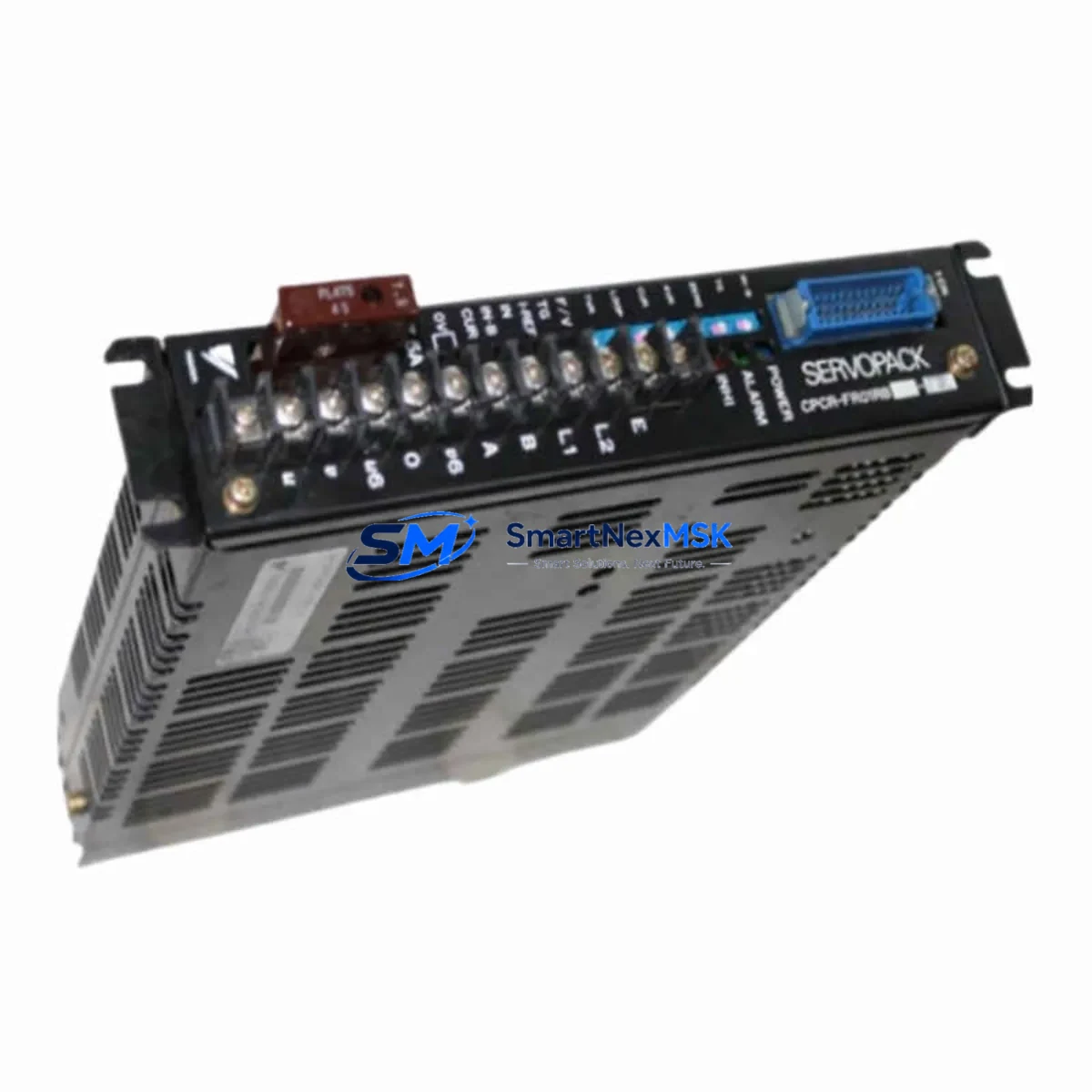

YASKAWA CPCR-FR01RB-T3L Safety-Enhanced Servo Drive Module

YASKAWA CPCR-FR01RB-T3L Safety-Enhanced Servo Drive Module: Reliable Control for Harsh Industrial Sites

In high-stakes industrial environments — where continuous production, heavy electrical interference, and unplanned downtime carry serious operational and safety consequences — the YASKAWA CPCR-FR01RB-T3L servo drive module delivers the control precision and field-hardened reliability that critical automation systems demand. Engineered within Yaskawa’s proven CPCR-FR series, this module is purpose-built for demanding servo axis control applications where signal integrity, thermal stability, and protection against power anomalies are non-negotiable.

Whether deployed in a high-density control cabinet alongside Yaskawa SGDV series servo amplifiers, integrated into a safety interlock loop with Yaskawa MP3300 machine controllers, or operating as part of a coordinated multi-axis drive system, the CPCR-FR01RB-T3L maintains stable closed-loop servo performance even under sustained electrical load, ambient temperature extremes, and vibration stress typical of heavy industrial sites.

Safety Reliability Table

Control Cabinet Protection Strategy

A servo drive module does not operate in isolation — its safety performance is inseparable from the protection architecture of the surrounding control cabinet. In a well-engineered industrial cabinet housing the YASKAWA CPCR-FR01RB-T3L, several complementary components work in concert to eliminate failure vectors.

On the power supply side, a Yaskawa JUSP-RA series regenerative resistor unit or a compatible DC bus capacitor bank absorbs regenerative energy spikes that would otherwise stress the drive’s internal DC link. Upstream, a properly rated three-phase EMC line filter — such as those from the Schaffner FN series or equivalent — suppresses conducted interference before it reaches the drive’s rectifier stage, preventing nuisance trips and encoder signal corruption that can cause axis runaway or emergency stops in precision servo loops.

For overcurrent and short-circuit protection, a correctly sized MCCB (molded case circuit breaker) or fast-acting semiconductor fuse on the AC input line is essential. In cabinets where multiple servo axes share a common DC bus, a Yaskawa SGDV-COA converter unit or equivalent common converter module centralizes power conditioning and provides coordinated fault isolation — preventing a single axis fault from cascading into a full system shutdown.

Communication reliability is equally critical. In MECHATROLINK-II architectures, proper termination resistors at both ends of the network cable, combined with shielded twisted-pair wiring and ferrite cores on encoder feedback cables, suppress differential-mode noise that can cause position data errors or axis synchronization faults. When the CPCR-FR01RB-T3L is coordinated by a Yaskawa MP2300 or MP3300 machine controller, the controller’s built-in motion network diagnostics provide real-time detection of communication anomalies before they escalate to unsafe axis behavior.

For safety interlock integration, the drive’s hardware enable input (SEN/S-ON signal) should be wired through a safety relay module — such as a Pilz PNOZ or equivalent — ensuring that the servo axis cannot be energized unless all upstream safety conditions are confirmed. In applications requiring STO (Safe Torque Off) compliance, pairing the CPCR-FR01RB-T3L with a Yaskawa SGDV series amplifier that carries SIL 2 / PLd STO certification provides a complete safety-rated drive solution for machinery directive compliance.

Surge protection on the 24 VDC control power rail — supplied by a Yaskawa JUSP-PS series power supply or a Phoenix Contact QUINT series unit — prevents logic-level voltage transients from corrupting the drive’s parameter memory or triggering false fault codes during thunderstorm events or utility switching operations on the plant grid.

Critical Industrial Safety Applications

The YASKAWA CPCR-FR01RB-T3L is deployed across a broad range of safety-critical and continuous-process industrial environments where servo axis reliability directly impacts operational safety and production continuity.

Petrochemical and Refinery Plants: In reactor feed pump drives, valve actuator positioning systems, and compressor control loops, servo drive reliability is a process safety requirement. The CPCR-FR01RB-T3L’s robust overcurrent and overvoltage protection prevents uncontrolled axis motion that could trigger pressure relief events or process upsets in hazardous material handling systems.

Electric Power Generation and Transmission: In turbine governor control systems, excitation regulator servo loops, and switchgear actuator drives, the module’s EMI immunity and stable closed-loop response ensure that control commands are executed accurately even in the presence of high-frequency switching transients from nearby power electronics equipment.

Mining and Mineral Processing: Conveyor drive positioning, crusher feed control, and hoist brake servo systems in underground and open-pit mining operations demand drives that withstand continuous vibration, coal dust ingress risk, and wide ambient temperature swings. The CPCR-FR01RB-T3L’s wide operating temperature range and vibration-resistant construction support reliable operation in these mechanically aggressive environments.

Water and Wastewater Treatment: In pump station variable-speed drives, sluice gate actuators, and chemical dosing servo systems, the drive’s undervoltage ride-through capability and fault detection functions prevent uncontrolled pump runaway or dosing errors that could compromise water quality or cause flooding events during utility power disturbances.

Metallurgy and Steel Production: Rolling mill servo axes, ladle transfer car drives, and continuous casting withdrawal drives operate under extreme thermal loads and electromagnetic interference from arc furnaces and induction heating systems. The CPCR-FR01RB-T3L’s built-in EMC filtering and thermal protection functions maintain servo accuracy and prevent drive damage in these electrically hostile environments.

Port and Heavy Logistics: Container crane hoist and trolley servo drives, automated guided vehicle (AGV) traction control systems, and ship loader positioning drives require drives with high dynamic response and robust fault protection to prevent load drops or collision events. The module’s encoder fault detection and hardware enable interlock support safe crane operation under variable load conditions.

Continuous Manufacturing (Automotive, Packaging, Printing): In high-speed web tension control, precision cut-to-length servo axes, and synchronized multi-axis gantry systems, the CPCR-FR01RB-T3L’s closed-loop servo performance and communication reliability ensure that production quality is maintained and that axis synchronization faults — which can cause material jams, tooling crashes, or product defects — are detected and safely handled before they escalate.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the YASKAWA CPCR-FR01RB-T3L?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. This includes internal component failures, parameter memory corruption due to manufacturing defects, and communication interface faults. Physical damage caused by incorrect installation, overvoltage beyond rated limits, or unauthorized modification is excluded. Warranty claims are processed with full technical support and replacement dispatch within agreed lead times.

Q2: What pre-shipment testing is performed before the module is dispatched?
Every YASKAWA CPCR-FR01RB-T3L unit undergoes a full functional verification before shipment. This includes power-on self-test, parameter initialization check, encoder interface continuity verification, and protective function response testing (overcurrent trip, overvoltage trip, and temperature sensor check). Units that do not pass all test criteria are quarantined and not dispatched. A test record is available upon request for quality-critical procurement processes.

Q3: Is the CPCR-FR01RB-T3L compatible with existing Yaskawa servo systems and third-party controllers?
The CPCR-FR01RB-T3L is designed for integration within Yaskawa’s CPCR-FR series servo system architecture and is compatible with matched Yaskawa servo motors and MECHATROLINK-II network controllers including the MP2300 and MP3300 series. For third-party PLC or motion controller integration, compatibility depends on the communication protocol and I/O interface used. Our technical team can advise on interface requirements and provide parameter configuration support for your specific application.

Q4: Can long-term supply and replacement support be guaranteed for this module?
Yes. We maintain dedicated inventory of YASKAWA CPCR-FR01RB-T3L modules to support both new system builds and ongoing spare parts programs for installed base maintenance. For customers with critical production lines that depend on this module, we recommend establishing a consignment stock or blanket order arrangement to ensure zero-downtime replacement availability. Our team provides long-term sourcing support including cross-reference assistance for discontinued or hard-to-source Yaskawa servo drive components.
