Yaskawa CSRA-CV10A02A/YRC1000 Safety-Enhanced DC Bus Converter

Yaskawa CSRA-CV10A02A/YRC1000 Safety-Enhanced DC Bus Converter for Harsh Industrial Sites

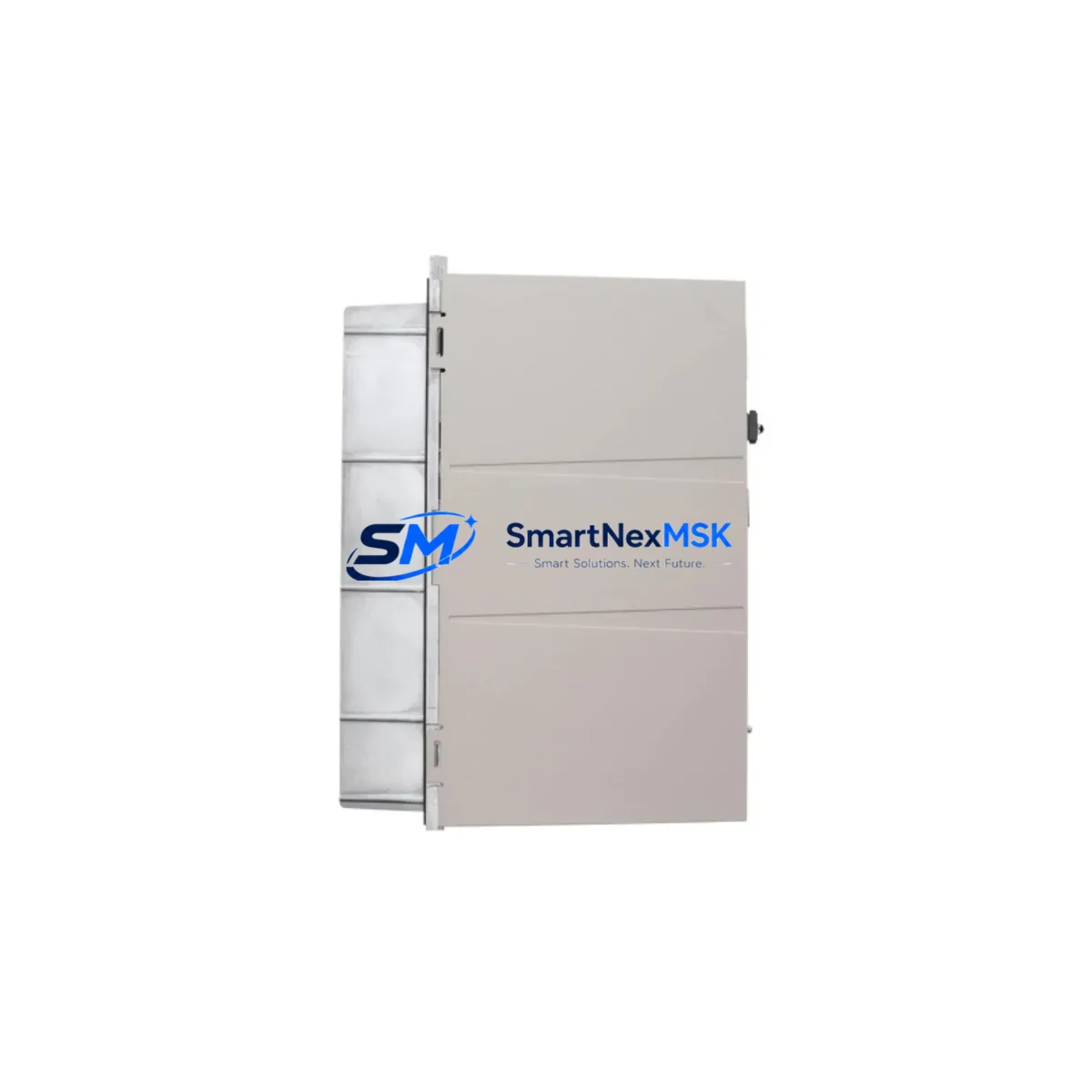

The Yaskawa CSRA-CV10A02A/YRC1000 is a ruggedized DC bus converter module engineered for the YRC1000 robot controller platform — one of Yaskawa’s most widely deployed servo drive and motion control architectures in continuous-production and safety-critical industrial environments. Designed to operate reliably under high electrical load, strong electromagnetic interference, and demanding thermal cycles, this module plays a central role in maintaining stable DC bus voltage across the robot controller’s power distribution network. In facilities where unplanned downtime carries significant operational and safety consequences, the CSRA-CV10A02A/YRC1000 is a foundational component for control system integrity.

Industrial sites — including petrochemical plants, automotive body shops, steel mills, port logistics terminals, and continuous-process manufacturing lines — place extreme demands on robot controller power modules. Voltage fluctuations from large motor starts, harmonic distortion from variable-frequency drives, and transient surges from switching events can all destabilize the DC bus, leading to servo faults, axis drop-outs, or emergency stops. The CSRA-CV10A02A/YRC1000 is built to absorb and regulate these disturbances, ensuring that the YRC1000 controller’s servo amplifier boards, I/O interface units, and safety relay modules receive clean, stable power throughout the production cycle.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered YRC1000 robot control cabinet, the CSRA-CV10A02A/YRC1000 does not operate in isolation — it is part of a layered protection architecture. Upstream, a properly rated Yaskawa JZRCR-YPU01B power supply unit or equivalent three-phase input rectifier module conditions incoming AC power before it reaches the DC bus. Downstream, the converted DC bus voltage feeds the SRDA-SDA21A servo amplifier modules that drive each robot axis, as well as the JANCD-YCP21-E CPU board responsible for trajectory planning and safety monitoring.

To protect against surge events and ground faults that can propagate through the bus, many integrators pair the CSRA-CV10A02A/YRC1000 with a dedicated surge protection device (SPD) installed at the cabinet’s AC input terminal block, along with ferrite core EMI filters on signal cables running between the controller and external I/O panels. The JANCD-YIO21-E I/O interface board within the YRC1000 cabinet is particularly sensitive to common-mode noise; maintaining a clean DC bus through the converter module directly reduces the risk of spurious I/O state changes that could trigger unintended robot motion or safety faults.

For facilities operating multiple YRC1000 units in a coordinated cell, the JANCD-YEW21-E Ethernet communication board handles real-time data exchange between controllers and the plant SCADA or MES system. Voltage instability on the DC bus can corrupt communication frames and cause controller synchronization errors — a risk that the CSRA-CV10A02A/YRC1000 directly mitigates by maintaining regulated bus voltage even during high-demand servo acceleration phases. Additionally, the JARCR-XFB01B safety fieldbus interface module used in functional safety (FS) configurations relies on stable power to maintain its dual-channel safety signal integrity, making the DC bus converter a critical upstream dependency in any SIL-rated interlock loop.

Maintenance teams should also ensure that the JZNC-YRK01-1E regenerative resistor unit — which dissipates braking energy back from the servo drives — is correctly rated and thermally managed, as excessive regenerative energy can cause DC bus overvoltage events that stress the converter module. Periodic inspection of the JZRCR-YPP01-1 teach pendant cable assembly and its associated connector seating is also recommended, as loose connections can introduce ground loops that manifest as bus noise.

Critical Industrial Safety Applications

The Yaskawa CSRA-CV10A02A/YRC1000 is deployed across a broad range of heavy industrial and process-critical environments where robot controller reliability is non-negotiable:

Petrochemical & Refinery Automation: In hazardous-area robot cells used for valve actuation, pipe inspection, and sample handling, the DC bus converter ensures that the YRC1000 controller maintains continuous operation despite the high levels of conducted EMI generated by large pump motors and variable-speed compressor drives operating nearby. Any controller fault in these environments can trigger a full-cell shutdown with significant safety and production implications.

Electric Power Generation & Substation Maintenance: Robotic inspection and maintenance systems operating in high-voltage substations or power plant environments are exposed to intense electromagnetic fields. The CSRA-CV10A02A/YRC1000’s regulated DC output protects the controller’s logic boards from field-induced noise, supporting uninterrupted inspection cycles and reducing the risk of false safety trips.

Mining & Mineral Processing: Underground and surface mining operations use robotic systems for drilling, material handling, and explosive placement. These environments combine high vibration, dust ingress, and wide temperature swings with aggressive power quality from diesel generators and large conveyor drives. The DC bus converter’s robust design supports reliable controller operation under these compound stressors.

Water & Wastewater Treatment: Automated dosing, valve control, and pipe inspection robots in water treatment facilities operate in humid, chemically aggressive environments. Stable DC bus voltage is essential for maintaining the precise motion control required in these applications, where a controller fault could result in incorrect chemical dosing or uncontrolled valve positioning.

Metallurgy & Steel Production: In continuous casting lines, rolling mills, and ladle handling systems, YRC1000-based robots operate in extreme thermal environments with high levels of airborne conductive particulate. The CSRA-CV10A02A/YRC1000 supports sustained operation in these conditions, reducing the frequency of unplanned stops that disrupt the continuous casting process and risk product quality.

Port & Logistics Automation: Container handling robots and automated guided vehicle (AGV) charging systems in port environments are subject to wide load swings and frequent power cycling. The DC bus converter’s voltage regulation capability ensures that the YRC1000 controller recovers cleanly from power transients associated with crane operations and shore power switching.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the CSRA-CV10A02A/YRC1000?
All units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported by our technical team, and replacement units can be dispatched from stock to minimize your downtime.

Q2: What outgoing inspection and testing is performed before shipment?
Every CSRA-CV10A02A/YRC1000 unit undergoes a multi-point outgoing inspection prior to dispatch, including visual inspection for physical damage, connector integrity verification, and functional power-on testing where applicable. Units are packed in anti-static, shock-absorbing packaging to protect against transit damage. A test report is available upon request.

Q3: Is this module compatible with all YRC1000 controller variants and firmware versions?
The CSRA-CV10A02A/YRC1000 is designed as an OEM replacement for the Yaskawa YRC1000 platform. Compatibility is confirmed for standard YRC1000 configurations. For YRC1000 micro or application-specific variants, we recommend confirming the exact controller model and revision with our technical team before ordering. We maintain detailed compatibility records for common YRC1000 configurations.

Q4: Can SMARTNEXMSK support long-term supply and emergency replacement needs?
Yes. We maintain standing inventory of the CSRA-CV10A02A/YRC1000 and related YRC1000 spare parts to support both planned maintenance programs and emergency breakdown situations. For customers with critical production lines, we offer priority dispatch with same-day or next-day shipping options. Contact our team to discuss consignment stock or scheduled supply agreements tailored to your maintenance cycle.
