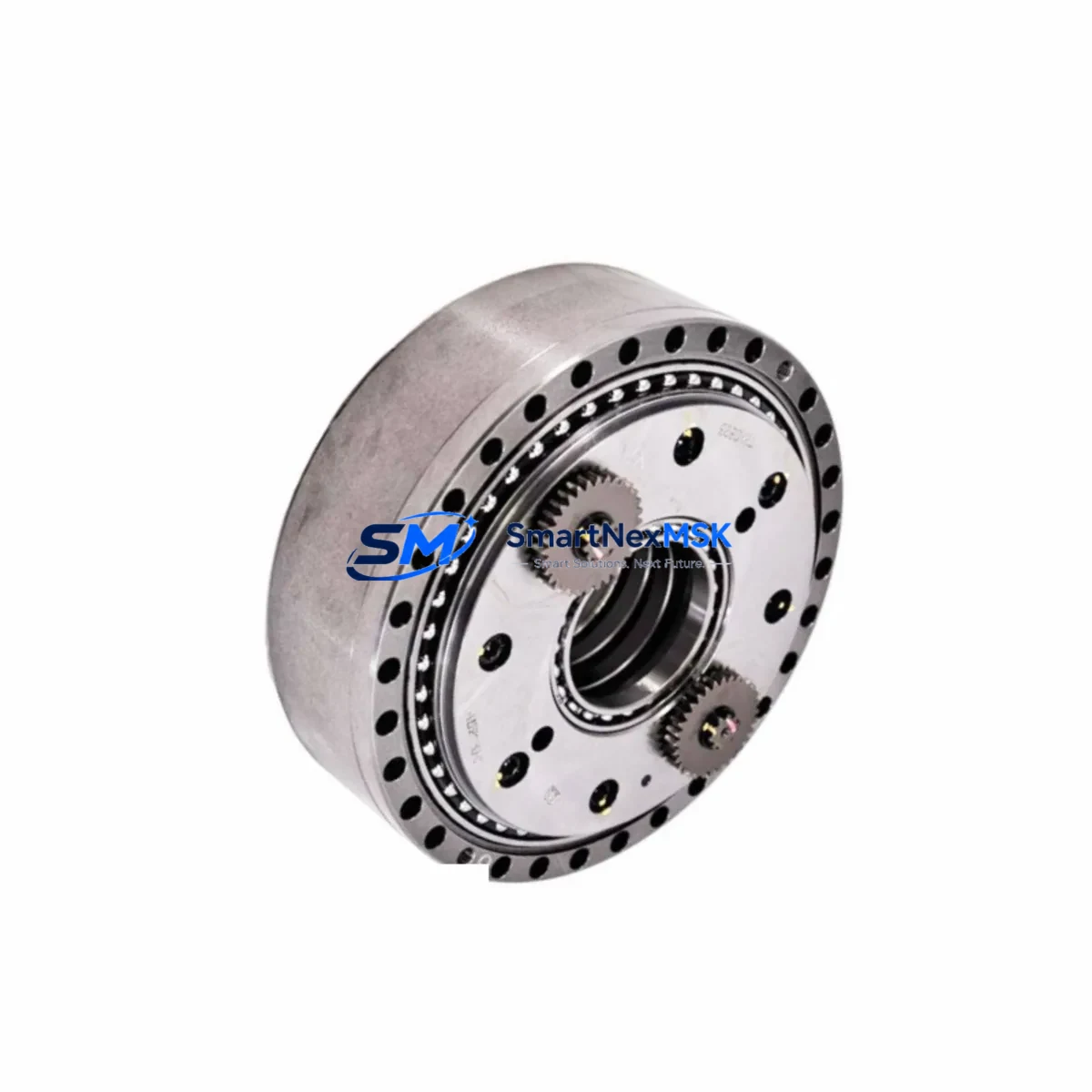

Yaskawa HW0380219-A-HP-25A-11-F0-SP Safety-Enhanced Reducer

Yaskawa HW0380219-A-HP-25A-11-F0-SP Safety-Enhanced Harmonic Drive Reducer for Harsh Industrial Sites

The Yaskawa HW0380219-A-HP-25A-11-F0-SP is a precision harmonic drive reducer engineered for safety-critical motion control in demanding industrial environments. Designed as a core component of Yaskawa Motoman robot joints, this reducer delivers exceptional torque transmission accuracy, zero-backlash performance, and long-term mechanical stability — qualities that are non-negotiable in continuous production lines, hazardous area automation, and high-cycle robotic workcells.

In heavy industrial settings — from petrochemical processing plants and steel mill automation to port crane control and mining conveyor systems — mechanical failures in motion control components can cascade into costly unplanned shutdowns, safety incidents, and production losses. The HW0380219-A-HP-25A-11-F0-SP addresses these risks directly through its ruggedized harmonic drive architecture, which eliminates gear backlash, reduces joint compliance errors, and maintains positional repeatability even under sustained high-load cycles and thermal stress.

Safety Reliability Table

Control Cabinet Protection Strategy

Reliable robot joint performance begins long before the reducer itself — it depends on the integrity of the entire control architecture surrounding it. In a typical Yaskawa Motoman workcell, the HW0380219-A-HP-25A-11-F0-SP reducer operates in close coordination with the Yaskawa JZNC-YRK01-1E robot controller and the DX200 or YRC1000 controller cabinet, which manage servo amplifier commands, safety interlock signals, and real-time motion trajectory execution.

To protect the reducer and the broader motion control system from electrical disturbances, the servo drive power supply — typically a Yaskawa SGDV-series or SGDH-series servo amplifier — must be protected against input voltage fluctuations and surge events. Surge protection devices (SPDs) installed at the cabinet power entry point, along with EMC line filters such as the Yaskawa SI-series EMC filter, suppress conducted interference that could otherwise cause servo fault trips, encoder signal corruption, or erratic joint motion — all of which translate directly into safety hazards in collaborative or high-speed robot applications.

The encoder feedback path is equally critical. The Yaskawa JEPMC-W6002 encoder cable assembly and associated JEPMC-EC series encoder connectors must maintain signal integrity under the mechanical flexing and EMI exposure typical of robot arm installations. Signal degradation in the encoder feedback loop can cause the servo system to misinterpret joint position, leading to overshoot, collision, or safety system activation. Pairing the HW0380219-A-HP-25A-11-F0-SP with properly shielded, OEM-specification encoder cables eliminates this failure mode.

For applications where the robot operates within a safety-rated zone — such as a collaborative fencing perimeter or a light-curtain-protected work envelope — the safety relay module (e.g., Yaskawa FSU functional safety unit integrated into the DX200 controller) monitors joint torque limits and position boundaries in real time. Any mechanical anomaly detected at the reducer output — such as abnormal resistance or torque spike — triggers a controlled safe-stop sequence, preventing equipment damage and protecting personnel. Maintaining the reducer in OEM-specification condition is therefore a prerequisite for the FSU to function as designed.

Additionally, the Yaskawa JZNC-YIU01-E teach pendant and associated I/O expansion modules within the controller cabinet rely on stable, low-noise power distribution. A 24VDC regulated power supply with adequate hold-up time and short-circuit protection ensures that safety I/O signals — emergency stop, servo-on, and brake release commands — are never corrupted by power rail disturbances, even during motor deceleration transients.

Critical Industrial Safety Applications

The Yaskawa HW0380219-A-HP-25A-11-F0-SP harmonic drive reducer is deployed across a wide range of safety-critical industrial sectors where motion control reliability is directly linked to operational safety and production continuity.

Petrochemical and Refinery Automation: In hazardous area robotic inspection and valve actuation systems, zero-backlash joint reducers are essential to prevent positional drift that could result in valve misalignment, process leaks, or ignition risks. The HW0380219-A-HP-25A-11-F0-SP maintains precise angular positioning even after thousands of operating hours in thermally stressed environments.

Electric Power Generation and Transmission: Robotic maintenance systems used in power plant environments — including turbine inspection robots and high-voltage substation maintenance arms — demand reducers that deliver consistent torque output without mechanical play. Any backlash in the joint drive train introduces positioning uncertainty that is unacceptable in proximity to energized equipment.

Mining and Mineral Processing: Underground and surface mining automation increasingly relies on Yaskawa Motoman robots for explosive material handling, ore sampling, and conveyor maintenance tasks. The sealed, ruggedized construction of this reducer resists ingress of mineral dust and abrasive particles that would rapidly degrade standard gear reducers.

Water and Wastewater Treatment: Robotic systems used for pipe inspection, chemical dosing, and sludge handling in water treatment facilities operate in high-humidity, chemically aggressive environments. The HW0380219-A-HP-25A-11-F0-SP’s corrosion-resistant materials and sealed housing ensure long service intervals without performance degradation.

Metallurgy and Steel Production: In continuous casting lines, hot rolling mills, and ladle handling systems, robots equipped with this reducer must maintain positional accuracy under extreme thermal radiation and vibration. The harmonic drive’s inherent stiffness and zero-backlash characteristics prevent cumulative positioning errors that could result in material defects or equipment collisions.

Port and Logistics Automation: Automated container handling and palletizing systems in port terminals operate around the clock under heavy payloads. The high torque rating and fatigue resistance of the HW0380219-A-HP-25A-11-F0-SP make it a reliable choice for joint axes subjected to continuous high-cycle loading.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the HW0380219-A-HP-25A-11-F0-SP?
The 12-month warranty covers all manufacturing defects, material failures, and functional performance deviations under normal operating conditions as specified by Yaskawa. If the reducer exhibits abnormal backlash increase, torque loss, or mechanical binding within the warranty period, we provide replacement or repair support. Warranty claims are processed promptly to minimize your production downtime.

Q2: What pre-shipment inspection and testing does this reducer undergo?
Every HW0380219-A-HP-25A-11-F0-SP unit undergoes a full outgoing quality inspection prior to dispatch. This includes visual inspection for mechanical damage, dimensional verification of mounting interfaces, rotational smoothness check, and confirmation of part number and revision markings. Units that do not pass inspection are quarantined and not shipped. A quality inspection record is available upon request.

Q3: Is this reducer compatible with all Yaskawa Motoman robot models that use the HP-25A joint specification?
The HW0380219-A-HP-25A-11-F0-SP is designed for specific Yaskawa Motoman robot joint positions that utilize the HP-25A harmonic drive specification. Compatibility depends on the robot model, axis position, and revision level of the original equipment. We recommend confirming the robot model and joint axis before ordering. Our technical team can assist with cross-referencing your robot’s BOM to confirm fitment.

Q4: Can you guarantee long-term supply availability for ongoing maintenance programs?
Yes. We maintain dedicated stock of Yaskawa Motoman spare parts including harmonic drive reducers, servo amplifiers, encoder cables, and controller components to support planned maintenance programs and emergency breakdown situations. For customers with multi-robot fleets or critical production lines, we recommend establishing a consignment stock arrangement to ensure zero lead-time availability of this and related components.
