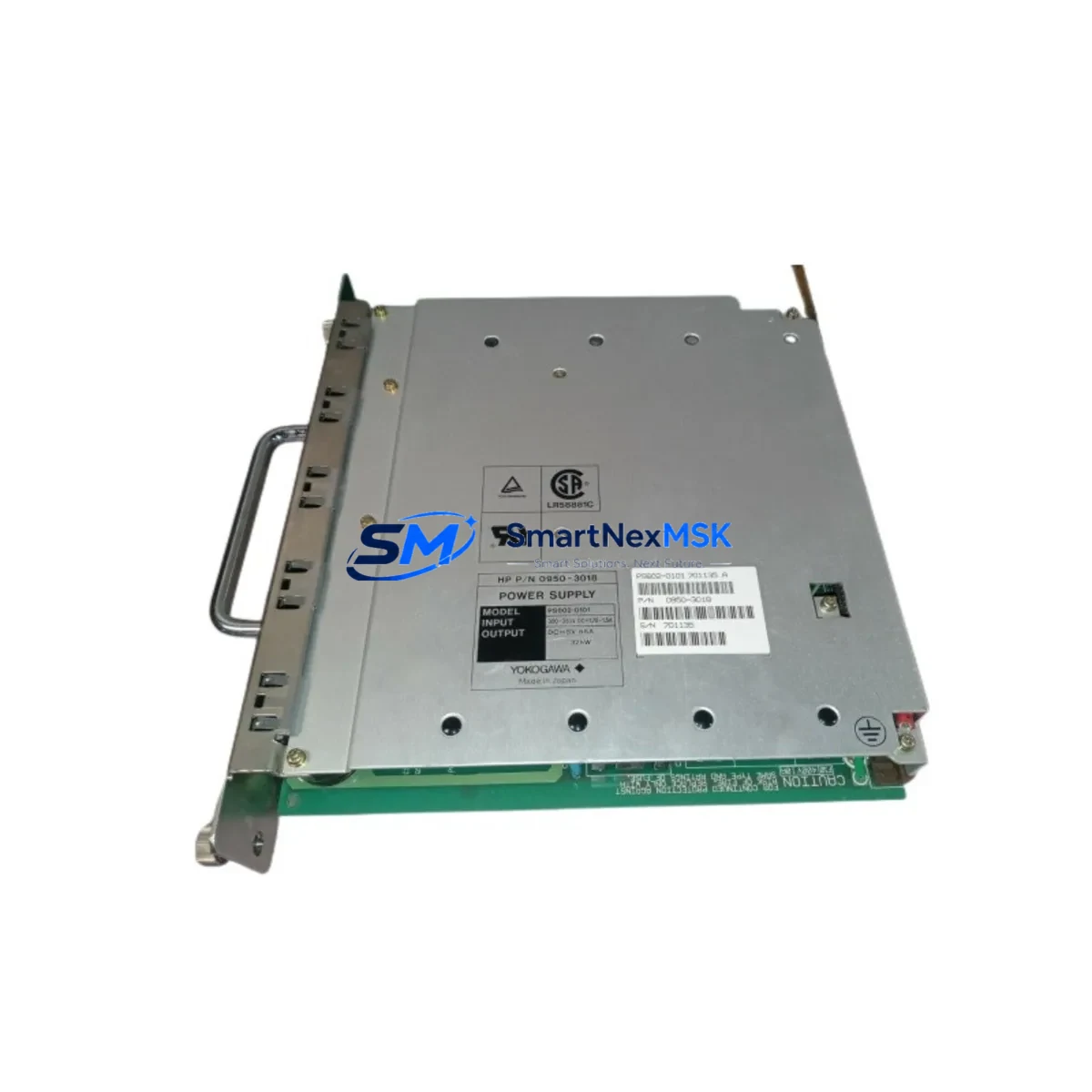

YOKOGAWA 0950-3017-PS605-0101: Safety-Enhanced DCS Power Supply for Harsh Industrial Control Sites

The YOKOGAWA 0950-3017-PS605-0101 is a ruggedized DCS power supply module from the PS605 series, purpose-engineered for the CENTUM CS3000 distributed control system. In continuous-process industries where an unplanned shutdown carries six- or seven-figure consequences, the integrity of the power supply rail is the single most critical factor in control-loop availability. This module addresses that requirement with hardened internal regulation, wide-range input tolerance, and multi-layer protection circuitry that keeps field I/O, controller cards, and communication buses energized even under adverse grid conditions.

Sourced directly from verified industrial channels, every 0950-3017-PS605-0101 unit shipped by SMARTNEXMSK undergoes pre-dispatch functional testing — output voltage stability, ripple measurement, over-current trip verification, and thermal cycling — before it leaves our facility. A 12-month warranty covers all units against manufacturing defects and premature failure under normal operating conditions.

Safety Reliability Table

Control Cabinet Protection Strategy

A DCS control cabinet in a petrochemical or power-generation facility is a dense ecosystem of interdependent components. The 0950-3017-PS605-0101 sits at the foundation of that ecosystem, supplying clean, regulated DC power to every card in the CS3000 chassis. When the power rail is stable, downstream modules — including the YOKOGAWA CP345 controller processor card, AAI141 analog input modules, and AAI543 analog output modules — maintain deterministic scan cycles and accurate signal conversion without drift or spurious trips.

In high-load scenarios where multiple I/O racks draw simultaneous peak current — for example, during a plant-wide startup sequence — the PS605’s fold-back current limiting prevents a single overloaded branch from collapsing the entire bus. This behavior is critical when the cabinet also hosts ADV151 digital input modules monitoring emergency shutdown (ESD) signals and ADV551 digital output modules driving interlock solenoids. A momentary power sag that causes a false ESD trip can trigger a full-plant shutdown; the regulated output of the 0950-3017-PS605-0101 eliminates that failure mode.

For sites running redundant power architectures, the PS605 series supports hot-standby pairing. A second 0950-3017-PS605-0101 unit can be installed in the redundant slot, with automatic bumpless switchover in the event of primary failure — a configuration strongly recommended for SIL-rated interlock loops. The YOKOGAWA ESB Bus coupler and EB401 field bus module remain continuously powered during switchover, preserving real-time communication with field transmitters and valve positioners.

Surge events from nearby motor starters, VFDs, or switching of large inductive loads are a persistent threat in heavy industrial cabinets. The built-in MOV and TVS clamping network in the 0950-3017-PS605-0101 absorbs transients before they reach sensitive logic circuitry. For sites with particularly aggressive electrical environments, pairing this module with a YOKOGAWA-compatible DIN-rail surge protective device on the AC input line provides a two-stage defense that meets IEC 61000-4-5 Level 4 requirements.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: Continuous catalytic cracking, hydrocracking, and distillation columns operate 24/7 with zero tolerance for control interruption. The 0950-3017-PS605-0101 sustains the CS3000 DCS through grid fluctuations common near large compressor drives, ensuring that pressure, temperature, and flow control loops remain closed and that safety instrumented system (SIS) interfaces receive uninterrupted power for ESD logic execution.

Power Generation & Grid Substations: Turbine governor control, boiler management, and excitation regulation demand sub-millisecond power stability. The PS605 module’s low-ripple output prevents ADC reference drift in analog input cards monitoring thermocouple and RTD signals, maintaining accurate temperature readings that protect turbine blades and generator windings from thermal excursion.

Mining & Mineral Processing: Crusher control, flotation cell management, and conveyor interlocking systems operate in environments with heavy vibration, coal dust, and frequent motor switching. The 0950-3017-PS605-0101‘s vibration-rated construction and EMI-hardened filtering maintain control integrity in these conditions, reducing unplanned conveyor stoppages that cascade into production losses.

Water & Wastewater Treatment: Pump station automation, chlorination dosing, and SCADA-linked remote I/O rely on stable DCS power to maintain regulatory compliance. The module’s wide AC input range accommodates the voltage sags common in municipal utility feeds, preventing nuisance resets of the CS3000 controller during peak demand periods.

Metallurgy & Steel Mills: Electric arc furnace (EAF) operations generate some of the most severe electrical disturbances in industry. The surge clamping and EMI filtering in the 0950-3017-PS605-0101 protect the CS3000 bus from conducted interference that would otherwise corrupt process data, cause module watchdog resets, or trigger spurious alarms in the melt shop control system.

Port & Terminal Automation: Ship-to-shore crane control, automated stacking cranes, and conveyor belt management systems require continuous DCS availability across large, electrically noisy environments. The PS605 power supply’s robust design supports long-term, maintenance-free operation in these demanding logistics automation applications.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 0950-3017-PS605-0101?
The warranty covers all manufacturing defects, component failures, and premature functional degradation under normal operating conditions for 12 months from the date of shipment. If the unit fails within the warranty period, SMARTNEXMSK will provide a replacement or full refund. Warranty claims are processed within 5 business days of receiving the returned unit.

Q2: What pre-shipment testing is performed on each unit?
Every 0950-3017-PS605-0101 undergoes a multi-point functional test before dispatch: output voltage accuracy (±1% of nominal), output ripple measurement (<50 mV peak-to-peak), over-current protection trip verification, over-voltage protection latch test, and a 30-minute thermal burn-in at full rated load. Test records are available upon request for quality-critical procurement.

Q3: Is this module compatible with CENTUM VP and other YOKOGAWA DCS platforms?
The 0950-3017-PS605-0101 is designed and validated for the YOKOGAWA CENTUM CS3000 system. Mechanical and electrical compatibility with CENTUM VP or other platforms depends on the specific chassis and bus configuration. Our technical team can review your system BOM and confirm compatibility before order placement — contact [email protected] with your system model and revision details.

Q4: Can you guarantee long-term supply and support for legacy CS3000 installations?
Yes. SMARTNEXMSK maintains dedicated inventory of PS605-series power supply modules and other CS3000 spare parts to support legacy plant installations that are not yet scheduled for migration. We actively source, test, and stock these components to ensure that plants running proven, stable DCS configurations can obtain critical spares without being forced into premature system upgrades. Bulk and blanket-order pricing is available for maintenance contracts.
