YOKOGAWA AAM50 Maintenance-Ready Spare for CENTUM Automation

YOKOGAWA AAM50 Maintenance-Ready Spare for CENTUM Automation

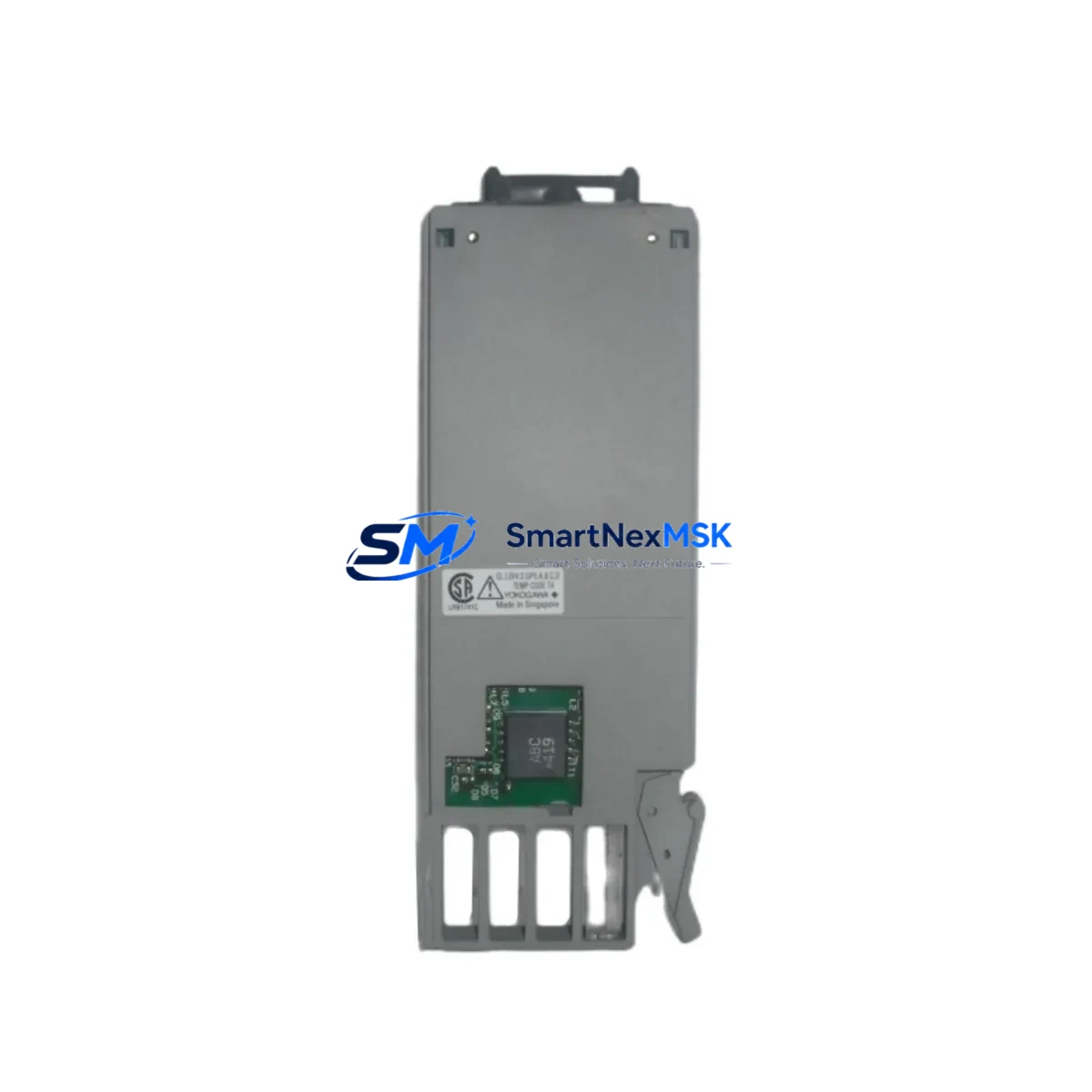

The YOKOGAWA AAM50 is an 8-channel analog output module designed for the CENTUM series Distributed Control System (DCS). In process industries — including oil & gas, petrochemical, power generation, and pharmaceutical manufacturing — the AAM50 serves as a critical field interface component, converting digital control signals from the CENTUM controller into 4–20 mA analog outputs that drive control valves, positioners, variable-speed drives, and other final control elements. When an AAM50 fails or degrades, the consequences extend beyond a single loop: entire process trains can be forced into manual operation or emergency shutdown, resulting in costly unplanned downtime.

At SMARTNEXMSK, we maintain verified stock of the YOKOGAWA AAM50 to support maintenance engineers and procurement teams who need a reliable, fast-turnaround spare. Every unit is inspected prior to shipment and covered by a 12-month warranty, giving your maintenance team confidence in both quality and long-term supply continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing an AAM50 in a live CENTUM system is rarely an isolated task. Maintenance engineers conducting a planned outage or responding to a channel fault alarm should treat the AAM50 replacement as an opportunity to inspect the broader control loop and cabinet environment. Begin by verifying the integrity of the CENTUM node unit power supply module (such as the PW481 or PW482) that feeds the slot rack — a marginal power supply can cause intermittent output errors that mimic module failure. Check the ESB bus coupler and backplane connector pins for oxidation or mechanical damage before inserting the replacement AAM50.

On the field wiring side, inspect the terminal block assemblies and marshalling cabinet connections associated with the eight output channels. Corroded terminals or loose ferrules introduce loop resistance that can shift the 4–20 mA calibration point and trigger nuisance alarms even after a module swap. If the plant uses YOKOGAWA FOUNDATION Fieldbus or HART communication alongside conventional analog outputs, confirm that the AAM50 replacement does not disturb adjacent ALF111 fieldbus communication modules sharing the same node unit.

For sites running aging CENTUM CS 3000 infrastructure, this maintenance window is also the right time to audit the AAI141 or AAI543 analog input modules in the same cabinet — input and output modules in the same process loop age under similar thermal and electrical stress conditions. Likewise, inspect any ADV151 or ADV161 digital output modules that share the same field control unit, as their relay contacts and solid-state outputs are subject to comparable wear cycles.

Signal integrity between the AAM50 and field devices depends on clean loop power. If your plant uses external 24 VDC loop power supplies or signal isolators / signal conditioners in the marshalling cabinet, verify their output voltage under load before commissioning the new module. A sagging loop supply will cause the AAM50 to report output errors even when the module itself is healthy. Where intrinsic safety barriers or galvanic isolators are installed between the DCS and hazardous-area field instruments, confirm that barrier resistance values remain within the AAM50’s load compliance range (typically 600 Ω maximum per channel).

Finally, update your site’s spare parts register to reflect the AAM50 replacement and log the channel calibration results in your CMMS. Proactive stocking of one AAM50 per CENTUM node unit cluster is a widely adopted practice in process plants with high-availability requirements, reducing mean time to repair (MTTR) for analog output faults from hours to minutes.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the fault is isolated to the AAM50 by reviewing the CENTUM HIS alarm log and checking for channel-specific output fault codes. Place the affected loops in manual mode at the operator station before proceeding.

Step 2 — Safe isolation: De-energize the node unit slot following your site’s lockout/tagout procedure. For hot-swap capable CENTUM configurations, consult the engineering documentation to determine whether online replacement is permitted for your specific firmware revision.

Step 3 — Module extraction and inspection: Remove the faulty AAM50 and inspect the backplane connector for bent pins or contamination. Clean with approved contact cleaner if necessary before inserting the replacement unit.

Step 4 — Replacement and commissioning: Insert the new AAM50 into the correct slot. Power up the node unit and confirm the module status LED indicates normal operation on the CENTUM engineering workstation. Perform a loop calibration check on all eight channels against your instrument data sheets.

Step 5 — Return to automatic: Transfer each loop from manual to automatic control sequentially, monitoring process variable response to confirm correct output scaling and direction. Document the replacement in your maintenance management system with the new module’s serial number and calibration data.

This workflow minimizes process disruption, maintains system compatibility, and ensures the replacement AAM50 is fully validated before returning the process to automatic control — reducing total downtime to under two hours in most planned maintenance scenarios.

Spare Parts Support FAQ

Q1: Is the AAM50 compatible with both CENTUM CS 3000 and CENTUM VP systems?
The AAM50 was originally developed for the CENTUM CS 3000 platform. Compatibility with CENTUM VP depends on the specific node unit generation and firmware version in your installation. We recommend confirming the slot assignment and I/O builder configuration with your YOKOGAWA system engineer before installation. Our team can provide the module’s hardware revision information to assist with compatibility verification.

Q2: What is your pre-shipment testing process for the AAM50?
Each AAM50 unit in our inventory undergoes a functional inspection covering physical condition, connector integrity, and where test equipment permits, basic output channel verification. Units are shipped with protective packaging to prevent ESD damage and mechanical stress during transit. A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment.

Q3: How quickly can you ship, and do you support emergency orders?
In-stock AAM50 units are typically dispatched within 1–2 business days. For emergency plant shutdown situations, contact us directly at [email protected] or +86 18259474341 to discuss expedited shipping options. We support DHL Express, FedEx International Priority, and air freight for time-critical spare parts requirements.

Q4: What is your recommended inventory strategy for AAM50 modules in a large CENTUM installation?
For process plants with 10 or more CENTUM node units containing AAM50 modules, a minimum stock of 2–3 spare units is generally recommended to cover both planned maintenance rotations and unplanned failures. For critical continuous-process applications (refinery, LNG, power generation), consider maintaining one spare per node unit cluster. We offer long-term supply agreements and reserved stock arrangements for customers with high-availability requirements.
