Bachmann M1 Spares: Protect the Backup Before Replacement

A Bachmann M1 controller can look like a simple plug-in replacement until the first restart exposes the real problem: the hardware is present, but the application image, module map, parameter set, or revision history is not. In a running plant, that distinction matters more than the label on the replacement box.

For M1 installations, spare planning should begin with the controller state and system context, not with a single part number. Bachmann’s official M1 ServiceCenter documentation describes how an offline device image or file-system backup can be used to emulate an M200 and test a created process sequence on a PC. That is a useful recovery path, but it does not remove the need to identify the installed hardware, software, and I/O architecture before a change.

Why an M1 spare is more than a CPU swap

An M1 rack may depend on several layers that are easy to confuse during an outage:

• the processor or compact controller that executes the application;
• the backplane and rack arrangement that provides the physical module path;
• communication, safety, fieldbus, or analog and digital I/O modules;
• the application image, boot media, parameters, firmware, and engineering tools;
• the plant-side wiring, addressing, and commissioning records.

A replacement CPU can be electrically suitable and still fail the recovery test if the backup is incomplete, the firmware family is different, or the installed module order does not match the project file. The procurement question is therefore not only “Which Bachmann controller is this?” It is “Which exact hardware and software state must be restored, and what evidence proves that it can be restored?”

1. Protect the controller backup before removing hardware

Before exchanging a suspect controller, preserve every recoverable copy of the system state. Record the controller model, serial or asset number, firmware version, boot medium, engineering software version, application image, parameter files, and the date of the last known-good backup. Export configuration files where the toolchain permits it, and retain the original media as evidence rather than overwriting it during troubleshooting.

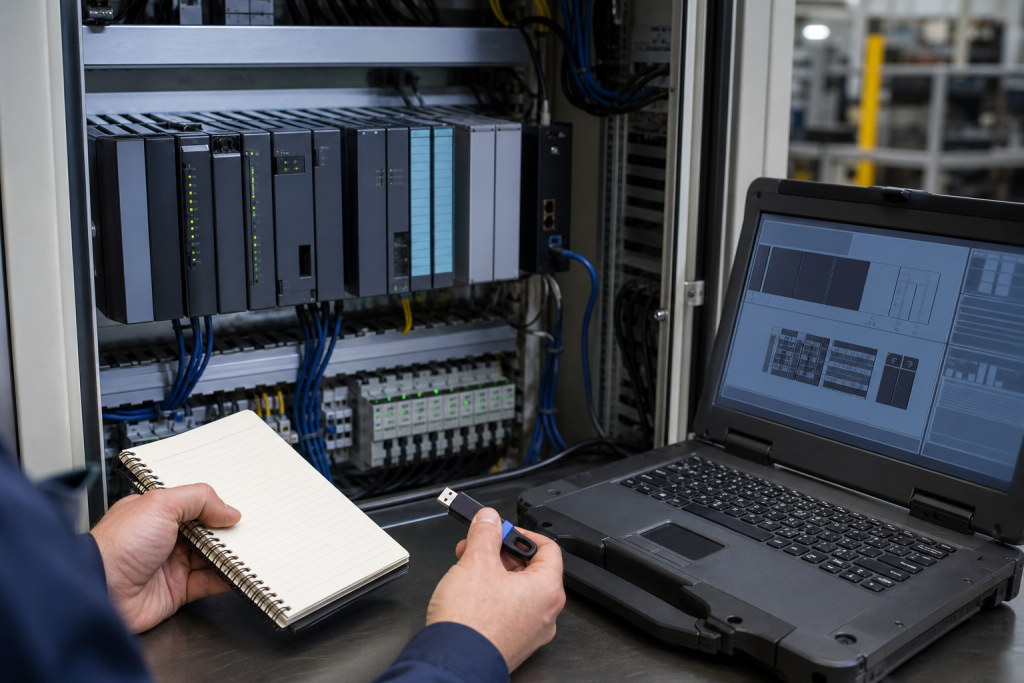

Also photograph the rack, module order, terminal labels, network connections, and any selector or address settings. A file backup without the physical context is often not enough to rebuild a running system. If the plant has an offline image, test whether it opens and whether the engineering environment can identify the expected modules. The goal is to know what can be simulated or restored before the outage window begins.

2. Separate CPU, backplane, and module risk

Do not automatically treat every M1 fault as a processor problem. Intermittent resets may involve power quality, thermal conditions, storage media, communication interfaces, or a backplane connection. A failed backplane can make a healthy controller appear unable to see its I/O. A changed module revision can create a compatibility issue that will not be visible in a basic power-up check.

For a CPU-focused RFQ, the Bachmann CPC210 M1 Series CPU spare is a relevant catalog reference. For a compact controller or processing path, compare the installed configuration with the Bachmann SFS236C M1 automation spare. If the diagnostic evidence points to the rack interconnect rather than the processor, the Bachmann BS205 M1 control-system backplane belongs in the compatibility review. These are sourcing starting points, not permission to substitute one model for another without checking the installed system.

3. Decide whether the need is replacement, repair, or retrofit

A maintenance replacement aims to return the existing application to service with the least change. A repair may keep the installed configuration intact but requires clear acceptance evidence and a defined return path. A retrofit changes the hardware or software basis and should be treated as an engineering change, even when the new unit appears to fit the same cabinet.

For each option, document what remains unchanged: wiring, rack position, network address, application logic, I/O mapping, safety behavior, HMI communication, and operator procedures. Then document what must be revalidated. This prevents a “drop-in” description from hiding a commissioning task.

The wider Bachmann parts catalog is useful for locating related M1 modules, but a broad brand result should not replace the exact model, revision, and installed-location evidence in the RFQ.

4. Build a practical bench acceptance test

Before installation, define a short test that matches the plant risk. At minimum, confirm that the unit powers correctly, boots with the intended media, accepts the expected application or backup, recognizes the required module set, and communicates through the relevant engineering or service interface. Where an offline image is available, test the recovery sequence on a controlled workstation first.

Record the software and firmware versions used for the test. Capture diagnostic messages, I/O recognition, communication status, and any deviations from the original configuration. For safety-related or process-critical applications, the final acceptance criteria should be approved by the responsible controls engineer and integrated with the plant’s change-control procedure.

5. Put the evidence into the RFQ

A useful Bachmann M1 spare request should include the exact model, full ordering code, installed location, quantity, urgency, destination country, photos of the nameplate and rack, known firmware or software version, and whether the request is for maintenance replacement, repair, or retrofit. Include the last known-good backup status and identify any modules that must remain compatible.

That information lets a supplier check the sourcing path without guessing. It also gives the plant team a record of what was actually reviewed, which is valuable when the original engineer is not available during the outage.

Frequently asked questions

Is a Bachmann M1 CPU automatically interchangeable if the model name is similar?

No. Confirm the full ordering code, hardware revision, firmware requirements, application image, rack arrangement, and connected modules before treating it as a replacement.

Should the backup be made only after the controller fails?

No. The most useful backup is a verified copy made while the system is healthy, together with software-version records and photographs of the installed hardware.

Can an offline image replace a live commissioning test?

No. An offline image can help validate recovery logic and application behavior, but the installed rack, wiring, network, I/O, and plant operating conditions still require controlled site verification.

When should the backplane be included in the spare plan?

Include it when diagnostics, module visibility, physical connections, or intermittent rack behavior point beyond the processor. It is also worth reviewing when the existing backplane is difficult to source and the outage consequence is high.

What should be sent with an urgent RFQ?

Send the exact model and ordering code, photos, quantity, delivery country, urgency, installed location, backup status, firmware or software information, and whether the request is for a like-for-like replacement, repair, or retrofit review.

Before the next outage, compare the installed Bachmann M1 architecture with the backup that is expected to restore it. If the model, label photos, configuration files, or replacement requirement are uncertain, send the available evidence to [email protected] or WhatsApp/Phone +86 18259474341 for a model and compatibility review.
