ABB 07KT97 WT97 Retrofit-Ready CPU for AC31 Systems

ABB 07KT97 WT97 Retrofit-Ready CPU for AC31 Control Systems

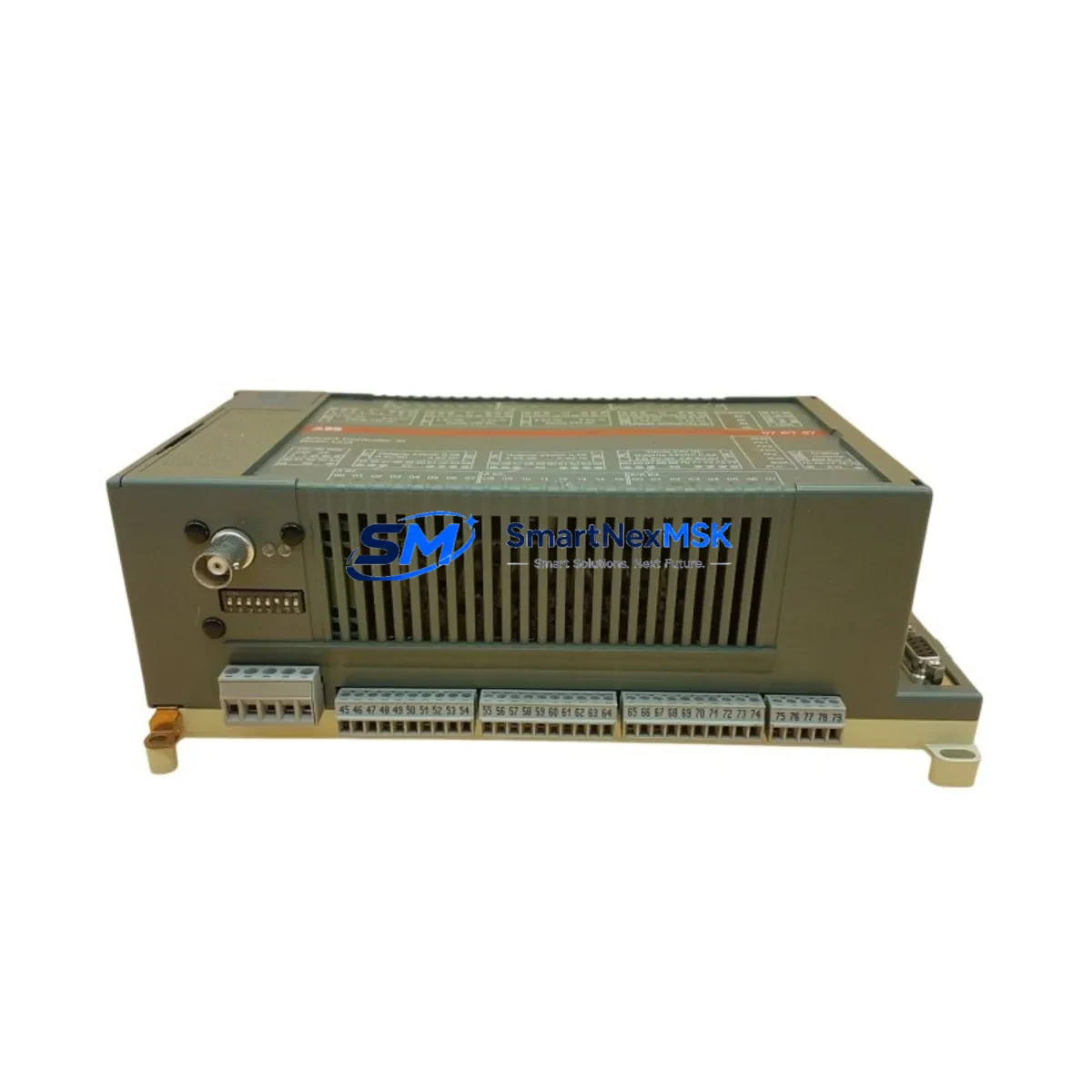

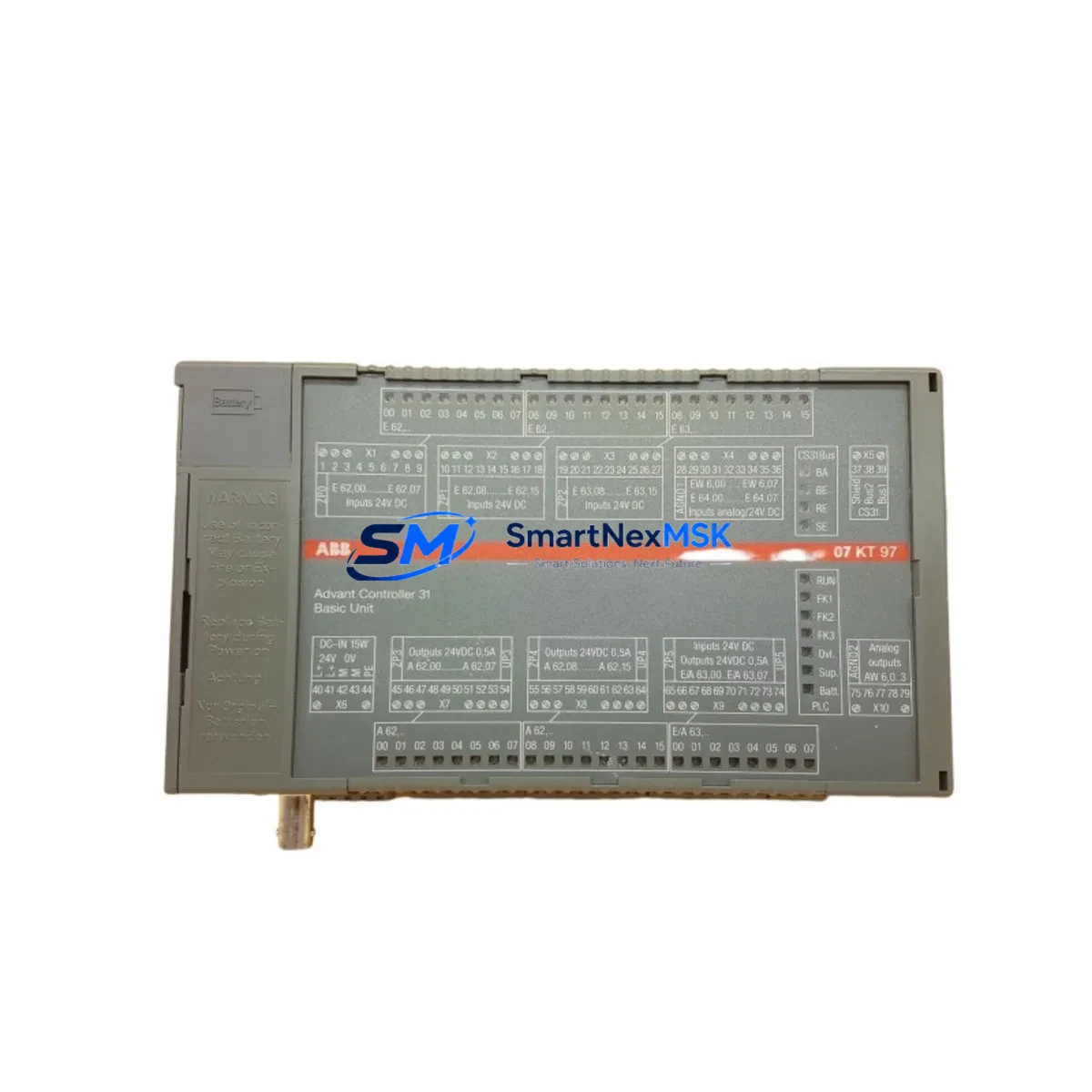

The ABB 07KT97 WT97 is a high-performance CPU module engineered for the AC31 programmable controller platform, widely deployed across industrial automation systems in process control, machine automation, and utility infrastructure. As legacy AC31 installations approach end-of-service milestones, the 07KT97 WT97 has become the preferred retrofit-ready replacement for engineers managing controlled system migrations, unplanned failures, and planned upgrade cycles. With verified compatibility across the AC31 rack architecture, this module supports smooth transitions from discontinued predecessors while preserving existing program logic, I/O mapping, and field wiring configurations.

Whether you are replacing a failed unit on an active production line, upgrading a control cabinet to extend operational life, or migrating from an older AC31 CPU variant, the 07KT97 WT97 delivers the processing capacity, communication flexibility, and backplane compatibility required for reliable industrial operation. SMARTNEXMSK maintains ready stock of this module with full pre-shipment functional testing and a 12-month warranty on every unit.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful AC31 retrofit begins well before the new CPU arrives on site. Engineers should audit the existing control cabinet to document the current rack configuration, including the number of populated slots, the mix of digital and analog I/O modules such as the 07DI92 digital input module and 07DO91 digital output module, and any specialty cards like the 07AI91 analog input module or 07AO91 analog output module. Power supply capacity must be verified — the 07PS92 power supply module must be confirmed capable of supporting the 07KT97 WT97 alongside all installed I/O cards, as undersized power budgets are a leading cause of intermittent faults after CPU replacement.

Communication infrastructure deserves equal attention. If the existing system uses a CS31 bus topology connecting remote I/O stations, the new CPU must be configured with matching station addresses and baud rates before going live. Sites running PROFIBUS-DP networks should verify GSD file compatibility and confirm that the DP master configuration in the programming tool reflects the actual field device list. Where Modbus RTU links connect third-party drives, meters, or HMI panels, the communication module — typically a 07CM91 or equivalent serial interface card — must be retained and its parameters preserved in the replacement CPU’s configuration file.

HMI integration is another critical checkpoint. Operator panels connected via the AC31 serial interface or a dedicated HMI communication driver must be tested after CPU swap to confirm that all variable addresses, screen navigation logic, and alarm setpoints remain intact. If the site uses a PC-based SCADA system communicating over OPC or a proprietary ABB driver, the communication link should be validated in simulation mode before the system is returned to automatic operation. Programming cables compatible with the AC31 platform — such as the 07SK91 serial programming cable — should be on hand during commissioning to allow direct CPU access for diagnostics and program verification.

For sites where the original programming software archive is incomplete or the project file version does not match the installed firmware, SMARTNEXMSK recommends requesting a firmware compatibility check before ordering. Our technical team can assist in identifying the correct firmware baseline and advising on any required program conversion steps to ensure the replacement CPU accepts the existing application without modification.

Downtime Control During System Migration

Minimizing production interruption during a CPU replacement requires a structured pre-outage preparation protocol. Before the scheduled maintenance window, the existing CPU program should be uploaded and saved to at least two independent storage locations — a local engineering workstation and a secure network backup. All current data block values, retentive memory contents, and communication parameter sets should be documented, as these are not always preserved in the standard program archive and must be manually re-entered after the swap.

During the physical replacement, the rack should be de-energized at the power supply level rather than at the main cabinet breaker where possible, to avoid disturbing field wiring on I/O modules that remain in service. The 07KT97 WT97 should be inserted into the correct rack slot — typically slot 0 or the designated CPU slot as defined by the rack configuration — and secured before power is restored. On first power-up, the CPU will perform a self-diagnostic cycle; engineers should monitor the status LEDs and confirm that the RUN indicator is stable before attempting program download.

Program download should be performed in STOP mode, with all field outputs confirmed in a safe state. After download, a controlled step-through of the program in single-scan mode — where the programming tool supports it — allows verification of I/O response before returning to automatic RUN mode. Communication links to remote I/O, HMI panels, and SCADA systems should be re-established one at a time, with each link confirmed stable before the next is activated. This staged reconnection approach isolates any configuration mismatches and prevents cascading faults that can extend downtime beyond the planned window.

Retrofit Support FAQ

Q: Is the 07KT97 WT97 a direct drop-in replacement for earlier AC31 CPU variants?
A: In most cases, yes. The 07KT97 WT97 is physically and electrically compatible with the AC31 rack backplane. However, firmware revision differences between the original and replacement unit may require a program re-compilation or minor configuration adjustment. We recommend confirming the firmware version of your existing CPU before ordering so our team can advise on any required steps.

Q: What wiring changes are required when replacing the CPU?
A: The CPU module itself does not carry field wiring — all I/O connections remain on the installed I/O modules and their terminal blocks. No field wiring changes are required for a like-for-like CPU swap. If the replacement is part of a broader I/O expansion or rack reconfiguration, terminal block layouts and module addressing should be reviewed against the updated rack configuration.

Q: How is the unit tested before shipment?
A: Every 07KT97 WT97 unit shipped by SMARTNEXMSK undergoes a pre-shipment functional test that verifies power-up self-diagnostics, communication port operation, and memory integrity. Units that do not pass all test criteria are quarantined and not shipped. A test report is available on request.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with a replacement-first policy — a tested replacement unit is dispatched before the failed unit is returned, minimizing your downtime exposure.
